Ginarelo LB-6013 6-inch Cordless Mini Chainsaw User Manual

1. Introduction

Thank you for choosing the Ginarelo LB-6013 6-inch Cordless Mini Chainsaw. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your tool. Please read this manual thoroughly before first use and keep it for future reference.

2. Safety Instructions

WARNING: Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection when operating the chainsaw.

• Read all instructions carefully before use.
• Keep hands, hair, and loose clothing away from the chain when the tool is in operation.
• Ensure the work area is clear of bystanders, especially children and pets.
• Do not operate the chainsaw in wet conditions or near flammable liquids or gases.
• Always maintain a firm grip with both hands on the chainsaw.
• Be aware of kickback. Avoid cutting with the tip of the guide bar.
• Remove the battery when not in use, before cleaning, or performing maintenance.
• The chainsaw features a dual-activation safety system: it will only start when both the safety button and the trigger are pressed simultaneously. Do not attempt to bypass this safety feature.
• The integrated blade guard protects hands and prevents wood chips from flying. Ensure it is always in place during operation.

Image: Safety features of the Ginarelo mini chainsaw, highlighting the dual-activation button and the protective blade guard to prevent accidental starts and wood chip splash.

3. Package Contents

Your Ginarelo LB-6013 Mini Chainsaw package includes the following items:

• 1 x Ginarelo Mini Chainsaw (6-inch)
• 2 x 21V 1300mAh Lithium-ion Batteries
• 1 x Battery Charger
• 3 x Chains (one pre-installed, two spares)
• 1 x Guide Bar
• 1 x Blade Guard
• 1 x Oil Bottle (empty, for lubrication)
• 1 x Pair of Safety Gloves
• 1 x Pair of Safety Glasses
• 1 x Screwdriver
• 2 x Mounting Tools
• 1 x Carrying Case
• 1 x User Manual

Image: The complete Ginarelo Mini Chainsaw kit, including the chainsaw, two batteries, charger, three chains, safety gear, and carrying case.

4. Product Features

• Powerful Motor: Equipped with an 800W pure copper motor, delivering a chain speed of 10.5 m/s for efficient cutting.
• Extended Battery Life: Two 21V 1300mAh high-capacity lithium-ion batteries provide up to 30 minutes of continuous use each, with built-in overheat and overload protection.
• Enhanced Safety: Features a dual-activation safety switch and an integrated blade guard for user protection.
• Lightweight & Ergonomic: Designed for single-hand operation, weighing approximately 1.5 kg, reducing fatigue during prolonged use.
• Low Noise Operation: Operates more quietly compared to gasoline chainsaws, making it suitable for residential use.
• Durable Chain: Made from high-quality manganese steel for smooth, fast, and precise cuts.

Image: Illustration of the chainsaw's pure copper motor, emphasizing its power and efficiency for quick cutting.

Image: The two 21V 1300mAh high-capacity rechargeable batteries, featuring protection against overvoltage, overcurrent, overheating, and overcharging.

Image: A user demonstrating the lightweight and ergonomic design of the mini chainsaw, allowing for comfortable single-hand operation.

5. Setup and Assembly

5.1. Chain Installation/Replacement

Follow these steps to install or replace the chain:

1. Ensure the battery is removed from the chainsaw.
2. Unscrew and remove the sprocket cover.
3. Carefully wrap the chain around the guide bar, ensuring the cutting edges face the correct direction (away from the motor).
4. Place the chain and guide bar onto the chainsaw, fitting the chain into the sprocket.
5. Adjust the chain tightness. The chain should be snug but still able to be pulled slightly away from the guide bar.
6. Reinstall the sprocket cover and tighten the screws securely.

Image: Visual guide detailing the six steps for correctly installing or replacing the chainsaw chain.

5.2. Battery Installation

To install the battery, align the battery pack with the slot on the bottom of the chainsaw handle and slide it in until it clicks securely into place. To remove, press the release button on the battery and slide it out.

5.3. Lubrication

The chainsaw requires manual lubrication. Fill the provided oil bottle with suitable chainsaw bar and chain oil (not included). Apply a small amount of oil directly to the chain and guide bar before and during use, especially during extended cutting sessions, to ensure smooth operation and prolong chain life.

6. Operation

6.1. Starting the Chainsaw

With the battery installed and safety gear worn:

1. Grip the chainsaw firmly with one hand.
2. Press and hold the safety lock button (usually located on the side of the handle).
3. While holding the safety button, press the trigger to start the chainsaw. Release the trigger to stop.

6.2. Cutting Techniques

This mini chainsaw is ideal for light to medium pruning, cutting small branches, and preparing firewood. It can cut branches up to 6 inches (15 cm) in diameter.

• Always ensure stable footing and a clear work area.
• Start the cut with the bottom of the guide bar, allowing the chain to pull into the wood.
• Avoid forcing the chainsaw; let the tool do the work.
• For thicker branches, make relief cuts to prevent pinching the guide bar.
• Be mindful of the branch's weight and direction of fall.

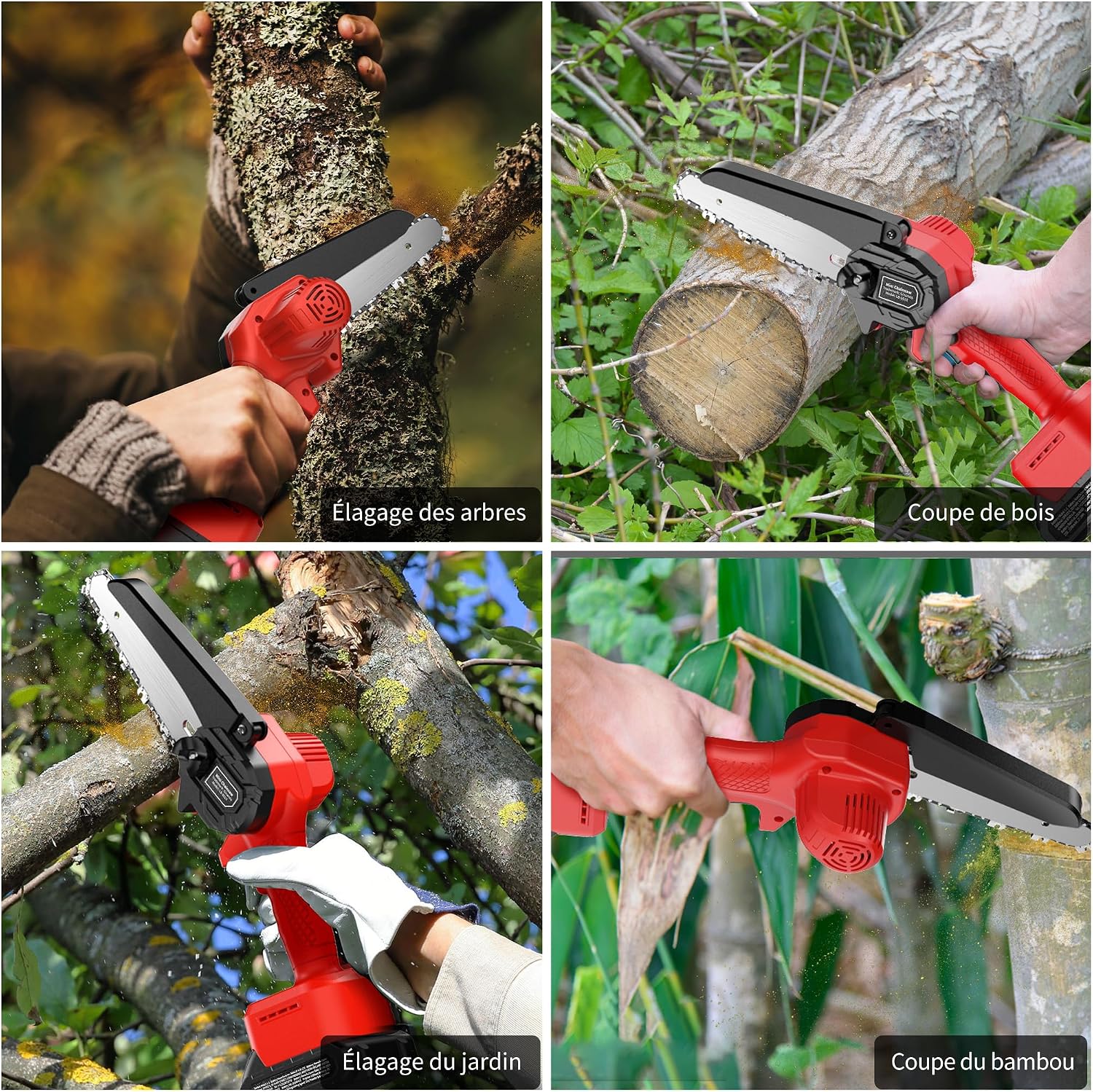

Image: The Ginarelo mini chainsaw being used for various tasks such as tree pruning, wood cutting, garden trimming, and bamboo cutting.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your chainsaw.

• Chain Tension: Check chain tension regularly. A properly tensioned chain should be snug against the guide bar but still allow you to pull it slightly away. Adjust as needed using the provided tools.
• Chain Lubrication: Keep the chain and guide bar well-lubricated to reduce friction and wear. Apply oil frequently during use.
• Cleaning: After each use, remove the battery and clean the chainsaw. Use a brush to remove wood chips, sawdust, and debris from the chain, guide bar, and motor vents.
• Battery Care: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Charge batteries fully before storage and periodically during long storage periods to maintain their health.
• Chain Sharpening: A dull chain will reduce cutting efficiency and increase strain on the motor. Sharpen the chain regularly or replace it with a new one when necessary.

Image: Detailed view of the durable manganese steel chain, highlighting its design for smooth and efficient cutting, and its low noise operation.

8. Troubleshooting

If you encounter issues with your Ginarelo Mini Chainsaw, refer to the following common problems and solutions:

If you experience a safety button malfunction or any other critical issue, immediately stop using the tool, remove the battery, and contact customer support for assistance. Do not attempt to repair critical safety components yourself.

9. Specifications

10. Warranty and Support

For warranty information, technical support, or spare parts, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
