Vitrifrigo C85i Single Door Refrigerator User Manual

1. Introduction

Thank you for choosing the Vitrifrigo C85i Single Door Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.

The C85i is designed for optimal cooling performance within a compact footprint, offering 85 liters of total capacity, including both a refrigerator and a freezer compartment. Its flexible door positions allow for adaptation to various installation scenarios.

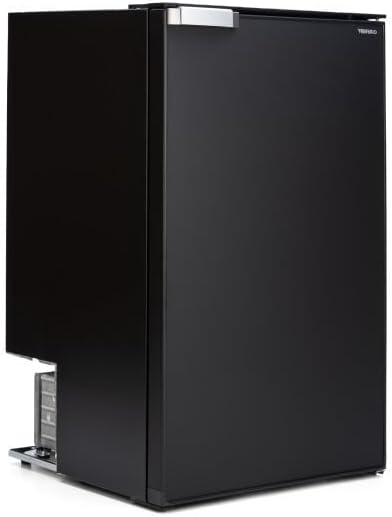

Image showing the Vitrifrigo C85i single door refrigerator in black, with its compact design and side profile visible.

2. Safety Information

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury:

• Ensure the appliance is connected to a power supply that matches the specifications (24 Volts DC).
• Do not operate the refrigerator if the power cord is damaged.
• Maintain adequate ventilation around the unit to prevent overheating.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Setup and Installation

3.1 Unpacking

Carefully remove all packaging materials. Inspect the refrigerator for any damage incurred during transit. Report any damage to your dealer immediately.

3.2 Placement

• Place the refrigerator on a firm, level surface capable of supporting its weight (approximately 25 kg / 55 lbs).
• Ensure sufficient clearance around the unit for proper air circulation, especially at the rear where the compressor is located.
• Avoid direct sunlight or proximity to heat sources (e.g., ovens, radiators) to optimize energy efficiency.

3.3 Electrical Connection

Connect the refrigerator to a stable 24 Volts DC power supply. Ensure the polarity is correct. Consult a qualified electrician if you are unsure about the electrical setup.

3.4 Door Reversal

The C85i features flexible door positions. To reverse the door swing (from right-hinged to left-hinged), refer to the detailed instructions provided in the separate installation guide or contact customer support. This process typically involves relocating hinges and the door handle.

4. Operating Instructions

4.1 Initial Startup

After installation, allow the refrigerator to stand upright for at least 2-4 hours before connecting it to power. Once connected, allow it to cool for several hours before loading food.

4.2 Temperature Control

The temperature inside the refrigerator is controlled by a thermostat. Locate the thermostat dial, typically inside the fresh food compartment. Turn the dial to adjust the cooling intensity. A higher number usually indicates colder temperatures.

4.3 Food Storage Guidelines

• Refrigerator Compartment (85 Liters): Ideal for fresh foods, beverages, and dairy products. Store items in sealed containers to prevent odor transfer and maintain freshness.
• Freezer Compartment (12.8 Liters): Suitable for storing frozen foods. Do not overload the freezer compartment to ensure efficient freezing.
• Avoid placing hot food directly into the refrigerator; allow it to cool down first.

4.4 Energy Saving Tips

• Open the door as infrequently and for as short a duration as possible.
• Ensure the door seal is clean and intact to prevent cold air leakage.
• Do not place the refrigerator near heat sources.
• Allow hot food to cool before placing it inside.

5. Maintenance

5.1 Cleaning

• Interior: Disconnect power before cleaning. Use a soft cloth with a mild detergent and warm water. Rinse thoroughly and dry. Avoid abrasive cleaners or solvents.
• Exterior: Wipe with a soft, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner.
• Door Seal: Regularly clean the door gasket to ensure a tight seal.

5.2 Defrosting

The Vitrifrigo C85i features an automatic defrost system for the refrigerator compartment. The freezer compartment may accumulate some frost over time. If frost buildup in the freezer becomes excessive (more than 1/4 inch), manually defrost by turning off the unit, removing all contents, and allowing the frost to melt naturally. Do not use sharp objects to remove ice.

5.3 Long-Term Storage

If the refrigerator will not be used for an extended period, disconnect it from power, empty all contents, clean the interior thoroughly, and leave the door slightly ajar to prevent odors and mold growth.

6. Troubleshooting

If the problem persists after attempting these solutions, please contact customer support.

7. Specifications

8. Warranty and Support

Vitrifrigo products are manufactured to high quality standards. For information regarding the warranty period and terms for your C85i refrigerator, please refer to the warranty card included with your purchase or visit the official Vitrifrigo website.

For technical assistance, spare parts, or any other inquiries, please contact your authorized Vitrifrigo dealer or customer support. When contacting support, please have your model number (F13750800S) and purchase date ready.

Customer Support: Refer to your purchase documentation or the manufacturer's website for contact details.
