PURPLE LEAF LED Louvered Pergola 94AS 11'x14'

1. Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your PURPLE LEAF LED Louvered Pergola. This outdoor structure is designed to enhance your patio, deck, or garden space with its adjustable louvered roof and integrated LED lighting. Please read all instructions carefully before beginning assembly or use.

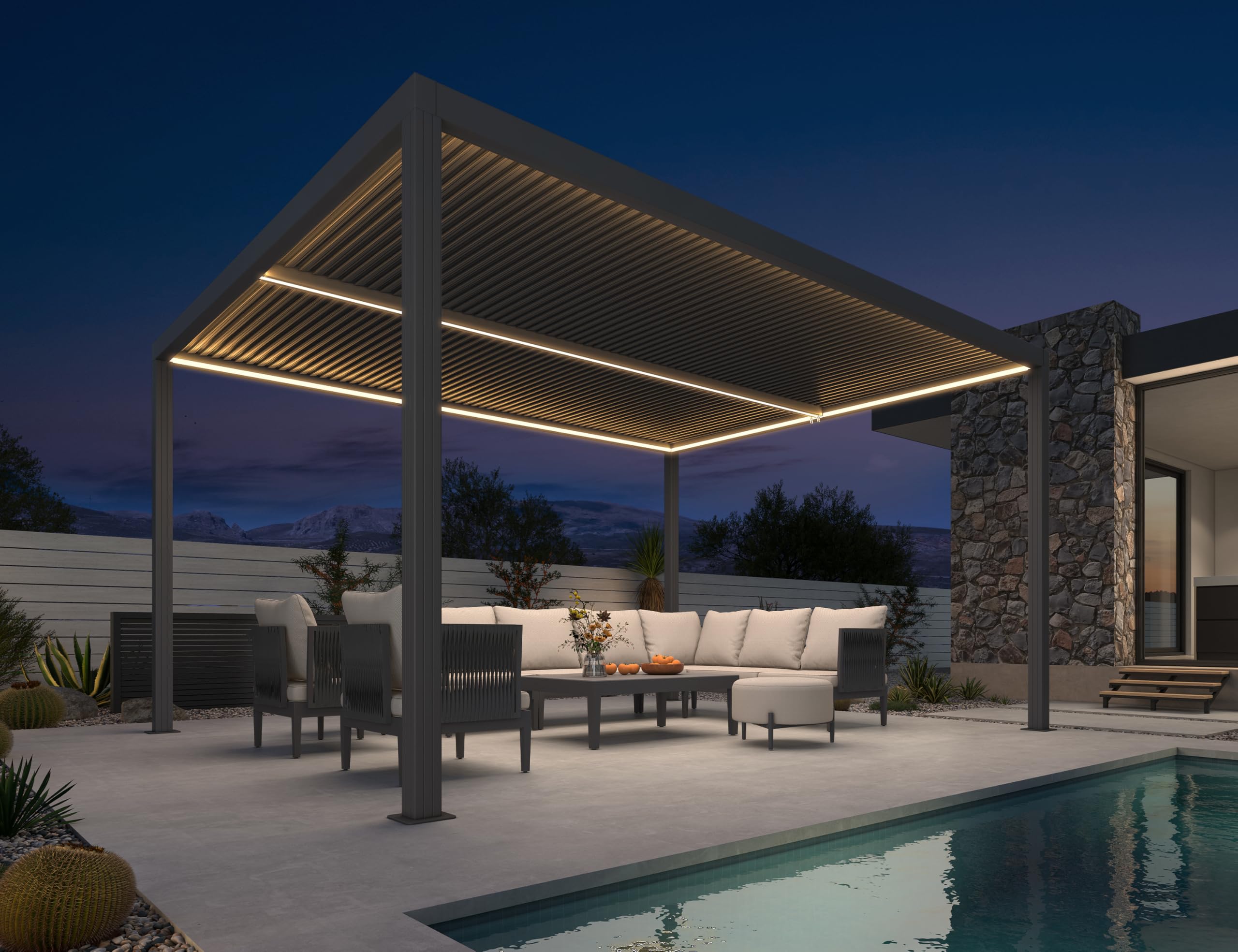

Image 1: Overview of the PURPLE LEAF LED Louvered Pergola.

2. Safety Information

• Always ensure all components are securely fastened before and after assembly.
• Do not attempt to assemble the pergola alone. A minimum of 2-3 adults is recommended for safe installation.
• This pergola is designed to withstand winds up to 72 mph. In extreme weather conditions (e.g., hurricanes, heavy snow), it is advisable to open the louvers to reduce wind resistance and clear snow accumulation to prevent structural damage.
• Ensure all electrical connections for the LED strip lights are waterproof and installed according to local electrical codes. Disconnect power during maintenance or severe weather.
• Keep children and pets away from the assembly area.

3. Package Contents

Verify that all parts listed in the packing list are present and undamaged. If any parts are missing or damaged, contact customer support immediately. Key components include:

• Aluminum Frame Components (posts, beams)
• Louver Blades
• Integrated LED Strip Lights
• Remote Control and Power Supply for LEDs
• Hardware Kit (screws, bolts, anchors)
• Adjustable Poles for Louvers

4. Setup (Assembly)

Assembly requires careful attention to detail and proper tools. It is highly recommended to have at least two to three people for the assembly process due to the size and weight of the components. Refer to the detailed assembly diagrams and step-by-step instructions provided in the separate assembly guide.

Key Assembly Points:

• Foundation: Ensure the installation surface is level and stable. Secure the pergola posts using appropriate anchoring methods for your specific ground type.
• Frame Construction: Assemble the robust powder-coated aluminum frame, ensuring all connections are tight. The posts are 4.33" x 4.33" thick for stability.
• Louver Installation: Install the louver blades into the frame. Pay attention to the mechanism for adjusting the louvers.
• LED Integration: Carefully install the integrated LED strip lights within the designated channels. Connect the wiring to the power supply and remote control receiver. Ensure all electrical connections are protected from moisture.

Image 2: Sturdy aluminum frame construction.

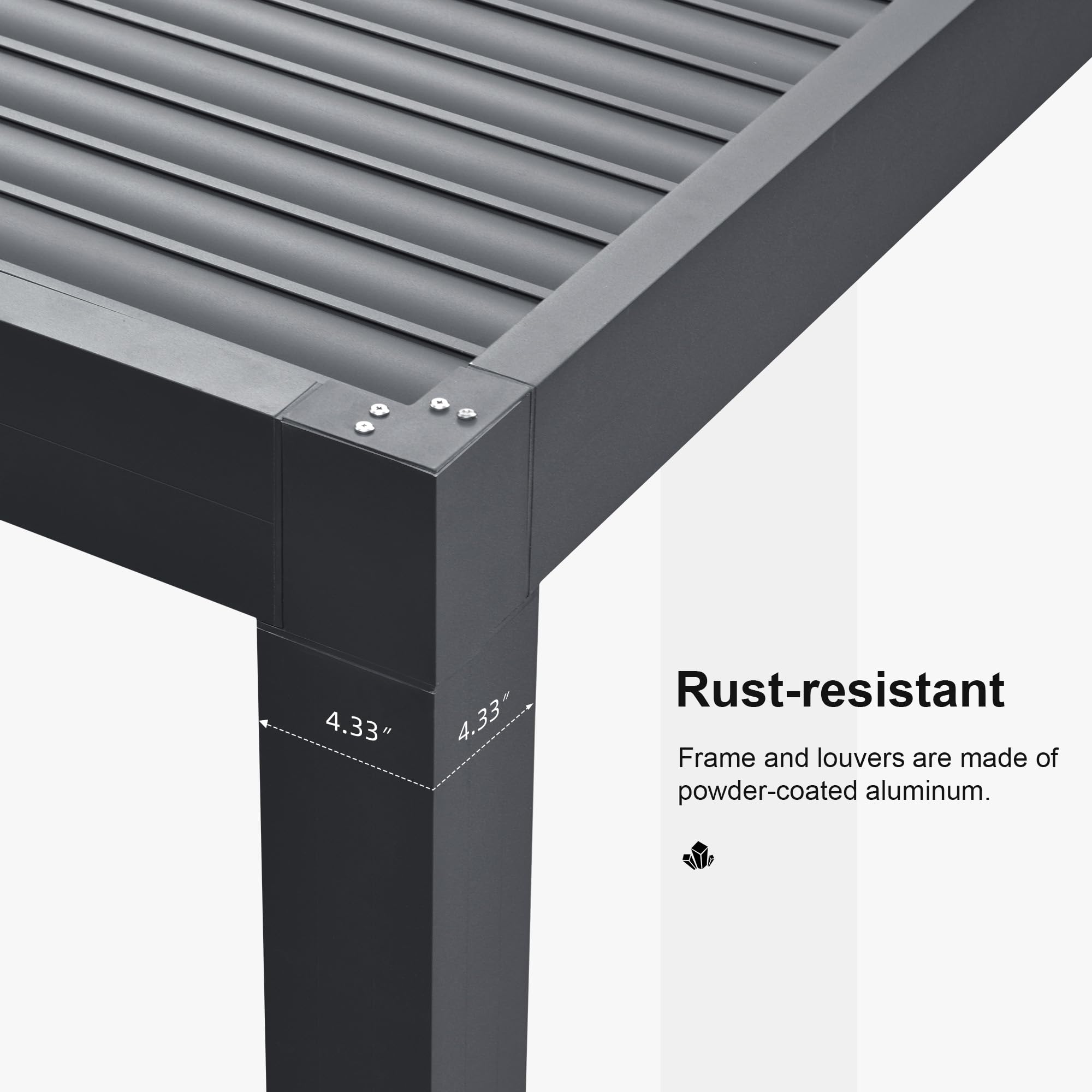

Image 3: Rust-resistant powder-coated aluminum frame.

5. Operating Instructions

Adjusting the Louvered Roof:

The pergola features two independent adjustable louvered roofs. Use the provided adjustable poles to effortlessly rotate the louvers from 0° (fully closed) to 90° (fully open). This allows you to control the amount of sun, shade, and ventilation, as well as provide protection from rain.

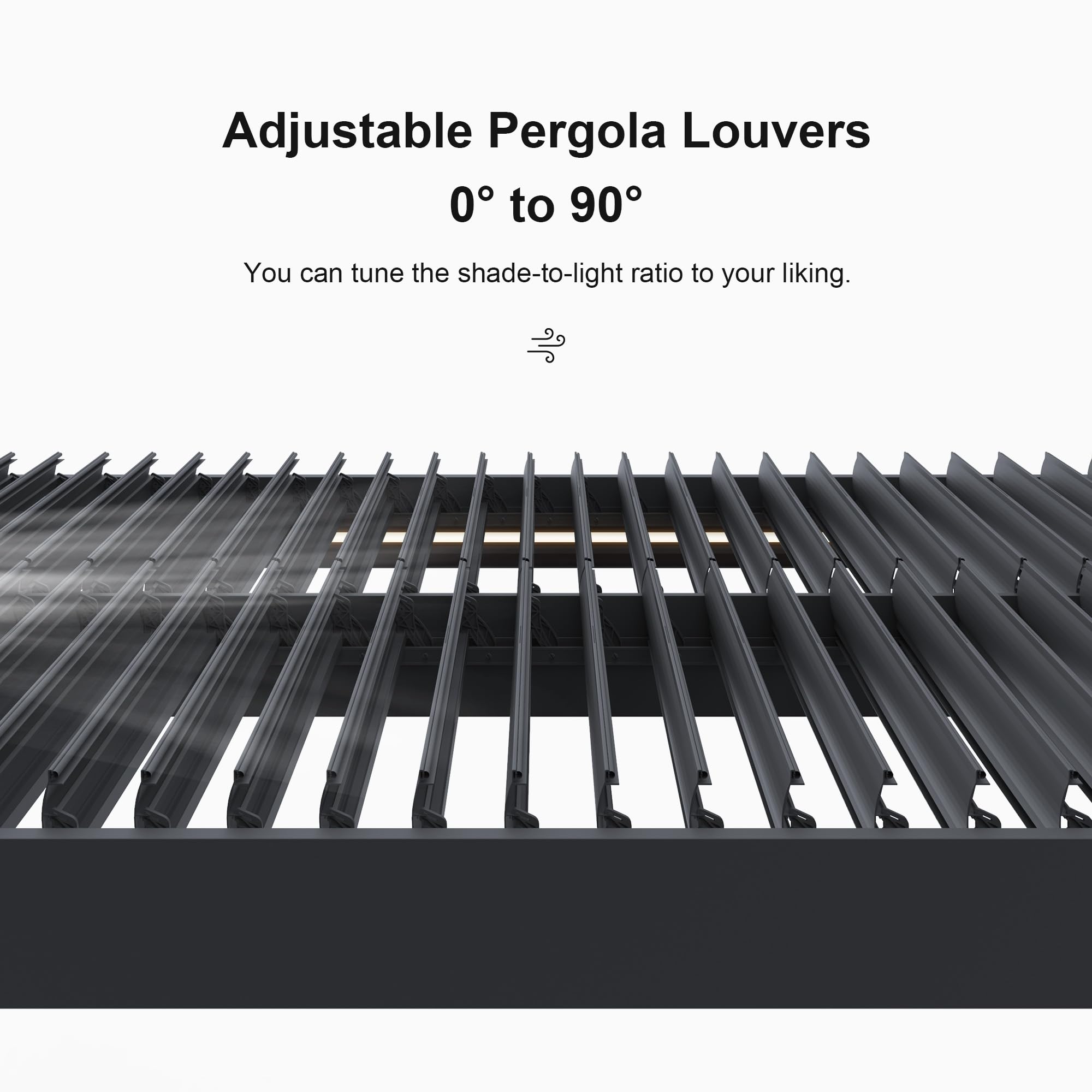

Image 4: Adjustable pergola louvers from 0° to 90°.

Image 5: Independent louver roof configurations.

Using the LED Strip Lights:

The integrated LED strip lights provide a warm 3000K glow. Use the included remote control to turn the lights on/off. The waterproof housing ensures safe outdoor use.

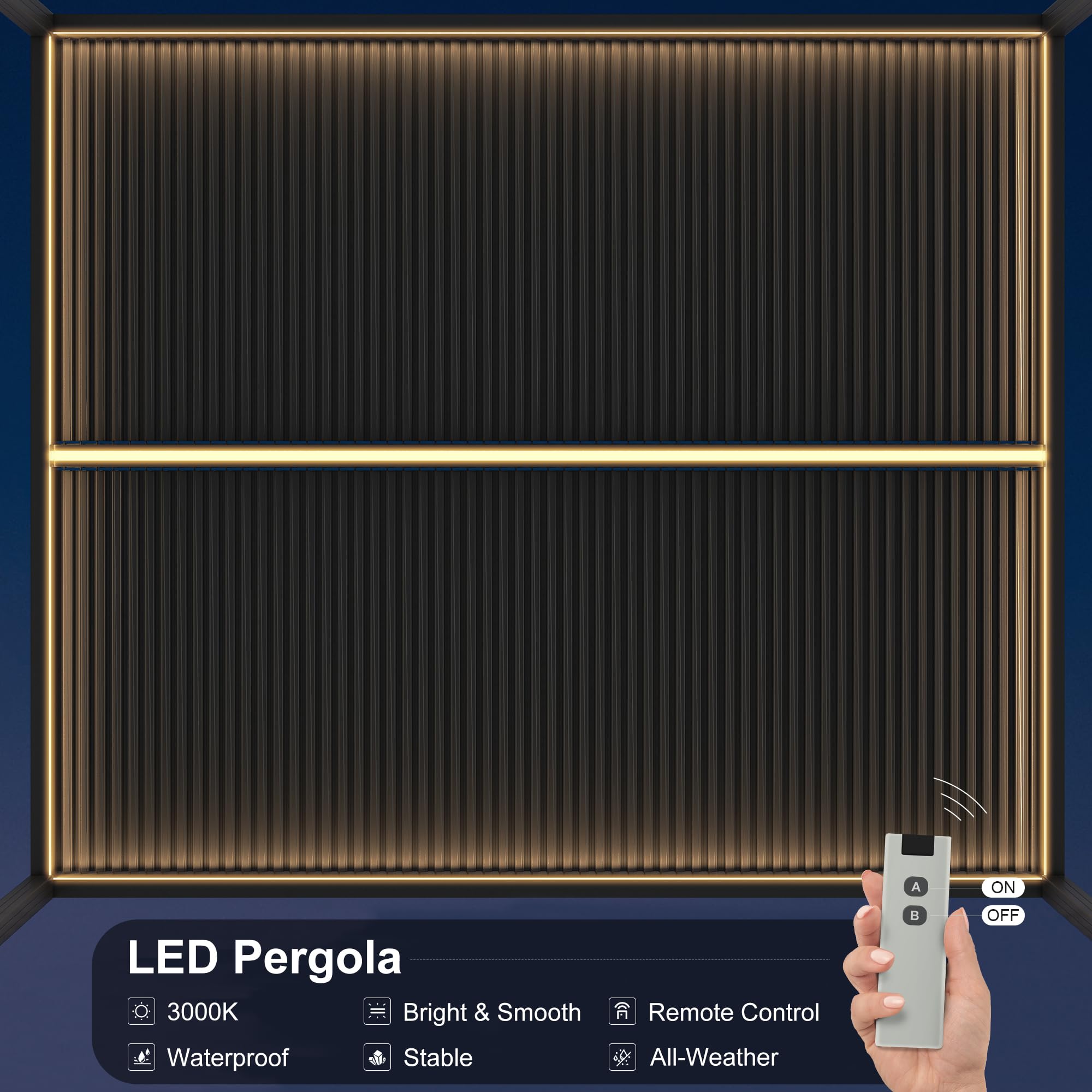

Image 6: Integrated LED strip lights with remote control.

Integrated Drainage System:

When the louvers are closed, rainwater is efficiently collected and diverted through the built-in integrated drainage system. Water flows from the roof edges into the four columns and is then discharged to the ground through notches at the bottom of each post.

Image 7: Concealed water gutter design for efficient drainage.

Video 1: A seller-provided video showcasing the louvered pergola in a patio setting, highlighting its aesthetic appeal and functionality.

Video 2: A seller-provided video demonstrating how the louvered pergola can elevate an outdoor space, showcasing its features and design.

6. Maintenance

• Cleaning: Clean the aluminum frame and louvers regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
• Drainage System: Periodically check and clear the drainage channels and column notches of any debris (leaves, dirt) to ensure proper water flow.
• LED Lights: Inspect LED strips and wiring for any signs of wear or damage. Ensure waterproof seals remain intact.
• Hardware: Annually check all bolts and screws for tightness and re-tighten as necessary.
• Winter Care: In areas with heavy snowfall, it is recommended to keep the louvers open to prevent snow accumulation and potential damage to the roof structure.

7. Troubleshooting

• Louvers not adjusting smoothly: Check for obstructions in the louver mechanism. Ensure the adjustable poles are correctly engaged. Clean any dirt or debris from the louver hinges.
• LED lights not working: Verify the power supply is connected and receiving power. Check the remote control battery. Ensure all wiring connections are secure and undamaged.
• Water pooling on roof: Ensure louvers are fully closed when rain protection is desired. Check the drainage system for blockages in the channels or column notches.
• Pergola instability: Re-check all frame connections and anchoring points. Ensure the ground surface is stable.

8. Specifications

Image 8: Product dimensions and views.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please visit the official PURPLE LEAF website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

Optional protection plans are available for purchase, including 2-Year and 3-Year plans, as well as a monthly 'Complete Protect' option. Refer to your retailer for details on these plans.
