1. Overview
The Fieryzeal 150W LED RGBW Moving Head Light is a versatile and powerful lighting fixture designed for professional stage, disco, party, and event applications. It features a 150W RGBW 4-in-1 COB LED and 26 SMD RGB LED chips, offering a wide range of colors and dynamic lighting effects. With extensive pan and tilt capabilities, multiple operating modes, and efficient heat dissipation, this light is suitable for enhancing various environments from nightclubs to wedding receptions.
Intended Use: This device is intended for professional lighting applications in venues such as DJ setups, dance halls, nightclubs, bars, theaters, clubs, shopping malls, shows, weddings, and family events. It is not designed for general household illumination.
2. Safety Instructions
Please read and understand all safety instructions before installation and operation to prevent injury or damage to the device.
- Always connect the device to a grounded power outlet.
- Ensure the power supply voltage matches the device's requirements (380V AC as per specifications). Consult a qualified electrician if unsure.
- Do not open the housing. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.
- Avoid direct eye exposure to the light source, as it can cause eye damage.
- Ensure adequate ventilation around the unit to prevent overheating. Do not block ventilation openings.
- Mount the device securely using appropriate hardware. Ensure the mounting surface can support the weight of the fixture.
- Keep the device away from moisture, water, and flammable materials.
- Disconnect from power before cleaning or performing any maintenance.
3. Package Contents
Upon unpacking, please verify that all components are present and in good condition:
- 1 x Fieryzeal 150W LED RGBW Moving Head Light
- 1 x Power Cable
- 1 x DMX Cable
- 1 x Mounting Bracket (pre-attached or separate)
- 1 x Instruction Manual (this document)
4. Product Features
- Powerful Light Source: 150W RGBW 4-in-1 COB LED and 26 SMD RGB LED chips for high brightness and versatile color mixing.
- Dynamic Movement: 540-degree pan (X-axis) and 240-degree tilt (Y-axis) for wide-ranging light projection.
- Extensive Color Palette: Capable of mixing up to 16 colors, with linear dimming from 0-100%.
- Adjustable Color Temperature: Range from 2800K to 8500K.
- Multiple Control Modes: DMX (23 channels), Automatic, Sound Control, Master-Slave, and Strobe.
- Compact and Durable Design: Constructed from metal alloy and plastic, lightweight (3.3 kg) and resistant to corrosion and high temperatures.
- Efficient Heat Dissipation: Advanced technology ensures stable operation and extends LED lifespan.
5. Setup
5.1 Physical Installation
The moving head light can be installed in various positions: on a ceiling, wall, floor, or placed on a table. Always ensure the mounting location is stable and can support the fixture's weight.

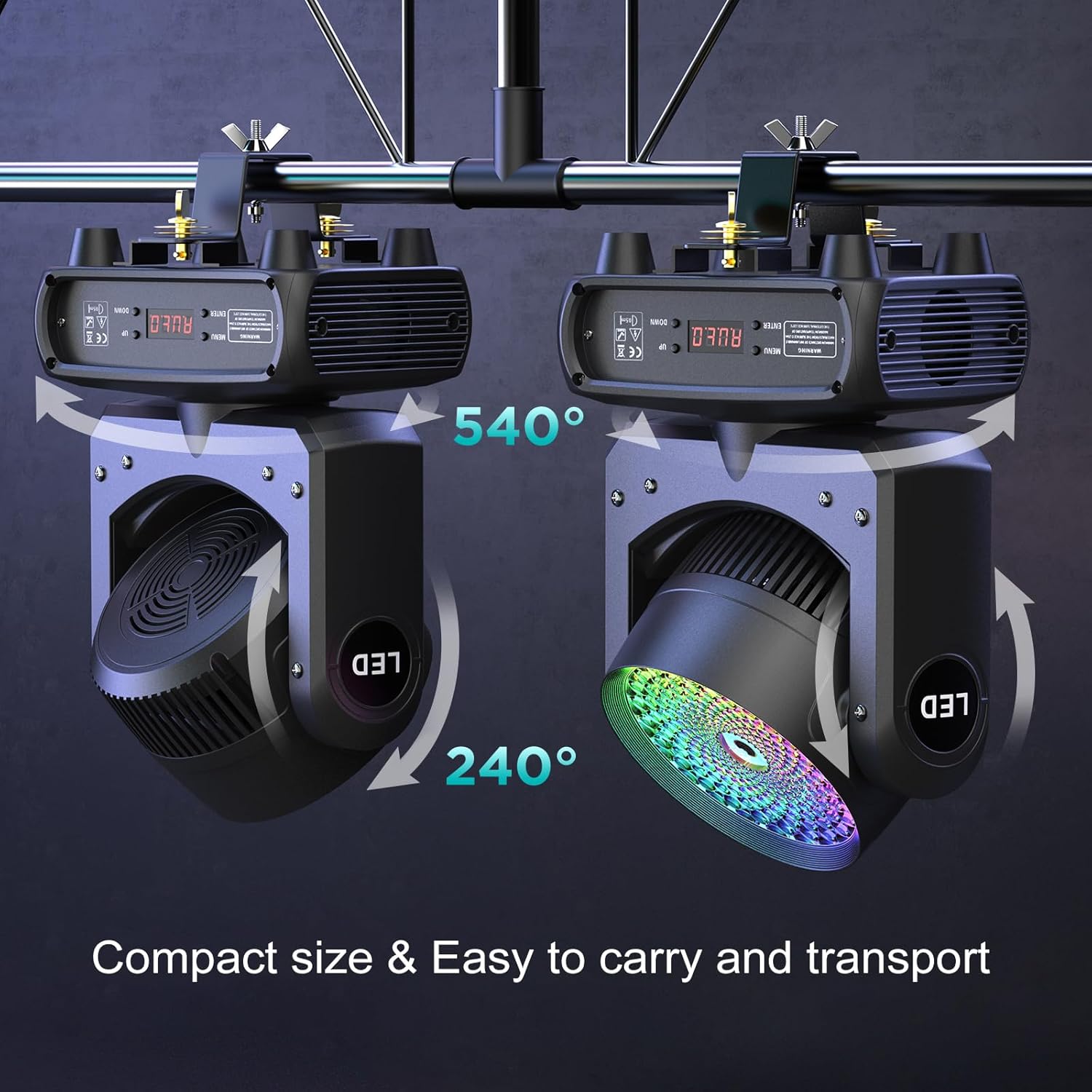

Figure 1: Two Fieryzeal moving head lights demonstrating 540-degree pan and 240-degree tilt rotation. This image illustrates the extensive movement capabilities of the Fieryzeal moving head light, showing a 540-degree pan (horizontal rotation) and a 240-degree tilt (vertical movement). This wide range of motion allows for dynamic lighting effects across a large area.
Figure 2: Diagram showing the dimensions of the Fieryzeal moving head light. This diagram provides the physical dimensions of the Fieryzeal moving head light: 20cm (7.87in) width, 14cm (5.5in) depth, and 25.5cm (10.04in) height. It also indicates a net weight of 3.3 kg (7.27 lbs), emphasizing its compact and portable design.
5.2 Electrical Connection
Connect the power cable to the POWER IN port on the rear of the unit and then to a suitable grounded power outlet. Ensure the voltage matches the device's specifications (380V AC).
5.3 DMX Connection (Optional)
For DMX control, connect a DMX controller to the DMX IN port using a 3-pin DMX cable. If linking multiple units, connect the DMX OUT of the first unit to the DMX IN of the next, and so on.
Figure 3: Two Fieryzeal moving head lights showing the control panel and rear input/output connections. This image displays two Fieryzeal moving head lights, focusing on their control interface and connectivity options. The front shows the digital display and control buttons (MENU, ENTER, UP, DOWN) for mode selection and parameter adjustment. The rear panel reveals DMX IN/OUT ports, POWER IN/OUT, and a fuse, indicating its professional connectivity for integrated lighting setups.
6. Operating Instructions
The device features a control panel with a digital display and buttons (MENU, ENTER, UP, DOWN) for navigation and setting adjustments.
6.1 Control Panel
- MENU: Press to cycle through main menu options.
- UP/DOWN: Use to navigate through options or adjust parameter values.
- ENTER: Confirm selection or save changes.
6.2 Operating Modes
The Fieryzeal moving head light supports several operating modes:
- DMX Mode (23 Channels): For professional control via an external DMX controller. Set the DMX address using the control panel. Refer to the DMX channel chart (not provided in source, typically in a separate DMX manual) for specific functions.
- Automatic Mode: The light will cycle through pre-programmed patterns and color changes.
- Sound Control Mode: The light reacts to ambient sound or music, changing patterns and colors in sync with the beat.
- Master-Slave Mode: Link multiple units together. Set one unit as 'Master' and others as 'Slave'. Slave units will mirror the Master's operation.
- Strobe Mode: Activates a flashing light effect.
Adjusting the number of light sets based on room size can optimize the lighting effect. The light offers unlimited color mixing and linear dimming from 0% to 100% for precise control over brightness and color.
Figure 4: Grid displaying 16 different color mixing possibilities from the 150W RGBW LEDs. The Fieryzeal moving head light features 150W RGBW LEDs capable of mixing and matching up to 16 distinct colors. This image showcases a variety of these vibrant color combinations, highlighting the light's versatility for different moods and events.
Figure 5: Image illustrating the 150W COB moving head light's beam angle, projection distance, and color temperature range. This graphic demonstrates key performance aspects of the 150W COB moving head light. It shows a 24-degree beam angle with an optimal projection distance of 5-7 meters. The image also highlights the adjustable color temperature range from 2800K (warm white) to 8500K (cool white), offering flexibility for various lighting environments.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Fieryzeal moving head light.
- Cleaning: Periodically clean the lens and exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the device is unplugged before cleaning.
- Ventilation: Regularly check that all ventilation openings are clear of dust and debris to maintain efficient heat dissipation.
- Inspection: Inspect power cables and DMX cables for any signs of damage. Replace damaged cables immediately.
- Fuse Replacement: If the unit does not power on, check the fuse located near the power input. Replace with a fuse of the same type and rating if necessary.
8. Troubleshooting
If you encounter issues with your Fieryzeal moving head light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not power on | No power, faulty cable, blown fuse | Check power connection, test cable, replace fuse. |
| No DMX control | Incorrect DMX address, faulty DMX cable, DMX controller issue | Verify DMX address, check DMX cable connections, test with another DMX controller. |
| Light movement is erratic | Interference, internal fault | Ensure proper grounding, restart the unit. If problem persists, contact support. |
| Overheating | Blocked ventilation, prolonged use in high ambient temperature | Clear ventilation openings, ensure adequate airflow, allow unit to cool down. |
If the problem persists after attempting these solutions, please contact Fieryzeal customer support.
9. Specifications
Figure 6: Close-up view of the Fieryzeal moving head light's high brightness lamp bead, detailing the 150W RGBW 4-in-1 COB and 26PCS SMD Chip RGB LEDs. This detailed view highlights the advanced light source of the Fieryzeal moving head light. It features a powerful 150W RGBW 4-in-1 COB (Chip On Board) LED for primary illumination and 26 individual SMD (Surface-Mount Device) RGB LED chips, which can be used independently for additional effects. This combination ensures high brightness and a wide spectrum of colors.
| Feature | Specification |
|---|---|
| Manufacturer | Fieryzeal |
| Model Number | ZQ02358 |
| Light Source | 150W RGBW 4-in-1 COB LED + 26 SMD RGB LEDs |
| Beam Angle | 24 degrees |
| Projection Distance | 5-7 meters (optimal) |
| LED Lifespan | 50,000 hours (average) |
| Color Temperature | 2800K - 8500K |
| Color Rendering Index (CRI) | Ra≥90 |
| Dimming | 0-100% linear |
| Pan (X-axis) | 540 degrees |
| Tilt (Y-axis) | 240 degrees |
| Control Modes | DMX (23 channels), Auto, Sound Control, Master-Slave, Strobe |
| Product Dimensions | 20 x 14 x 25.5 cm (7.87 x 5.5 x 10.04 inches) |
| Item Weight | 3.3 kg (7.27 lbs) |
| Material | Metal Alloy, Plastic |
| Finish Type | Powder Coated |
| Power Source | Corded Electric |
| Voltage | 380 Volts (AC) |
Figure 7: EU Energy Label for the Fieryzeal light, model ZQ02359EU. It indicates an energy efficiency class of E and an energy consumption of 47 kWh per 1000 hours of operation. For more information, scan the QR code or visit https://eprel.ec.europa.eu/qr/2333013.
10. Warranty & Support
Fieryzeal products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact your retailer. If you have any questions or require technical assistance, please contact Fieryzeal customer support through your purchase platform or the official website.
Customer Support: Please refer to the contact information provided at the point of purchase or on the official Fieryzeal website for assistance.
