ZEALOT S98
ZEALOT Portable Bluetooth Speaker 2025 Instruction Manual
Model: S98
Brand: ZEALOT
Introduction
Thank you for choosing the ZEALOT S98 Portable Bluetooth Speaker. This manual provides detailed instructions for setting up, operating, and maintaining your speaker to ensure optimal performance and longevity. Please read this manual thoroughly before using the product.
The ZEALOT S98 is a powerful 160W RMS wireless speaker designed for exceptional audio quality, featuring IPX6 waterproofing, a large 36000mAh battery, and multiple playback modes. It is ideal for home use, outdoor activities, parties, and travel.
Package Contents
Ensure all items are present in the package:
- ZEALOT S98 Portable Bluetooth Speaker
- Power Cable
- Quick Start Guide
Image: Contents of the ZEALOT S98 package, showing the speaker, power cable, and quick start guide.
Product Overview

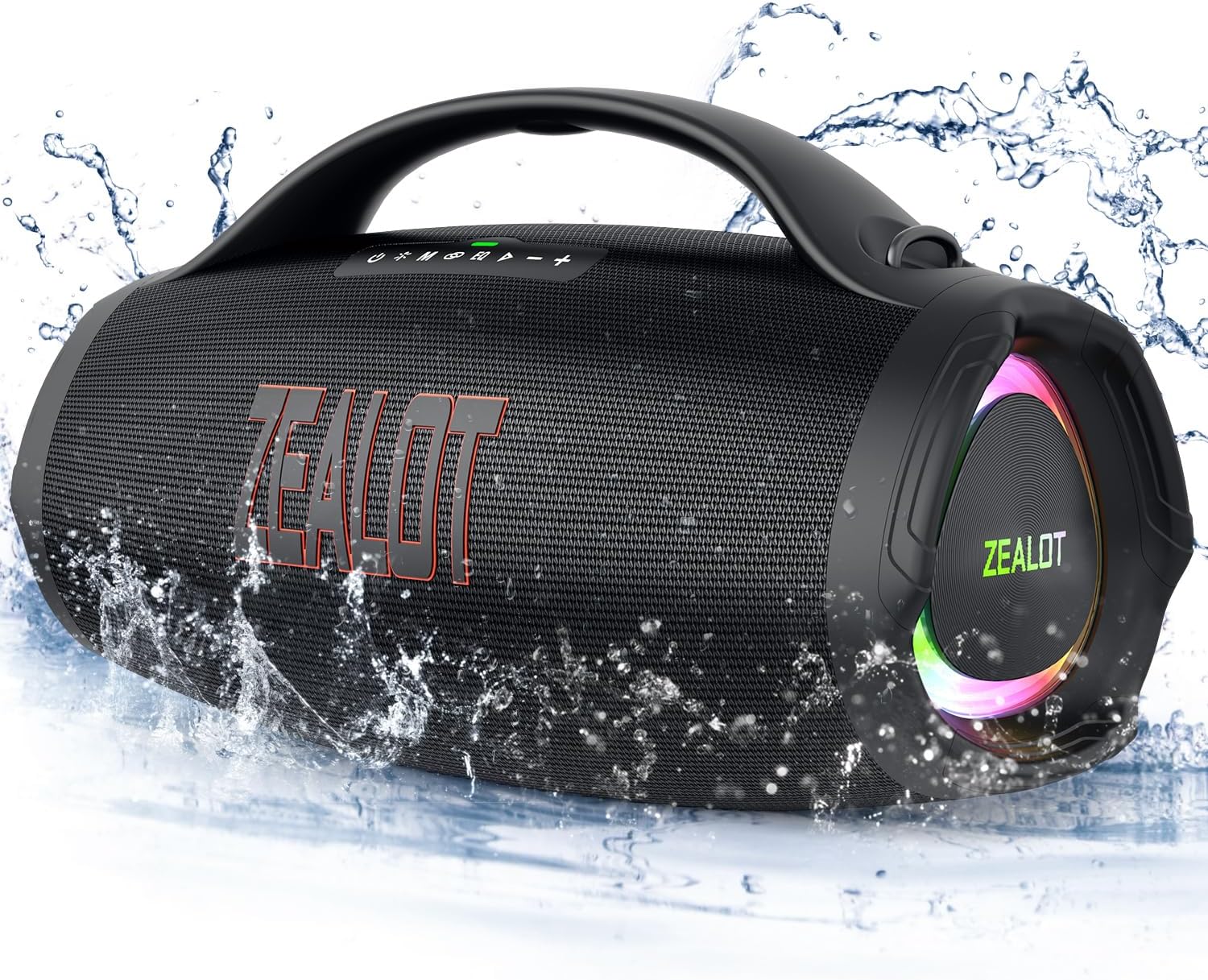

Image: Front view of the ZEALOT S98 Portable Bluetooth Speaker, highlighting its IPX6 waterproof design with water splashes.
Key Features:
- Monstrous Sound: 160W RMS (200W Peak) power with 4 drivers for deep bass and clear highs.
- Extended Playtime & Power Bank: Massive 36,000mAh battery doubles as a power bank.
- Wireless Stereo Pairing: Connect two S98 speakers for enhanced audio.
- Built Tough: IPX6 waterproof and dustproof design for outdoor use.
- Customizable Sound: 4 playback modes (BT, USB, TF card, line-in) and 3 EQ modes (bass boost, vocal clarity, balanced sound).
Image: Internal diagram illustrating the 160W high-power audio components of the ZEALOT S98 speaker.
Image: Two ZEALOT S98 speakers wirelessly connected for enhanced stereo sound, suitable for larger gatherings.
Setup
Charging the Speaker
Before first use, fully charge the speaker. Connect the provided power cable to the speaker's charge port and a suitable power adapter. The charging indicator will show the charging status.
Image: The ZEALOT S98 speaker connected to a power source for charging, illustrating its power bank capability.
Powering On/Off
Press and hold the Power button (
) for 2-3 seconds to turn the speaker on or off. A sound prompt will indicate the power status.
Image: Detailed view of the control panel on the ZEALOT S98 speaker, indicating button functions.
Operating Instructions
Bluetooth Pairing
- Turn on the ZEALOT S98 speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing LED.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
- Select "ZEALOT S98" from the list. Once connected, the LED indicator will become solid, and you will hear a confirmation sound.
The speaker will automatically reconnect to the last paired device when powered on, if the device is within range and Bluetooth is enabled.
Playback Modes
The ZEALOT S98 supports multiple playback modes:
- Bluetooth Mode: Connect wirelessly to your device.
- USB Mode: Insert a USB flash drive with audio files.
- TF Card Mode: Insert a TF (microSD) card with audio files.
- AUX-in Mode: Connect an external audio device using a 3.5mm audio cable.
Press the Mode (M) button to switch between modes.
Image: Detailed view of the input ports on the ZEALOT S98 speaker, showing options for charging, AUX, USB, and TF card.
Controlling Playback
- Play/Pause: Press the Play/Pause button ().
- Volume Up: Press the Volume + button.
- Volume Down: Press the Volume - button.
- Next Track: Long press the Volume + button.
- Previous Track: Long press the Volume - button.
EQ Modes
The speaker features 3 EQ modes to customize your audio experience:
- Bass Boost: Enhances low frequencies for a more powerful bass.
- Vocal Clarity: Optimizes mid-range frequencies for clearer vocals.
- Balanced Sound: Provides a neutral and balanced audio profile.
Press the EQ button to cycle through the available modes.
Wireless Stereo Pairing (TWS Function)
To achieve a more immersive stereo sound, you can pair two ZEALOT S98 speakers together:
- Ensure both S98 speakers are powered on and not connected to any Bluetooth device.
- On one speaker (this will be the primary speaker), press and hold the Dual Pairing button ().
- The primary speaker will search for the secondary speaker. Once connected, you will hear a confirmation sound, and the LED indicators on both speakers will change.
- Now, connect your device to the primary speaker via Bluetooth. Audio will play in stereo through both speakers.
Image: Illustration of two ZEALOT S98 speakers connected via Wireless Stereo Pairing (TWS) for a combined audio experience.
Lighting Modes
The ZEALOT S98 features colorful lighting effects. Press the Lighting Mode button () to cycle through different lighting patterns or turn them off.
Video: Official product video demonstrating the 160W Extra Loud Bluetooth Speaker, including its colorful lighting effects and powerful sound. This video is provided by the seller.
Maintenance
Cleaning
Wipe the speaker with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are dry before charging or connecting devices.
Storage
Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, charge the battery to approximately 50% every few months to preserve battery life.
Water Resistance (IPX6)
The speaker is IPX6 waterproof, meaning it can withstand powerful water jets. It is suitable for use in rainy conditions or near water bodies. However, it is not designed for submersion. Ensure the port cover is securely closed before exposing the speaker to water.
Image: The ZEALOT S98 speaker on a beach, showcasing its IPX6 waterproof and dustproof capabilities.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not turn on. | Battery is low or depleted. | Charge the speaker fully. |
| Cannot pair via Bluetooth. | Speaker is not in pairing mode; device Bluetooth is off; too far from device. | Ensure speaker is in pairing mode (flashing LED). Turn on device Bluetooth. Move device closer to speaker (within 33 ft/10m). |
| No sound or low volume. | Volume too low on speaker or device; incorrect input mode; audio file issue. | Increase volume on both speaker and device. Ensure correct playback mode is selected. Try a different audio file. |
| Sound distortion. | Volume too high; weak Bluetooth signal; audio source quality. | Reduce volume. Move device closer to speaker. Try a higher quality audio source. |
| TWS pairing fails. | Speakers already paired to other devices; too far apart. | Disconnect both speakers from any Bluetooth devices. Ensure they are close to each other. Follow TWS pairing steps carefully. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | ZEALOT S98 Bluetooth Speaker |
| Speaker Type | Tweeter |
| Speaker Maximum Output Power | 200 Watts (Peak), 160 Watts (RMS) |
| Connectivity Technology | Bluetooth, Auxiliary |
| Wireless Communication Technology | Bluetooth |
| Bluetooth Version | BT5.3 |
| Battery Capacity | 36000 Milliamp Hours |
| Water Resistance Level | IPX6 Waterproof |
| Product Dimensions | 9.49"D x 20.15"W x 11.38"H |
| Item Weight | 16.1 Pounds |
| Power Source | Battery Powered |
| Included Components | Power Cable, Quick Start Guide |
Image: Dimensions and weight of the ZEALOT S98 Portable Bluetooth Speaker.
Warranty and Support
The ZEALOT S98 Portable Bluetooth Speaker comes with a Limited Warranty. Please refer to the included Quick Start Guide or visit the official ZEALOT website for detailed warranty terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact ZEALOT customer service through their official channels. Contact information can typically be found in the Quick Start Guide or on the ZEALOT brand store on Amazon.
