1. Introduction
This manual provides essential information for the installation, operation, and maintenance of the Semzohc WH23X28418 Washer Drain Pump. Please read these instructions carefully before proceeding with installation or repair to ensure safe and correct usage. This drain pump is designed to replace original parts in compatible GE and Hotpoint washing machines.
2. Product Overview
The Semzohc WH23X28418 Washer Drain Pump is a critical component responsible for removing water from your washing machine during the drain cycle. It is engineered for durability and effective performance, ensuring your appliance functions correctly. The pump operates at 120 V, 1.25 A, and 60Hz, with a recommended duty cycle of 10 minutes ON and 50 minutes OFF.

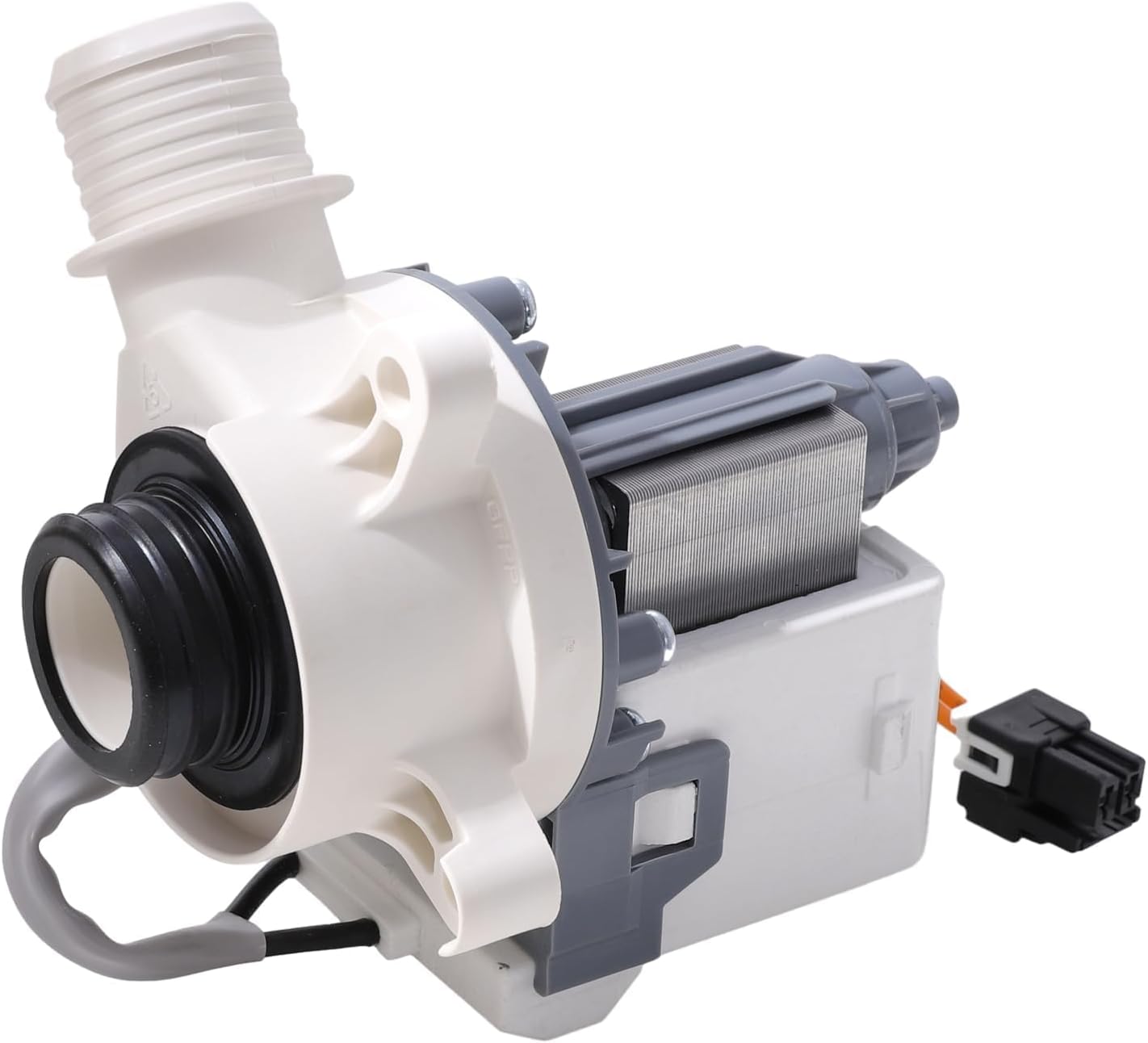

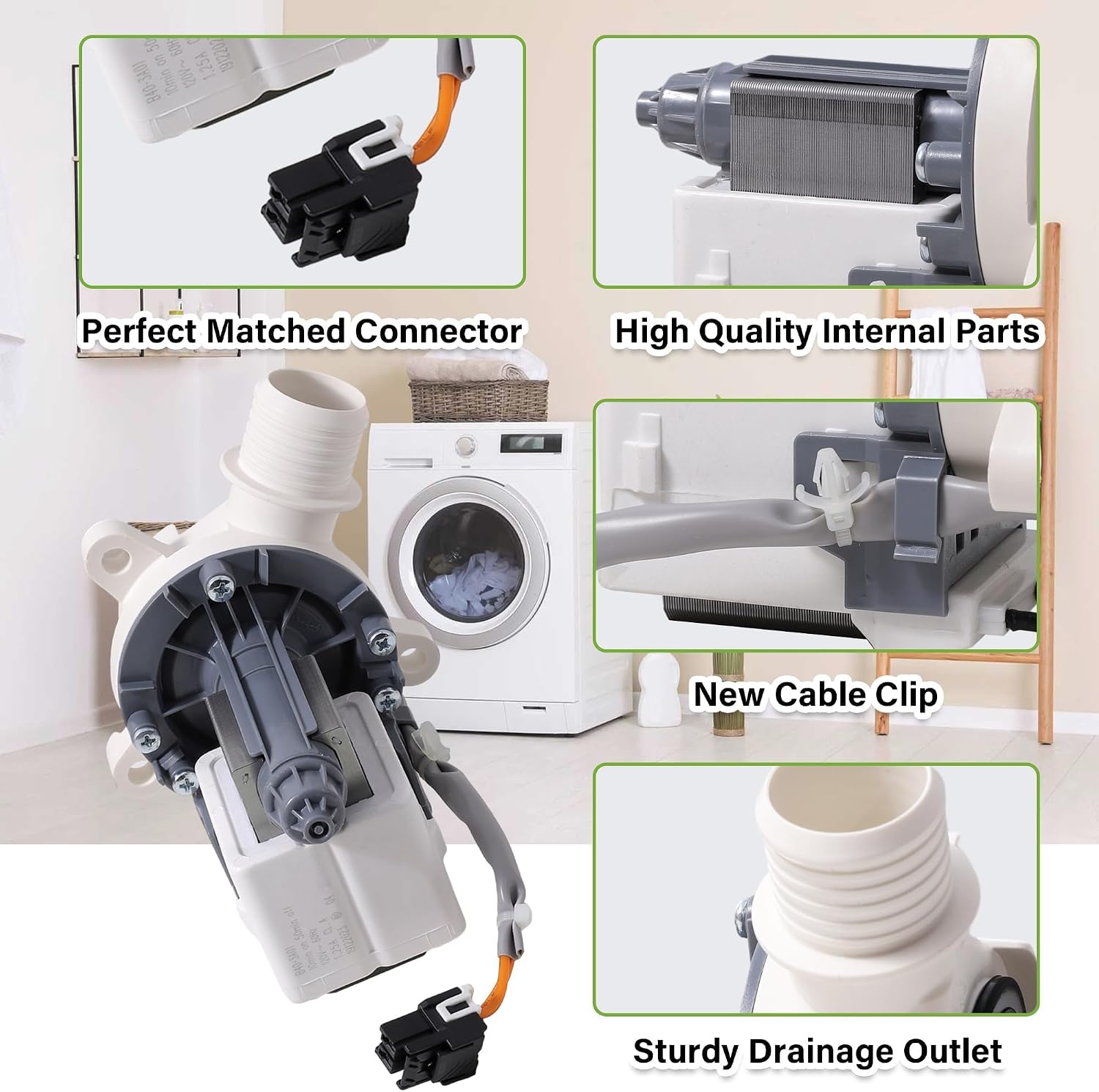

This drain pump features a perfectly matched connector for easy integration, high-quality internal components for reliable operation, a new cable clip for secure wiring, and a sturdy drainage outlet for efficient water removal. These design elements contribute to its long-lasting and effective performance.
3. Compatibility
The Semzohc WH23X28418 Washer Drain Pump is compatible with a wide range of GE and Hotpoint washing machine models. It replaces the following part numbers: B40-3A01, WH23X28418, WH23X24178, and WH23X27574.
Compatible GE Washer Models:
This pump is compatible with numerous GE models including, but not limited to: GTW330ASK3WW, GTW335ASN1WW, GTW335ASN2WW, GTW465ASN2WW, GFW550SSN0WW, GRW330ASK0WW, GTW220ACK1WW, GTW220ACK2WW, GTW220ACK3WW, GTW220ACK4WW, GTW460ASJ9WW, GTW465ASN1WW, GTW465ASN3WW, GTW465ASN9WW, GTW465ASNWW, GTW485ASJ4WS, GTW490ACJ5WS, GTW540ASP2WS, GTW680BPL1DG, GTW680BSJ5WS, GTW680BSJ6WS, GTW750CPL1DG, and others. Refer to the image for a more comprehensive list.
Compatible Hotpoint Washer Models:
This pump is also compatible with various Hotpoint models such as: HTW200ASK0WW, HTW200ASK1WW, HTW200ASK2WW, HTW240ASK5WS, PTW600BSR1WS, and others. Refer to the image for a more comprehensive list.
Replaced Part Numbers:
This drain pump is a direct replacement for the specified part numbers, ensuring proper fit and function.
4. Setup and Installation
Replacing a washer drain pump typically involves disconnecting power, accessing the pump, removing the old unit, and installing the new one. While specific steps may vary by washer model, the general process is straightforward for those with basic mechanical skills.
Installation Steps Overview:
- Step 1: Disconnect Power and Water. Ensure the washing machine is unplugged from the electrical outlet and water supply lines are turned off.
- Step 2: Access the Pump. Depending on your washer model, you may need to tilt the machine back, remove a front panel, or access from the bottom.
- Step 3: Disconnect Hoses and Wiring. Carefully remove the hoses connected to the old drain pump and disconnect the electrical wiring harness. Be prepared for residual water.
- Step 4: Remove Old Pump. Unfasten any mounting screws or clips holding the old pump in place and remove it.
- Step 5: Install New Pump. Position the new Semzohc WH23X28418 drain pump, secure it with screws or clips, and reconnect the hoses and electrical wiring. Ensure all connections are tight and secure to prevent leaks.
- Step 6: Test. Reconnect water and power, then run a short drain cycle to check for proper function and leaks.
For detailed, model-specific instructions, it is recommended to search for installation videos or service manuals pertaining to your specific washing machine model and the WH23X28418 drain pump. Online video platforms can provide visual guidance for a quicker and easier repair process.
5. Operating
The Semzohc WH23X28418 Washer Drain Pump operates automatically as part of your washing machine's cycle. Once installed, it will activate during the drain phase to remove water from the wash tub. No manual intervention is required for its operation during a wash cycle.
6. Maintenance
Regular maintenance for a drain pump is minimal, as it is an internal component. However, to ensure longevity and prevent issues:
- Check for Obstructions: Periodically inspect the drain hose and pump filter (if accessible on your washer model) for lint, small objects, or debris that could impede pump function.
- Inspect Hoses: Ensure all hoses connected to the pump are free from kinks, cracks, or blockages.
- Monitor for Leaks: After installation or any service, regularly check for any signs of water leakage around the pump area.
7. Troubleshooting
If your washing machine exhibits any of the following symptoms, the drain pump may require inspection or replacement:
- Washer Will Not Drain: The most common symptom of a faulty drain pump. The wash cycle completes, but water remains in the tub.
- Clothes Are Wetter Than Usual: If the pump is not fully removing water, the spin cycle may not be as effective, leaving clothes excessively wet.
- Water Leakage: Leaks around the bottom of the washing machine, especially during the drain cycle, can indicate a crack in the pump housing or loose connections.
- Unusual Noises During Drain Cycle: Grinding, humming, or buzzing noises may suggest an obstruction in the pump impeller or a failing motor.
Before replacing the pump, ensure that the drain hose is not clogged or kinked, and that the washer's lid switch (if applicable) is functioning correctly, as these can also prevent draining.
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | Semzohc |
| Part Number | WH23X28418 |
| Voltage | 120 Volts |
| Current | 1.25 Amps |
| Frequency | 60 Hz |
| Material | Metal, Plastic |
| Item Weight | 2 pounds |
| Package Dimensions | 6.26 x 5.75 x 3.94 inches |
| Duty Cycle | 10 min ON; 50 min OFF |
9. Quality Control and Support
The Semzohc WH23X28418 Washer Drain Pump undergoes rigorous quality control and testing by the manufacturer to ensure durable and effective performance. If you encounter any quality-related issues during the use of this product, please contact the manufacturer or seller for support. Ensuring customer satisfaction and product reliability is a priority.
