VivaEase IPL Hair Removal Device User Manual

1. Introduction

Thank you for choosing the VivaEase IPL Hair Removal Device. This manual provides essential information for safe and effective use of your device. The Intense Pulsed Light (IPL) technology is designed to reduce unwanted hair growth at home with minimal discomfort. Please read this manual thoroughly before first use and retain it for future reference.

Figure 1.1: VivaEase IPL Hair Removal Device and its core features.

2. Safety Precautions

Please assemble and use this device as per the instructions in this User Manual. Read the entire manual carefully and keep it for future reference. If you have any doubts, please contact VivaEase online customer service for proper guidance.

Warning: Incorrect operation may cause harm to the human body.

Precautions: Improper operation may cause personal safety or result in property damage.

Hazard:

• Do not use near water (e.g., bathtubs, showers, washbasins).
• Do not use if the device is damaged.
• Only use the original power adapter provided.
• Avoid using this device around the eyes. Always wear the provided safety goggles during operation.
• Do not look directly into the light outlet when using it.
• For hair removal on your back or for compression operations, it is suggested to have an assistant present as operation alone may pose risks.
• If your hair is longer than 1mm, shave it with a razor to prevent burning.

Not Suitable For:

• Tattoos
• Sunburn
• Stains & Nevus
• Pregnancy
• Applying gel
• Men's mustache

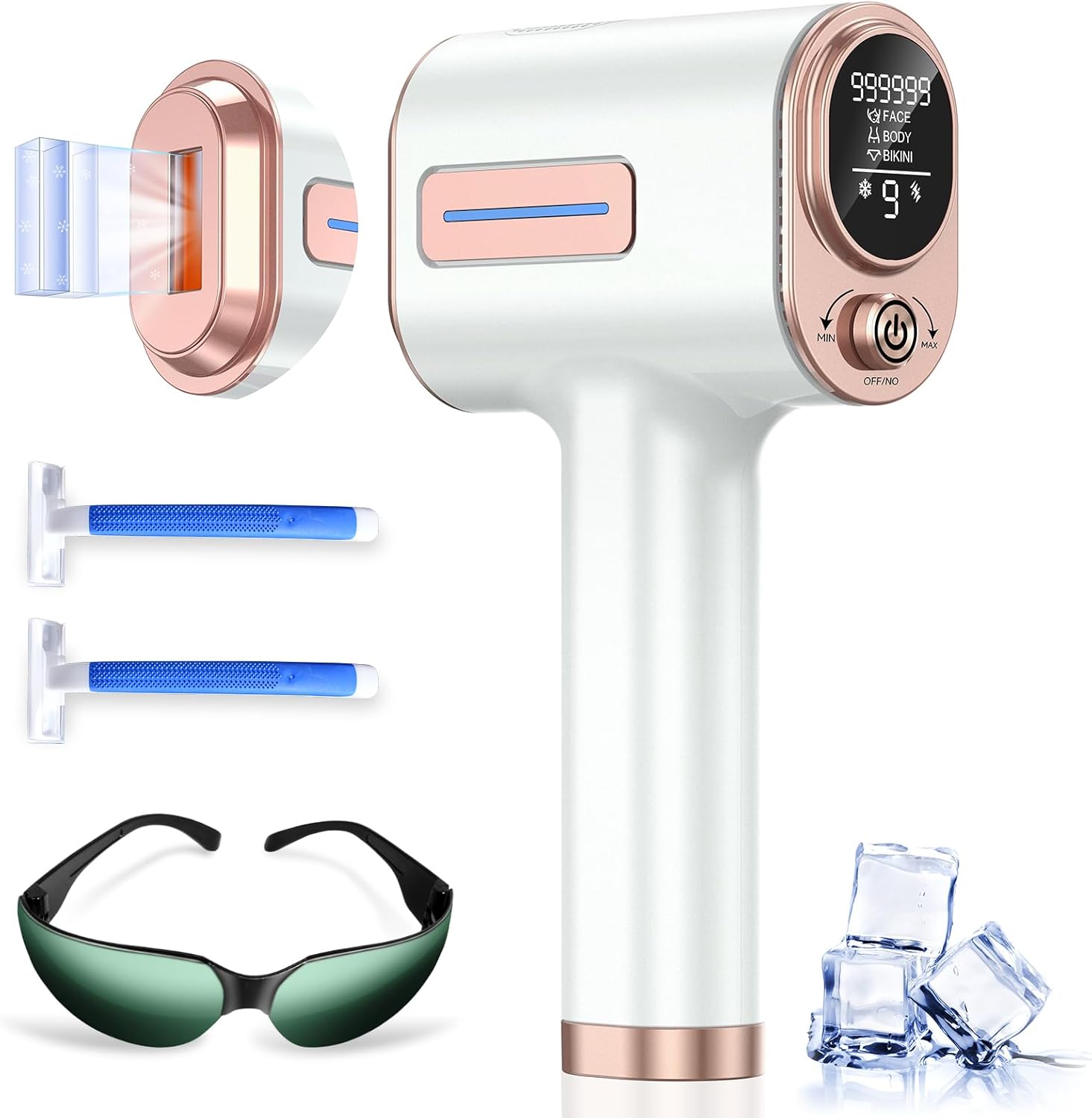

Figure 2.1: The VivaEase IPL Hair Removal Device and its accessories.

3. What's in the Box

• VivaEase IPL Hair Removal Device
• Power Adapter
• Safety Goggles
• Razor
• User Manual

Video 3.1: An overview of the VivaEase IPL Hair Removal Device and its components.

4. Product Features

• Effective IPL Technology: Uses Intense Pulsed Light to target hair follicles and reduce hair growth.
• 9 Energy Levels: Adjustable intensity from Level 1 (6.5J) to Level 9 (21J) to suit individual skin sensitivity and hair type.
• Auto and Manual Modes: Auto mode for efficient treatment of large areas (e.g., back, legs, arms, chest) and manual mode for precise application on sensitive or small areas (e.g., bikini line, upper lip, armpits, face).
• Ice-Cooling Technology: Features a Cool Care function that cools the skin to as low as 5°C (41°F) during use, minimizing discomfort and burning sensations.
• High Flash Count: Equipped with 999,900 flashes for long-term use.
• Optimal Wavelength: Operates within a 600-1200nm wavelength range to effectively reach hair roots.

Figure 4.1: Ice-Cooling Technology for painless hair removal.

Figure 4.2: Adjustable 9 Energy Levels for customized treatment.

Figure 4.3: Long Light Wave technology targeting hair follicles.

5. Skin and Hair Suitability

The IPL technology works by targeting melanin in the hair follicle. Therefore, its effectiveness varies based on skin tone and hair color. Please refer to the chart below to determine if this device is suitable for you.

Skin Tones:

• Very Fair: Suitable
• Fair: Suitable
• White-Olive: Suitable
• Light Brown: Suitable
• Brown: Suitable
• Dark: Not Suitable

Hair Colors:

• Black: Suitable
• Brown: Suitable
• Dark Blonde: Suitable
• Light Blonde: Not Suitable
• Red: Not Suitable
• Grey: Not Suitable

Note: IPL is not effective on red, light blonde, white, and grey hair. Melanin in dark skin also absorbs light energy from the IPL system, which can cause pain or burns. Therefore, it is not suitable for dark brown, black, and other dark skin tones.

Figure 5.1: Skin tone and hair color compatibility chart.

6. Setup

Follow these steps to prepare your device for use:

1. Shave Visible Hair: Before each treatment, shave the area you intend to treat. Ensure the skin is clean and dry.
2. Connect Power: Connect the power cord to the device and then plug it into a power outlet.
3. Wear Goggles: Always wear the provided safety goggles to protect your eyes from the intense light.

Figure 6.1: Visual guide for device setup and usage.

7. Operating Instructions

7.1 Power On and Energy Level Adjustment

1. Long press the power button for 2-3 seconds to turn on the device.
2. Rotate the knob to adjust the energy level. For first-time users, start with Level 1 and gradually increase based on skin adaptability.

7.2 Mode Selection (Manual/Auto)

Long press the flash button to switch between manual and automatic modes.

• Manual Mode: Ideal for small or sensitive areas such as the upper lip, bikini line, armpits, and face. Press the flash button for each pulse.
• Auto Mode: Suitable for larger areas like the back, legs, arms, and chest. The device will continuously flash when placed against the skin, saving time for full body hair removal.

Figure 7.1: Manual and Auto modes for targeted and efficient hair removal.

7.3 Application

Place the light outlet of the device firmly against the skin, ensuring full contact. The device will light up blue when it is ready to flash. Hold the device at a 90-degree angle to the skin surface during use.

7.4 Usage Frequency and Expected Results

• Weeks 1-4: Use 2-3 times a week. Expect inhibited hair growth.
• Weeks 5-8: Use 1-2 times a week. Expect deep hair removal.
• After 8 Weeks: Use 1-2 times a month as needed for maintenance. Visible results are typically seen in 4 weeks, with permanent hair reduction achieved in 8 weeks.

Figure 7.2: Expected results and recommended usage schedule.

7.5 Post-Treatment Care

After each session, apply skin care products to moisturize the treated area. Avoid direct sunlight for 24 hours after treatment.

8. Maintenance

To ensure optimal performance and longevity of your VivaEase IPL Hair Removal Device:

• Clean the light window after each use with a soft, dry cloth to remove any hair or residue.
• Store the device in a cool, dry place away from direct sunlight.
• Do not use abrasive cleaners or solvents on the device.

9. Troubleshooting (FAQs)

• Q: How long does it take to see hair loss?
  A: Visible results are usually seen in 4 weeks of use, and permanent hair removal is achieved in 8 weeks. It is recommended to use 2-3 times a week during the first month, 1-2 times a week during the second month. After 8 weeks, 1-2 times per month.
• Q: What should I do before using it?
  A: Shave your hair, dry your skin, and don't apply gel.
• Q: Why do I need to shave off the surface hair first?
  A: The pulsed light energy will work more effectively with the melanin in the hair follicles. For customers with sensitive skin, no hair removal the day after shaving, to make sure not any skin irritation or redness.
• Q: Why does the device not flash sometimes?
  A: For safety reasons, hair removal devices only emit light during vertical (keep 90° to the skin) contact with the skin. The device takes 1-3 seconds to energy to release the next flash.
• Q: Post-treatment care?
  A: For some redness or burning sensation, use a gel and try to avoid sunlight for the next 24 hours.

10. Specifications

11. Warranty and Support

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official VivaEase website. Keep your purchase receipt as proof of purchase for any warranty claims.
