User Manual: Chicago Electric Solar Powered Auto-Darkening Welding Helmet

Product Overview

The CHICAGO ELECTRIC WELDING Solar Powered Auto-Darkening Welding Helmet is designed to provide superior eye protection and enhance your welding experience. It features a rapid 1/20,000 second response time to instantly switch from a clear to a dark state, shielding your eyes from harmful UV and IR rays. The solar-powered design, complemented by a lithium-ion battery assist, ensures long-lasting performance without frequent battery changes.

This helmet is engineered for comfort and convenience, featuring an adjustable ratcheting headband with a padded interior for a secure and comfortable fit during extended use. Its wide viewing area and variable shade control allow for optimal visibility and adaptability to various welding conditions.

Key Features

• Instant Protection: 1/20,000 second response time for immediate eye safety upon arc strike.
• Solar Powered Convenience: Utilizes solar power with a lithium-ion battery assist, reducing the need for battery changes and offering up to 6 years of life under normal welding conditions.
• Adjustable Shade: Variable shade control from #9 to #13 for optimal visibility across different welding applications.
• Comfortable Design: Lightweight construction with an adjustable ratcheting headband and padded interior for a secure and comfortable fit.
• Wide Viewing Area: A 6 square inch viewing area provides enhanced visibility of the weld puddle and surrounding work area.
• Versatile Application: Suitable for MIG/flux wire feed welding, stick welding, and air carbon cutting.

Image: The Chicago Electric Solar Powered Auto-Darkening Welding Helmet shown in use by a welder, highlighting its practical application and design. The separate helmet image provides a clear view of the product itself.

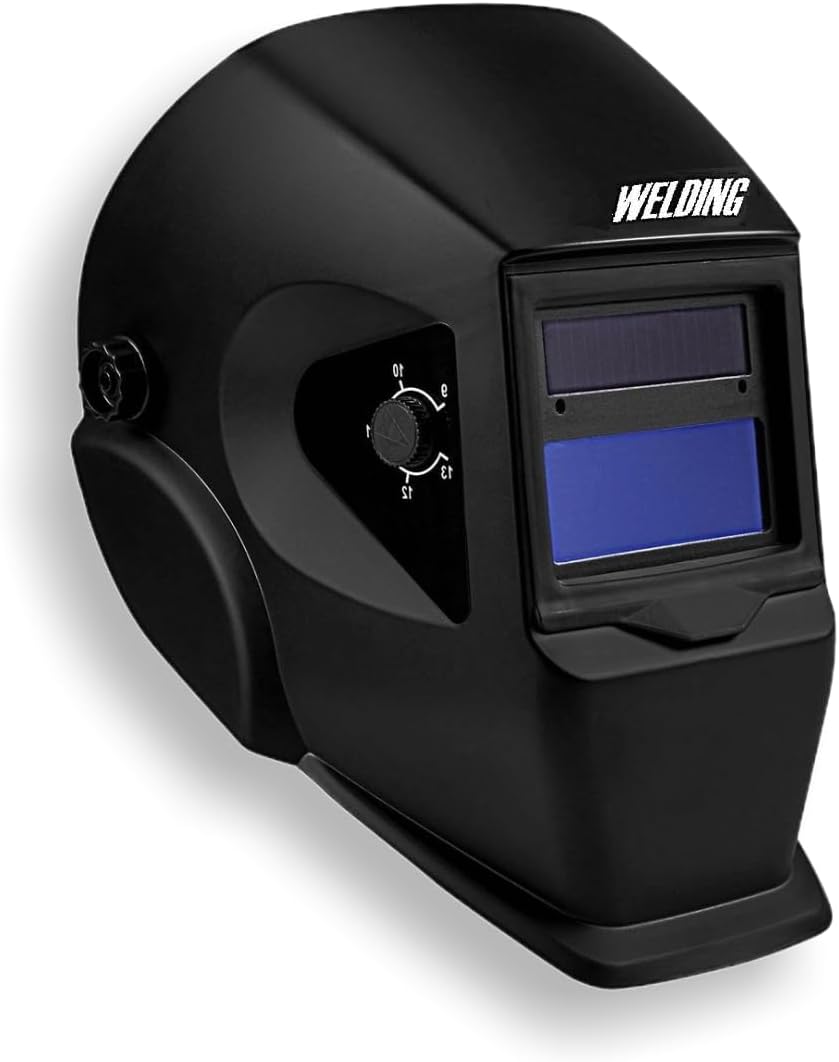

Image: A detailed view of the Chicago Electric Solar Powered Auto-Darkening Welding Helmet, showcasing its auto-darkening lens and the adjustable shade control knob on the side.

Safety Information

Your safety is paramount when welding. This helmet is designed to protect your eyes and face from sparks, spatter, and harmful radiation during welding operations. Adhere to all safety guidelines to prevent injury.

• Eye Protection: This helmet provides protection against ultraviolet (UV) and infrared (IR) radiation, even in the light state. However, it is not suitable for laser welding.
• ANSI Z87.1 Certified: This helmet meets ANSI Z87.1 safety standards, ensuring a high level of protection.
• Ventilation: Always ensure adequate ventilation in your work area to avoid inhaling hazardous fumes and gases produced during welding.
• Personal Protective Equipment (PPE): In addition to the welding helmet, always wear appropriate PPE, including welding gloves, protective clothing, and safety footwear.
• Inspection: Before each use, inspect the helmet for any damage, cracks, or loose parts. Do not use a damaged helmet.
• Modifications: Do not modify the helmet or its components. Unauthorized modifications can compromise safety and void the warranty.
• Temperature Range: Use the helmet within its specified operating temperature range. Extreme temperatures can affect performance.

Setup

1. Unpacking

Carefully remove the welding helmet and all included accessories from the packaging. Verify that all components listed in the "Included Components" section of the specifications are present and undamaged. Retain the packaging for future storage or transport.

2. Adjusting the Headband

1. Place the helmet on your head.
2. Adjust the ratcheting knob at the back of the headband until the helmet fits snugly and comfortably without being too tight.
3. Adjust the top strap to position the helmet correctly on your head, ensuring the viewing area is at eye level.
4. Adjust the side pivots to control the helmet's tilt and how easily it flips up and down. Ensure it stays in the desired position when lowered.

3. Initial Inspection

Before first use, and before each subsequent use, perform a thorough inspection:

• Check the outer and inner protective lenses for scratches, cracks, or dirt. Replace if necessary.
• Ensure the auto-darkening filter (ADF) cartridge is securely in place.
• Verify that the headband is properly assembled and all adjustments function smoothly.
• Confirm the solar cells on the front of the helmet are clean and unobstructed.

Operating Instructions

1. Powering On/Off

This helmet is solar-powered and automatically activates when exposed to light. There is no manual on/off switch. The integrated lithium-ion battery assists the solar cells, ensuring consistent power. The helmet is always ready for use when exposed to sufficient light.

2. Adjusting Shade Level

The helmet features a variable shade control knob, typically located on the side of the helmet. This allows you to adjust the darkness level from Shade #9 to #13, depending on your welding application and amperage. Refer to standard welding shade charts for recommended settings for different processes and current levels.

• Rotate the knob clockwise to increase the shade (darker).
• Rotate the knob counter-clockwise to decrease the shade (lighter).

3. Welding Process

1. Ensure the helmet is properly adjusted and the shade level is set for your welding task.
2. Lower the helmet into the viewing position. The lens will be in its clear (light) state, allowing you to see your work area.
3. As soon as the welding arc is struck, the auto-darkening filter will instantly switch to the selected dark shade, protecting your eyes.
4. When the arc is extinguished, the lens will return to its clear state after a brief delay, allowing you to inspect your weld.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your welding helmet.

1. Cleaning the Lens

• Use a soft, clean cloth and a mild, non-abrasive cleaning solution specifically designed for plastic or optical surfaces.
• Do not use harsh solvents or abrasive cleaners, as these can damage the lens or helmet shell.
• Wipe the outer and inner protective lenses gently to remove dust, dirt, and spatter.
• Keep the solar cells on the front of the helmet clean and free of obstructions to ensure proper charging.

2. Battery Maintenance

The helmet's solar power system, assisted by a lithium-ion battery, is designed for long-term use without user battery replacement. To ensure optimal battery life:

• Store the helmet in a well-lit area when not in use to allow the solar cells to charge the internal battery.
• Avoid prolonged storage in dark environments, which can deplete the battery over time.

3. Storage

When not in use, store the helmet in a clean, dry place, away from direct sunlight, extreme temperatures, and corrosive materials. Use the original packaging or a protective bag to prevent scratches and damage.

Troubleshooting

If you encounter issues with your welding helmet, refer to the following table for common problems and their solutions.

Specifications

Warranty and Support

For specific warranty information regarding your Chicago Electric Solar Powered Auto-Darkening Welding Helmet, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Keep your original purchase receipt as proof of purchase for any warranty claims.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact the manufacturer, HFT, or your authorized dealer. Contact information can typically be found on the product packaging or the manufacturer's official website.
