Bosch SMV26AX01F Series 2 Dishwasher User Manual

1. Product Overview

The Bosch SMV26AX01F Series 2 is a 60 cm fully integrated dishwasher designed to seamlessly blend into your kitchen cabinetry. It offers efficient cleaning and drying performance with a focus on user convenience and quiet operation.

Key Features:

• Multiple Wash Programs: Features 6 programs and 3 options, including VarioSpeed Plus for faster washing, Hygiene Plus for high-temperature sanitization, and Extra Dry for improved drying results.
• Flexible Loading: Vario baskets and 3-height adjustable RackMatic system with foldable tines and a dedicated cutlery basket for optimal loading flexibility.
• AquaSensor Technology: Detects stain levels and adjusts rinse water for sparkling clean dishes.
• EcoSilence Drive: An induction motor that minimizes noise while providing powerful cleaning.
• Machine Care Program: Dedicated program for maintaining the dishwasher's cleanliness and performance.

2. Installation and Setup

This section provides essential information for the correct installation of your Bosch SMV26AX01F dishwasher. Proper installation ensures optimal performance and longevity of the appliance.

Dimensions and Integration:

The dishwasher is designed for full integration into a standard 60 cm kitchen cabinet. The front panel of your kitchen furniture will be mounted onto the dishwasher door.

Water Connection:

Ensure the water supply is connected correctly. The AquaStop system provides protection against water leaks.

Electrical Connection:

Connect the dishwasher to a grounded electrical outlet. The appliance operates on 240 Volts.

Included Components: The product comes with a power cord for electrical connection.

3. Operating Instructions

Familiarize yourself with the control panel and loading options to effectively use your dishwasher.

Control Panel:

The control panel is located on the top edge of the dishwasher door, visible when the door is open. It features push-buttons for program selection and options, along with an LCD display.

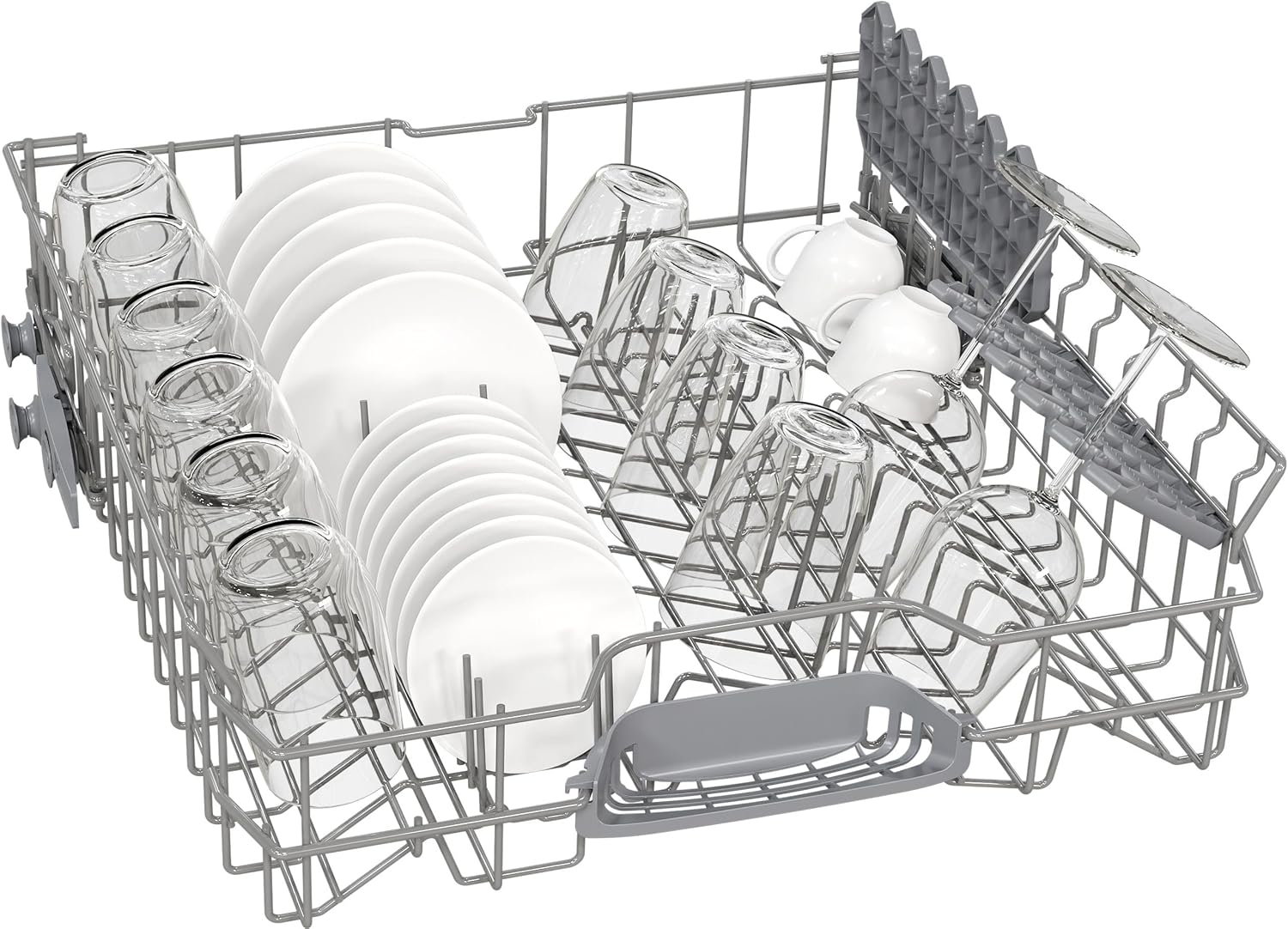

Loading the Dishwasher:

Utilize the flexible Vario baskets and the 3-height adjustable RackMatic system for efficient loading of various dish sizes.

Detergent Dispenser:

Place your detergent tablet or powder in the designated dispenser compartment before starting a wash cycle.

Program Selection:

Choose from 6 available wash programs based on the soil level and type of dishes. Options like VarioSpeed Plus can reduce wash time by up to 65% without compromising cleaning performance. The Glass 40°C program is specifically designed to protect delicate glassware.

AquaSensor and Drying:

The AquaSensor automatically detects the level of soiling and adjusts water consumption accordingly. The Extra Dry option provides an extended drying phase, ensuring even difficult-to-dry items like plastics come out perfectly dry.

EcoSilence Drive:

The EcoSilence Drive motor ensures quiet operation, allowing you to run the dishwasher without disturbance.

InfoLight:

For fully integrated models, a red light projection on the floor indicates that the dishwasher is operating.

4. Maintenance

Regular maintenance ensures your dishwasher continues to perform efficiently and extends its lifespan.

Machine Care Program:

The dedicated Machine Care program, used in conjunction with a dishwasher cleaning agent, effectively removes grease, limescale, and food residues from the interior, ensuring optimal long-term performance.

Cleaning the Filters:

Periodically check and clean the dishwasher filters to prevent blockages and ensure proper drainage.

Adding Salt and Rinse Aid:

Monitor the indicator lights for salt and rinse aid. Refill as necessary to ensure optimal cleaning and drying results, especially in areas with hard water.

5. Troubleshooting

This section addresses common issues you might encounter with your dishwasher.

Dishwasher Not Starting:

• Ensure the power cord is securely plugged in.
• Check if the circuit breaker has tripped.
• Make sure the door is fully closed and latched.

Poor Cleaning Results:

• Verify that the spray arms are not blocked by dishes.
• Check detergent levels and ensure it is suitable for your water hardness.
• Clean the filters regularly.
• Ensure dishes are loaded correctly, allowing water to reach all surfaces.

Water Leaks:

• Check the water inlet and drain hose connections for tightness.
• Ensure the dishwasher is level.

If issues persist, please refer to the full troubleshooting guide in your detailed product manual or contact Bosch customer support.

6. Specifications

Detailed technical specifications for the Bosch SMV26AX01F dishwasher.

7. Warranty and Support

Your Bosch SMV26AX01F dishwasher comes with a manufacturer's commercial warranty and long-term spare parts availability.

Warranty Information:

• Manufacturer's Commercial Warranty: 2 years

Spare Parts Availability:

• Spare parts are available for 15 years from the date of manufacture.

Customer Support:

For technical assistance, warranty claims, or to order spare parts, please contact Bosch customer service. Refer to the contact information provided in your product packaging or on the official Bosch website.
