EWKYLSEM Razors Vintage T9 Hair Trimmer User Manual

Introduction

This manual provides detailed instructions for the safe and effective use of your EWKYLSEM Razors Vintage T9 Hair Trimmer. Please read this manual thoroughly before operating the device and retain it for future reference.

Safety Instructions

• Keep the device dry. Do not use it near water or in wet conditions.
• Do not disassemble the trimmer. Refer all servicing to qualified personnel.
• Keep out of reach of children.
• Use only the provided USB charger for charging.
• Ensure the device is fully charged before first use for optimal battery life.
• Avoid direct contact of blades with skin if you have sensitive skin or open wounds.
• Do not use if the blades are damaged or bent.

Package Contents

This image displays the EWKYLSEM Razors Vintage T9 Hair Trimmer along with its included accessories: the trimmer unit, a USB charging cable, a cleaning brush, and four limiting combs of different sizes (1.5mm, 2mm, 3mm, 4mm).

• 1 x EWKYLSEM Razors Vintage T9 Hair Trimmer
• 1 x USB Charging Cable
• 1 x Cleaning Brush
• 4 x Limiting Combs (1.5mm, 2mm, 3mm, 4mm)
• Note: Due to air transportation restrictions, lubricating oil is not included in the package.

Product Overview

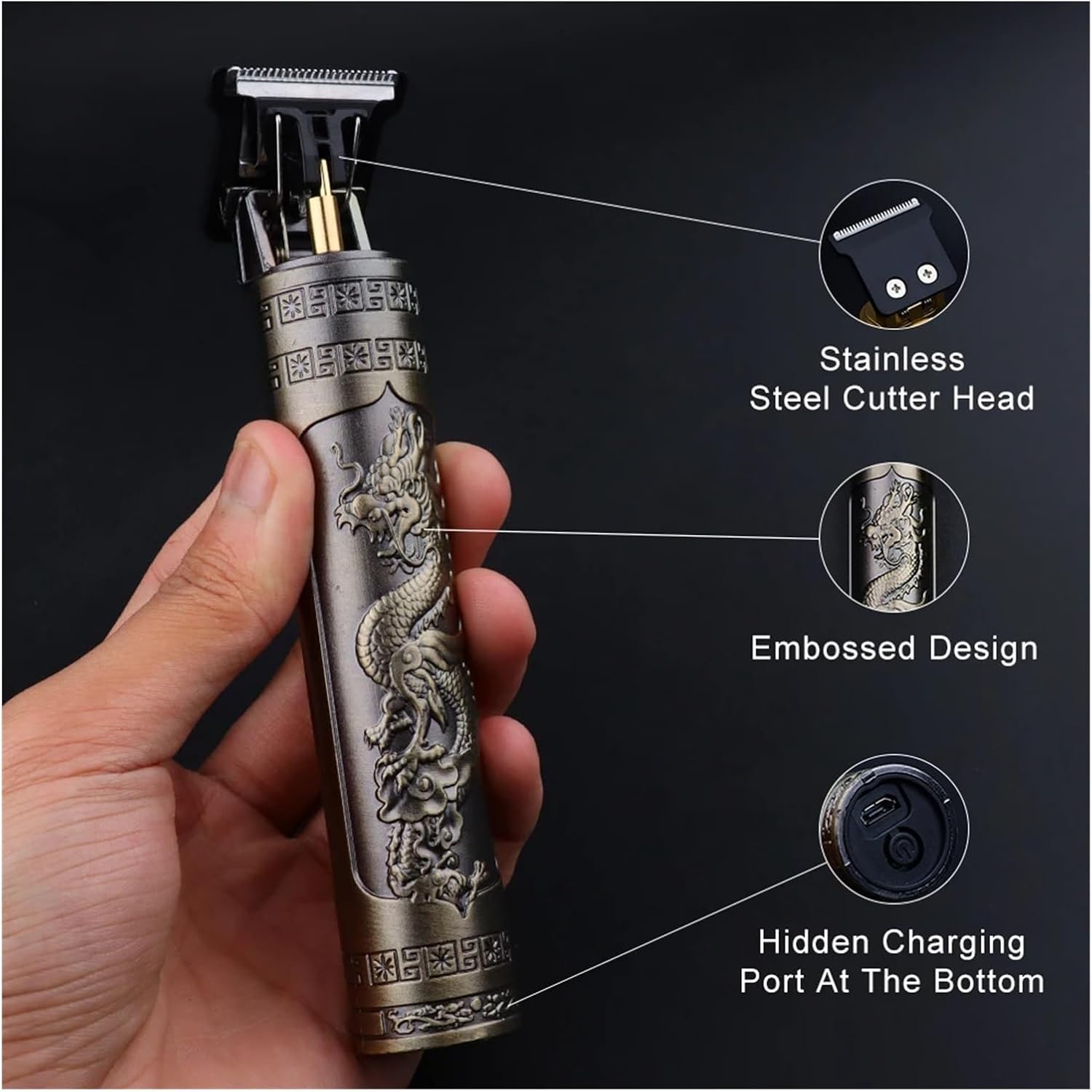

This image provides a detailed view of the trimmer, pointing out its key components: the stainless steel cutter head for precise trimming, an embossed design on the body for enhanced grip and aesthetics, and a hidden charging port located at the bottom of the device for a sleek appearance.

This image illustrates the cutter head features, including a T-shaped cutter head for versatile styling and R-shaped rounded corners for skin safety. It also demonstrates that the blades are washable for easy cleaning and shows the use of the cleaning brush for maintenance.

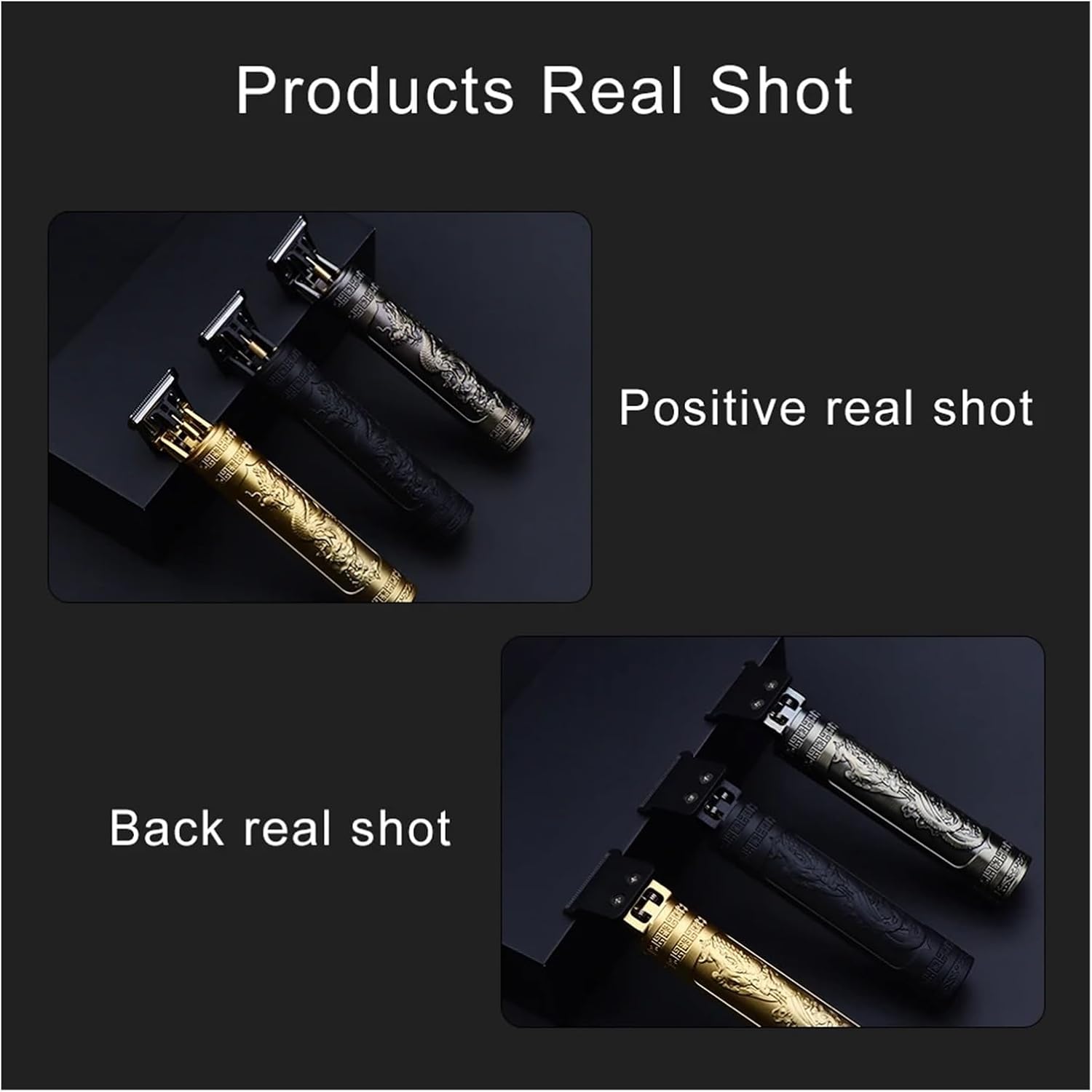

This image presents both the front and back views of the EWKYLSEM Razors Vintage T9 Hair Trimmer, showcasing its overall design and the embossed pattern on the body.

• Stainless Steel Cutter Head: Designed for precise and efficient hair cutting.
• Rotary Motor: Provides powerful and consistent performance for various hair types.
• Cordless Operation: Offers flexibility and ease of use without being tethered to an outlet.
• Adjustable Cutting Lengths: Achieved with the included limiting combs (1.5mm, 2mm, 3mm, 4mm).
• Compact and Lightweight: Approximately 50g, making it suitable for travel and easy handling.

Setup

Charging the Trimmer

1. Locate the hidden charging port at the bottom of the trimmer.
2. Connect the provided USB charging cable to the trimmer's charging port.
3. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a USB port.
4. Allow the trimmer to charge for approximately 2 hours for a full charge. The indicator light (if present) will typically change or turn off when charging is complete.
5. A full charge provides approximately 45 minutes of usage time.

Attaching Limiting Combs

This image displays the four limiting combs included with the trimmer, clearly labeled with their respective cutting lengths: 1.5mm, 2mm, 3mm, and 4mm. These combs allow for precise control over hair length during trimming.

1. Select the desired limiting comb (1.5mm, 2mm, 3mm, or 4mm) based on the hair length you wish to achieve.
2. Align the comb with the trimmer blade and gently slide it onto the cutter head until it clicks securely into place.
3. To remove, gently push the comb upwards and off the blade.

Operating Instructions

1. Ensure the trimmer is fully charged.
2. Attach the appropriate limiting comb if you desire a specific hair length. For a closer trim or detailing, the trimmer can be used without a comb.
3. Press the power button to turn on the trimmer.
4. Hold the trimmer at a comfortable angle and move it against the direction of hair growth for an even cut.
5. For beard trimming, start with a longer comb and gradually reduce the length until the desired style is achieved.
6. For detailing and outlining, use the trimmer without a comb, carefully guiding the blade along the desired lines.
7. After use, press the power button to turn off the trimmer.

Maintenance

Cleaning the Blades

1. Ensure the trimmer is turned off and unplugged before cleaning.
2. Remove any attached limiting comb.
3. Use the provided cleaning brush to remove loose hairs from the blades and the trimmer body.
4. The blades are washable. You may rinse the cutter head under running water. Do not submerge the entire trimmer in water.
5. After rinsing, shake off excess water and allow the blades to air dry completely before reattaching or storing.
6. Periodically, apply a small amount of lubricating oil (not included) to the blades to maintain optimal performance and longevity.

Storage

• Store the trimmer in a cool, dry place, away from direct sunlight and moisture.
• Keep the trimmer and its accessories in a safe place to prevent damage.

Troubleshooting

Specifications

• Model: Vintage T9
• Input Voltage: AC 110-240V 50/60Hz
• Charging Time: Approximately 2 hours
• Usage Time: Approximately 45 minutes
• Item Weight: Approximately 50 Grams (1.76 ounces)
• Dimensions: 1.18 x 0.79 x 0.39 inches (Package Dimensions)
• Blade Material: Stainless Steel

Warranty and Support

For warranty information or technical support, please refer to the retailer where the product was purchased or contact EWKYLSEM customer service through their official channels. Please retain your proof of purchase for any warranty claims.
