Introduction
Thank you for choosing Finnhomy Bar Stools. This manual provides detailed instructions for the assembly, operation, and maintenance of your new bar stools. Please read this manual thoroughly before assembly and use to ensure safe and proper functionality. Keep this manual for future reference.

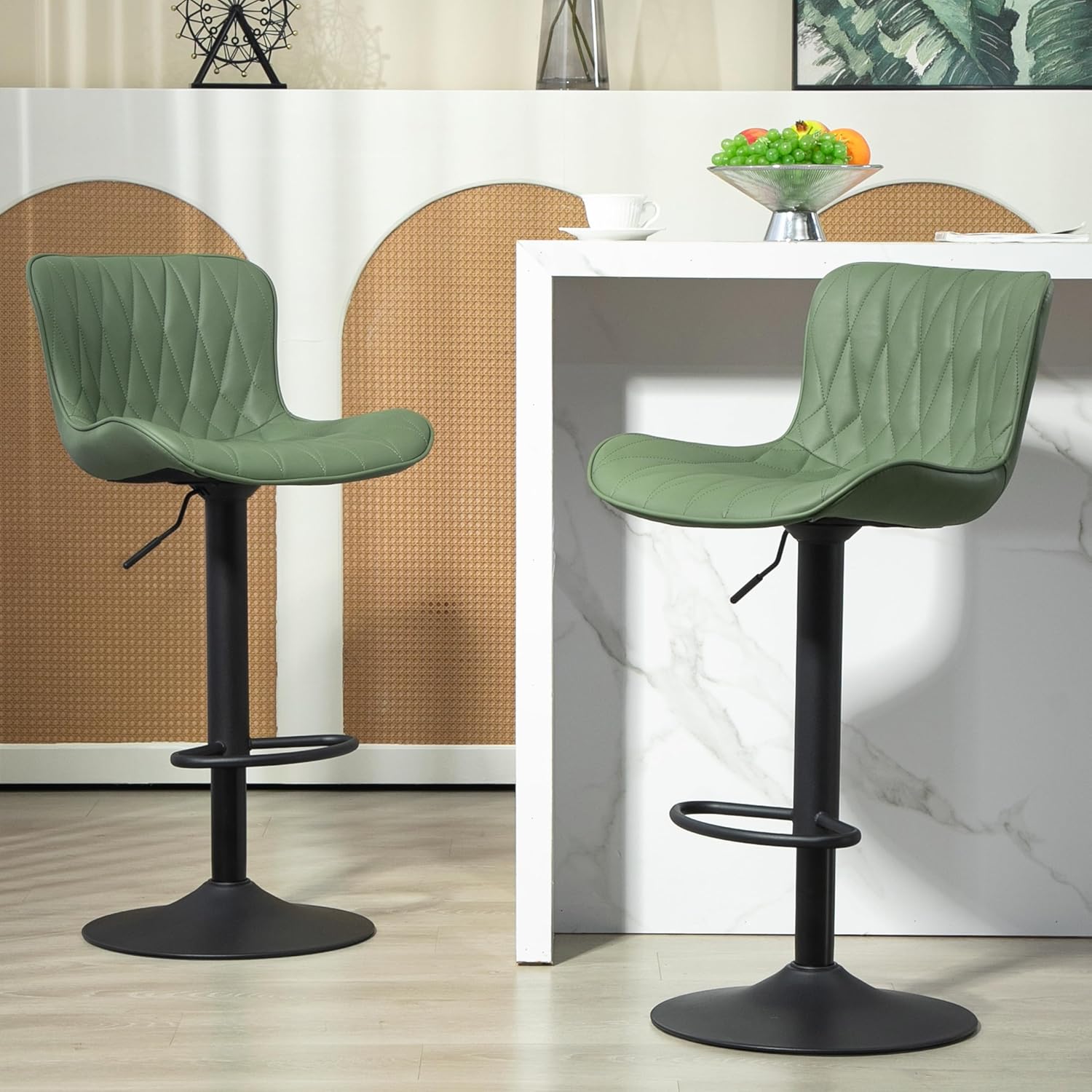

Image: Two Finnhomy green faux leather bar stools with black bases and footrests, positioned at a kitchen island.
Safety Information
- Maximum Weight Capacity: Do not exceed the maximum weight recommendation of 330 pounds (150 kg).
- Assembly: Always follow the assembly instructions carefully to ensure stability and prevent accidents.
- Clearance: Keep the area around the stool clear to minimize tipping hazards.
- Gas Lift Cover: Remember to remove the protective plastic cap from the gas lift prior to assembly for proper function.
- Stability: Ensure the stool is placed on a flat, stable surface before use.
Package Contents
The Finnhomy Bar Stools set includes the following components:
- 2 x Bar Stool Seats (Faux Leather, Green)
- 2 x Gas Lifts
- 2 x Bases
- 2 x Footrests
- All necessary screws and assembly tools
- 1 x Instruction Manual
Assembly Instructions
Assembly of each bar stool is designed to be straightforward and can typically be completed in under 10 minutes. Follow these steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Remove Gas Lift Cover: Locate the gas lift cylinder. Remove the protective plastic cap from the top of the gas lift before proceeding. Failure to do so will prevent height adjustment.
- Attach Gas Lift to Base: Insert the wider end of the gas lift into the center hole of the stool base.
- Attach Footrest: Slide the footrest ring over the gas lift, ensuring it rests securely on the designated groove or support.
- Attach Seat to Gas Lift: Align the mounting plate on the underside of the stool seat with the top of the gas lift. Secure the seat to the gas lift using the provided screws. Typically, four screws are used for this step. Tighten all screws firmly but do not overtighten.
- Test Stability: Once assembled, gently test the stability of the stool before full use.
Image: Diagram illustrating the assembly steps for the bar stool, from base to seat attachment.
Operating Instructions
Your Finnhomy Bar Stools feature adjustable height and 360-degree swivel functionality.
Height Adjustment:
- To Raise: While standing, pull the airlift handle upwards. The seat will automatically rise. Release the handle when the desired height is reached.
- To Lower: While seated, pull the airlift handle upwards. The seat will lower under your weight. Release the handle when the desired height is reached.
- The seat height can be adjusted from 24 inches (61 cm) to 32.5 inches (82.5 cm).
360° Swivel:
- The stool seat is designed to rotate a full 360 degrees, providing maximum mobility and convenience. Simply turn the seat in any direction.
Image: Visual representation of the lift control for height adjustment and the 360-degree swivel function.
Maintenance
Proper care will extend the life and appearance of your bar stools.
- Cleaning: The faux leather surface is waterproof and easy to clean. Wipe spills immediately with a soft, damp cloth. For general cleaning, use a mild soap solution and wipe dry. Avoid harsh chemicals or abrasive cleaners.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Base Protection: The large base includes a rubber ring to prevent slipping and protect your floor. Ensure this ring is intact and clean.
Image: Detailed view of the stool's features, including the faux leather texture, cushion, gas lift, and base with protective ring.
Troubleshooting
If you encounter any issues with your bar stools, please refer to the following common solutions:
- Stool not adjusting height: Ensure the protective plastic cap has been removed from the gas lift cylinder. Check that the airlift handle is functioning correctly and not jammed.
- Stool feels wobbly: Verify that all screws are securely tightened, especially those connecting the seat to the gas lift and the gas lift to the base. Ensure the stool is on a level surface.
- Squeaking noises: Apply a small amount of silicone lubricant to the moving parts of the gas lift mechanism if persistent squeaking occurs.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions (D x W x H) | 18.9" x 21.6" x 43.3" (48cm x 54.9cm x 109.9cm) |
| Adjustable Seat Height | 24" - 32.5" (61cm - 82.5cm) |
| Color | Green |
| Frame Material | Metal |
| Seat Material Type | Faux Leather |
| Maximum Weight Capacity | 330 lbs (150 kg) |
| Swivel Function | 360° Rotation |
| Gas Lift Certification | SGS Certified |
| Number of Items | 2 (Set of 2) |
| Required Assembly | Yes |
Image: Dimensional diagram of the bar stool, illustrating its various measurements and features.
Warranty and Support
Finnhomy products are manufactured with quality and durability in mind. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For any questions, concerns, or assistance with your Finnhomy Bar Stools, please contact our customer support. We aim to respond to all inquiries within 24 hours.
Contact information can typically be found on the product packaging or the retailer's website where the product was purchased.
