Product Overview
The AmeriTop Solar Lights are high-brightness, cordless LED security lights designed for outdoor use. Featuring four adjustable heads and a 320° wide-angle illumination, these lights provide extensive coverage. They are equipped with a smart motion sensor for automatic operation and are built with IP65 waterproof materials to withstand various weather conditions. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting.
Image: Two AmeriTop Solar Lights, each with four adjustable LED heads and a central motion sensor, accompanied by a remote control. These lights are designed for broad outdoor illumination and security.
Setup and Installation
The AmeriTop Solar Lights are designed for easy, wire-free installation. Follow these steps to ensure optimal performance:
- Choose a Location: Select an outdoor location that receives direct sunlight for at least 6-8 hours daily. This is crucial for the solar panel to fully charge the internal battery. Avoid areas under eaves, trees, or other obstructions that might block sunlight.
- Mounting Height: For optimal motion detection and light coverage, install the light at a recommended height of approximately 6.5 feet (2 meters) from the ground.
- Secure Mounting: Use the included screws and mounting hardware to fix the light securely to any exterior wall made of metal, wood, or plastic. For brick or concrete surfaces, appropriate anchors (not always included) may be required.
- Initial Charge: Allow the solar light to charge for a full 8 hours in direct sunlight before its first use to ensure the battery is at maximum capacity.

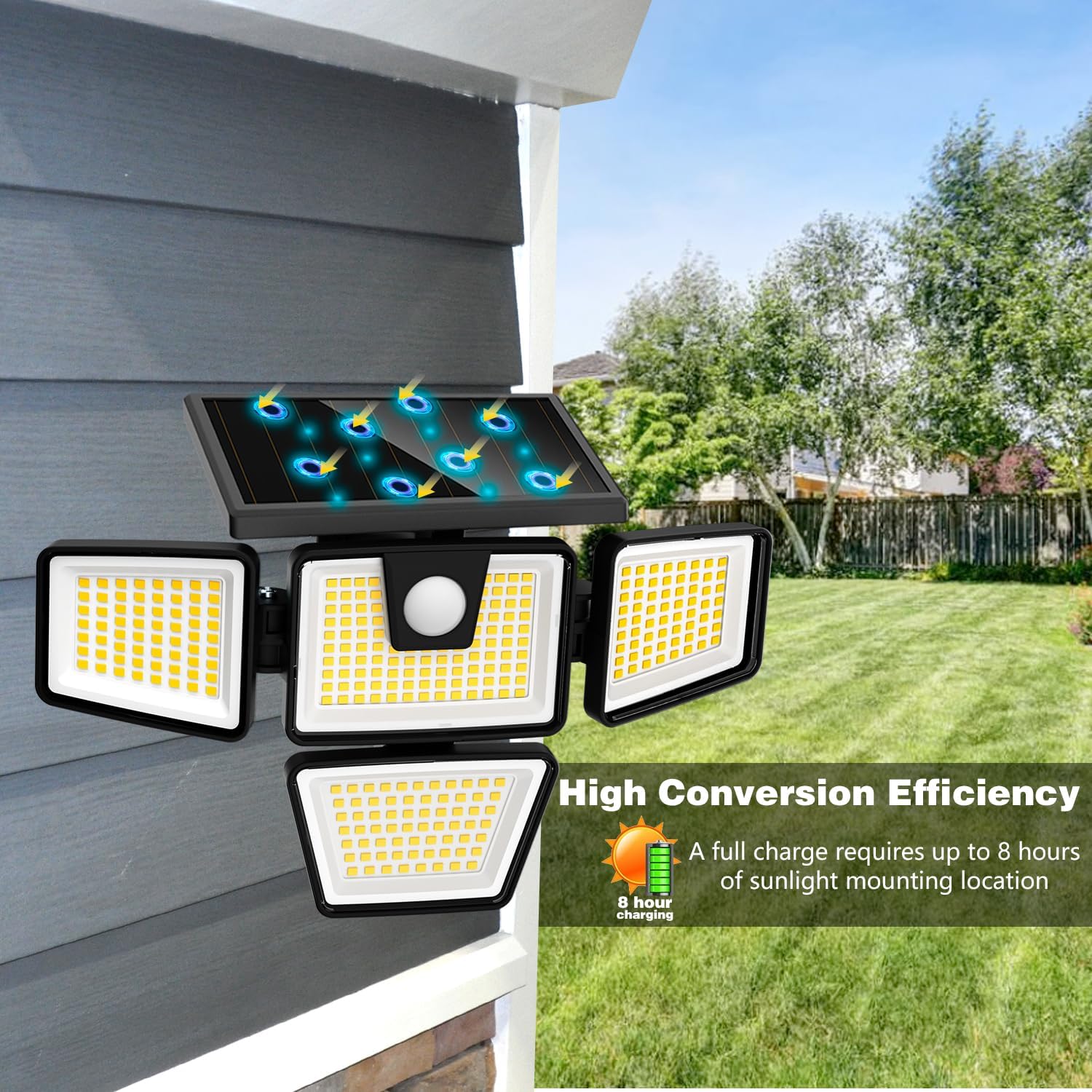

Image: An AmeriTop solar light installed on an outdoor wall, illustrating the solar panel's high conversion efficiency. The image highlights that a full charge requires up to 8 hours of direct sunlight in the mounting location.
Operating Instructions
The AmeriTop Solar Lights feature intelligent operation modes and adjustable components for customized lighting.
Motion Sensor Functionality
The built-in smart motion sensor detects movement up to 26 feet (8 meters) away within a 180° detection range. The light will automatically turn on when motion is detected and turn off approximately 30 seconds after no further movement is sensed. If continuous movement is detected within the sensor range, the light will remain on.

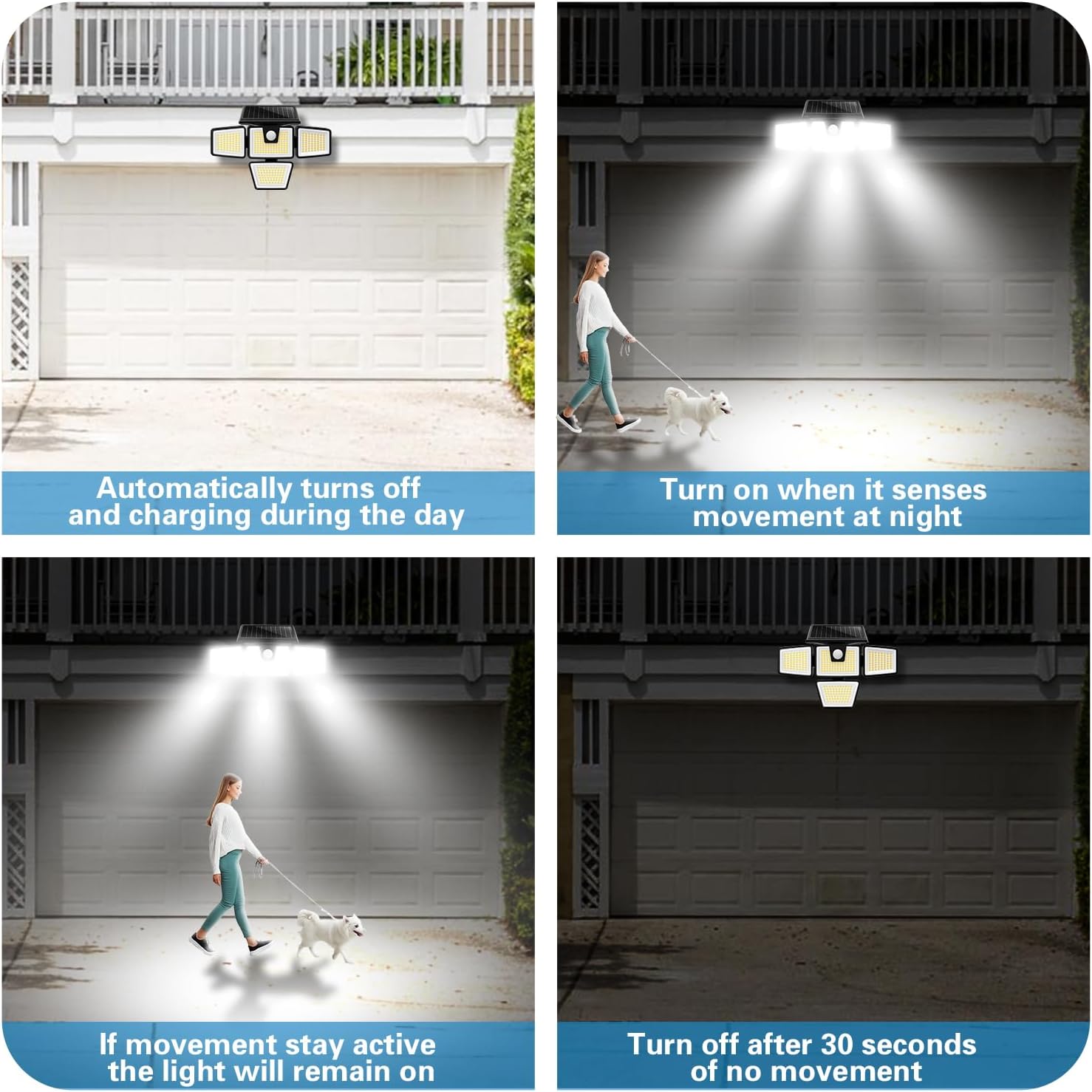

Image: A four-panel sequence demonstrating the light's automatic operation: charging during the day, activating upon sensing movement at night, remaining illuminated with continuous activity, and deactivating after 30 seconds of inactivity.
Adjustable Lighting Heads
The four LED light heads are independently adjustable, allowing you to direct illumination upwards, downwards, or horizontally. This flexibility enables a wide lighting angle of up to 270°, covering an area of approximately 1600 sq ft. Adjust the light heads and the motion sensor to suit your specific lighting needs.
Image: An AmeriTop solar light mounted above a garage, illustrating its wide-angle adjustable illumination covering a large area of approximately 1600 square feet with a recommended mounting height of 6.5 feet.
Day/Night Operation
The integrated photocell ensures the light only operates in low-light conditions. During daylight hours, the light automatically turns off and charges. It will not activate in broad daylight, even if motion is detected.
Image: A split image demonstrating the light's automatic day/night functionality. On the left, the light is off during the day while the solar panel charges. On the right, the light is illuminated at night.
Maintenance
To ensure the longevity and optimal performance of your AmeriTop Solar Lights, follow these simple maintenance guidelines:
- Clean Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures maximum sunlight absorption and charging efficiency.
- Inspect for Obstructions: Periodically check that no new obstructions (e.g., growing branches, new structures) are blocking direct sunlight to the solar panel.
- Weather Resistance: The lights are IP65 waterproof and designed to withstand rain, sleet, and snow. However, avoid submerging the unit in water.
- Battery Care: The integrated battery is designed for long-term use. Avoid disassembling the unit, as this may damage the battery or compromise the waterproof seal.

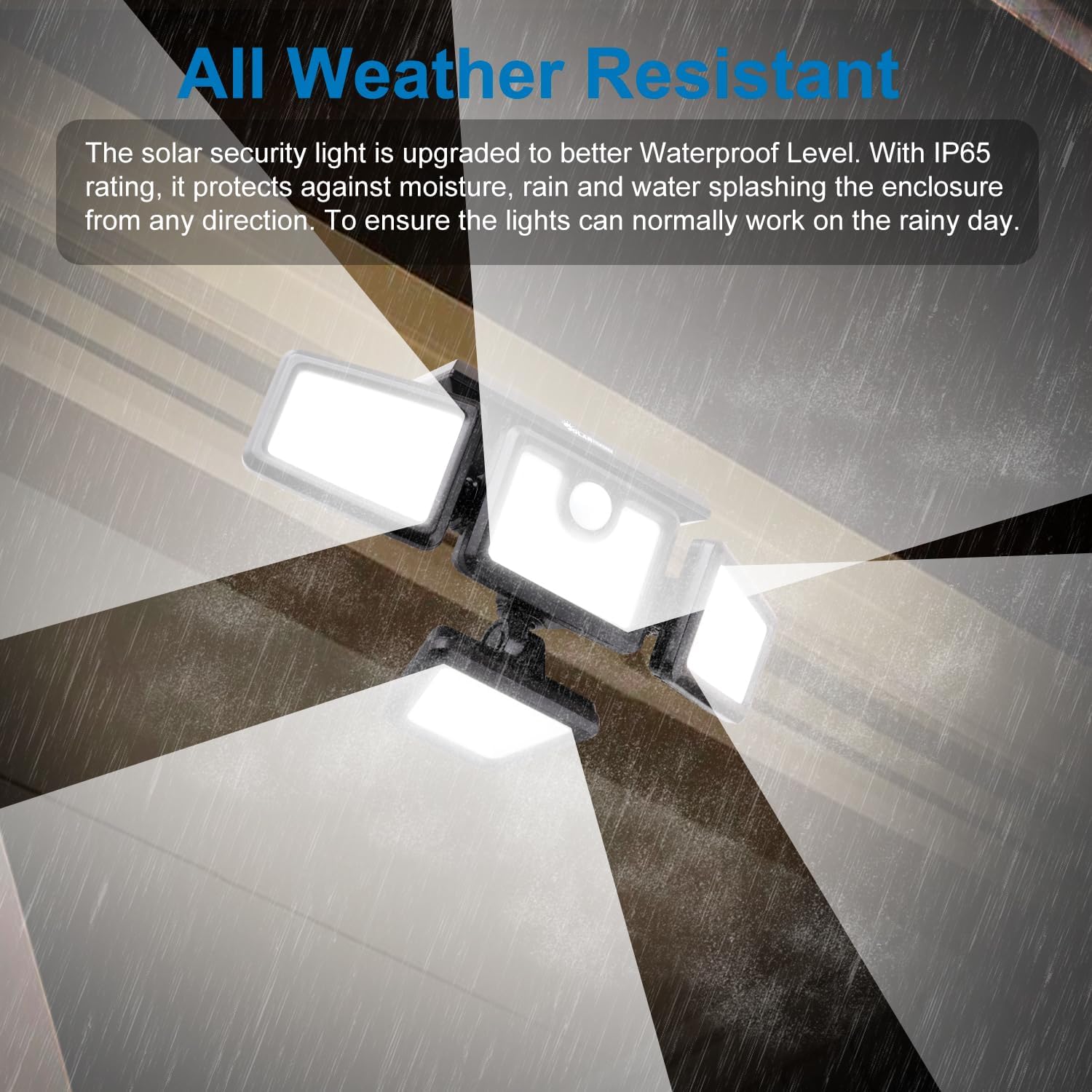

Image: An AmeriTop solar light shown under simulated rain, emphasizing its IP65 waterproof rating and all-weather resistant design, ensuring functionality in various outdoor conditions.
Troubleshooting
If your AmeriTop Solar Light is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. |
|
|
| Light turns on during the day. |
|
|
| Motion sensor is not detecting movement. |
|
|
| Light output is dim or inconsistent. |
|
|
Technical Specifications
| Feature | Detail |
|---|---|
| Brand | AmeriTop |
| Model Name | SL-25N |
| Color | Black |
| Material | Plastic (Acrylonitrile Butadiene Styrene) |
| Light Source Type | LED (SMD 2835) |
| Number of Light Sources | 4 Heads |
| Brightness | 3000 Lumen |
| Color Temperature | 6500 Kelvin (Daylight) |
| Power Source | Solar Powered |
| Solar Panel Efficiency | Up to 20% (Polycrystalline Silicon) |
| Motion Sensor Range | Up to 26 feet (8 meters) |
| Detection Angle | 180° |
| Illumination Angle | Up to 270° (Wide Angle) |
| Water Resistance Level | IP65 Waterproof |
| Product Dimensions | 11"L x 8"W x 5.5"H |
| Item Weight | 2.27 pounds |
| Included Components | Mounting Hardware |
| Batteries Included? | Yes |
Warranty Information
AmeriTop products are manufactured to high-quality standards. For specific warranty details regarding your solar lights, please refer to the warranty card included in your product packaging or visit the official AmeriTop website. Keep your purchase receipt as proof of purchase for any warranty claims.
Customer Support
If you have any questions, require technical assistance, or need to report an issue with your AmeriTop Solar Lights, please contact AmeriTop customer support. Contact information can typically be found on the product packaging, the official AmeriTop website, or through your point of purchase.
