WelFurGeer Soft Close Pull Out Cabinet Organizer User Manual

Introduction

Thank you for choosing the WelFurGeer Soft Close Pull Out Cabinet Organizer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new cabinet organizer. Designed to maximize cabinet storage space, this pull-out drawer offers easy access and organization for various items in your kitchen, pantry, or bathroom.

Image: Multiple WelFurGeer pull-out organizers in kitchen cabinets, demonstrating enhanced organization.

Key Features:

• Soft-Close Slides: Equipped with premium full-extension soft-close slides for smooth and quiet operation, supporting up to 70 pounds.
• Space Maximization: Transforms deep cabinet spaces into accessible storage for pots, pans, spices, and pantry items.
• Easy Installation: Designed for DIY installation with all necessary mounting hardware included.
• Versatile Application: Suitable for kitchen cabinets, pantries, and bathrooms.

Safety Information

Please read all instructions carefully before assembly and installation. Keep this manual for future reference.

• Ensure all components are present and undamaged before beginning assembly.
• Use appropriate tools and follow all steps in the correct order.
• Verify cabinet dimensions carefully to ensure proper fit and clearance.
• Do not overload the organizer beyond its stated weight capacity of 70 pounds.
• Keep small parts away from children during assembly.

Package Contents

Verify that all items listed below are included in your package:

• Pre-assembled wooden drawer box
• Soft-close full-extension slides (pre-attached to base plate)
• Mounting hardware (screws)
• Instruction manual

Specifications

Image: Detail of the soft-close slides and solid wood construction.

Setup and Installation

This section guides you through the process of installing your WelFurGeer Pull Out Cabinet Organizer. Ensure you have a drill, screwdriver, and measuring tape ready.

1. Measure Your Cabinet

Accurate measurement is crucial for proper fit. Measure the width, depth, and height of your cabinet opening. Pay close attention to any obstructions like door hinges, plumbing pipes, or cabinet lips that might interfere with the drawer's movement. The fixed wooden base plate for this model is 14-1/2''W x 18''D. The pull-out drawer itself is 11 inches wide.

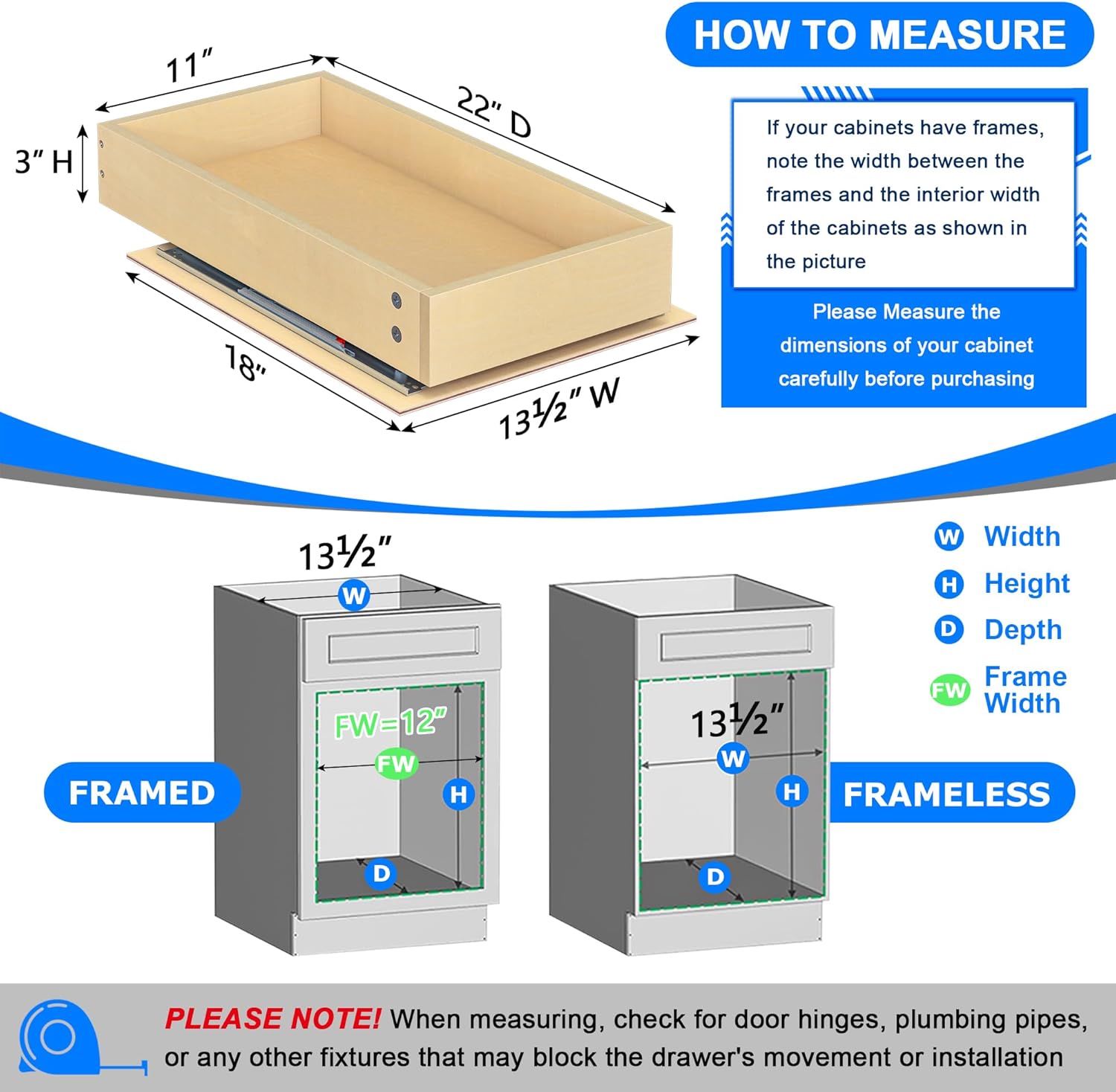

Image: Guide on measuring cabinet dimensions for framed and frameless cabinets.

2. Prepare the Organizer

The drawer box and slides come largely pre-assembled. The slides are typically attached to the base plate. You may need to separate the inner slide rail from the outer slide rail if they are locked together for shipping. Refer to the specific instructions provided with your hardware for this step.

3. Position and Secure the Base Plate

1. Place the base plate with the attached outer slide rails into your cabinet.
2. Position it to ensure adequate clearance from the cabinet door frame, hinges, and any internal obstructions.
3. Mark the screw holes on the cabinet floor through the pre-drilled holes in the base plate.
4. Pre-drill pilot holes if necessary, especially for hardwood cabinets, to prevent wood splitting.
5. Secure the base plate to the cabinet floor using the provided screws. Ensure it is firmly attached and level.

Note: If your cabinet has a front lip or other obstructions, you may need to add a spacer block under the base plate to ensure the drawer clears the obstruction when pulled out.

4. Attach the Drawer Box

1. Align the inner slide rails (attached to the drawer box) with the outer slide rails (secured to the cabinet floor).
2. Gently push the drawer box into the cabinet until the slides engage and lock into place. You should feel a slight click or resistance as they connect.
3. Test the drawer by pulling it out and pushing it back in to ensure smooth operation and proper soft-close function.

Image: Installed pull-out drawer with a stand mixer, illustrating practical use.

Operating Instructions

Your WelFurGeer Pull Out Cabinet Organizer is designed for simple and efficient use.

• To open the drawer, gently pull the front of the organizer towards you. The full-extension slides will allow the drawer to extend completely, providing full access to its contents.
• To close the drawer, push it back into the cabinet. The soft-close mechanism will engage, ensuring the drawer closes smoothly and quietly without slamming.
• Load items evenly within the drawer, keeping the weight within the 70-pound capacity.

Image: Pull-out drawer demonstrating 70 lbs capacity and full extension.

Maintenance

To ensure the longevity and optimal performance of your cabinet organizer, follow these simple maintenance guidelines:

• Cleaning: Wipe down the wooden surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. For the metal slides, a dry cloth is usually sufficient.
• Lubrication: The soft-close slides are designed for maintenance-free operation. If you notice any stiffness over time, a small amount of silicone-based lubricant can be applied to the slide rails, but avoid oil-based lubricants.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
• Avoid Overloading: Do not exceed the maximum weight capacity of 70 pounds to prevent damage to the slides and drawer structure.

Troubleshooting

If you encounter any issues with your WelFurGeer Pull Out Cabinet Organizer, refer to the following common problems and solutions:

Warranty Information

WelFurGeer products are manufactured with quality and durability in mind. This product comes with a limited warranty against defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact WelFurGeer customer support.

Customer Support

If you have any questions, require assistance with installation, or need to report a missing or damaged part, please contact WelFurGeer customer support.

• Website: www.welfurgeer.com (Hypothetical link, as none provided)
• Email: support@welfurgeer.com (Hypothetical email, as none provided)
• Phone: 1-800-XXX-XXXX (Hypothetical number, as none provided)

Please have your model number (B15-JHB-TDG85) and UPC (748095182309) ready when contacting support.
