Catrimown Queen Bed Frame Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, use, and maintenance of your Catrimown Queen Bed Frame. Designed with a heavy-duty metal structure and a modern industrial style, this bed frame offers stability, noise-free support, and eliminates the need for a box spring. Please read all instructions carefully before beginning assembly.

Figure 1: Assembled Catrimown Queen Bed Frame.

Safety Information

WARNING:

Exceeding the maximum load capacity, improper assembly, and unsecured stored items may result in injury or product damage. Always ensure all connections are secure and follow assembly instructions precisely. Keep small parts away from children.

Package Contents

Before assembly, verify that all components listed below are present. If any parts are missing or damaged, please contact customer support.

• Headboard Panel(s)
• Footboard Panel(s)
• Side Rails (Left and Right)
• Center Support Beam(s)
• Bed Slats / Metal Grid
• Support Legs (including center legs)
• Hardware Pack (bolts, washers, nuts, Allen wrench)
• Instruction Manual

Figure 2: Exploded view of bed frame components and overall dimensions.

Setup and Assembly

Assembly is designed to be straightforward. Each part is clearly labeled. It is recommended to assemble the bed frame with two people.

1. Prepare the Area: Clear a space large enough for assembly. Lay out all parts and hardware.
2. Attach Headboard and Footboard Panels: Secure the wooden headboard and footboard panels to their respective metal frames using the provided hardware. Ensure they are firmly attached.
3. Connect Side Rails: Attach the side rails to the headboard and footboard frames. Use the provided bolts and tighten them securely.
4. Install Center Support: Place the center support beam(s) into position and secure them to the side rails or designated attachment points. Attach any central support legs.
5. Place Bed Slats: Lay the metal bed slats across the frame. Ensure they are evenly spaced and secured using the rubber lock mechanism or other fasteners as indicated in the detailed instructions. The rubber lock system ensures easy installation and noise reduction.

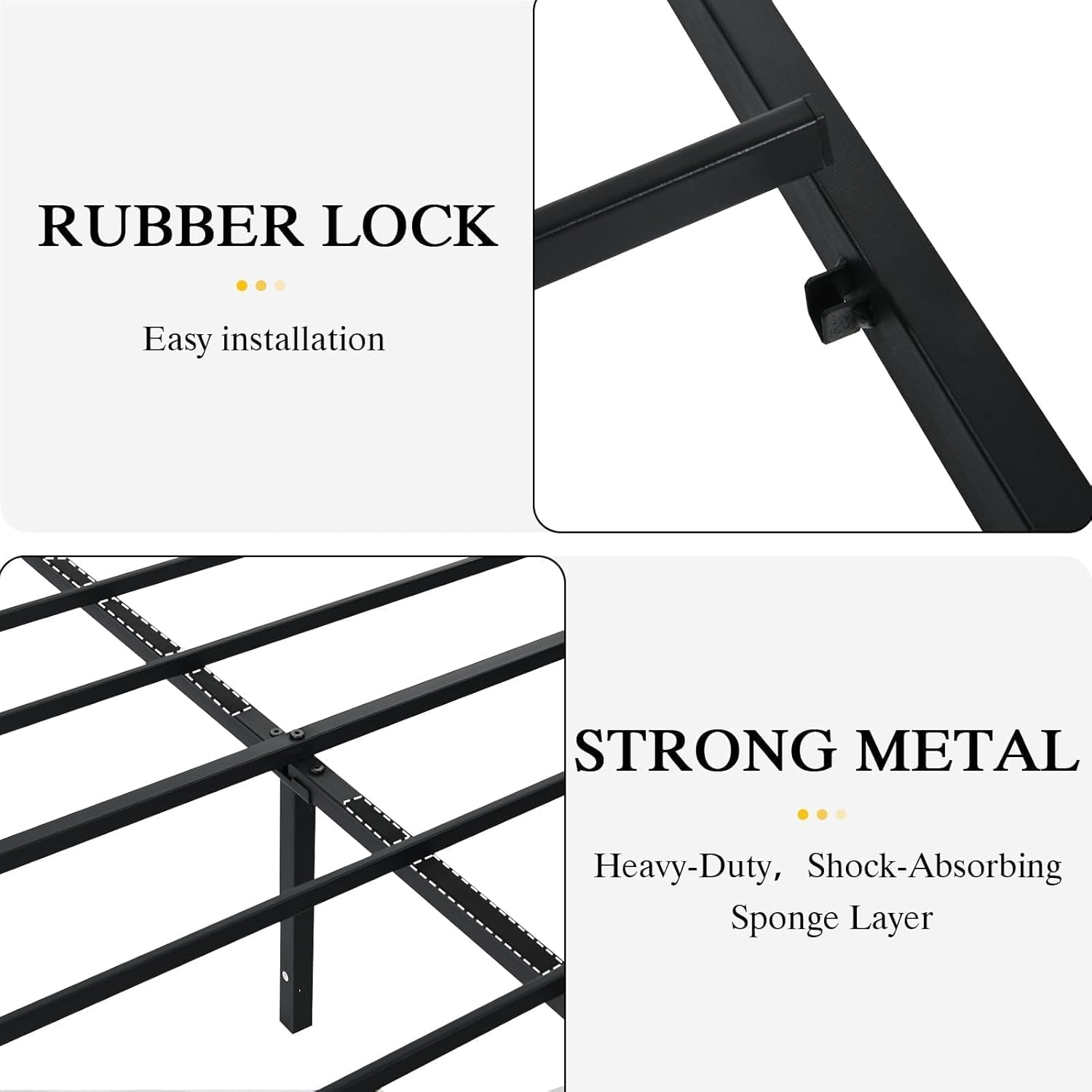

   Figure 3: Detail of the rubber lock system and strong metal frame for stability.
6. Final Tightening: Once all parts are in place, re-check and tighten all bolts and screws to ensure maximum stability.
7. Add Protective Pads: Apply protective pads to the bottom of the legs to prevent floor scratching.

Figure 4: Key features including waterproof surface, metal structure, simple installation, and protective pads.

Operating and Usage

Your Catrimown Queen Bed Frame is designed for optimal comfort and support without the need for a box spring.

• Mattress Compatibility: This frame is compatible with Queen size mattresses. A mattress thickness of 8-12 inches is recommended for best fit and aesthetic.


  Figure 5: Recommended mattress thickness for the bed frame.

• Mattress Stability: The frame includes features to prevent the mattress from slipping out of position.

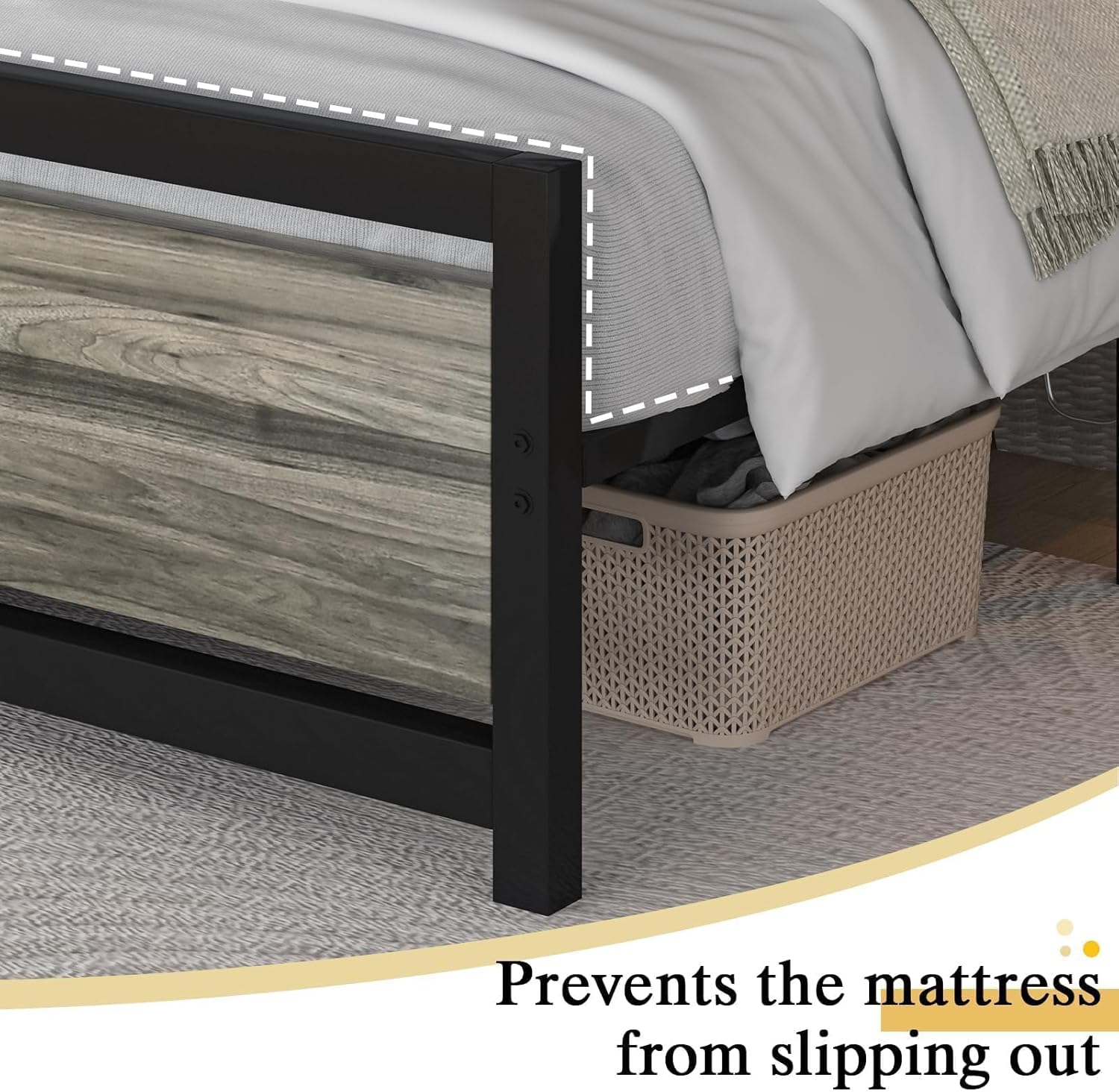

  Figure 6: Feature designed to prevent mattress slippage.

• Under-Bed Storage: The frame provides 12 inches of clearance underneath, offering convenient storage space for various items.


  Figure 7: Illustration of the 12-inch under-bed storage clearance.

Maintenance

To ensure the longevity and appearance of your bed frame, follow these maintenance guidelines:

• Cleaning: Wipe down metal surfaces with a soft, damp cloth. For wooden panels, use a dry or slightly damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Regular Inspection: Periodically check all bolts and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent noise.
• Weight Distribution: Distribute weight evenly across the bed frame to prevent stress on individual components.

Troubleshooting

If you encounter any issues with your bed frame, refer to the following common solutions:

• Squeaking/Noise:
  • Ensure all bolts and screws are securely tightened. Loose connections are a common cause of noise.
  • Check if the mattress is properly seated and not rubbing against the frame.
  • Verify that the rubber lock system for the slats is correctly engaged.
• Instability/Wobbling:
  • Confirm that all support legs are making firm contact with the floor.
  • Re-check all assembly connections for tightness.
  • Ensure the bed frame is on a level surface.
• Mattress Slippage:
  • Verify that the mattress is correctly positioned within the frame's retaining edges.

Specifications

Warranty and Support

For warranty information, missing parts, or technical assistance, please contact Catrimown customer support. You can often find support contact details on the manufacturer's website or through your purchase platform.
