Introduction
This manual provides comprehensive instructions for the safe and efficient operation, assembly, and maintenance of your Aitjunz 45" Flip Top Electric Fireplace with Mantel. Please read all instructions carefully before use and retain this manual for future reference.
Setup and Assembly
The Aitjunz Electric Fireplace with Mantel is designed for straightforward assembly. All accessories are clearly labeled, and detailed instructions are provided to guide you through the process. Assembly typically takes approximately 1 hour with one person.
Dimensions
- Electric Fireplace with Mantel: 11.6" D x 45.28" W x 34.1" H
- Electric Fireplace Insert: 5.15" D x 23" W x 17.1" H
- Weight Capacity (Mantel Top): Up to 130 lbs

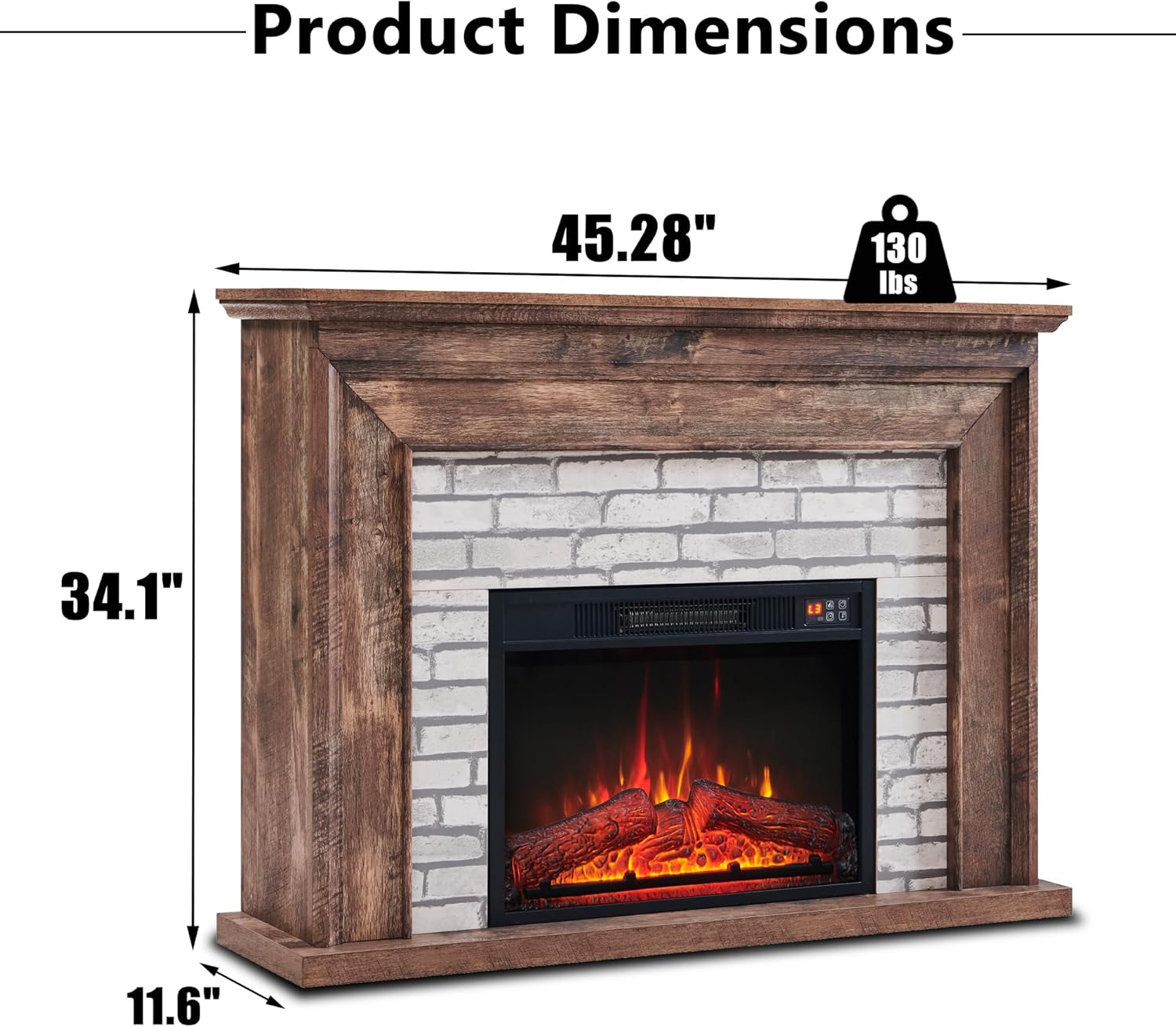

This diagram illustrates the overall dimensions of the fireplace mantel: 45.28 inches wide, 34.1 inches high, and 11.6 inches deep. It also indicates a weight capacity of 130 lbs on the top surface.
This image displays the fully assembled Aitjunz 45-inch Flip Top Electric Fireplace with Mantel, serving as a stylish TV stand in a modern living room. The fireplace features a light brown finish with a white brick-patterned insert, and the electric flames are visible.
Operating Instructions
Your electric fireplace offers various settings to customize your experience, including flame effects and heating functions.
Controls and Remote
The fireplace can be operated using the control panel on the unit or the included remote control.
- Flame Levels: Features 3 adjustable flame levels for varied ambiance.
- Temperature Control: Adjust the Fahrenheit temperature from ON (continuous heat) to 62°F-82°F.
- Flame Without Heat: The unit can be used to display flames without activating the heating function, perfect for year-round ambiance.
- Timer Function: Set a timer for automatic shut-off, with options for 30 minutes, 1 hour, 2 hours, 3 hours, 5 hours, and 6 hours.
This image focuses on the electric fireplace insert, detailing its control panel with buttons for flame control, power, timer, and heater control. A diagram of the included remote control is also shown, along with specifications: Voltage: 120V, Frequency: 60Hz, Power Rating: 1400W. The realistic 3D flame effect is visible.
Official Product Video
This video demonstrates the features of the Aitjunz Flip Top Electric Fireplace with Mantel, including the realistic flame effects, heat output, and the convenient flip-top storage compartment. It showcases the product's functionality and design in a home setting.
Extra Storage Space
The mantel features a hidden flip-top design with premium hinges, allowing for easy and silent opening and closing. This provides convenient extra storage space for various items.
- Storage Dimensions: 8.35" D x 41.34" W x 4.5" H
- Ideal for storing magazines, gamepads, remote controls, and other small items.
This image highlights the unique flip-top design of the mantel, showcasing the hidden storage compartment. The compartment measures 8.35 inches deep, 41.34 inches wide, and 4.5 inches high, providing ample space for magazines, remotes, and other items.
Safety Features
Your safety is paramount. The electric fireplace is equipped with an overheat safety device to ensure reliable operation.
- Overheat Protection: A thermostat limiter is installed inside the unit. If the internal temperature exceeds safe limits, the unit will automatically shut off to prevent product damage or fire hazards.
Specifications
| Feature | Detail |
|---|---|
| Brand | Aitjunz |
| Model Name | LD23FPFG |
| Product Dimensions | 11.6"D x 45.28"W x 34.1"H |
| Electric Fireplace Insert Dimensions | 5.15" D x 23" W x 17.1" H |
| Material | Engineered Wood |
| Finish Type | Painted |
| Installation Type | Freestanding |
| Power Source | Corded Electric |
| Power Rating | 1400W |
| Voltage | 120V |
| Frequency | 60Hz |
| Special Feature | Extra Storage Space, Flip-top Design |
| Color | Light Brown |
| Item Weight | 82.5 Pounds |
| UPC | 850066324370 |
Maintenance
To ensure the longevity and optimal performance of your electric fireplace, regular maintenance is recommended.
- Cleaning: Ensure the unit is unplugged and cool before cleaning. Use a soft, damp cloth to wipe down surfaces. Avoid abrasive cleaners or solvents.
- Ventilation: Keep the air intake and exhaust vents clear of dust and debris to ensure proper airflow and prevent overheating.
- Storage: If storing the unit for an extended period, ensure it is clean, dry, and stored in a cool, dry place.
Troubleshooting
If you encounter any issues with your electric fireplace, please refer to the following common troubleshooting tips:
- No Power: Check if the power cord is securely plugged into a working outlet. Ensure the circuit breaker has not tripped.
- No Heat: Verify that the heat function is activated and the temperature setting is above the current room temperature. Check for any obstructions in the air vents.
- Flames Not Working: Ensure the flame effect is turned on. If using the remote, check its batteries.
- Automatic Shut-off: This is often due to the overheat safety feature. Unplug the unit, allow it to cool for at least 10-15 minutes, and check for any blocked vents before plugging it back in.
If the problem persists after attempting these steps, please contact customer support.
Warranty and Support
Aitjunz is committed to providing high-quality products. For specific warranty details and terms, please refer to the warranty card included with your purchase or visit the official Aitjunz brand store.
Customer Support
For any questions, technical assistance, or service inquiries, please contact Aitjunz customer support through the following channels:
- Online: Visit the Aitjunz Brand Store on Amazon for FAQs and contact information.
