Product Overview
This manual provides detailed instructions for the assembly, operation, and maintenance of your Aoxun 12'x14' Hardtop Gazebo. Designed with a sturdy aluminum frame and a double galvanized steel roof, this outdoor pavilion offers a comfortable and protected space for your backyard, patio, or deck. It includes integrated netting and curtains for enhanced privacy and insect protection.
Figure 1: The Aoxun 12'x14' Hardtop Gazebo providing a shaded outdoor living space.
Setup and Assembly
The Aoxun Hardtop Gazebo is designed for straightforward installation. All parts are clearly numbered, and step-by-step instructions are provided. It is recommended that two to four persons complete the assembly, which typically takes two to three hours. Ensure all parts are present and undamaged before beginning assembly.
Assembly Video Guide
Video 1: A detailed assembly guide for the Aoxun Hardtop Gazebo. Follow these steps carefully for proper installation.
Key Assembly Features
Figure 2: Illustrates the triangular structure for enhanced stability, velcro straps for securing curtains, and the anchored frame design.
Important Tip: Do not fully tighten all screws until the entire frame is assembled. This allows for minor adjustments and ensures proper alignment of all components.
Figure 3: Your gazebo may arrive in multiple packages, potentially on different days. Please ensure all boxes are received before starting assembly.
Operating Instructions
Your Aoxun Hardtop Gazebo offers versatile functionality to enhance your outdoor experience.
Curtains and Netting
The gazebo is equipped with 180g gray polyester curtains and 40g netting. These can be adjusted to provide privacy, block sunlight, or allow for airflow while keeping insects out. The curtains can be fully closed for privacy, half-open for mosquito protection, or fully open for maximum ventilation.
Figure 4: Demonstrates the three adjustable modes for the curtains and netting: fully open, half-open, and fully closed.
Multifunctional Top Design
The gazebo roof features integrated hooks, allowing you to hang lights, fans, or other decorations to personalize your outdoor space.

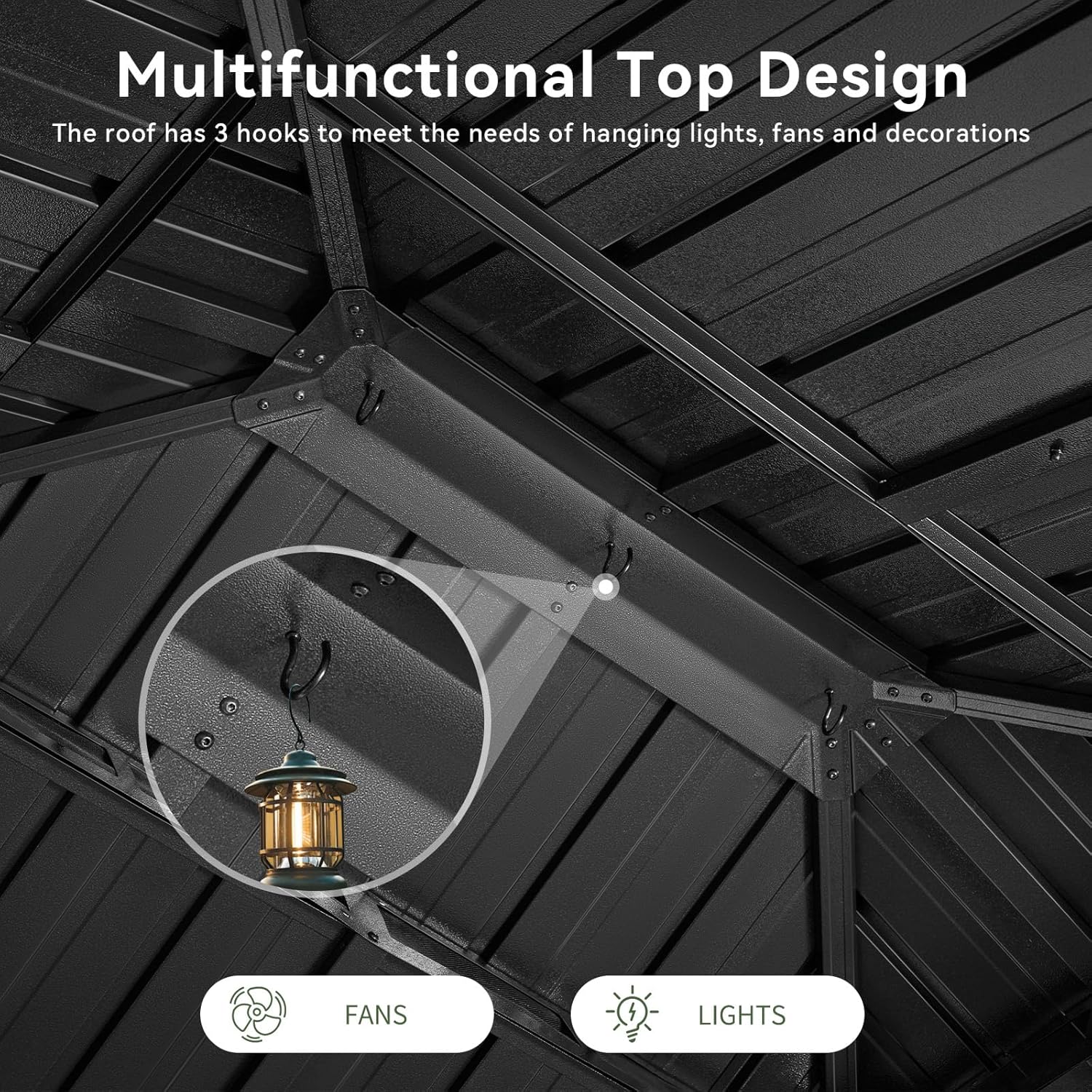

Figure 5: The multifunctional top design includes hooks for hanging various accessories.
Care and Maintenance
Proper care and maintenance will extend the lifespan of your Aoxun Hardtop Gazebo.
- Regular Cleaning: Clean the metal frame and roof panels with a mild soap and water solution. Rinse thoroughly and dry to prevent water spots and corrosion.
- Fabric Care: The polyester curtains and netting can be spot cleaned with a mild detergent. For deeper cleaning, they may be removed and hand washed. Ensure they are completely dry before reattaching to prevent mildew.
- Fastener Checks: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
- Anchoring: Always ensure the gazebo is securely anchored to a stable foundation, especially in windy conditions.
Weather Resistance
The galvanized steel roof provides UV protection, is waterproof, and snow-resistant, designed to withstand various weather conditions.
Figure 6: The gazebo is built for all-weather use, offering protection from sun, rain, and snow.
Efficient Drainage System
The superior slope design of the roof helps rainwater drain quickly, preventing accumulation and maintaining the pavilion in excellent condition.
Video 2: Demonstrates the efficient drainage system of the hardtop gazebo, ensuring water runs off quickly.
Troubleshooting Common Issues
If you encounter any issues during or after assembly, please refer to the following common solutions:
- Misaligned Holes: During roof panel assembly, some holes may not align perfectly. It is crucial to keep all screws loose until all panels are in place. This allows for flexibility to adjust and align the components before final tightening.
- Netting Gaps: If the netting does not appear flush or allows insects through, ensure all attachment points are correctly secured. While designed for protection, minor gaps may occur. Consider additional sealing methods if necessary.
- Stability Concerns: Ensure the gazebo is anchored to a solid surface using the provided expansion bolts or other suitable anchoring methods. Regularly check the tightness of all structural fasteners.
- Missing or Damaged Parts: If any parts are missing or damaged upon arrival, please contact Aoxun customer service immediately for assistance.
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Aoxun |
| Model Number | IG402GR05-MJ |
| Product Dimensions | 167.3"L x 143.7"W x 119.6"H (12' x 14') |
| Item Weight | 322 Pounds |
| Frame Material | Aluminum |
| Roof Material | Galvanized Steel (Double Top) |
| Curtain Material | 180g Gray Polyester |
| Netting Material | 40g Netting |
| Color | Gray |
| Water Resistance Level | Water Resistant |
| UV Protection | 25 |
| Assembly Required | Yes |
Figure 7: Detailed product dimensions for planning your installation space.
Warranty and Customer Support
Aoxun Outdoor Gazebos are backed by a 1-year warranty for your peace of mind. This warranty covers manufacturing defects and ensures the quality of your product.
If you experience any problems, require replacement parts, or have questions regarding your gazebo, please do not hesitate to reach out to Aoxun Direct customer service. We are dedicated to providing excellent customer service and ensuring your satisfaction long after your purchase.
For support, please visit the Aoxun Store on Amazon or contact the seller directly through your purchase platform.
