ER 32 Spring Collet Clamping Tool User Manual

1. Introduction and Overview

This manual provides essential information for the proper use, installation, and maintenance of your Petabo ER 32 Spring Collet. Designed for precision clamping in CNC milling, lathe tools, and other machining applications, this collet ensures secure and accurate tool holding. Please read this manual thoroughly before operation to ensure safe and efficient use.

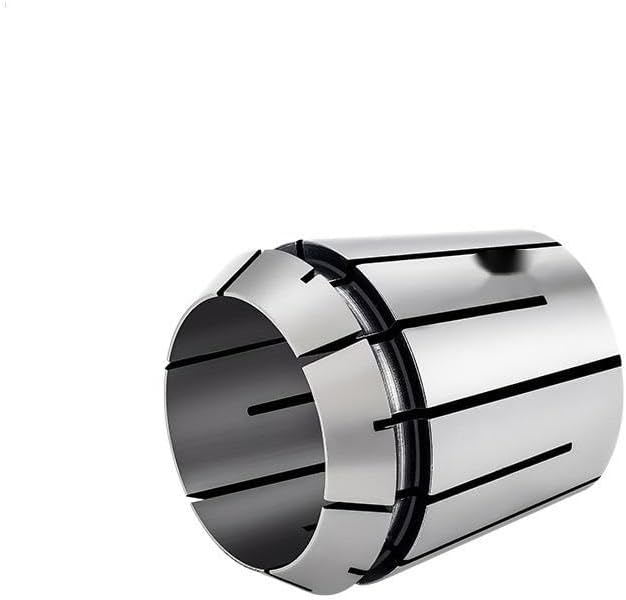

Image 1: The Petabo ER 32 Spring Collet, a precision tool for clamping.

2. Safety Information

Adhering to these safety guidelines is crucial for preventing damage to the collet and ensuring operator safety:

• Incorrect Assembly: Incorrect assembly procedures can significantly damage the accuracy of the spring collet and potentially damage the collet nut. Always follow proper assembly instructions.
• Clamping Range: Do not use tools or workpieces that exceed the specified clamping range of the collet. Exceeding the range can lead to tool slippage, damage to the collet, or injury.
• Correct Nut Usage: Always use the correct spring collet assembly nut designed for the ER 32 collet. Mismatched nuts can compromise clamping force and accuracy.

3. Product Features

• Precision: Includes 1pc of ER32 Spring Collet with an accuracy of 0.008mm. The size refers to the inner diameter.
• Material Quality: Crafted from high-quality spring steel, ensuring excellent precision, elasticity, and secure clamping for stable cutting performance.
• Enhanced Functionality: These ER32 collet nuts are precision ground on the exterior, providing a good fit for enhanced functionality and reliable operation.
• Durability: Features precision grinding and hardening processes, making the ER32 collet chuck power head an effective replacement for damaged parts and compatible with most tool holders.
• Versatile Applications: The milling cutter can be utilized with ER-type tool holders, boring cutters, tool bars, extension bars, and drill bits, making it versatile for various machining tasks.

4. Setup and Installation

Proper setup is critical for the performance and longevity of your ER 32 collet. Follow these general steps for installation:

1. Inspect Components: Before assembly, inspect the collet, collet nut, and tool holder for any debris, damage, or wear. Clean all components thoroughly.
2. Insert Collet into Nut: Tilt the collet slightly and insert it into the eccentric groove of the collet nut. Push firmly until the collet snaps into place.
3. Insert Tool: Insert the cutting tool (e.g., drill bit, end mill) into the collet. Ensure the tool shank is clean and free of burrs. The tool should be inserted to the recommended depth, typically at least 2/3 of the collet's clamping length.
4. Thread Nut onto Holder: Carefully thread the assembled collet and nut onto the tool holder. Hand-tighten first to ensure proper alignment.
5. Tighten with Wrench: Use a collet wrench to tighten the nut securely. Do not overtighten, as this can damage the collet or nut. Refer to your tool holder's specifications for recommended torque values.

Image 2: ER Collets, such as the ER 32, often come individually packaged for protection and easy identification.

5. Operating Instructions

Once the collet and tool are properly installed in the machine's spindle or tool holder, the system is ready for operation. Always ensure the collet is securely tightened before starting any machining process.

• Tool Selection: Ensure the tool selected matches the collet's clamping range and is appropriate for the material and operation.
• Machine Setup: Follow your machine's specific operating procedures for setting speeds, feeds, and depth of cut.
• Monitoring: During operation, monitor the machining process for any signs of tool slippage, excessive vibration, or unusual noise, which may indicate improper clamping or tool wear.
• Tool Removal: After operation, carefully loosen the collet nut using the appropriate wrench. Remove the tool and then the collet from the nut.

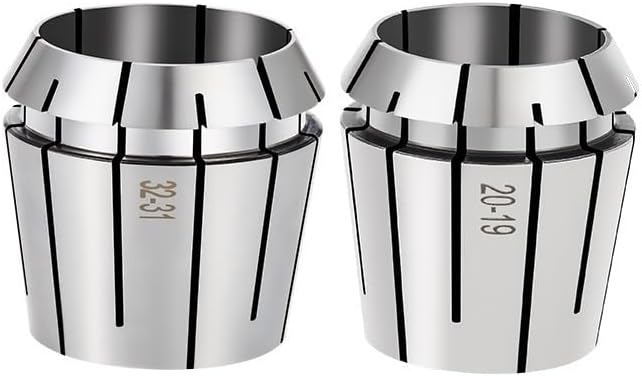

Image 3: Two ER collets, illustrating different sizes (e.g., ER32 and ER20), each designed for specific clamping ranges.

6. Maintenance

Regular maintenance extends the life and maintains the accuracy of your ER 32 collet.

• Cleaning: After each use, clean the collet and collet nut thoroughly to remove any chips, coolant residue, or debris. A soft brush and appropriate cleaning solution can be used.
• Lubrication: Apply a thin coat of light machine oil to the threads of the collet nut and the mating surfaces of the collet and tool holder to prevent corrosion and ensure smooth operation.
• Storage: Store collets in a clean, dry environment, preferably in a collet rack or case, to protect them from damage and contamination.
• Inspection: Periodically inspect the collet for signs of wear, cracks, or deformation. Replace any damaged collets immediately to prevent accuracy issues or tool failure.

7. Troubleshooting

If you encounter issues with your ER 32 collet, consider the following common problems and solutions:

8. Specifications

The following specifications apply to the Petabo ER 32 Spring Collet (13mm):

Image 4: Technical diagram illustrating the dimensions (L and D) and key specifications of ER collets, including material and hardness.

9. Warranty and Support

Specific warranty details for the Petabo ER 32 Spring Collet are not provided in this manual. For information regarding warranty coverage, technical support, or replacement parts, please contact the manufacturer directly or refer to the product listing on the retailer's website.

Manufacturer: Petabo
