Introduction
This manual provides comprehensive instructions for the Ohsilv 3-Channel LED Light Switch Panel, designed to enhance your RC car model with remote-controlled lighting. This device allows for easy integration and control of LED lights on models such as SCX10 and TRX4. Please read these instructions carefully before installation and operation to ensure proper functionality and safety.

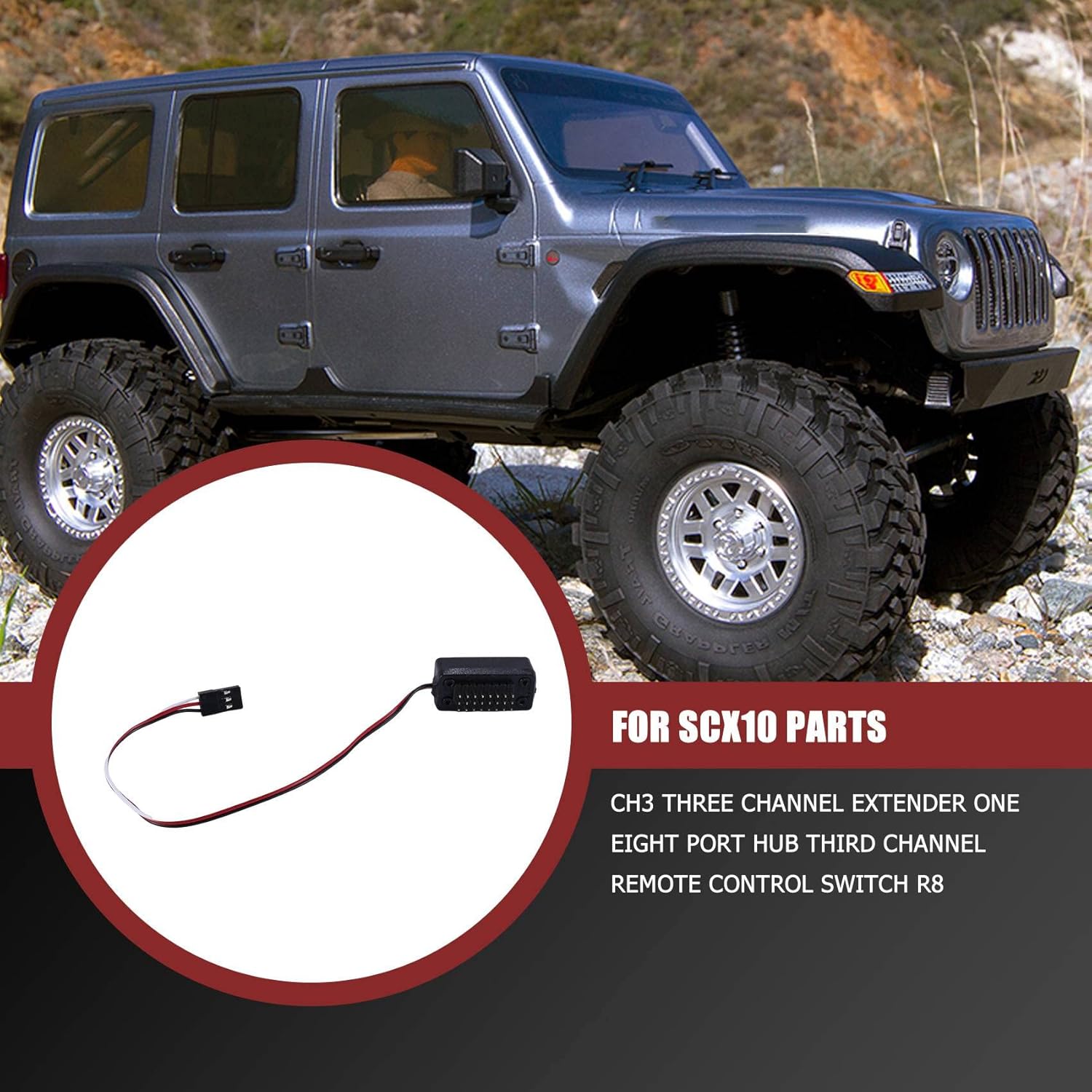

Image: The Ohsilv 3-Channel LED Light Switch Panel shown in context with an RC car, demonstrating its application for SCX10 parts.
Setup and Installation
Follow these steps to correctly install your 3-Channel LED Light Switch Panel:
- Connect to Receiver: Locate the third channel (CH3) port on your RC receiver. Insert the plug of the remote control lamp's three-way remote control cable into this third channel port. This connection enables remote control of the lamp switch.
- Powering the Lights: The LED lights can be directly plugged into the "receiver power on" port, meaning they draw power directly from the receiver. The integrated circuit board features voltage step-up and stabilization to ensure consistent light performance.
- Secure Placement: Ensure the switch panel and all connected cables are securely placed within your RC model to prevent interference with moving parts or accidental disconnections during operation.
Image: The CH3 light switch panel connected to an RC car, demonstrating how the light is powered directly from the receiver.
Operating Instructions
The 3-Channel LED Light Switch Panel allows you to cycle through different lighting modes using your remote control's third channel. Each time the third channel switch is toggled or the third channel button is pressed, the operating mode will change in the following sequence:
- Mode 1: Channel output closed.
- Mode 2: Channel A output open, Channel B output closed.
- Mode 3: Channel A output closed, Channel B output open.
- Mode 4: Both channel outputs open.
- Mode 5: Channel 2 output closed loop.
Cycle through these modes to achieve your desired lighting configuration for your RC model.
Image: A visual representation of the switch working modes, detailing the output states for Channel A and Channel B.
Maintenance
To ensure the longevity and optimal performance of your Ohsilv 3-Channel LED Light Switch Panel, consider the following maintenance guidelines:
- Cleaning: Periodically clean the exterior of the switch panel with a soft, dry cloth. Avoid using harsh chemicals or solvents.
- Connection Check: Regularly inspect all cable connections to ensure they are secure and free from damage. Loose connections can lead to intermittent operation.
- Environmental Protection: Protect the unit from excessive moisture, dust, and extreme temperatures. While designed for RC use, prolonged exposure to harsh conditions can affect performance.
- Storage: When not in use for extended periods, store the switch panel in a dry, cool environment.
Troubleshooting
If you encounter issues with your Ohsilv 3-Channel LED Light Switch Panel, refer to the following common troubleshooting steps:
- Lights Not Turning On:
- Verify that the switch panel is correctly plugged into the CH3 port of your receiver.
- Ensure the receiver is powered on and functioning correctly.
- Check the LED lights themselves for any damage or loose connections.
- Cycle through the operating modes using your remote control to ensure it's not in a "closed output" mode.
- Intermittent Light Operation:
- Inspect all wiring for secure connections.
- Check for any physical damage to the cables or the switch panel.
- Ensure there is no interference from other electronic components in your RC model.
- Remote Control Not Responding:
- Confirm your remote control's CH3 switch or button is functioning.
- Ensure your receiver is properly bound to your remote control.
If problems persist after attempting these steps, contact customer support for further assistance.
Specifications
Detailed technical specifications for the Ohsilv 3-Channel LED Light Switch Panel:
| Feature | Detail |
|---|---|
| Brand | Ohsilv |
| Model Number | 500153724 |
| Weight | 8.5 grams |
| Cable Length | 210 mm (8.26 inches) |
| Material | Composite Material |
| Box Size (approx.) | 32 mm x 15 mm x 12 mm |
| Item Dimensions (approx.) | 30 x 30 x 20 millimeters |
| Country of Origin | China |
Image: The physical dimensions and weight of the 3-Channel LED Light Switch Panel, indicating a cable length of 210mm (8.26 inches) and a weight of 8.5g.
Warranty Information
Specific warranty details for the Ohsilv 3-Channel LED Light Switch Panel are not provided in the product information. Please refer to your retailer or the manufacturer's official website for any applicable warranty policies.
Customer Support
For technical assistance, troubleshooting beyond this manual, or inquiries regarding your Ohsilv 3-Channel LED Light Switch Panel, please contact the seller or manufacturer directly. Contact information may be available on the product packaging or the retailer's website.
