lwjunmm Bedside Commode with Padded Seat and Back - Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and effective use, assembly, and maintenance of your lwjunmm Bedside Commode. This product is designed to assist individuals with limited mobility, including the elderly, pregnant women, and those with disabilities, by providing a convenient and stable toileting solution.

Please read this manual thoroughly before initial use and retain it for future reference. Ensure all users are familiar with these instructions.

2. Product Overview

The lwjunmm Bedside Commode is a versatile mobility aid that can function as a bedside toilet, an over-the-toilet commode, or a shower chair. It features a robust design for stability and comfort.

Key Features:

• Strong and Safe Material: Constructed from high-quality PP material with a reinforced frame for stability and safety.
• Comfortable Design: Includes a soft, padded PU seat and a foam backrest for enhanced user comfort.
• User-Friendly: Designed for easy waste disposal using trash bags or a removable bucket. Features enveloping protective backrests and armrests for support.
• Removable Thickened Armrests: Provides additional support for sitting and standing, enhancing safety.
• Multi-scenario Application: Suitable for use in bedrooms, bathrooms, or as a portable solution for outdoor activities.

Figure 2.1: The lwjunmm Bedside Commode, illustrating its use for individuals with mobility needs, such as pregnant women.

Figure 2.2: Detailed features of the commode, including the soft foam backrest, dual lid for odor control, a removable side basket for essentials, and an inner bucket with a handle for easy removal.

3. Setup and Assembly

The lwjunmm Bedside Commode typically arrives pre-assembled or requires minimal setup. Follow these steps to prepare your commode for use.

3.1 Unpacking

1. Carefully remove all components from the packaging.
2. Verify that all parts are present: commode frame, padded seat, backrest, removable bucket (solid or hollow), and armrests.
3. Inspect for any damage during transit. If any parts are missing or damaged, contact customer support immediately.

3.2 Component Identification and Assembly

Figure 3.1: Commode dimensions and bucket types. The commode measures approximately 38.5cm in height (seat to top of backrest), 40.7cm seat width, 40.8cm seat depth, and 52.8cm total depth. The solid and hollow buckets are both 32.6cm in diameter at the top, 27.5cm at the bottom, and 15.7cm deep.

1. Attach Armrests: If not already attached, slide the armrests into the designated slots on the sides of the commode frame until they click securely into place. Ensure they are firm and do not wobble.
2. Insert Bucket: Place the chosen bucket (solid for standalone use, hollow for over-the-toilet use) into the commode opening. Ensure it sits flush and is stable.
3. Position Seat and Lid: Ensure the padded seat is correctly aligned and secured on top of the commode. The lid should close properly over the seat.
4. Optional Heightening Mode: If your model includes heightening legs, attach them to the base of the commode as shown in Figure 3.2 to increase the overall height by approximately 52mm. This is suitable for users requiring a higher seat.

Figure 3.2: Heightening Mode. The commode's height can be adjusted by adding optional leg extensions, raising the seat by 52mm for taller users or those who find a higher seat more comfortable.

3.3 Stability Check

Before each use, ensure the commode is placed on a flat, stable surface. Gently rock the commode to confirm it does not wobble. The anti-slip bottom design enhances stability.

Figure 3.3: Anti-Slip Bottom. The commode features an anti-slip bottom design to strengthen load-bearing capacity and prevent accidental rollovers, ensuring user safety.

4. Operating Instructions

The lwjunmm Bedside Commode offers multiple modes of operation to suit various user needs and environments.

4.1 As a Bedside Commode (Standalone)

1. Place the commode next to the bed or in a convenient location.
2. Ensure the solid barrel (bucket) is inserted into the commode.
3. For easier cleaning, line the solid barrel with a standard trash bag before use.
4. Use the armrests for support when sitting down and standing up.
5. After use, close the double-layer lid to contain odors.

Figure 4.1: Odor Control and Model Variations. The commode features a double-layer cover (inner and outer) to effectively seal and eliminate odors. This image also displays various models, including Basic, Luxury, Flagship, and Heightened, though this manual focuses on the BasicModel.

4.2 As an Over-the-Toilet Commode

1. Position the commode directly over a standard toilet bowl.
2. Ensure the hollow barrel (bucket) is inserted, allowing waste to fall directly into the toilet.
3. Verify that the commode is stable and centered over the toilet before use.
4. Use the armrests for support.

Figure 4.2: Usage Scenarios. This image demonstrates the commode's versatility, showing its application both as a standalone unit with a solid bucket and positioned over a toilet with a hollow bucket, catering to individuals with limited mobility.

4.3 As a Shower Chair

The commode can also be used as a shower chair. Ensure the commode is placed on a non-slip surface within the shower area. The PP material is water-resistant. Always exercise caution on wet surfaces.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and hygiene of your lwjunmm Bedside Commode.

5.1 Daily Cleaning

1. Waste Disposal: If using a trash bag, tie it securely and dispose of it according to local regulations. If using the bucket directly, empty its contents into a toilet.
2. Bucket Cleaning: Remove the bucket and clean it thoroughly with warm water and a mild disinfectant or soap. Rinse well and dry completely before reinserting.
3. Commode Frame: Wipe down the commode frame, seat, and backrest with a damp cloth and a mild disinfectant. Dry thoroughly.

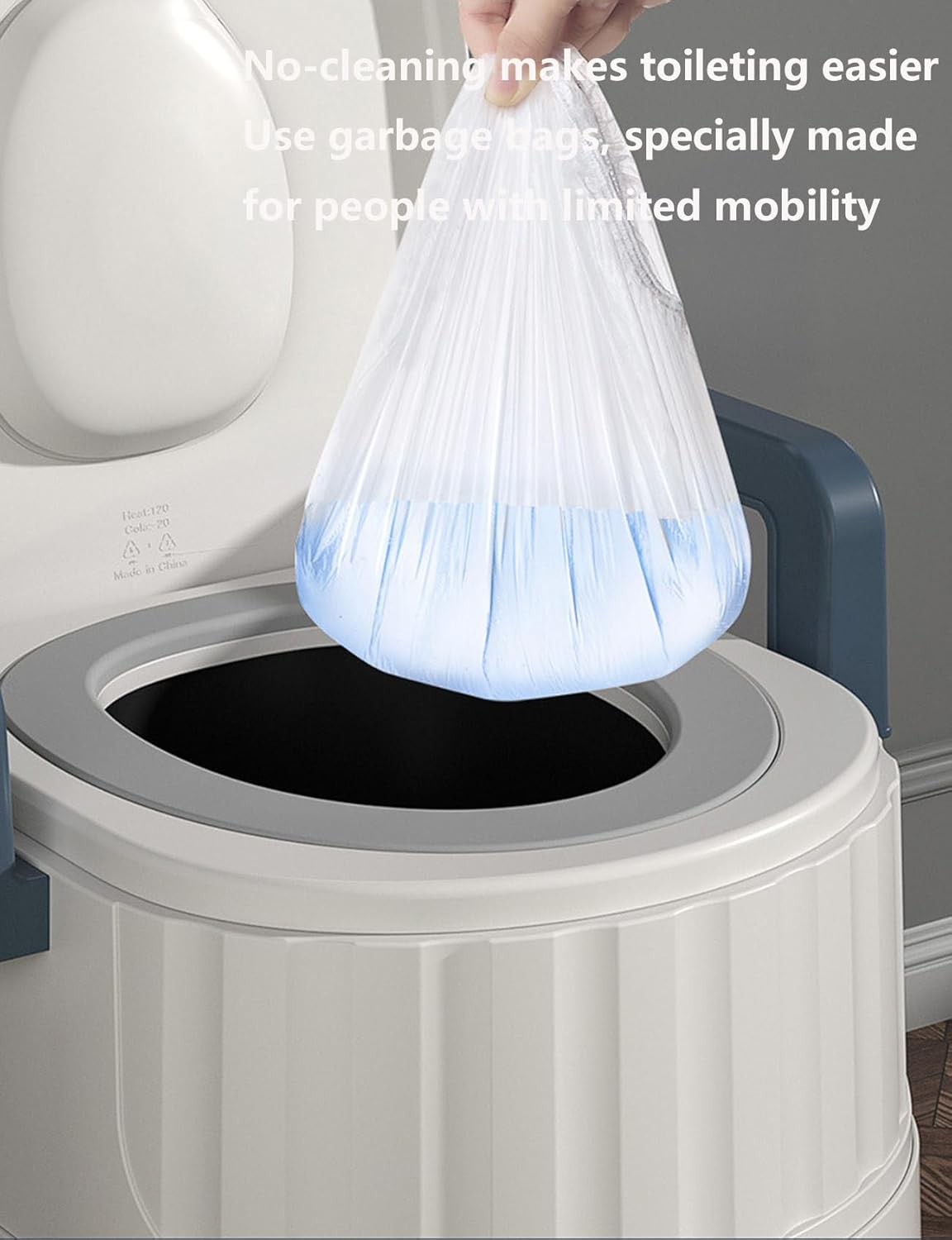

Figure 5.1: Easy Waste Disposal. The commode is designed to accommodate garbage bags within its bucket, simplifying waste disposal and reducing the need for direct cleaning of the bucket after each use.

5.2 General Maintenance

• Regularly check all connections and fasteners to ensure they are tight and secure.
• Inspect the padded seat and backrest for any signs of wear or damage.
• Avoid using abrasive cleaners or harsh chemicals, as these can damage the material.

6. Troubleshooting

• Commode wobbles: Ensure the commode is on a flat, even surface. Check that all leg extensions (if used) are securely attached and evenly seated.
• Odor issues: Ensure the double-layer lid is properly closed after each use. Clean the bucket and commode regularly with disinfectant. Consider using odor-absorbing liners or sprays.
• Difficulty removing bucket: Ensure the bucket is not overfilled. Use the integrated handle for easier removal.

7. Specifications

8. Safety Information

• Always ensure the commode is placed on a firm, level surface before use.
• Do not exceed the maximum weight capacity (not explicitly stated, but implied by "reinforced frame").
• Use caution when transferring to and from the commode. Utilize armrests for support.
• Keep children away from the commode unless supervised by an adult.
• Regularly inspect the commode for any signs of wear, damage, or loose components. Discontinue use if damage is found.
• When using as a shower chair, ensure the floor is non-slip and exercise extreme caution.

9. Warranty and Support

For any questions, concerns, or support regarding your lwjunmm Bedside Commode, please contact the manufacturer or your retailer. Please refer to your purchase documentation for specific warranty details.

Manufacturer: lwjunmm
