1. Important Safety Information
Please read all instructions carefully before using your new refrigerator. Keep this manual for future reference. Always disconnect the appliance from the power supply before cleaning or performing any maintenance.
Electrical Safety: Ensure the power outlet is properly grounded. Do not use extension cords or ungrounded adapters. Do not operate the appliance if the power cord is damaged.
Placement Safety: Place the refrigerator on a firm, level surface. Ensure adequate ventilation around the unit (at least 4 inches of space on all sides and top) to allow for proper heat dissipation and efficient operation. Do not place in direct sunlight or near heat sources.
2. Product Overview
The Saeoola 3.2 Cu.Ft Mini Fridge with Freezer is a compact, two-door refrigeration unit designed for small spaces such as dorms, bedrooms, offices, and apartments. It features a separate freezer compartment and a refrigerator compartment with adjustable temperature control.
Figure 2.1: Front view of the Saeoola Mini Fridge with Freezer.
3. Setup Instructions
- Unpacking: Carefully remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any shipping damage.
- Placement: Position the refrigerator on a flat, stable surface away from direct sunlight and heat sources. Ensure there is sufficient clearance around the unit for proper ventilation.
- Leveling: Adjust the leveling feet at the bottom of the refrigerator to ensure the unit is stable and level. This helps in efficient operation and prevents vibrations.
- Initial Cleaning: Before first use, clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.
- Power Connection: Plug the refrigerator into a dedicated, grounded electrical outlet. Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Figure 3.1: Adjustable leveling feet for stable placement.
4. Operating Instructions
Your Saeoola Mini Fridge is designed for user-friendly operation. Follow these steps for optimal performance:
- Temperature Control: The refrigerator features a 7-level temperature control knob located inside the fresh food compartment. Rotate the knob to adjust the temperature. Setting '1' is the warmest, and '7' is the coldest. The refrigerator compartment temperature range is 32°F to 50°F, and the freezer compartment range is -0.4°F to 28.4°F.
- Compartment Usage: The top compartment is the freezer, suitable for frozen foods, ice cream, and making ice. The lower compartment is the refrigerator, ideal for fresh produce, beverages, and dairy products.
- Removable Shelves and Crisper Drawer: The glass shelves are removable, allowing for flexible storage space. The crisper drawer is designed to keep fruits and vegetables fresh.
- Internal LED Light: A bright LED light illuminates the interior of the refrigerator compartment for convenience.
- Low Noise Operation: The refrigerator operates quietly, with a noise level under 37 dB, making it suitable for bedrooms and offices.

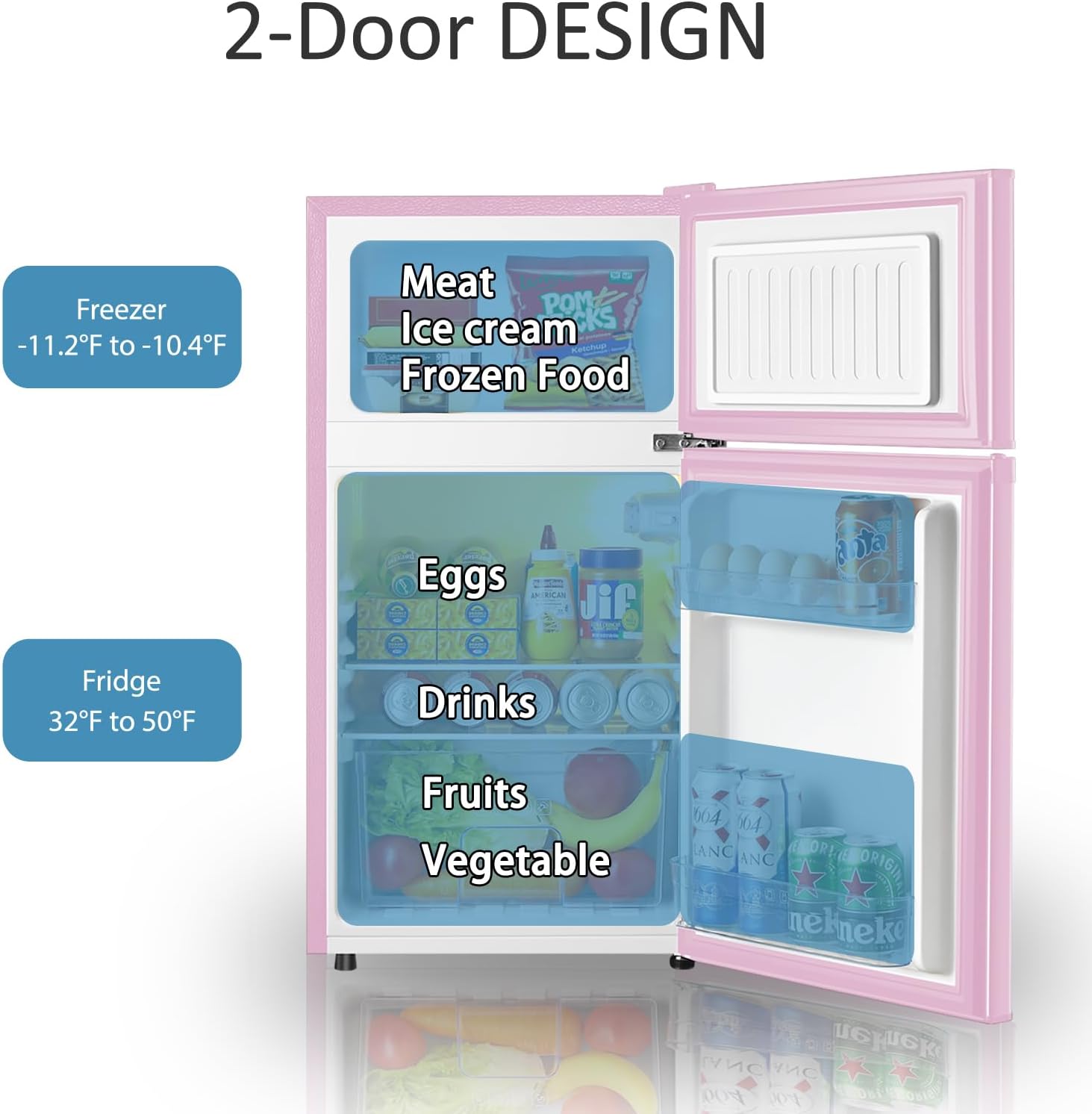

Figure 4.1: Interior layout with designated areas for different food types.
Figure 4.2: The refrigerator's low noise operation, ideal for quiet environments.
5. Maintenance and Care
Regular maintenance ensures the longevity and efficiency of your refrigerator.
- Cleaning the Interior: Unplug the appliance. Remove all food and shelves. Wash the interior surfaces with a solution of mild detergent and warm water. Do not use abrasive cleaners or sharp objects. Rinse and dry thoroughly.
- Cleaning the Exterior: Wipe the exterior with a soft cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner.
- Defrosting the Freezer: This unit features manual defrost. When frost accumulates to about 0.2 inches (5 mm) thick, unplug the refrigerator and remove all contents from the freezer. Allow the frost to melt naturally. Use the provided ice shovel to remove ice, but do not use sharp objects. Clean and dry the freezer thoroughly before plugging the unit back in.
- Door Gaskets: Clean the door gaskets regularly to ensure a tight seal. A dirty gasket can lead to inefficient cooling.
- Power Outage: In case of a power outage, keep the refrigerator door closed to maintain temperature for as long as possible.
6. Troubleshooting Guide
Before contacting customer service, please refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | Not plugged in; circuit breaker tripped; temperature control set to 'OFF'. | Ensure plug is secure; reset circuit breaker; turn temperature control to desired setting. |
| Temperature is too warm. | Door not closed properly; frequent door openings; warm food placed inside; poor ventilation; temperature control set too high. | Check door seal; reduce frequency of openings; allow hot food to cool before storing; ensure adequate clearance around unit; adjust temperature control to a colder setting. |
| Excessive noise. | Unit not level; objects vibrating against the unit; normal compressor operation. | Adjust leveling feet; ensure nothing is touching the refrigerator; some noise from compressor is normal. |
| Light not working. | Light bulb needs replacement (if applicable); power issue. | Check power connection; contact support if light is integrated and not user-replaceable. |
7. Specifications
Detailed specifications for your Saeoola Mini Fridge with Freezer:
Figure 7.1: Product dimensions for planning placement.
- Brand Name: Saeoola
- Model Number: 757577953979 (Part Number: lu-hlbcd90)
- Product Dimensions (D x W x H): 18.32 x 17.67 x 33.89 inches
- Total Capacity: 3.2 Cubic Feet
- Refrigerator Fresh Food Capacity: 2.3 Cubic Feet
- Freezer Capacity: 0.9 Cubic Feet
- Installation Type: Freestanding
- Form Factor: Compact
- Special Features: Adjustable Shelves, Adjustable foot, Compact, Energy Efficient, Quiet
- Color: Pink
- Number of Racks/Shelves: 4 (Glass)
- Crispers/Drawers: 1
- Defrost System: Manual
- Door Material Type: Stainless Steel
- Material Type: Aluminum
- Number Of Doors: 2
- Noise Level: Under 37 dB
8. Warranty and Support
Saeoola is committed to quality and customer satisfaction. All small refrigerators undergo rigorous technical testing before leaving the factory. If you encounter any problems with your product, please contact our customer support. We aim to reply within 24 hours to address your concerns.
For support, please refer to the contact information provided at the point of purchase or on the product packaging.
