denqir Electric Cordless Pressure Washer RB-005 User Manual

Model: RB-005

1. Introduction

Thank you for choosing the denqir Electric Cordless Pressure Washer. This portable and versatile cleaning tool is designed for various outdoor cleaning tasks, offering convenience without the need for a direct water tap connection. With a maximum working pressure of 652 PSI and a flow rate of 1.2 GPM, it efficiently tackles dirt and grime on surfaces such as vehicles, garden furniture, walls, and floors. This manual provides essential information for safe and effective operation, setup, maintenance, and troubleshooting.

2. Safety Information

Please read and understand all safety warnings and instructions before operating this pressure washer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

  • Initial Battery Charge: Always charge the battery fully before first use.
  • Water Immersion: Ensure the black filter ball is completely immersed in water during operation. If not fully immersed, the machine may only suck in air instead of water, leading to improper function.
  • Faucet Adapter: The included faucet adapter is 1/2 inch. If your faucet is 1/4 inch, it will not fit. You may need to purchase a compatible adapter separately.
  • Eye Protection: Always wear appropriate eye protection when operating the pressure washer.
  • Keep Clear: Keep hands, face, and feet clear of the spray nozzle during operation.
  • Children and Pets: Keep children and pets away from the operating area.
  • Electrical Safety: Do not expose the battery or charger to water or extreme temperatures.

3. Package Contents

Verify that all items listed below are included in your package:

  • 1 x Electric Cordless Pressure Washer
  • 1 x Foam Bottle
  • 1 x 16.4 ft (5m) Hose
  • 1 x 6-in-1 Nozzle
  • 1 x Charger
  • 1 x Water Filter
  • 1 x Extension Pole
  • 1 x 21V 3.0Ah Lithium-Ion Battery
  • 1 x Suitcase for storage

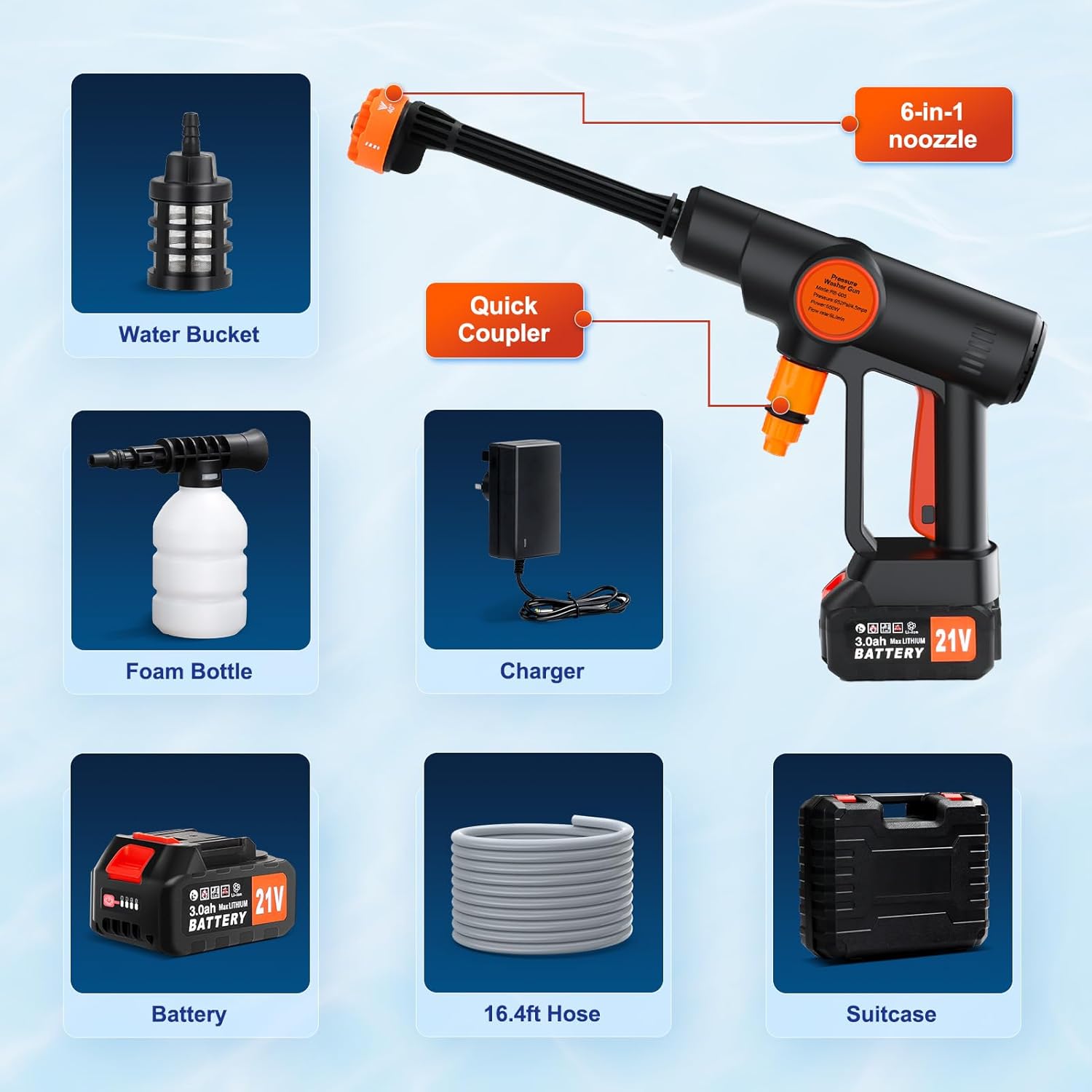

All components of the denqir Electric Cordless Pressure Washer including the main unit, battery, charger, hose, nozzles, foam bottle, and carrying case.
Figure 3.1: All included accessories for the denqir Electric Cordless Pressure Washer.

4. Setup

Follow these steps to assemble and prepare your pressure washer for use:

  1. Attach the Extension Pole: Insert the extension pole into the main unit until it clicks securely into place.
  2. Install the 6-in-1 Nozzle: Attach the 6-in-1 nozzle to the end of the extension pole. Ensure it is firmly connected.
  3. Connect the Water Hose: Connect one end of the 16.4 ft hose to the water inlet on the pressure washer unit. Push the orange connector fully up to ensure a secure, leak-free connection.
  4. Attach Water Filter: Connect the water filter to the other end of the 16.4 ft hose. Ensure the pipe is fully inserted into the filter.
  5. Insert Battery: Slide the fully charged 21V battery into the battery slot at the base of the pressure washer handle until it locks into place.
  6. Prepare Water Source: Place the water filter (attached to the hose) into your chosen water source (e.g., bucket, lake, river). Ensure the filter ball is completely submerged.
  7. Optional Foam Bottle: If using the foam bottle, detach the 6-in-1 nozzle and attach the foam bottle directly to the extension pole. Fill the foam bottle with appropriate cleaning solution.
Close-up of the 6-in-1 nozzle with various spray patterns indicated.
Figure 4.1: The 6-in-1 nozzle offers multiple spray patterns for different cleaning needs.
Diagram showing the pressure washer drawing water from a bucket, river, and bottle, highlighting its versatility.
Figure 4.2: The pressure washer can draw water from various sources, including buckets, rivers, and bottles.

Setup Video Guide

Video 4.1: Detailed setup and assembly instructions for the denqir Electric Cordless Pressure Washer.

Video 4.2: Guide to connecting the hose and preparing the portable car pressure washer for use.

Video 4.3: Visual instructions for setting up the 652 PSI cordless pressure washer.

Video 4.4: Tips for proper use and assembly of the pressure washer components.

5. Operating Instructions

Once assembled and connected to a water source, you can begin operating your pressure washer:

  1. Power On: Press the power button on the battery to activate the unit. The LED power display will show the remaining battery level.
  2. Select Nozzle Pattern: Rotate the 6-in-1 nozzle head to select the desired spray pattern (0°, 15°, 25°, 40°, shower mode, or water flow mode). Choose a pattern appropriate for your cleaning task.
  3. Start Cleaning: Aim the nozzle at the surface to be cleaned and press the trigger to start the water flow. Release the trigger to stop.
  4. Using Foam Bottle: If using the foam bottle, ensure it is filled with cleaning solution. The pressure washer will automatically mix the solution with water to create foam for effective cleaning.
  5. Water Range: The pressure washer can spray water up to 32.5 ft, allowing for cleaning of hard-to-reach areas.

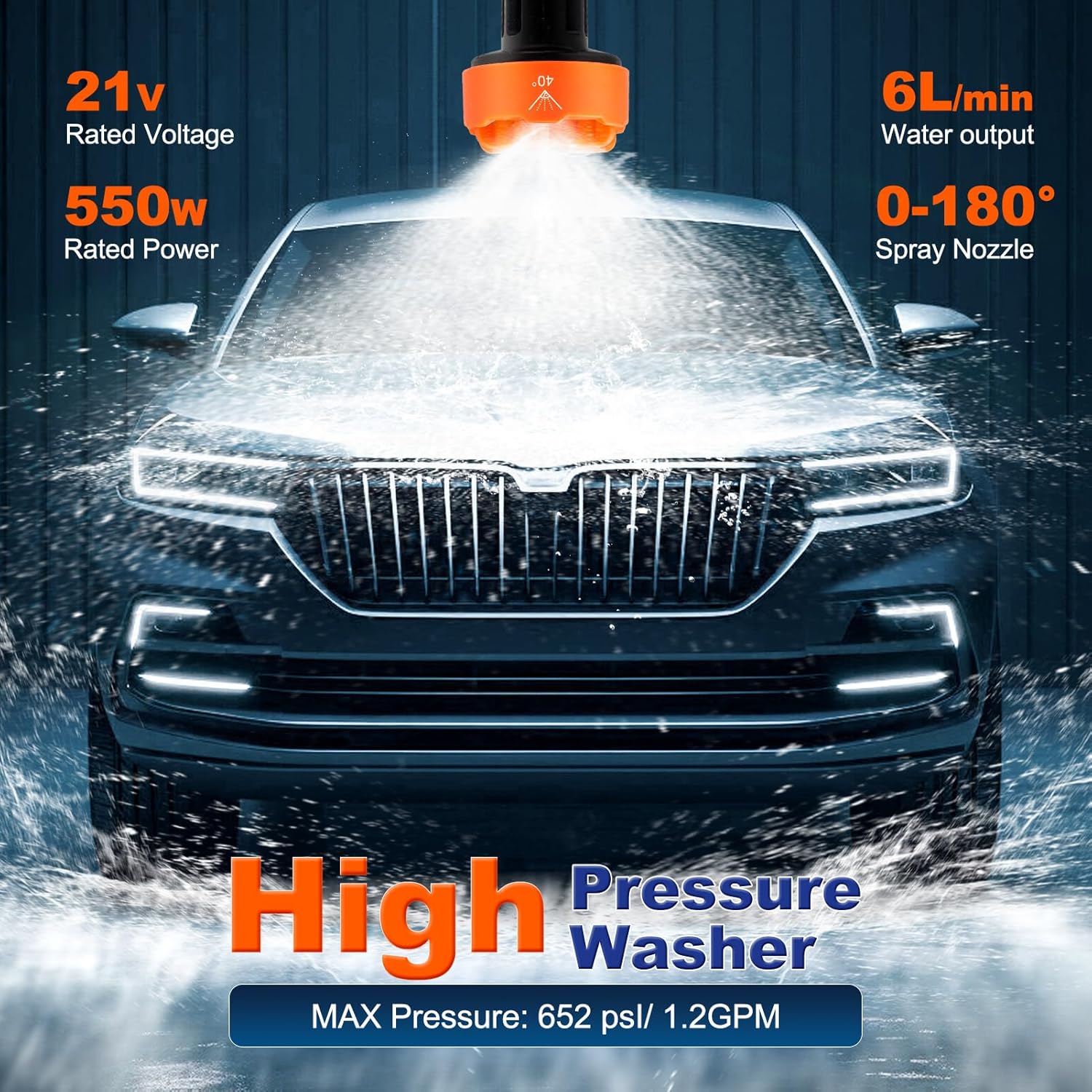

Front view of a car being cleaned with the denqir Electric Cordless Pressure Washer, showing the powerful spray.
Figure 5.1: The denqir pressure washer provides a powerful spray for efficient cleaning.
Close-up of the 21V 3000mAh Lithium Battery with LED power display, showing charging time and working time.
Figure 5.2: The 21V 3.0Ah battery provides 20-35 minutes of working time with a 2-3 hour charging time.
Image showing the pressure washer being used to clean various surfaces like pets, motorcycles, windows, yards, plants, and ground.
Figure 5.3: The pressure washer is suitable for a wide range of applications.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your pressure washer:

  • Clean Water Filter: Regularly inspect and clean the water filter to prevent blockages and ensure consistent water flow.
  • Battery Care: Store the battery in a cool, dry place. Do not store it in a discharged state for extended periods.
  • Nozzle Cleaning: Clear any debris from the nozzle openings to maintain proper spray patterns.
  • Storage: After each use, drain all water from the unit and hose. Store the pressure washer and accessories in the provided suitcase in a dry, protected area.

7. Troubleshooting

If you encounter issues with your pressure washer, refer to the following common problems and solutions:

ProblemPossible CauseSolution
No water suction or weak pressureBlack filter ball not fully immersed; air in the system; clogged filter.Ensure filter ball is fully submerged. Remove the water pipe, add water to the interface, and run it idle to expel air. Reconnect the water pipe. Clean the water filter.
Battery not chargingCharger not properly connected; faulty charger/battery.Check charger connection. Contact customer service if issue persists.
Water leakageLoose connections; damaged O-rings.Ensure all connections are tightened. Check and replace O-rings if damaged.

Troubleshooting Video Guide

Video 7.1: Short video demonstrating how to address common issues like no water suction.

8. Specifications

  • Brand: denqir
  • Model Number: RB-005
  • Power Source: Battery Powered
  • Battery: 21V 3.0Ah Lithium Ion (included)
  • Maximum Working Pressure: 652 PSI
  • Maximum Flow Rate: 1.2 GPM
  • Hose Length: 16.4 Feet
  • Wand Length: 15 Inches
  • Item Weight: 6.83 Pounds
  • Product Dimensions: 15"L x 5"W x 14"H

9. Warranty and Support

Your denqir Electric Cordless Pressure Washer comes with a worry-free warranty, ensuring your satisfaction and peace of mind. If you have any questions, concerns, or require assistance, please do not hesitate to contact our customer service team. We are committed to providing excellent service and guarantee a response within 12 hours.

  • 30-Day Money-back Guarantee: For any dissatisfaction.
  • 24-Hour Quick-response Online Service: Our team is available to assist you promptly.

For support, please refer to the contact information provided in your product packaging or visit the official denqir website.
