1. Introduction
Thank you for purchasing the DANFI Bluetooth Turntable with External Speakers. This user manual provides detailed instructions for setting up, operating, and maintaining your new record player. Please read this manual thoroughly before use to ensure proper function and longevity of your device.
Figure 1.1: DANFI Bluetooth Turntable with External Speakers.
2. Important Safety Information
Please observe the following safety precautions to prevent electric shock, fire, or damage to the unit.
- Do not expose the unit to rain or moisture.
- Do not block any ventilation openings.
- Use only attachments/accessories specified by the manufacturer.
- Unplug the unit during lightning storms or when unused for long periods.
- Refer all servicing to qualified service personnel.
- Keep the unit away from direct sunlight, heat sources, and strong magnetic fields.
3. Package Contents
Verify that all items listed below are included in your package:
- DANFI Bluetooth Turntable Unit
- Dual External Speakers with Wires
- Dust Cover
- USB-DC Cable
- Extra Needle (Stylus)
- Power Adapter
- 45 RPM Adapter
- Slipmat
- User Manual (this document)
Figure 3.1: Included components and approximate dimensions.
4. Setup Guide
4.1 Unpacking and Placement
Carefully remove all components from the packaging. Place the turntable on a stable, level surface away from direct sunlight, heat, and excessive dust. The external speakers offer flexible placement options:
- Place speakers on either side of the turntable.
- Stack speakers directly beneath the turntable for a compact setup.
- Place speakers on a separate shelf or surface.
Figure 4.1: Various placement configurations for the turntable and speakers.
4.2 Connecting the Speakers
Connect the speaker wires from the external speakers to the corresponding speaker output terminals on the back of the turntable unit. Ensure the polarity is correct (positive to positive, negative to negative).
Figure 4.2: Rear panel connections, including speaker outputs.
4.3 Power Connection
Connect the power adapter to the DC input port on the back of the turntable. Plug the other end of the power adapter into a standard wall outlet.
4.4 Dust Cover Installation
Carefully attach the clear dust cover to the hinges at the back of the turntable unit. The dust cover helps protect the platter and stylus from dust and debris when not in use.
5. Operating Instructions
5.1 Playing Vinyl Records
- Open the dust cover.
- Place a vinyl record on the turntable platter. If playing a 7-inch single, use the included 45 RPM adapter.
- Select the appropriate speed (33⅓, 45, or 78 RPM) using the speed selector switch.
- Gently lift the tone arm using the cueing lever and position the stylus over the desired track on the record.
- Lower the cueing lever to gently drop the stylus onto the record. Playback will begin.
- When the record finishes, the auto-stop function will automatically stop the platter rotation. Lift the tone arm and return it to its rest.

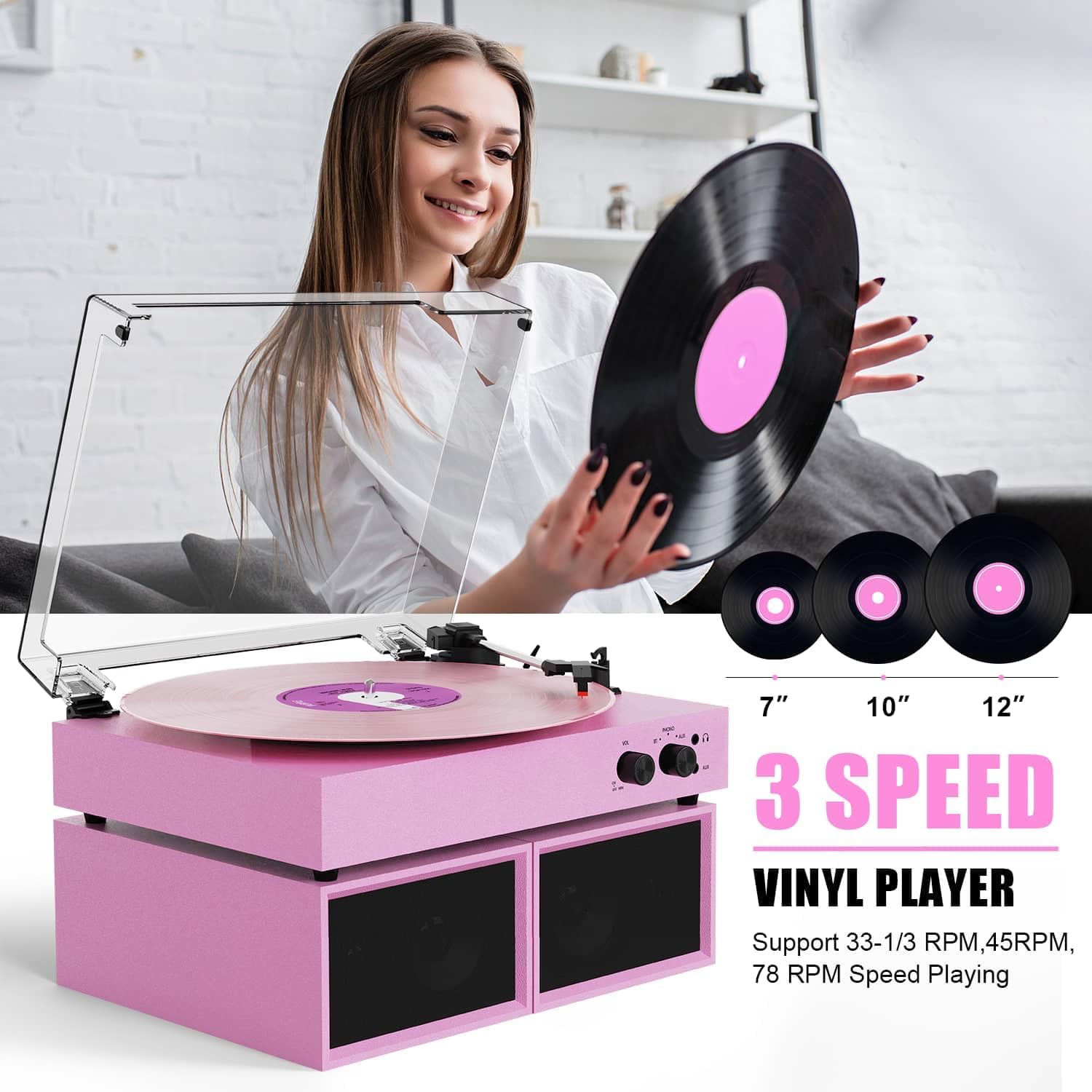

Figure 5.1: Playing vinyl records at 33⅓, 45, or 78 RPM.
5.2 Bluetooth Playback
The turntable features a built-in Bluetooth receiver, allowing you to stream music wirelessly from your smartphone or other Bluetooth-enabled devices through its external speakers.
- Turn on the turntable and switch the mode selector to "BT" (Bluetooth). The Bluetooth indicator light will flash.
- Enable Bluetooth on your mobile device and search for "DANFI Turntable" or a similar device name.
- Select the turntable from the list to pair. Once connected, the indicator light will stop flashing.
- You can now play music from your device, and it will output through the turntable's speakers.
Figure 5.2: Wireless music streaming via Bluetooth.
5.3 PC Recording (USB)
Convert your vinyl records into digital audio files (MP3/WAV) on your computer using the included USB-PC cable.
- Connect the turntable to your computer using the USB-PC cable.
- Install audio recording software on your computer (e.g., Audacity, available for free online).
- Follow the instructions of your chosen software to select the turntable as the input device and begin recording.
- Play your vinyl record on the turntable to record the audio to your computer.
Figure 5.3: USB connection for PC recording.
5.4 RCA/AUX Output
The turntable includes RCA output jacks for connecting to external amplifiers or powered speakers, and an AUX line-in for connecting external audio sources.
- RCA Output: Connect RCA cables (not included) from the turntable's RCA output jacks to the audio input of your external amplifier or powered speakers.
- AUX Input: Connect an audio cable (not included) from your external audio source (e.g., MP3 player, smartphone) to the AUX input jack on the turntable.
5.5 Headphone Jack
For private listening, plug 3.5mm headphones into the headphone jack located on the front panel of the turntable.
6. Maintenance
6.1 Cleaning the Unit
Wipe the turntable and speakers with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. The dust cover can be cleaned with a soft, damp cloth and then dried thoroughly.
6.2 Stylus Care and Replacement
A clean stylus ensures optimal sound quality and extends the life of your records. Gently clean the stylus with a soft brush, moving from back to front. The stylus should be replaced after approximately 300-500 hours of playback or if you notice a degradation in sound quality. Refer to the included extra needle for replacement instructions or contact customer support for guidance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Power adapter not connected or outlet is faulty. | Ensure power adapter is securely connected to the unit and a working power outlet. |
| No sound from speakers | Speakers not connected, volume too low, or incorrect mode selected. | Check speaker wire connections. Increase volume. Ensure correct mode (PHONO, BT, AUX) is selected. |
| Turntable speed is incorrect | Incorrect speed setting. | Adjust the speed selector switch to match the record's RPM (33⅓, 45, or 78). |
| Skipping or distorted sound | Dirty or worn stylus, dirty record, or unstable surface. | Clean the stylus and record. Ensure the turntable is on a stable, level surface. Replace stylus if worn. |
| Bluetooth not connecting | Turntable not in BT mode, device too far, or already paired with another device. | Ensure turntable is in BT mode. Move device closer. Disconnect from other Bluetooth devices. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | TE-003 |
| Brand | DANFI AUDIO DF |
| Product Dimensions | 12.8 x 9.8 x 8.3 inches |
| Item Weight | 7.5 pounds |
| Rotational Speeds | 33⅓, 45, 78 RPM |
| Connectivity | Bluetooth, USB (for PC recording), RCA Output, AUX Input, 3.5mm Headphone Jack |
| Speakers | Dual External Speakers |
| Special Features | Detachable Speakers, Digital Recorder, Dust Cover, Auto-stop Function |
| Material | Acrylic, Engineered Wood |
| Color | Pink |
9. Warranty & Support
9.1 Product Warranty
DANFI AUDIO DF products are designed and manufactured to the highest quality standards. For specific warranty details and terms, please refer to the warranty card included with your product or visit the official DANFI AUDIO DF website. Keep your purchase receipt as proof of purchase for warranty claims.
Optional protection plans may be available for extended coverage. Please check with your retailer for more information.
9.2 Customer Support
If you encounter any issues or have questions regarding your DANFI Bluetooth Turntable, please contact DANFI AUDIO DF customer support. Our team is available to assist you with troubleshooting, parts replacement, and general inquiries.
For the most up-to-date contact information, please visit the official DANFI AUDIO DF website or refer to the contact details provided on your product packaging.
