Generic Handheld Steam Cleaner TC-SC-001 User Manual

1. Introduction

Thank you for choosing the Generic Handheld Steam Cleaner TC-SC-001. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new steam cleaner. Please read this manual thoroughly before first use and retain it for future reference.

This appliance is designed to clean various surfaces using high-temperature steam, offering a chemical-free cleaning solution for your home, kitchen, and other areas.

2. Safety Instructions

WARNING: Failure to follow these safety instructions may result in electric shock, fire, or serious injury.

• Always ensure the power supply matches the voltage specified on the appliance (110V).
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Keep children and pets away from the appliance during operation due to high temperatures and steam.
• The steam outlet and accessories become very hot during use. Avoid direct contact with skin. Use caution when handling.
• Do not open the water tank cap or attempt to refill the tank while the unit is pressurized or hot. Allow it to cool down completely before refilling.
• Always unplug the appliance from the power outlet before cleaning, maintenance, or when not in use.
• Do not operate the appliance if the power cord or plug is damaged, or if the appliance has been dropped or damaged in any way.
• Use only manufacturer-recommended accessories.
• Do not direct steam at electrical appliances, wiring, or any objects sensitive to heat or moisture.
• Ensure adequate ventilation when using the steam cleaner in enclosed spaces.

3. Package Contents

Carefully unpack all items and ensure you have received all components listed below. If any parts are missing or damaged, contact customer support.

• Main Steam Cleaner Unit
• Steam Gun with Hose
• Extension Rod
• Nylon Spray Nozzle
• Bent Spray Nozzle
• Large Nylon Brush
• Brass Brush
• Window Scraper
• Window Scraper with Towel Cover
• Power Cord
• Measuring Cup (not explicitly listed but implied by water tank)
• Funnel (not explicitly listed but implied by water tank)

Image 3.1: Overview of all included components.

4. Product Overview

The Generic Handheld Steam Cleaner TC-SC-001 features a compact design with a user-friendly touchscreen interface for easy control.

Image 4.1: Main unit features, including touchscreen and anti-scalding handle.

Key Features:

• Touchscreen Control Panel: Allows for easy operation and precise control over steam output with real-time gear display.
• Anti-scalding Handle: Designed for comfortable and safe long-term use.
• 1100ml Water Tank: Provides ample capacity for extended cleaning sessions.
• Bottom Water Emptying: For fast and efficient draining of residual water after use.

5. Setup

5.1 Filling the Water Tank

1. Ensure the steam cleaner is unplugged and cool.
2. Locate the water tank cap on the top of the main unit.
3. Open the cap and carefully pour clean tap water into the tank using a measuring cup and funnel (if provided), up to the 1100ml maximum fill line. Do not overfill.
4. Securely close the water tank cap.

Image 5.1: Filling the water tank. The tank has a capacity of 1100ml and allows for up to 1 hour of continuous working time.

5.2 Attaching Accessories

1. Connect the steam gun hose to the main unit's steam outlet port. Ensure it clicks securely into place.
2. Select the desired cleaning attachment (e.g., nylon brush, bent nozzle, window scraper).
3. Attach the chosen accessory firmly to the end of the steam gun or extension rod. For floor cleaning, connect the extension rod first, then the appropriate floor tool.

6. Operation

6.1 Powering On and Heating

1. Plug the power cord into a grounded electrical outlet.
2. Press the power button on the touchscreen control panel. The unit will begin heating.
3. The steam cleaner has a rapid 15-second heat-up time, reaching a high temperature of 105°C (221°F). An indicator light or display on the touchscreen will show when the unit is ready for use.

Image 6.1: The steam cleaner heats up in 15 seconds to 105°C (221°F).

6.2 Adjusting Steam Output

The unit features 6 adjustable steam gears. Use the controls on the touchscreen to select the desired steam intensity for different cleaning tasks and surfaces.

6.3 Cleaning Procedures

Direct the steam nozzle or attached accessory towards the surface to be cleaned. Move the nozzle slowly over the area to allow the steam to penetrate and loosen dirt. Wipe away loosened dirt with a clean cloth if necessary.

Image 6.2: Using the steam cleaner for kitchen countertop cleaning.

6.4 Using Various Attachments

Different attachments are designed for specific cleaning tasks:

• Nylon Spray Nozzle: For general-purpose cleaning and reaching tight spaces.
• Bent Spray Nozzle: Ideal for corners, edges, and hard-to-reach areas.
• Large Nylon Brush: For scrubbing stubborn dirt on various surfaces like grout, tiles, and upholstery.
• Brass Brush: For very tough, baked-on grime on durable surfaces (e.g., oven racks, BBQ grills). Use with caution to avoid scratching.
• Window Scraper with Towel: For streak-free cleaning of windows, mirrors, and other glass surfaces.

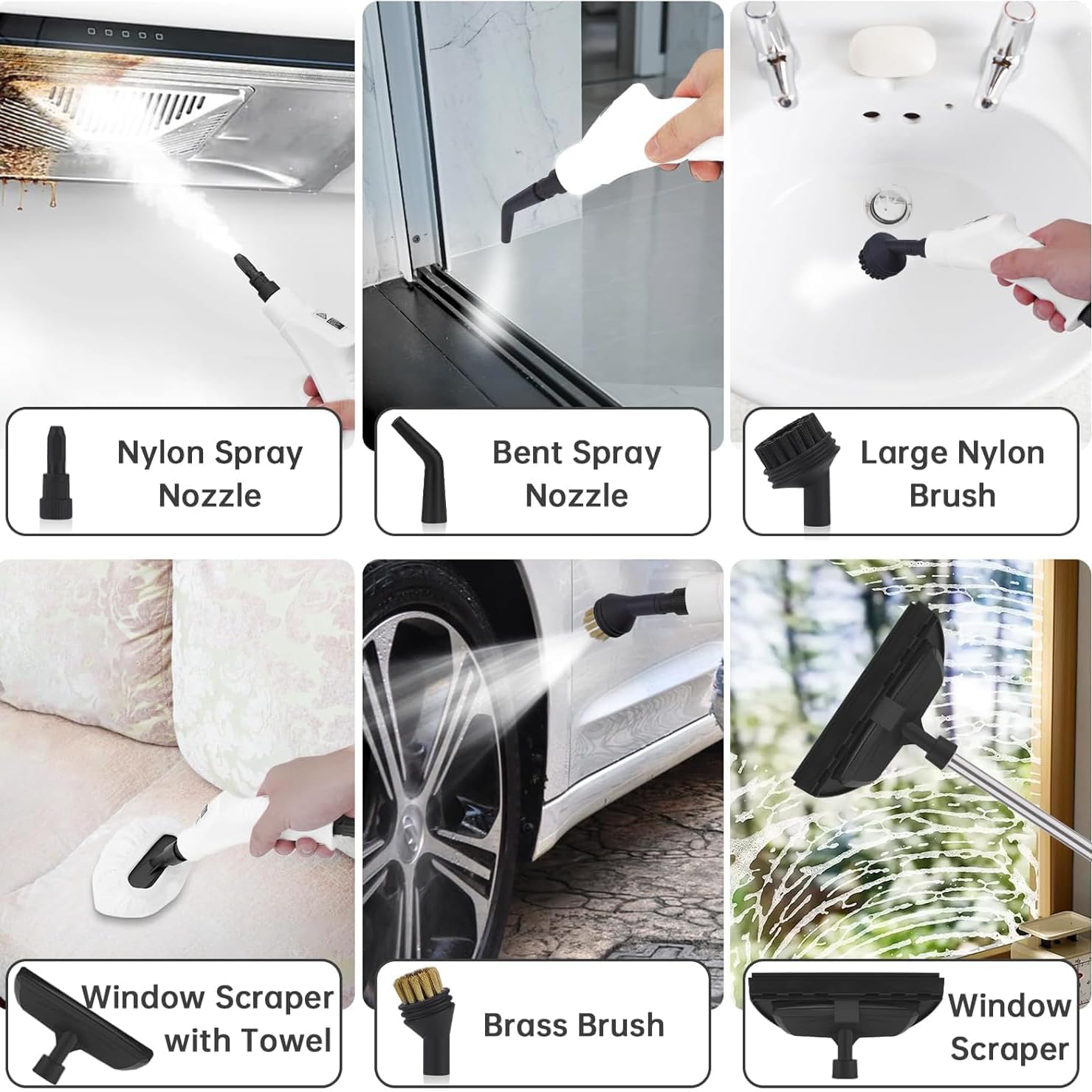

Image 6.3: Examples of various attachments and their applications.

Image 6.4: The steam cleaner is suitable for various applications including kitchen, living room, bathroom, cabinets, cars, and offices.

7. Maintenance

7.1 Emptying the Water Tank

After each use, or when storing the appliance for an extended period, it is recommended to empty any remaining water from the tank.

1. Ensure the unit is unplugged and completely cool.
2. Locate the water emptying port at the bottom of the main unit.
3. Carefully tilt the unit over a sink or bucket to drain all water.
4. Close the emptying port securely.

Image 7.1: Emptying water from the bottom of the unit.

7.2 Cleaning the Unit and Accessories

• Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or solvents.
• Clean accessories (nozzles, brushes) with water and mild soap if necessary. Ensure they are dry before storing.
• Periodically check the steam nozzle for mineral buildup. If necessary, use a small brush or a descaling solution designed for steam appliances to clear blockages.

7.3 Storage

Store the steam cleaner and its accessories in a cool, dry place, away from direct sunlight and out of reach of children.

8. Troubleshooting

9. Specifications

Image 9.1: Technical specifications overview.

10. Warranty and Support

Specific warranty information for this Generic product is not provided in the available documentation. For any product inquiries, technical support, or warranty claims, please refer to the retailer or contact the seller directly through your purchase platform.
