1. Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Greenvelly Folding Bed with Mattress. Please read this manual thoroughly before using the product to ensure safe and efficient operation. This folding bed is designed for convenience, offering a comfortable sleeping solution for guests or for use in small spaces.
2. Safety Information
WARNING: This product is intended for adult use only. Do not use with infants or young children. The memory foam mattress may pose a suffocation hazard if used without appropriate bedding materials for infants.
Always ensure all components are securely fastened before use. Do not exceed the maximum weight capacity of 450 pounds. Keep hands and fingers clear of moving parts during folding and unfolding to prevent injury.
3. Product Overview
The Greenvelly Folding Bed features a robust heavy-duty metal steel frame designed for durability and stability, capable of supporting up to 450 pounds. It includes a comfortable 5-inch memory foam mattress that provides excellent support and breathability. The bed is equipped with universal wheels for easy mobility and a double-folding design for compact storage.
Figure 3.1: Comparison image showing the Greenvelly bed's metal steel slats and wire rhombus grid base (labeled 'Ours') versus a spring base and wood slats base (labeled 'Others'), emphasizing the superior durability and lack of sagging of the Greenvelly design.

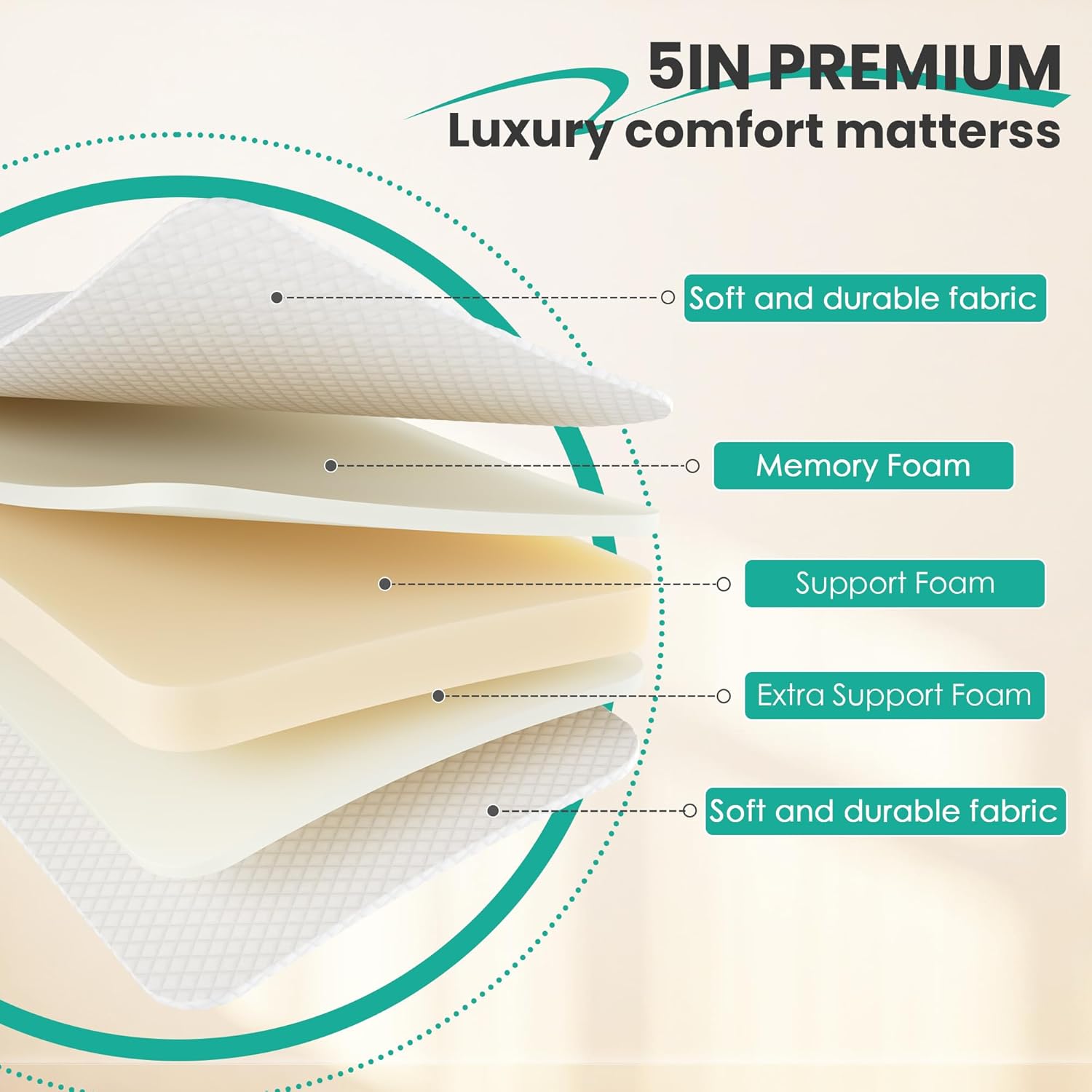

Figure 3.2: Cross-section diagram detailing the layers of the 5-inch memory foam mattress, including soft and durable fabric, memory foam, support foam, and extra support foam.
4. Setup and Assembly
The Greenvelly Folding Bed is designed for quick and easy setup, typically taking about 10 minutes. No complex assembly is required as the frame comes pre-assembled.
- Unpack: Carefully remove the folding bed and mattress from its packaging.
- Unfold the Frame: Gently unfold the metal frame until it is fully extended. Ensure the support legs are locked into their open position.
- Secure Hooks: Locate the four hooks at the ends of the bed frame. Ensure these hooks are tightly fastened to secure the frame and prevent structural deformation during use.
- Place Mattress: Position the 5-inch memory foam mattress onto the unfolded frame. Limiting devices are arranged at both ends of the bed to ensure the mattress is fully fitted to the metal bed frame.
- Check Stability: Before use, gently press down on the bed to confirm it is stable and all parts are securely in place.
Figure 4.1: Image of the Greenvelly Folding Bed fully extended and set up in a bedroom, featuring the mattress and bedding, ready for use.
5. Operation
5.1 Folding the Bed for Storage
The Greenvelly Folding Bed features a double-folding design for compact storage.
- Remove Bedding: Clear all bedding from the mattress.
- Fold Mattress: The mattress is designed to fold with the frame.
- Collapse Frame: Carefully lift the center of the bed frame, allowing it to fold inward into a 'V' shape, then continue folding until the two halves meet.
- Secure with Strap: Use the elastic limit rope or strap provided to secure the bed in its folded position, ensuring stability.
- Apply Dust Cover: For long-term storage, place the provided dust cover bag over the folded bed to protect it from dust and environmental factors.
Figure 5.1: Visual guide showing three steps for folding and storing the Greenvelly Folding Bed: 1) Bed fully extended, 2) Bed partially folded into a V-shape, 3) Bed fully folded and covered with the dust bag.

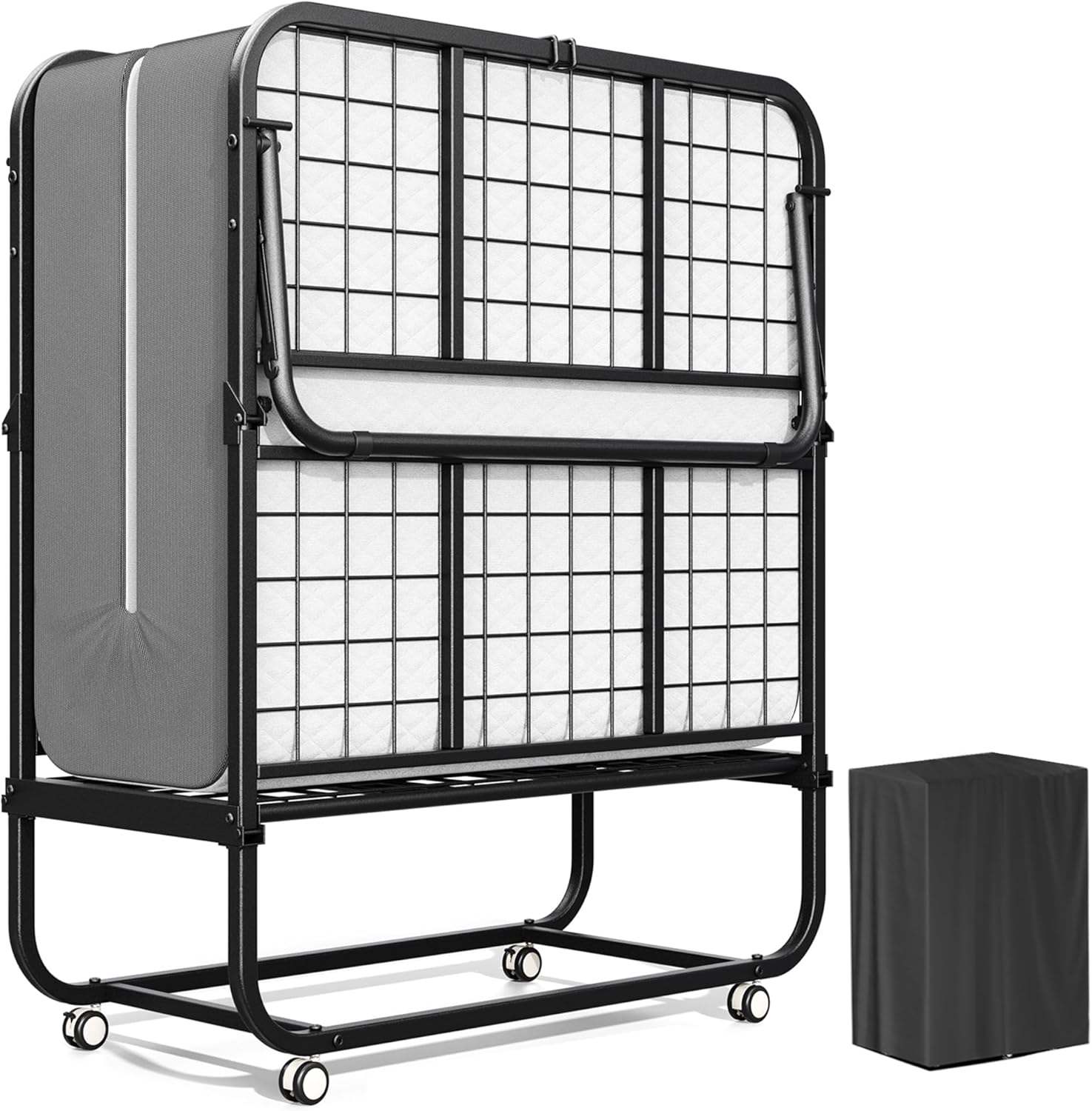

Figure 5.2: Image of the Greenvelly Folding Bed in its compact, folded state, with the mattress neatly tucked inside the frame. A black dust cover is shown next to it.
5.2 Moving the Bed
The bed is fitted with 4 universal wheels at the bottom for easy transportation.
- Unlock Wheels: Ensure the locking function on the universal wheels is disengaged before moving.
- Roll: Gently push or pull the folded bed to its desired location. The 360-degree swivel casters allow for smooth movement across various surfaces.
- Lock Wheels: Once the bed is in position, engage the locking function on the wheels to prevent accidental sliding.

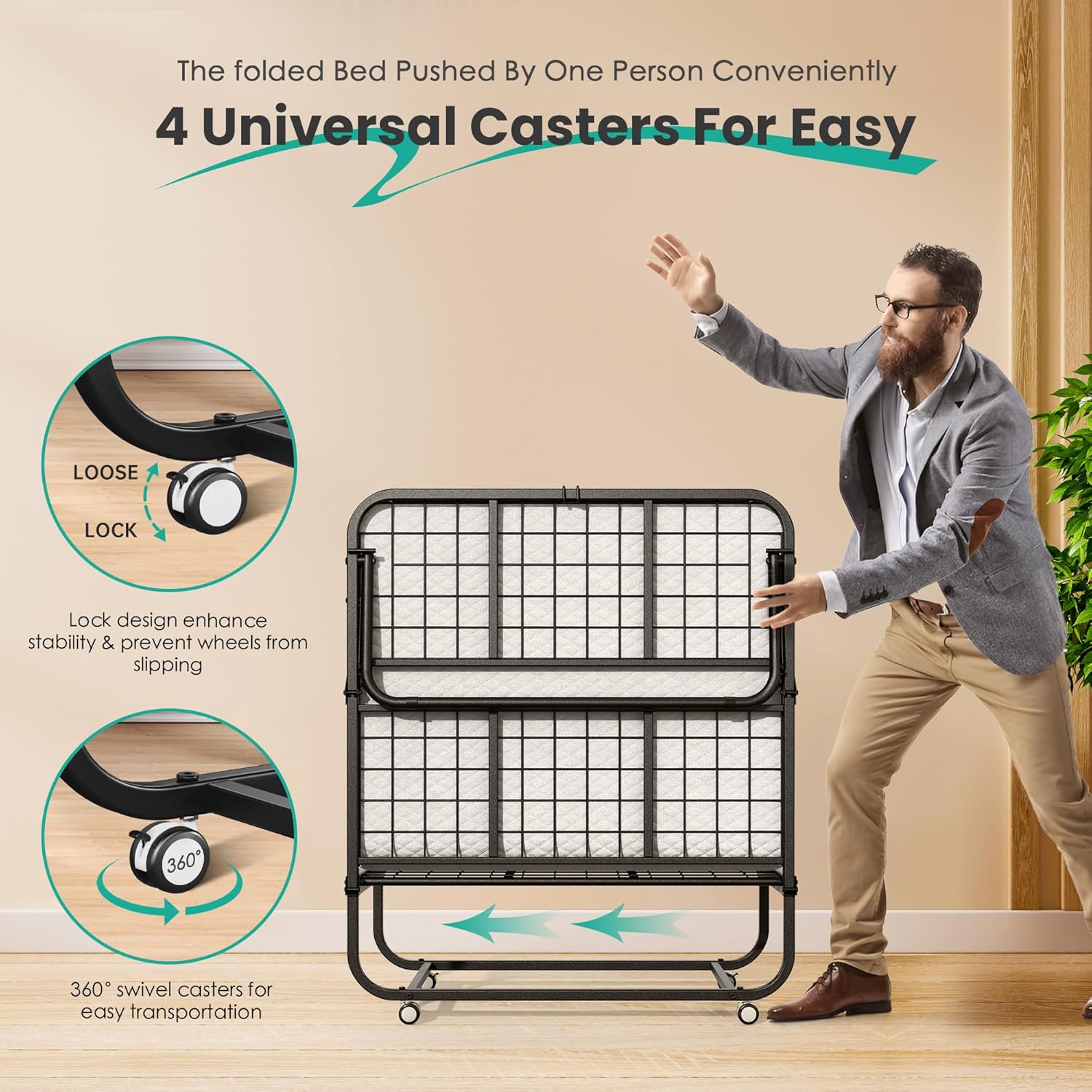

Figure 5.3: Image highlighting the four universal casters on the Greenvelly Folding Bed, demonstrating their 360-degree swivel for easy transportation and a lock design to prevent accidental sliding.
Figure 5.4: Collage of images demonstrating the versatility and easy storage of the Greenvelly Folding Bed in various settings: camping, office, and bedroom, showing it both in use and folded for storage.
6. Maintenance
- Mattress Care: The mattress cover is recommended for dry clean only. Do not machine wash or tumble dry.
- Frame Cleaning: Wipe the metal frame with a damp cloth and mild detergent as needed. Ensure it is dried thoroughly to prevent rust. The treated surface is easy to clean and resistant to oxidation and corrosion.
- Dust Cover: Utilize the provided dust cover bag when the bed is folded and stored to protect it from dust and prolong its lifespan.
- Regular Inspection: Periodically check all bolts, screws, and hooks to ensure they remain tight and secure. Tighten if necessary.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels unstable or wobbly. | Hooks not tightly fastened; loose connections. | Ensure the 4 hooks at the ends of the bed frame are tightly fastened. Check and tighten all bolts and screws on the frame. |
| Bed does not fold or unfold smoothly. | Obstruction in folding mechanism; misaligned parts. | Check for any objects obstructing the folding mechanism. Ensure the frame is properly aligned. Apply a small amount of lubricant to hinges if necessary. |
| Strap/hook for holding bed closed is not sturdy or breaks. | Excessive force during folding; material fatigue. | Handle the strap and hook with care. If damaged, contact customer service for a replacement or alternative securing methods. |
| Wheels do not roll smoothly or lock properly. | Debris in wheels; lock mechanism jammed. | Clean any debris from the wheels. Ensure the lock mechanism is fully engaged or disengaged. If severely damaged, contact customer service. |
| Mattress slides on the frame. | Mattress not properly aligned with limiting devices. | Ensure the mattress is positioned correctly within the limiting devices at both ends of the bed frame. |
8. Specifications
| Feature | Specification |
|---|---|
| Size | Twin (75" x 38") |
| Product Dimensions (Open) | 75"L x 38"W x 17.01"H |
| Product Dimensions (Folded) | Approximately 12.8" x 38" x 45.3" |
| Special Feature | Memory Foam Mattress |
| Color | White (Mattress), Black (Frame) |
| Included Components | Mattress, Metal Frame, Dust Cover Bag |
| Finish Type | Powder Coated |
| Weight Limit | 450 Pounds |
| Age Range (Description) | Adult |
| Product Care Instructions | Dry Clean Only (Mattress) |
| Assembly Required | No (Frame comes pre-assembled) |
| Form Factor | Folding |
| Headboard Material | Metal |
| Manufacturer | Greenvelly |
| UPC | 784227717544 |
| ASIN | B0DC5YMS3N |

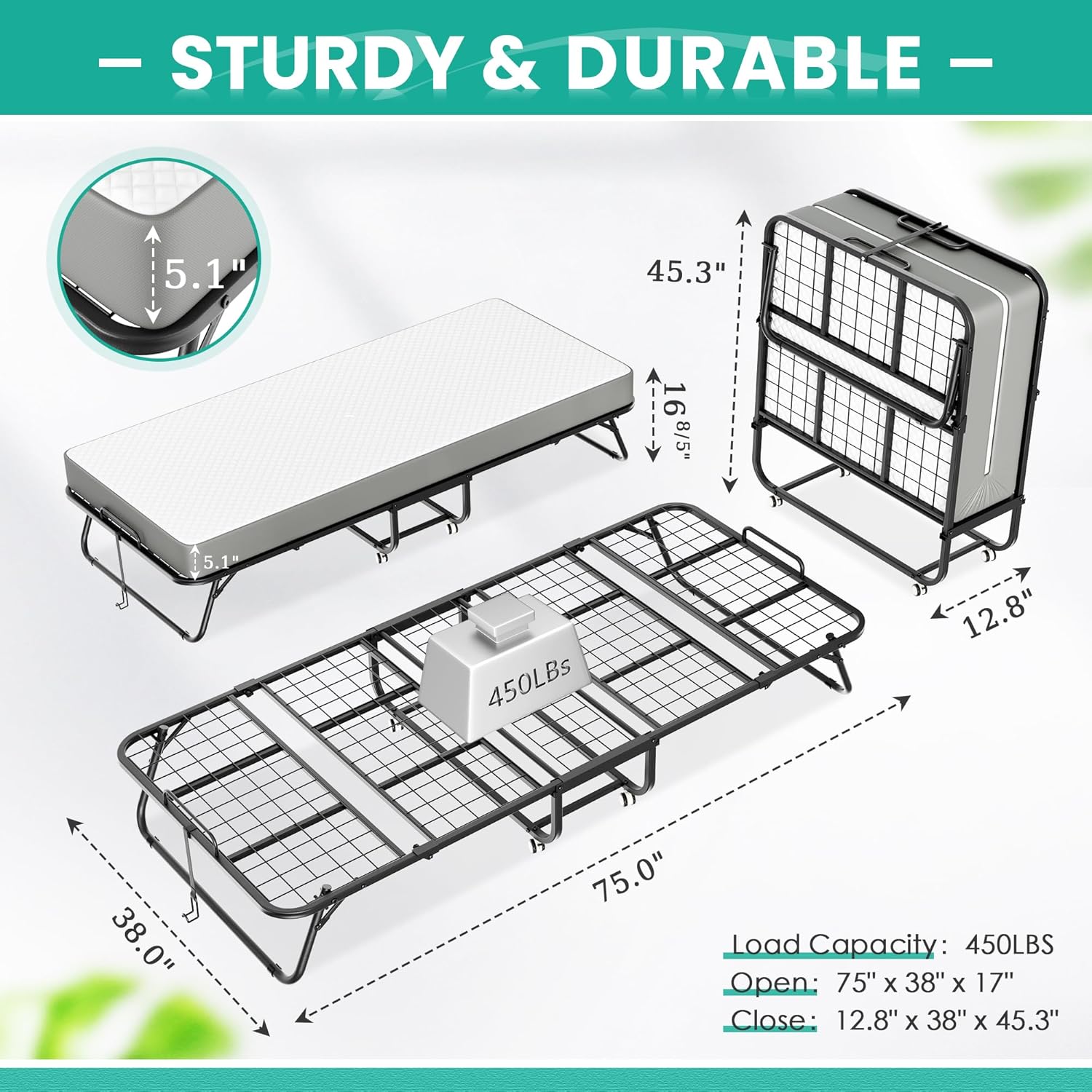

Figure 8.1: Diagram illustrating the dimensions of the Greenvelly Folding Bed when open (75"L x 38"W x 17"H) and folded (12.8" x 38" x 45.3"), along with its 450 lbs load capacity.
9. Warranty and Support
9.1 Warranty Information
The Greenvelly Folding Bed comes with a Limited Warranty. Please refer to the product packaging or contact Greenvelly customer service for specific terms and conditions of the warranty.
9.2 Customer Support
Should you encounter any issues with your Greenvelly Folding Bed or have questions not covered in this manual, our customer service team is available to assist you. Please have your model number (Twin 75" x 38") and ASIN (B0DC5YMS3N) ready when contacting support for faster service.
For assistance, please visit the Greenvelly store on Amazon or refer to the contact information provided with your purchase.
