1. Introduction
Thank you for choosing the MFLASMF Wall Mounted Integrated Electric Shower System. This system is designed to provide a luxurious and efficient showering experience with instant, constant temperature hot water. This manual contains important information regarding the installation, operation, and maintenance of your new shower system. Please read it thoroughly before use and retain it for future reference.

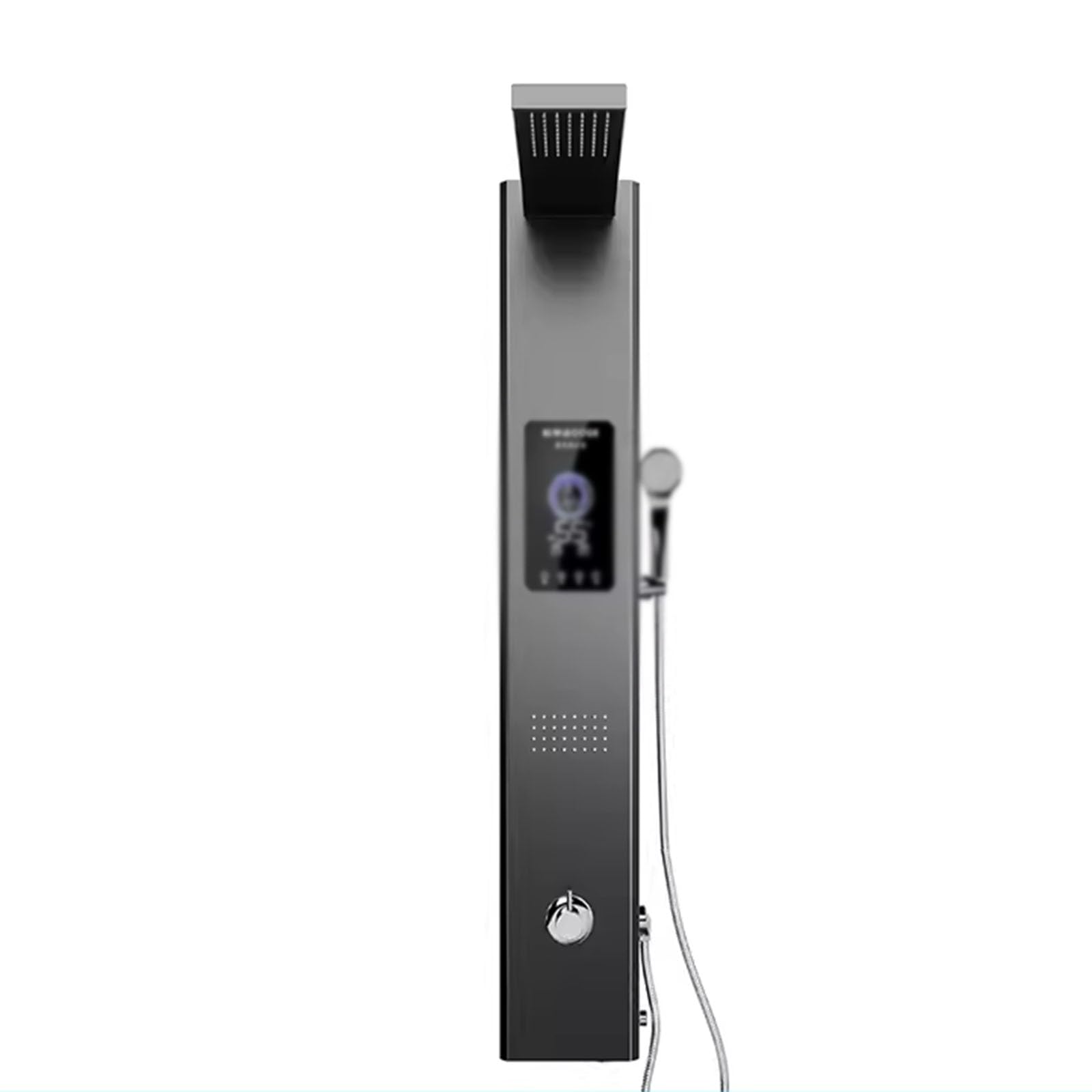

Figure 1: MFLASMF Wall Mounted Integrated Electric Shower System (Black)
2. Safety Information
Please observe the following safety precautions to prevent injury and damage to the product.
- Electrical Installation: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the correct voltage (220V) and dedicated circuit are used.
- Water Connection: All plumbing connections must be made by a qualified plumber to prevent leaks and ensure proper water flow.
- Grounding: The unit must be properly grounded to prevent electrical shock.
- Temperature Settings: Exercise caution when setting water temperature, especially for children or individuals with sensitive skin, to avoid scalding.
- Maintenance: Disconnect power before performing any maintenance or cleaning.
- Protection Features: The system includes 360° full-time protection and safeguards against momentary power failure to enhance safety.
Figure 2: Integrated safety features for continuous protection.
3. Package Contents
Please check the package contents upon receipt. If any items are missing or damaged, contact customer support immediately.
- 1 x MFLASMF Constant Temperature Integrated Shower System (Main Unit)
- 1 x Shower Head
- 1 x Shoulder Spray / Handheld Shower
- Installation Hardware (screws, anchors, seals)
- User Manual (this document)
4. Setup & Installation
Professional installation by a qualified electrician and plumber is highly recommended for this product.
- Preparation: Ensure the installation area is clean, dry, and structurally sound. Turn off the main water supply and electrical power to the installation area.
- Mounting the Unit:
- Measure and mark the desired mounting position on the wall, considering the unit's dimensions (approximately 155cm height x 25cm width).
- Drill pilot holes and secure the mounting bracket (if separate) or the unit directly to the wall using the provided hardware. Ensure it is level and firmly attached.
Figure 3: Product dimensions for installation planning.
- Water Connections:
- Connect the cold and hot water supply lines to the corresponding inlets on the shower system. Use appropriate sealants and ensure all connections are watertight.
- Connect the shower head and handheld spray hoses to their respective outlets.
- Electrical Connection:
- Connect the electrical wiring to a dedicated 220V circuit with appropriate amperage (5500W heating power requires adequate circuit capacity).
- Ensure proper grounding as per local electrical codes.
- Testing:
- Once all connections are secure, slowly turn on the main water supply and check for leaks.
- Restore electrical power to the unit.
- Run the shower for a few minutes to purge air from the system and verify proper operation and temperature control.
5. Operating Instructions
The MFLASMF shower system is designed for ease of use, providing instant and consistent hot water.
- Power On/Off: The system typically powers on automatically when water flow is detected or via a dedicated power button on the unit's interface.
- Temperature Control: Use the digital interface or rotary knob (depending on model variant) to set your desired water temperature. The intelligent constant temperature feature will maintain this setting.
- Shower Head Selection: Use the diverter knob or buttons to switch between the main shower head and the handheld shoulder spray.
- Instant Hot Water: The integrated water heater provides hot water instantly, eliminating waiting times.
- Whole House Supply: This system is capable of supplying hot water to multiple outlets simultaneously, ensuring consistent performance even with high demand.
Figure 4: High water volume output for a satisfying shower experience.
Figure 5: System designed to provide hot water to multiple points in a household.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your shower system.
- Cleaning the Exterior: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals that can damage the finish.
- Shower Head Nozzles: Periodically clean the nozzles of the shower head and handheld spray to remove mineral deposits. Many nozzles are designed with flexible silicone for easy cleaning by rubbing them.
- Filter Cleaning (if applicable): Some models may include an inline water filter. Refer to specific model instructions for filter cleaning or replacement.
- Descaling: In areas with hard water, descaling may be necessary. Consult a professional plumber for descaling procedures to avoid damaging internal components.
- Winterization: If the unit is in an unheated area subject to freezing temperatures, ensure proper winterization procedures are followed to prevent pipe damage. Consult a professional.
Figure 6: The system's design promotes hygiene, with high temperature effective sterilization.
7. Troubleshooting
If you encounter issues with your MFLASMF shower system, refer to the table below for common problems and solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water or insufficient hot water. |
|
|
| Water temperature fluctuates. |
|
|
| Water leaks from connections. |
|
|
| Low water pressure from shower head. |
|
|
8. Specifications
Technical details for the MFLASMF Wall Mounted Integrated Electric Shower System (Model B0DC12Z3Q2).
- Model: B0DC12Z3Q2
- Brand: MFLASMF
- Type: Wall Mounted Integrated Electric Shower System with Instant Water Heater
- Material: 304 Stainless Steel
- Color: Black
- Working Voltage: 220V
- Heating Power: 5500W (Standard for shower use)
- Optional Heating Power: 7000W (Available for bathtub users, check specific model variant)
- Dimensions (Approx.): 155 cm (Height) x 25 cm (Width)
- Water Flow Rate: 8-12 liters of hot water flow (approximate, depending on settings and incoming water temperature)
- Temperature Control: Intelligent Constant Temperature
- Safety Features: 360° full-time protection, momentary power failure protection.
Figure 7: Power options for different usage scenarios (5500W for showers, 7000W for bathtubs).
9. Warranty & Support
MFLASMF is committed to providing high-quality products and excellent customer service.
- Warranty Information: Please refer to the warranty card included with your purchase for specific terms and conditions. Typically, products are covered against manufacturing defects for a specified period from the date of purchase.
- Customer Support: If you have any questions, require technical assistance, or need to report an issue, please contact our customer service team. We aim to respond to all inquiries within 24 hours.
- Contact Information: For support, please refer to the contact details provided on your purchase receipt or the official MFLASMF website.
