Budora WD26X25104 Variable Drain Pump Kit Instruction Manual

1. Product Overview

This manual provides essential information for the installation, operation, and maintenance of the Budora WD26X25104 Variable Drain Pump Kit. This kit is designed as a replacement part for various GE dishwasher models, ensuring proper water drainage during wash cycles.

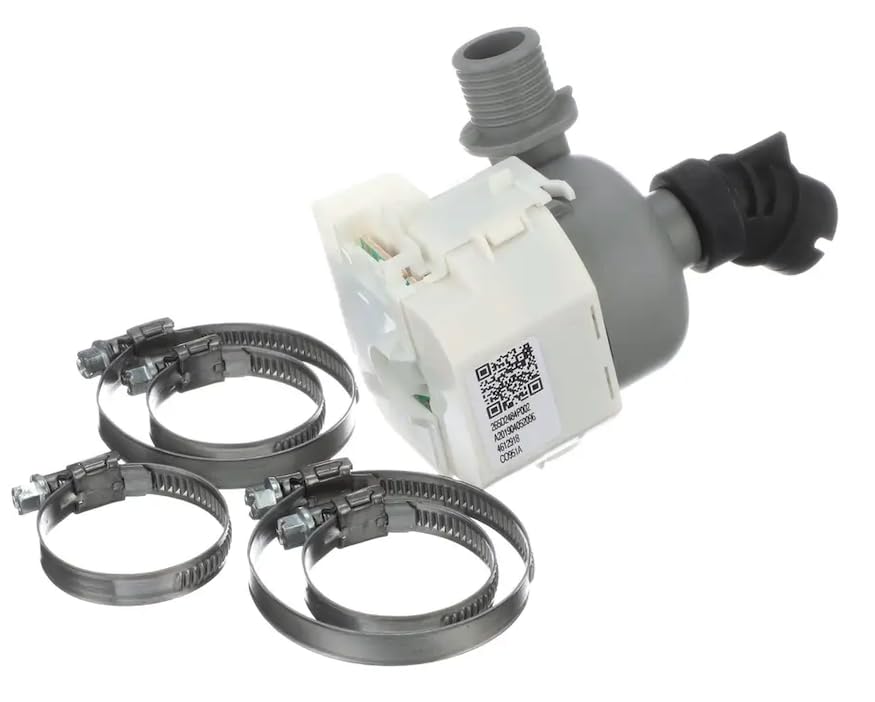

Image 1: The Budora WD26X25104 Variable Drain Pump Kit, including the pump unit and two stainless steel hose clamps.

2. Safety Information

WARNING: Before attempting any repair or installation, ensure the dishwasher's power supply is completely disconnected at the circuit breaker. Failure to do so can result in electric shock, injury, or death.

• Always wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
• Ensure all water connections are properly sealed to prevent leaks.
• If you are unsure about any step of the installation process, consult a qualified appliance repair technician.
• Keep children and pets away from the work area.

3. Package Contents

Verify that all components are present and undamaged upon opening the package:

• 1 x WD26X25104 Variable Drain Pump
• 2 x Hose Clamps

Image 2: Close-up view of the drain pump and included hose clamps, showing the various connection points.

4. Compatible Models

This Budora WD26X25104 Variable Drain Pump Kit is compatible with a wide range of GE dishwasher models. Please cross-reference your dishwasher's model number with the list below to ensure compatibility:

• CDT765SSF1SS
• CDT765SSF7SS
• CDT865SMJ0DS
• CDT865SMJ2DS
• CDT865SSJ0SS
• CDT865SSJ2SS
• CDT866P2M4S1
• CDT866P3M4D1
• CDT866P4M4W2
• GDT740SIF4II
• GDT740SIF7II
GDT740SIF8II
• GDT740SIFAII
• PDT750SMF4ES
• PDT750SMF5ES
• PDT750SMF7ES
• PDT750SMF8ES
• PDT750SMFAES
• PDT750SSF4SS
• PDT750SSF5SS
• PDT750SSF7SS
• PDT750SSF8SS
• PDT750SSFASS
• PDT760SIF0II
• PDT760SIF1II
• PDT760SIF5II
• PDT760SIF7II
• PDT760SIJ7II
• PDT760SSF0SS
• PDT760SSF1SS
• PDT760SSF5SS
• PDT760SSF7SS
• PDT760SSJ7SS
• PDT845SBL2TS
• PDT845SBL3TS
• PDT845SFL3DS
• PDT845SMJ0ES
• PDT845SMJ2ES
• PDT845SSJ0SS
• PDT845SSJ2SS
• PDT846SMJ0ES
• PDT846SMJ2ES
• PDT846SSJ0SS
• PDT846SSJ2SS
• PDT855SBL2TS
• PDT855SBL3TS
• PDT855SFL3DS
• PDT855SIJ0II
• PDT855SIJ2II
• PDT855SMJ0ES
• PDT855SMJ2ES
• PDT855SSJ0SS
• PDT855SSJ2SS
• ZDT800SIF0II
• ZDT800SIF1II
• ZDT800SIF5II
• ZDT800SIF7II
• ZDT800SPF0SS
• ZDT800SPF1SS
• ZDT800SPF5SS
• ZDT800SPF7SS
• ZDT800SSF0SS
• ZDT800SSF1SS
• ZDT800SSF5SS
• ZDT800SSF7SS
• ZDT870SIF0II
• ZDT870SIF1II
• ZDT870SIF5II
• ZDT870SIF7II
• ZDT870SMF5GS
• ZDT870SMF7GS
• ZDT870SPF0SS
• ZDT870SPF1SS
• ZDT870SPF5SS
• ZDT870SPF7SS
• ZDT870SSF0SS
• ZDT870SSF1SS
• ZDT870SSF5SS
• ZDT870SSF7SS
• ZDT915SIJ0II
• ZDT915SIJ2II
• ZDT915SPJ0SS
• ZDT915SPJ2SS
• ZDT915SSJ0SS
• ZDT915SSJ2SS
• ZDT975SIJ0II
• ZDT975SIJ2II
• ZDT975SPJ0SS
• ZDT975SPJ2SS
• ZDT975SSJ0SS
• ZDT975SSJ2SS

Disclaimer: Any use of manufacturer brand names, part numbers, or model designations for this product is made solely for purposes of demonstrating and identifying compatibility and are displayed for descriptive purposes only. Use of the manufacturers' trade names and logos are the registered trademarks of their respective owners. Use of them does not imply any affiliation or endorsement by any manufacturer.

5. Setup and Installation

Replacing a dishwasher drain pump requires careful attention to detail. If you are not comfortable performing this repair, it is recommended to contact a professional technician.

5.1 Tools Required

• Screwdrivers (Phillips and Flathead)
• Pliers
• Adjustable Wrench
• Towels or Rags
• Bucket or Drain Pan

5.2 Installation Steps

1. Disconnect Power: Locate your dishwasher's circuit breaker and turn off the power supply. Verify that the power is off before proceeding.
2. Disconnect Water Supply: Turn off the water supply valve to the dishwasher, typically located under the sink. Disconnect the water inlet hose from the valve.
3. Drain Water: Place towels and a bucket under the dishwasher to catch any residual water when disconnecting hoses.
4. Access the Dishwasher: Depending on your dishwasher model, you may need to pull the dishwasher out from its cabinet enclosure. This usually involves removing mounting screws from the countertop or cabinet sides.
5. Locate the Drain Pump: The drain pump is typically located at the bottom of the dishwasher, often accessible from the front or by tilting the unit. Refer to your specific dishwasher's service manual for exact location.
6. Disconnect Hoses and Wiring: Carefully disconnect the drain hoses from the old pump. Use pliers to loosen hose clamps. Disconnect the electrical wiring harness from the pump. Note the orientation of the wiring for reinstallation.
7. Remove Old Pump: Unmount the old drain pump from its housing. This may involve twisting, unlatching, or unscrewing it.
8. Install New Pump: Position the new Budora WD26X25104 drain pump into the housing, ensuring it seats correctly. Secure it in place.
9. Reconnect Hoses and Wiring: Attach the drain hoses to the new pump, securing them with the provided new hose clamps. Reconnect the electrical wiring harness, ensuring a snug fit.
10. Reassemble and Test: Carefully slide the dishwasher back into its enclosure, securing it with mounting screws. Reconnect the water supply and turn on the water valve. Turn on the power at the circuit breaker. Run a short wash cycle and check for any leaks or unusual noises.

6. Operating Instructions

The Budora WD26X25104 Variable Drain Pump operates automatically as part of your dishwasher's wash cycle. Once installed correctly, it will engage to remove water from the dishwasher tub at the appropriate times during the cycle. No manual operation is required for the pump itself.

7. Maintenance

While the drain pump itself is a sealed unit and requires no internal maintenance, regular checks of your dishwasher's drainage system can help prolong its life and prevent future issues:

• Clean Dishwasher Filter: Regularly clean your dishwasher's filter to prevent food particles from reaching and potentially clogging the drain pump.
• Inspect Drain Hose: Periodically check the drain hose for kinks, blockages, or signs of wear.
• Avoid Overloading: Do not overload the dishwasher, as this can impede proper drainage.

8. Troubleshooting

If your dishwasher is experiencing drainage issues after installing the new pump, consider the following:

8.1 Dishwasher Not Draining

• Check for Kinks: Ensure the drain hose is not kinked or crushed behind the dishwasher.
• Verify Power: Confirm the dishwasher is receiving power and the pump's electrical connection is secure.
• Clear Air Gap/Drain: If your dishwasher uses an air gap or connects to a garbage disposal, ensure these are clear of obstructions.
• Filter Blockage: A clogged dishwasher filter can prevent proper drainage. Clean it thoroughly.

8.2 Unusual Noises

• Foreign Objects: Small foreign objects (e.g., broken glass, food debris) can sometimes get into the pump impeller, causing noise. Disconnect power and inspect the pump area if safe to do so.
• Improper Installation: Ensure the pump is securely mounted and not vibrating against other components.

8.3 Leaks

• Hose Connections: Check all hose connections to the pump and drain line. Ensure hose clamps are tight and hoses are not cracked or damaged.
• Pump Seal: Verify that the pump is properly seated and sealed in its housing.

9. Specifications

10. Warranty Information

This Budora WD26X25104 Variable Drain Pump Kit comes with a One Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For warranty service or inquiries, please contact the seller or manufacturer directly.

11. Support

For further assistance, technical questions, or to report issues, please contact Budora customer support through the platform where the product was purchased. When contacting support, please have your product model number (PL-WD26X25104) and proof of purchase readily available.
