User Manual for Automatic Pneumatic Paint Mixer

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Automatic Pneumatic Paint Mixer. Please read this manual thoroughly before operating the device.

The mixer is designed for blending various liquids such as paints, inks, chemicals, and adhesives, offering a spark-free and explosion-proof operation due to its air-powered design. It features a portable platform for stability, adjustable speed control, and durable stainless steel components.

2. Safety Instructions

Always adhere to the following safety guidelines to prevent injury or damage to the equipment:

• Ensure the mixer is connected to a stable and sufficient air compressor.
• Do not operate the mixer without proper ventilation.
• Wear appropriate personal protective equipment (PPE), including eye protection and gloves.
• Before performing any maintenance or cleaning, disconnect the air supply.
• Keep hands and loose clothing away from moving parts during operation.
• Do not exceed the maximum mixing capacity of 20 liters.

3. Product Components and Features

Familiarize yourself with the main components of your pneumatic mixer:

•

  Main Unit: The complete assembly of the pneumatic mixer, including the motor, shaft, impeller, and stable platform base. This image shows the overall structure of the mixer.
•

  Pneumatic Motor and Controls: The air-powered motor drives the mixing shaft. The unit features stepless speed regulation and a free lift mechanism for easy height adjustment.

•

  Mixing Shaft and Impellers: Durable stainless steel shaft with corrosion-resistant impellers designed for efficient mixing. The impellers are removable for cleaning.

•

  Product Details: This image highlights key components such as the three-cylinder mixer head, the aluminum alloy mixing impeller (preservative), and the 1/4 air inlet connector with a valve for speed adjustment.
•

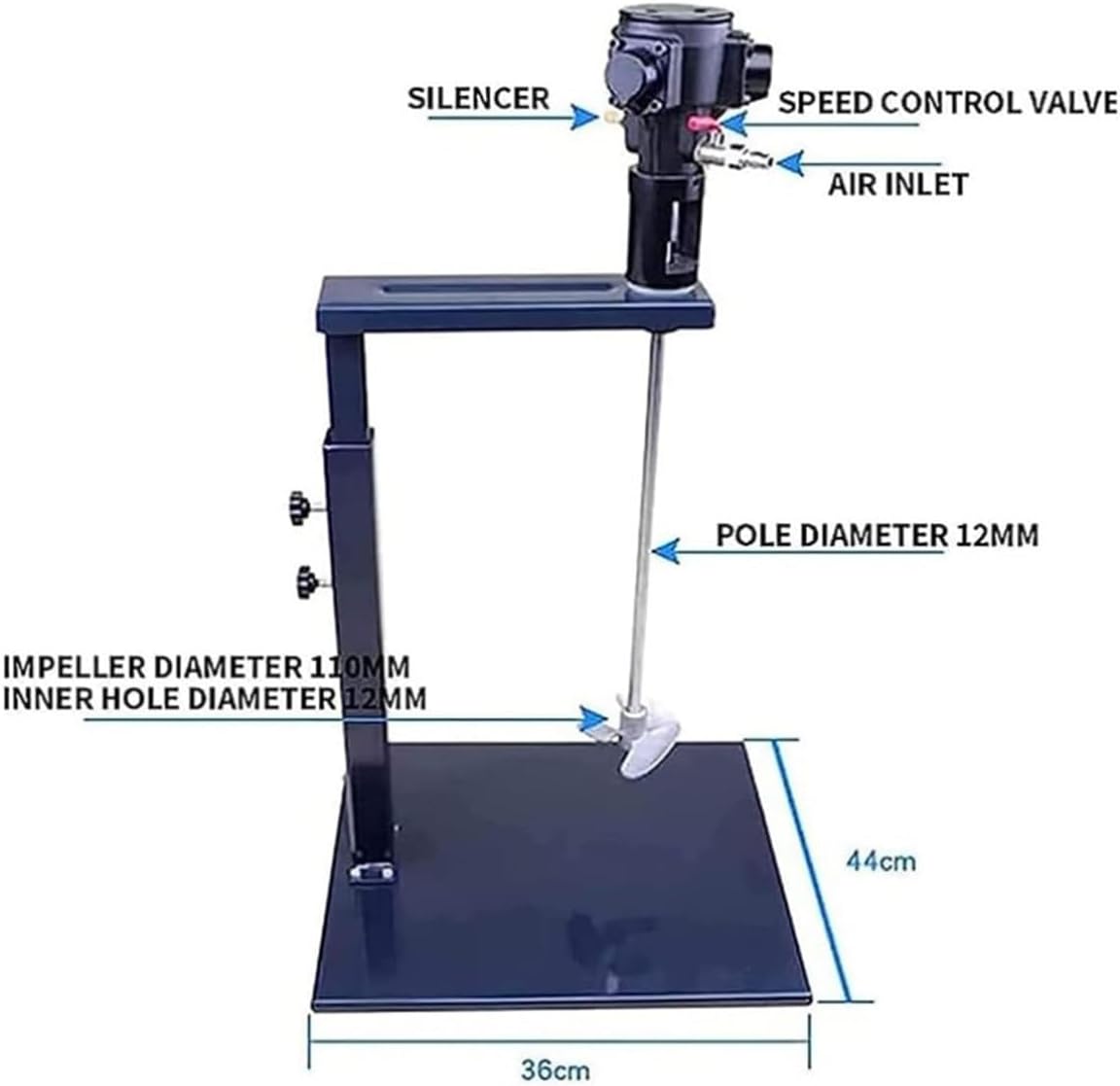

  Control and Measurement Points: Identifies the silencer for noise reduction, speed control valve, air inlet, and key dimensions like pole diameter (12mm), impeller diameter (110mm), and inner hole diameter (12mm).

•

  Height Adjustment Mechanism: This diagram illustrates the automatic lifting function, allowing for easy height adjustment of approximately 90 cm for the mixing shaft.

4. Setup and Installation

1. Unpacking: Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present.
2. Placement: Place the mixer on a stable, level surface capable of supporting its weight and the weight of the liquid being mixed.
3. Air Compressor Connection: Connect the air inlet of the mixer to a suitable air compressor using a compatible hose. Ensure the air pressure is within the recommended range of 6-8 MPA.
4. Impeller Attachment: If not already attached, securely fasten the mixing impeller to the shaft.
5. Initial Check: Before adding liquid, perform a brief test run to ensure the shaft rotates smoothly and there are no obstructions.

5. Operating Instructions

1. Prepare Liquid: Place the container with the liquid to be mixed on the platform base. Ensure the container is stable and centered.
2. Adjust Height: Use the manual plate valve to adjust the height of the mixing shaft so that the impeller is submerged in the liquid without touching the bottom or sides of the container. The automatic lifting function allows for easy adjustment up to approximately 90 cm.
3. Start Mixing: Slowly open the air control valve to start the mixer. The speed can be adjusted based on the viscosity of the liquid.
4. Monitor Operation: Observe the mixing process to ensure even blending. The silencer helps minimize noise during operation.
5. Stop Mixing: To stop the mixer, slowly close the air control valve until the impeller stops rotating.
6. Remove Container: Once mixing is complete, raise the mixing shaft and carefully remove the container.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your mixer.

• Cleaning: After each use, clean the mixing shaft and impeller thoroughly. The stainless steel components are removable for easy cleaning. Use appropriate cleaning agents for the type of liquid mixed.
• Lubrication: Periodically lubricate moving parts as recommended by the manufacturer (refer to specific product diagrams if available for lubrication points).
• Air Filter: Check and clean or replace the air filter on your air compressor regularly to ensure clean air supply to the mixer.
• Inspections: Regularly inspect all hoses, connections, and moving parts for wear, damage, or leaks. Replace any worn or damaged components immediately.
• Storage: Store the mixer in a clean, dry environment when not in use.

7. Troubleshooting

8. Technical Specifications

9. Warranty Information

For warranty details, please refer to the documentation provided at the time of purchase or contact your retailer. Standard warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

This product has a return policy of 30 days for refund/replacement, as per the seller's terms.

10. Customer Support

If you encounter any issues or have questions not covered in this manual, please contact your point of purchase or the manufacturer's customer support. When contacting support, please have your product model (A-1) and purchase details ready.
