Introduction
Thank you for choosing the YiLaie LED Wall Sconce. This battery-operated wall lamp features touch controls, brightness adjustment, and a 360° rotatable design for versatile lighting. Please read this manual carefully before use to ensure proper installation and operation.
What's in the Box
- LED Wall Lamp
- Mounting Hardware (screws, wall anchors, 3M adhesive pads, self-adhesive iron disc)
- Instruction Manual
- Type-C USB Charging Cable
Image: All components included in the YiLaie LED Wall Sconce package.
Product Features
- High-Capacity Battery: Built-in 4000mAh battery with Type-C fast-charging USB port. Provides approximately 8 hours of light at maximum brightness and up to 30 hours at minimum brightness after a 4.5-hour full charge.
- Eye Protection: Equipped with 50 LED beads for soft, flicker-free, and non-glaring light.
- Stepless Dimming & Memory Function: Touch-sensitive control for effortless on/off. Long press to adjust brightness from 10% to 100%. Remembers the last brightness setting.
- 360° Free-Rotation Portable Design: Innovative magnetic ball design allows for 360° rotation and easy detachment. Can be used as a bedside reading light, emergency light, or flashlight.
- Multiple Installation Methods: Supports 3M adhesive, screw fixing, direct attachment to metal surfaces, or self-adhesive iron disc.

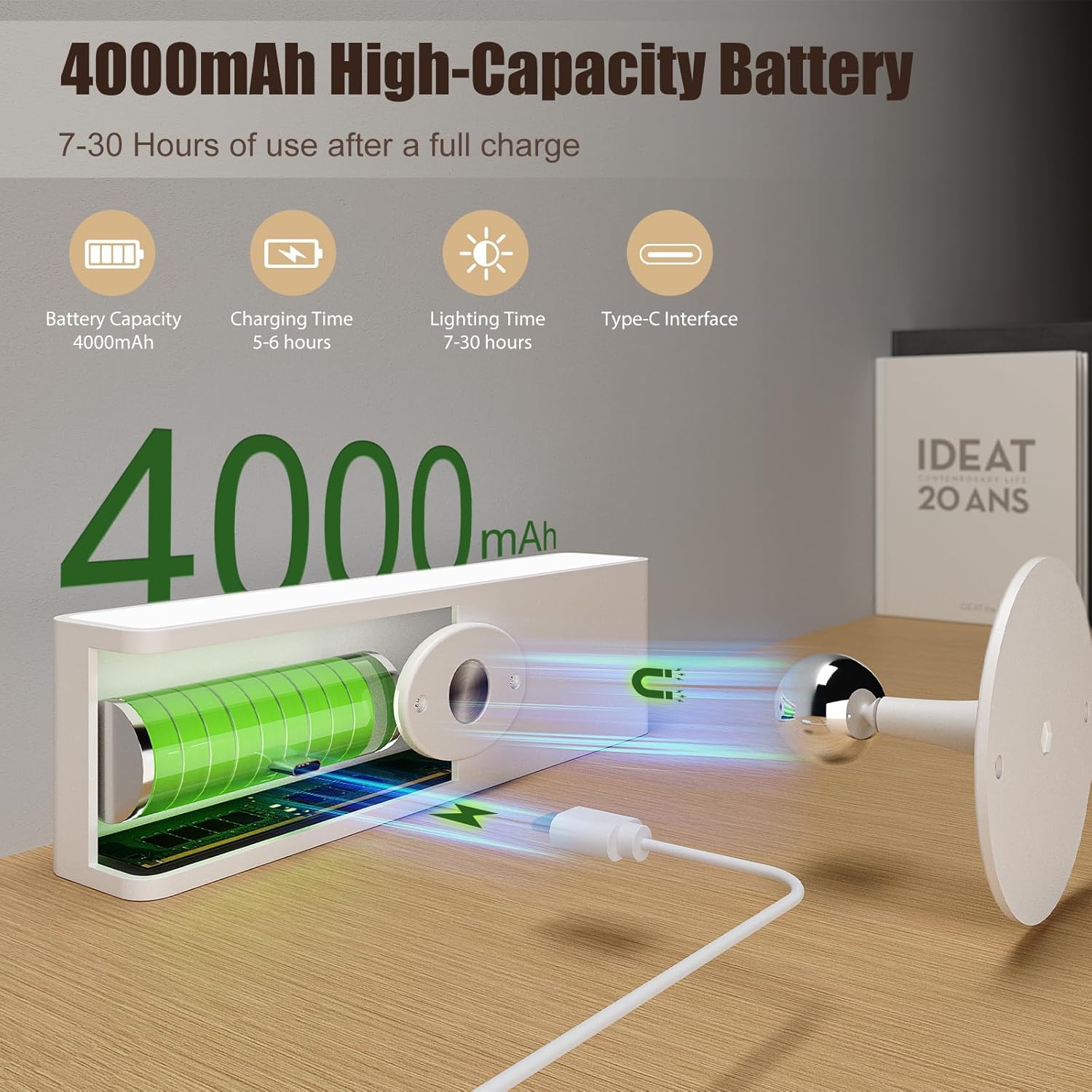

Image: Internal view highlighting the 4000mAh battery and Type-C charging port.

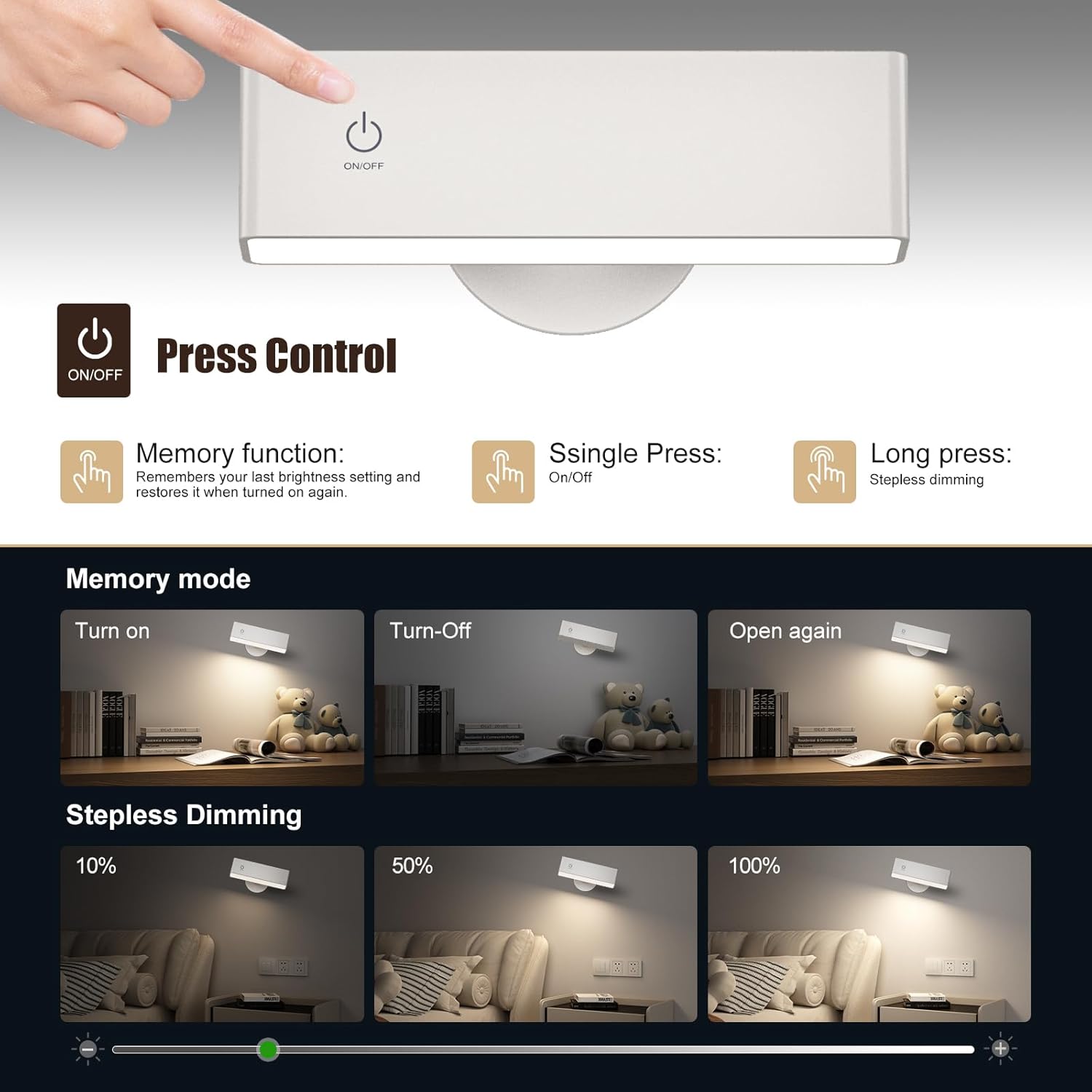

Image: Visual guide to touch control for brightness adjustment and memory mode.
Image: Exploded view demonstrating the magnetic attachment and 360° rotation feature.
Setup and Installation
The YiLaie LED Wall Sconce offers four installation methods:
- 3M Adhesive Installation:
Suitable for smooth, flat wall surfaces. Clean the surface thoroughly. Peel off the protective film from the 3M adhesive pad and firmly press the adhesive base onto the desired location. Ensure it is securely attached before mounting the lamp.
- Screw Fixing:
Ideal for rough or uneven walls. Mark the desired screw positions on the wall using the adhesive base as a template. Drill pilot holes, insert the wall anchors, and then secure the adhesive base with the provided screws.
- Direct Attachment to Metal Surfaces:
The lamp can be directly attached to any metal surface (e.g., refrigerators, wardrobes, cabinets) due to its strong magnetic base. No additional hardware is needed for this method.
- Self-Adhesive Iron Disc:
For non-metal surfaces where you prefer a magnetic attachment without drilling. Apply the self-adhesive iron disc to the desired location on the wall. The lamp can then be magnetically attached to this disc.
Image: Detailed visual guide for the four available mounting options.
Once the base is installed, simply attach the LED wall lamp to the magnetic ball. The lamp can be rotated 360° to direct light as needed.
Video: Demonstration of the magnetic attachment and 360° rotation feature of the YiLaie LED Wall Sconce.
Operating Instructions
- Power On/Off: Lightly touch the power button (ON/OFF symbol) on the lamp to turn it on or off.
- Brightness Adjustment (Stepless Dimming): When the lamp is on, press and hold the power button to seamlessly adjust the brightness from 10% to 100%. Release the button when the desired brightness is reached.
- Memory Function: The lamp will automatically recall the last brightness setting when it is turned on again.
- Charging: Connect the provided Type-C USB charging cable to the lamp's charging port and a suitable USB power adapter (not included). The charging indicator light will show charging status. A full charge takes approximately 4.5 hours.
- Detachable Use: The lamp can be easily detached from its magnetic base for use as a portable light source.
Maintenance
- Clean the lamp with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Avoid exposing the lamp to water or high humidity, as it is not water-resistant.
- Charge the battery regularly to maintain its lifespan, even if not in frequent use.
- Ensure the magnetic connection is clean and free of debris for optimal attachment.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Battery is depleted. | Charge the lamp using the provided USB-C cable. |
| Brightness adjustment is not working. | Incorrect operation. | Ensure you are pressing and holding the power button for stepless dimming. |
| Lamp falls off the wall. | Improper installation or weak adhesive. | Re-install the base using a stronger adhesive or screws, especially on rough surfaces. Ensure the magnetic connection is clean. |
| Charging indicator not working. | Cable or power adapter issue. | Try a different USB-C cable or power adapter. Ensure the cable is fully inserted. |
Specifications
- Brand: YiLaie
- Model Number: EL-BSY-01
- Material: Plastic
- Light Source: LED (50 beads)
- Battery Capacity: 4000mAh
- Charging Port: Type-C USB
- Charging Time: Approximately 4.5 hours
- Lighting Time: 7-30 hours (depending on brightness)
- Control Method: Touch
- Dimming: Stepless (10%-100%)
- Rotation: 360° (magnetic ball)
- Voltage: 5 Volts
- Wattage: 2 watts
- Item Dimensions (L x W x H): 5.9" x 1.7" x 1.2"
- Item Weight: 310 Grams
- Water Resistance Level: Not Water Resistant
Warranty and Support
The YiLaie LED Wall Sconce comes with a one-year warranty and free replacement for manufacturing defects. For any questions or support needs regarding your LED wall lamp, please contact us via Amazon. We aim to resolve your issue within 24 hours and provide a satisfactory response.
Manufacturer: SHENZHEN E-LOVER TECHNOLOGY CO.LTD
