Introduction
Thank you for choosing the XTUFF Solid Brass Padlock. This manual provides detailed instructions for the proper use, maintenance, and care of your new padlocks. Please read this guide thoroughly before using the product to ensure optimal performance and security.
Image: Two XTUFF solid brass padlocks with their corresponding keys.
Product Overview
The XTUFF Solid Brass Padlock is designed for both indoor and outdoor security applications. It features a robust construction with a solid brass body and a hardened steel shackle, engineered for durability and resistance against tampering.
Key Features:
- Solid Brass Body: Provides excellent corrosion resistance, suitable for various weather conditions.
- Hardened Steel Long Shackle: Offers enhanced cut resistance and allows for versatile usage across different items.
- Keyed Alike Mechanism: All included keys operate both padlocks, simplifying key management.
- Dual Locking Lever: Enhances security by providing superior pick resistance.
- Beveled Lock Body Corners: Designed to minimize scratching on surfaces.
Image: Close-up view highlighting the hardened steel shackle, dual locking levers, solid brass body, and smooth key operation.

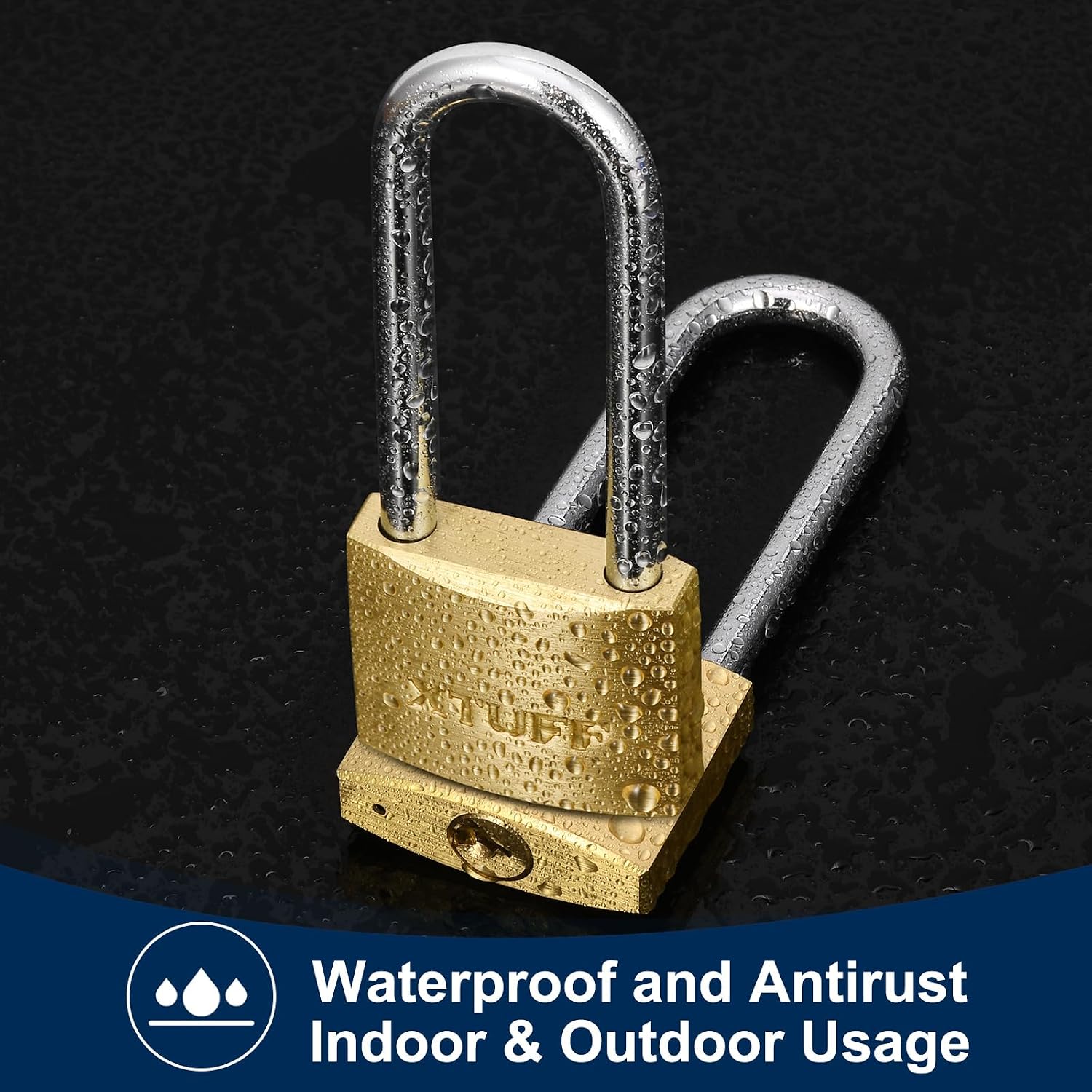

Image: Two XTUFF padlocks covered in water droplets, illustrating their waterproof and anti-rust design for indoor and outdoor use.
Setup
Your XTUFF Solid Brass Padlocks come ready for immediate use. No assembly is required.
- Unpack: Carefully remove the padlocks and keys from their packaging.
- Identify Keys: You will receive 6 identical keys for the two padlocks. Each key works with both locks.
- Test Operation: Insert a key into the keyhole of each padlock and turn it to ensure smooth locking and unlocking action.
Image: Two XTUFF padlocks displayed with six identical keys, emphasizing the convenience of the keyed alike system.
Operating Instructions
Locking the Padlock:
- Ensure the shackle is fully open.
- Position the shackle through the items you wish to secure.
- Press the shackle firmly into the padlock body until it clicks into place.
- Pull on the shackle to confirm it is securely locked.
Unlocking the Padlock:
- Insert one of the provided keys into the keyhole.
- Turn the key clockwise until the shackle springs open.
- Remove the key.
Note: Due to the keyed alike feature, any of the 6 provided keys will operate both padlocks in the pack.
Image: Examples of wide applications for the XTUFF padlock, including gates, chains, lockers, and storage units.
Maintenance
Regular maintenance will prolong the life and smooth operation of your XTUFF padlocks.
- Cleaning: Wipe the padlock body and shackle with a clean, dry cloth periodically to remove dirt and grime. For outdoor use, clean more frequently.
- Lubrication: If the key mechanism feels stiff or sticky, apply a small amount of graphite lubricant or a silicone-based spray lubricant into the keyhole. Avoid oil-based lubricants as they can attract dust and debris.
- Inspection: Periodically check the shackle and body for any signs of damage or wear.
Troubleshooting
Key is difficult to insert or turn:
- Ensure the key is fully inserted and oriented correctly.
- Apply a small amount of graphite lubricant into the keyhole.
- Check the key for any bends or damage. Use an undamaged key if available.
Shackle is stiff or won't close:
- Ensure the key mechanism is fully disengaged (unlocked position) before attempting to close the shackle.
- Clean any debris from around the shackle entry points on the padlock body.
- Apply a small amount of lubricant to the shackle legs where they enter the padlock body.
Specifications
| Feature | Detail |
|---|---|
| Brand | XTUFF |
| Model Number | BPE40L2PACK |
| Lock Type | Pin Tumbler, Keyed Alike |
| Body Material | Solid Brass |
| Shackle Material | Hardened Steel |
| Shackle Length | 2.5 inches (63.5 mm) |
| Body Width | 1.57 inches (40 mm) |
| Overall Dimensions (L x W x H) | 1.57 x 0.55 x 4.05 inches |
| Item Weight | 9.76 ounces (per padlock) |
| Included Components | 2 Padlocks, 6 Keys |
| UPC | 742271997411 |
Image: Detailed product dimension diagram for the XTUFF padlock.
Warranty Information
XTUFF is committed to customer satisfaction. We provide a no-hassle, no-condition refund guarantee for any quality issues. Please contact our support team if you experience any problems with your product.
Support
For further assistance, questions, or concerns regarding your XTUFF Solid Brass Padlock, please contact XTUFF customer support through the retailer's platform where the product was purchased. Please have your model number (BPE40L2PACK) and purchase details ready when contacting support.
