1. Introduction
Thank you for choosing the Zicbol Modern Outdoor Wall Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before installation and retain them for future reference.
This product features an integrated LED design, providing efficient up and down lighting suitable for various indoor and outdoor applications.
2. Safety Information
WARNING: Risk of Electric Shock. Disconnect power at the circuit breaker before installation or servicing.
- Always turn off the main power supply at the circuit breaker or fuse box before beginning any electrical work.
- Installation must be performed by a qualified electrician or a person familiar with the construction and operation of the product and the hazards involved.
- Ensure all electrical connections comply with local codes and ordinances, as well as the National Electrical Code (NEC).
- Do not install this fixture on surfaces that are not structurally sound.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
- Wear safety glasses and gloves during installation.
3. Package Contents
Verify that all components are present before beginning installation:
- 2 x Zicbol Modern Outdoor Wall Lights (Integrated LED)
- 2 x Mounting Brackets
- 2 x Hardware Packs (screws, wire nuts)
- 1 x Instruction Manual
If any parts are missing or damaged, please contact Zicbol customer support.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Zicbol |
| Model Name | Zicbol-040 |
| Color | Gold |
| Material | Metal |
| Product Dimensions | 6.3"L x 13"W x 9.8"H (Overall package dimensions) |
| Lamp Tube Size | H 7" x D 3" |
| Mounting Bracket Size | 4.3" x 4.3" x 0.4" |
| Light Source Type | Integrated LED |
| Wattage | 10W per fixture |
| Color Temperature | 3000K (Warm Light) |
| Brightness | 1600 lumens |
| Voltage | 120V AC |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Water Resistance Level | Waterproof |
| Mounting Type | Wall Mount (Surface Mount) |
5. Setup and Installation
Tools You May Need: Screwdriver, Wire Strippers, Electrical Tape, Pliers, Safety Glasses, Ladder (if necessary).
- Turn Off Power: Before starting, ensure the power to the installation area is completely turned off at the circuit breaker.
- Prepare Mounting Surface: Ensure the wall surface is clean, dry, and structurally sound.
- Attach Mounting Bracket: Secure the mounting bracket to the junction box on the wall using the provided screws. Ensure the bracket is level and firmly attached.
Image: Detailed view of the Zicbol wall light components, including the mounting bracket, integrated LED, and gold finish. Dimensions are also shown.
- Make Electrical Connections:
- Connect the black wire from the fixture to the black (hot) wire from the junction box using a wire nut.
- Connect the white wire from the fixture to the white (neutral) wire from the junction box using a wire nut.
- Connect the ground wire from the fixture to the ground wire from the junction box (or to the green ground screw on the mounting bracket) using a wire nut.
- Ensure all connections are secure and insulated with electrical tape if necessary.
- Mount the Fixture: Carefully align the fixture with the mounting bracket and secure it with the provided screws. Ensure the fixture is flush against the wall and stable.
- Restore Power: Once the fixture is securely installed, restore power at the circuit breaker.
- Test the Light: Turn on the light switch to ensure the fixture is working correctly.

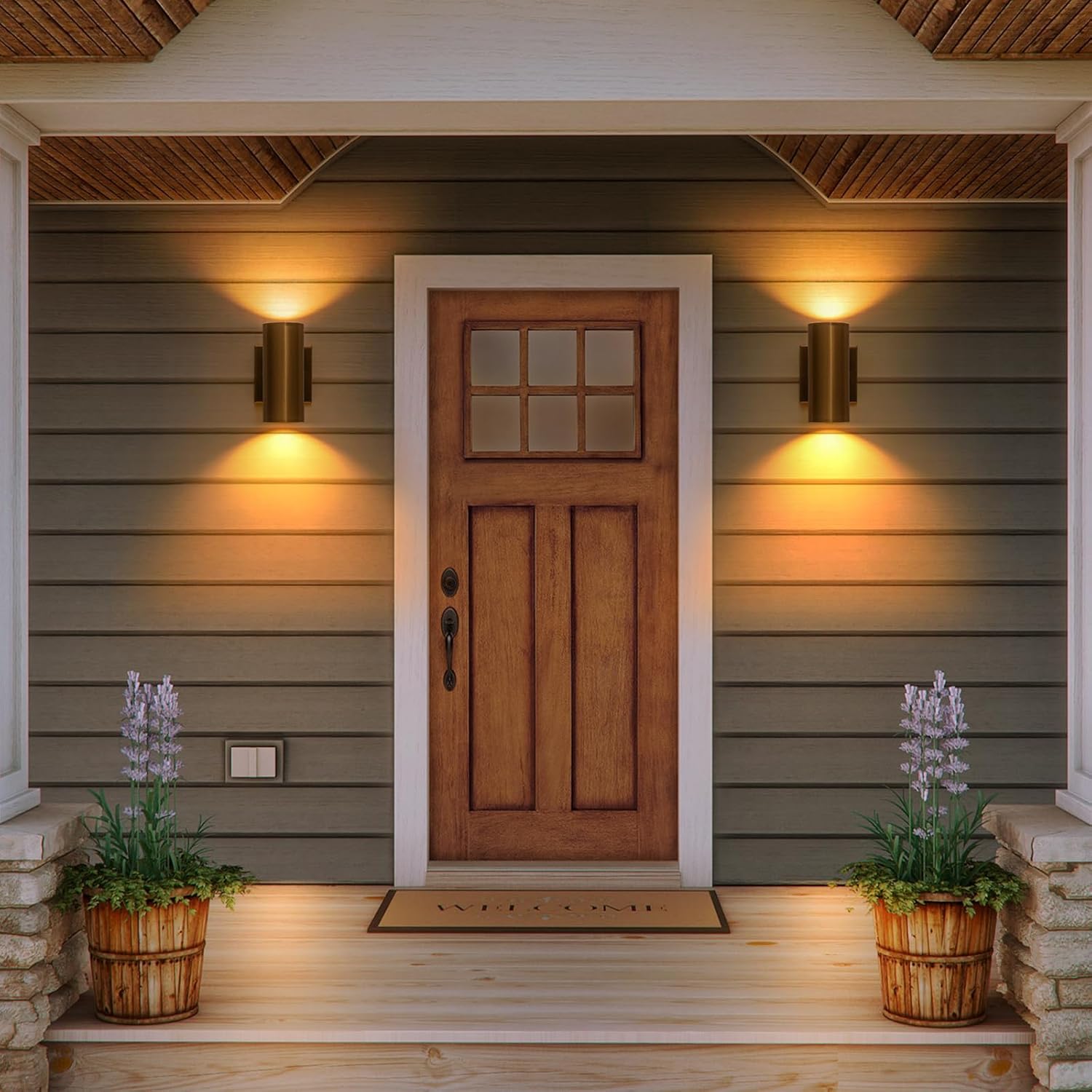

Image: Zicbol wall lights installed on a porch, demonstrating their aesthetic and functional lighting.
6. Operating Instructions
The Zicbol Modern Outdoor Wall Light operates via a standard wall switch connected to its electrical circuit. Simply toggle the wall switch to turn the light on or off.
Image: Visual representation of the light fixture in 'OFF' (daytime) and 'ON' (nighttime) states.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Zicbol wall light.
- Cleaning: Disconnect power before cleaning. Use a soft, damp cloth to wipe the exterior of the fixture. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Inspection: Periodically check the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
- LEDs: The integrated LED light source is designed for long life and is not user-replaceable.
8. Troubleshooting
If you encounter issues with your Zicbol wall light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connection Faulty wall switch | Check circuit breaker and wall switch. Ensure power is on. Turn off power, check wire connections for tightness. Test the wall switch with another device or replace if faulty. |
| Light is dim or flickers | Low voltage Loose wire connection Incompatible dimmer switch (if applicable) | Consult an electrician to check voltage. Turn off power, check wire connections. Ensure any dimmer switch used is compatible with LED fixtures. |
| Water inside the fixture | Improper sealing during installation Damage to the fixture | Turn off power immediately. Inspect installation for proper sealing. Re-seal if necessary. If damaged, contact customer support. |
If these steps do not resolve the issue, please contact Zicbol customer support.
9. Warranty and Support
Zicbol provides a warranty service for this product. If you have any questions or require assistance with your exterior wall light fixture, please contact us at any time. We are committed to replying to your inquiries within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official Zicbol brand store online.
