Outsunny 3-Seat Outdoor Porch Swing with Stand

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Outsunny 3-Seat Outdoor Porch Swing with Stand. Please read all instructions carefully before assembly and use to ensure safe and proper operation.

Safety Information

• Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Assembly requires two people.
• Tighten all bolts and nuts securely. Re-check tightness periodically.
• Do not exceed the maximum weight capacity of 792 lbs (360 kg).
• Keep children and pets away from the assembly area.
• Place the swing on a flat, stable surface.
• Do not stand on the swing or use it for purposes other than intended.
• Avoid using the swing in strong winds or severe weather conditions.

Parts List

Please refer to the included hardware pack and diagrams for specific part identification. The following are the main components:

• Main Frame Components (A-frame legs, top bar, base bars)
• Swing Seat Frame (Seat base, backrest)
• Canopy Frame and Fabric
• Cushions (Seat cushions, back cushions, bolster pillows)
• Suspension Springs and Hooks
• Side Tables with Cup Holders
• Assembly Hardware (Bolts, washers, nuts, pins, wrench)

Image: All components of the Outsunny porch swing laid out on grass, including metal frame parts, canopy fabric, cushions, and hardware.

Setup and Assembly

Follow these steps for proper assembly. It is recommended to have two people for this process.

Step 1: Assemble the Base Frame

1. Connect the horizontal base bars to the vertical A-frame legs using the provided bolts and nuts. Ensure all connections are secure but do not fully tighten until the entire frame is assembled.
2. Repeat for both sides of the A-frame.

Video: Installation steps for the porch swing frame, showing how to connect the base bars and A-frame legs. This video demonstrates the initial frame assembly.

Step 2: Attach the Top Bar and Crossbars

1. Connect the top horizontal bar between the two assembled A-frames.
2. Attach the remaining crossbars to stabilize the entire frame structure.
3. Once all frame components are in place, fully tighten all bolts and nuts.

Image: A close-up view highlighting the powder-coated steel frame, indicating its solid structure and durability.

Step 3: Assemble the Swing Seat

1. Assemble the metal frame for the swing seat, ensuring the breathable mesh fabric is correctly positioned.
2. Attach the side armrests and any necessary support bars for the seat.

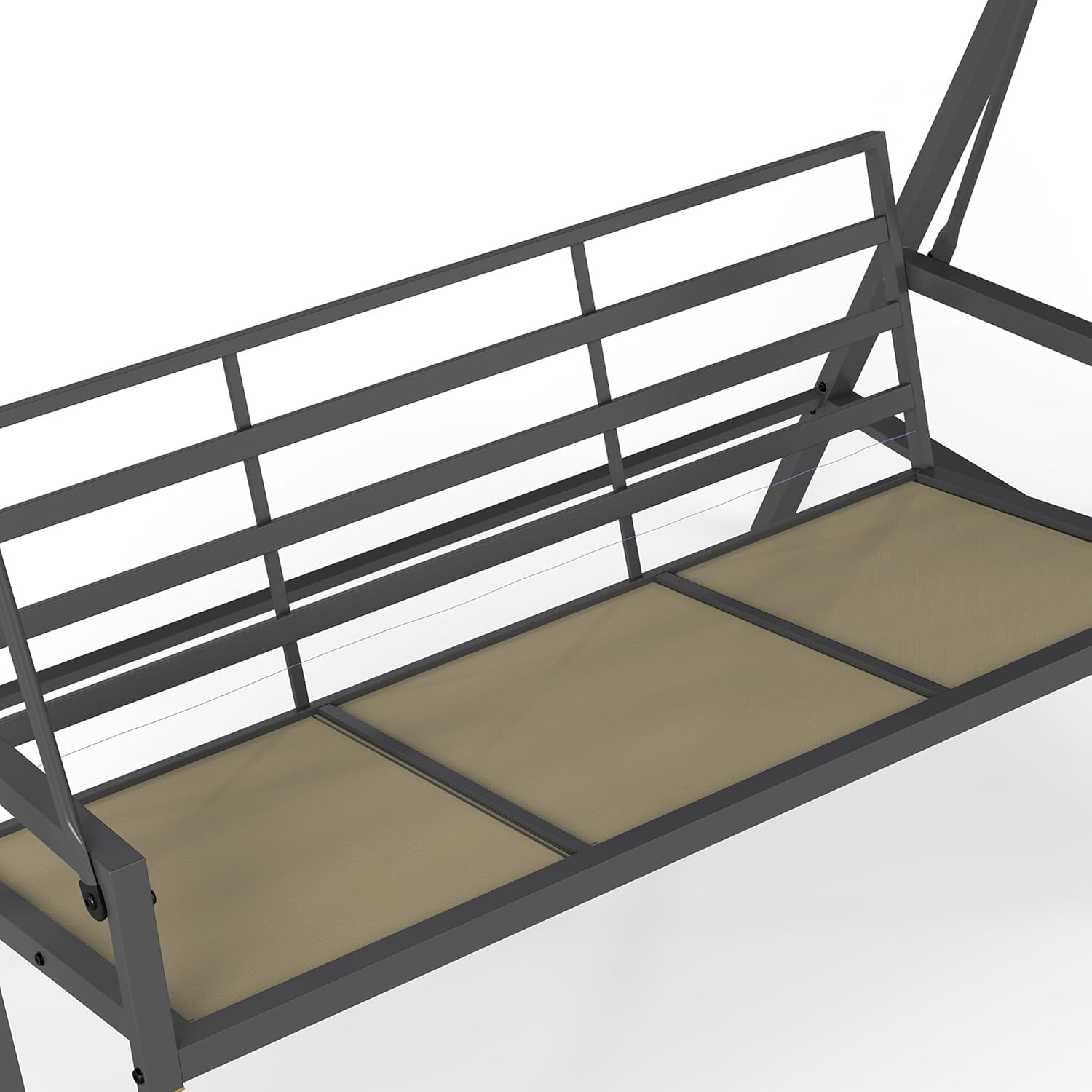

Image: A detailed view of the breathable mesh fabric seat, emphasizing its quick-drying properties when cushions are removed.

Step 4: Hang the Swing Seat

1. Attach the suspension springs and hooks to the top bar of the main frame.
2. Carefully lift and attach the assembled swing seat to the hooks, ensuring it hangs securely and is level.

Step 5: Install the Canopy

1. Slide the canopy fabric onto its frame.
2. Attach the canopy frame to the top of the main swing frame. Ensure it is securely fastened and can be adjusted.

Image: The adjustable canopy of the Outsunny porch swing, demonstrating its tilting mechanism for optimal shade.

Step 6: Place Cushions and Side Tables

1. Place the removable seat and back cushions onto the swing seat.
2. Attach the foldable side tables to the armrests or designated slots on the frame.

Image: Close-up of the removable padded cushions and the underlying breathable mesh fabric, highlighting comfort and versatility.

Operating Instructions

Using the 3-Seat Swing

The swing is designed to comfortably seat up to three individuals. Gently push off the ground to initiate a smooth swinging motion. Avoid excessive force or sudden movements.

Image: The Outsunny porch swing comfortably seating three people, demonstrating its 792 lbs weight capacity.

Adjusting the Canopy

The canopy can be adjusted to provide optimal shade throughout the day. Locate the adjustment knobs on either side of the canopy frame. Loosen the knobs, tilt the canopy to your desired angle, and then tighten the knobs to secure it in place.

Converting to a Flat Bed (Daybed Function)

This swing features a convertible design allowing it to transform into a flat bed for lounging. To convert:

1. Ensure the swing is stationary.
2. Locate the recline mechanism on the sides of the swing seat.
3. Follow the specific instructions in your detailed manual (if provided) or the assembly video to release the backrest and lower it to a flat position.
4. Adjust cushions as needed for comfort.

Video: A demonstration of the Outsunny porch swing, including its conversion to a flat bed (daybed) configuration and adjustable canopy.

Maintenance

• Cleaning: Wipe the metal frame with a damp cloth and mild soap. Rinse thoroughly and dry completely. Cushions can be spot cleaned with mild soap and water. For deeper cleaning, removable cushion covers can be unzipped and washed according to fabric care instructions.
• Fabric Care: The breathable mesh seat is quick-drying. The canopy and cushion fabrics are designed to be weather-resistant.
• Inspection: Regularly inspect all bolts, nuts, and moving parts for tightness and wear. Tighten any loose fasteners.
• Storage: During prolonged periods of non-use or severe weather, it is recommended to cover the swing or store it in a dry, protected area to prolong its lifespan.

Troubleshooting

Specifications

• Brand: Outsunny
• Model Number: 84A-307V02DB
• Color: Blue
• Overall Dimensions: 78.75" W x 49.25" D x 69" H
• Seat Size (Without Cushion): 57" W x 21.75" D x 17.75" H
• Weight Capacity: 792 lbs
• Frame Material: Alloy Steel (Powder Coated)
• Assembly Required: Yes (Approx. 2-3 hours for two people)

Image: A diagram illustrating the detailed dimensions of the Outsunny 3-seat porch swing with canopy.

Warranty and Support

For warranty information, missing parts, or technical support, please contact Outsunny customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official Outsunny store for more information: Outsunny Store
