cooboom 70-inch Ultra-Thin Electric Fireplace Instruction Manual

1. Safety Information

Please read and understand this entire owner's manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.

General Safety Warnings

• This electric fireplace is CSA safety certified, ensuring compliance with safety standards.
• The appliance features an overheating automatic cut-off function to prevent hazards.
• Do not operate the fireplace if the cord or plug is damaged, or if the heater has malfunctioned or been dropped.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Always unplug the fireplace when not in use.

Electrical Safety

• Ensure the power source matches the voltage requirements of the fireplace.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• Avoid using extension cords; if necessary, use a heavy-duty, grounded extension cord.

2. Package Contents

Your cooboom 70-inch Electric Fireplace package includes the following items:

• Electric Fireplace Unit
• Remote Control
• Log Set (decorative)
• Crystal Media (decorative)
• Installation Tools Kit
• Instruction Manual

3. Setup & Installation

The cooboom 70-inch Electric Fireplace offers versatile installation options to suit your space. Its ultra-thin design (4.3 inches deep) and ultra-narrow frame allow for a sleek integration into any room.

Installation Options

• Wall-Mounted: The fireplace can be directly hung on a wall using the provided bracket and installation tools.
• Recessed (In-Wall): The fireplace is designed for recessed mounting within a wall, providing a flush, built-in appearance.

Choosing Your Media

Your fireplace comes with both a log set and crystal media. You can choose to install either for a customized aesthetic.

Image: Close-up view of the fireplace interior, showcasing both the log set and crystal media options. The realistic flame effect is visible above the media bed.

Dimensions and Mounting

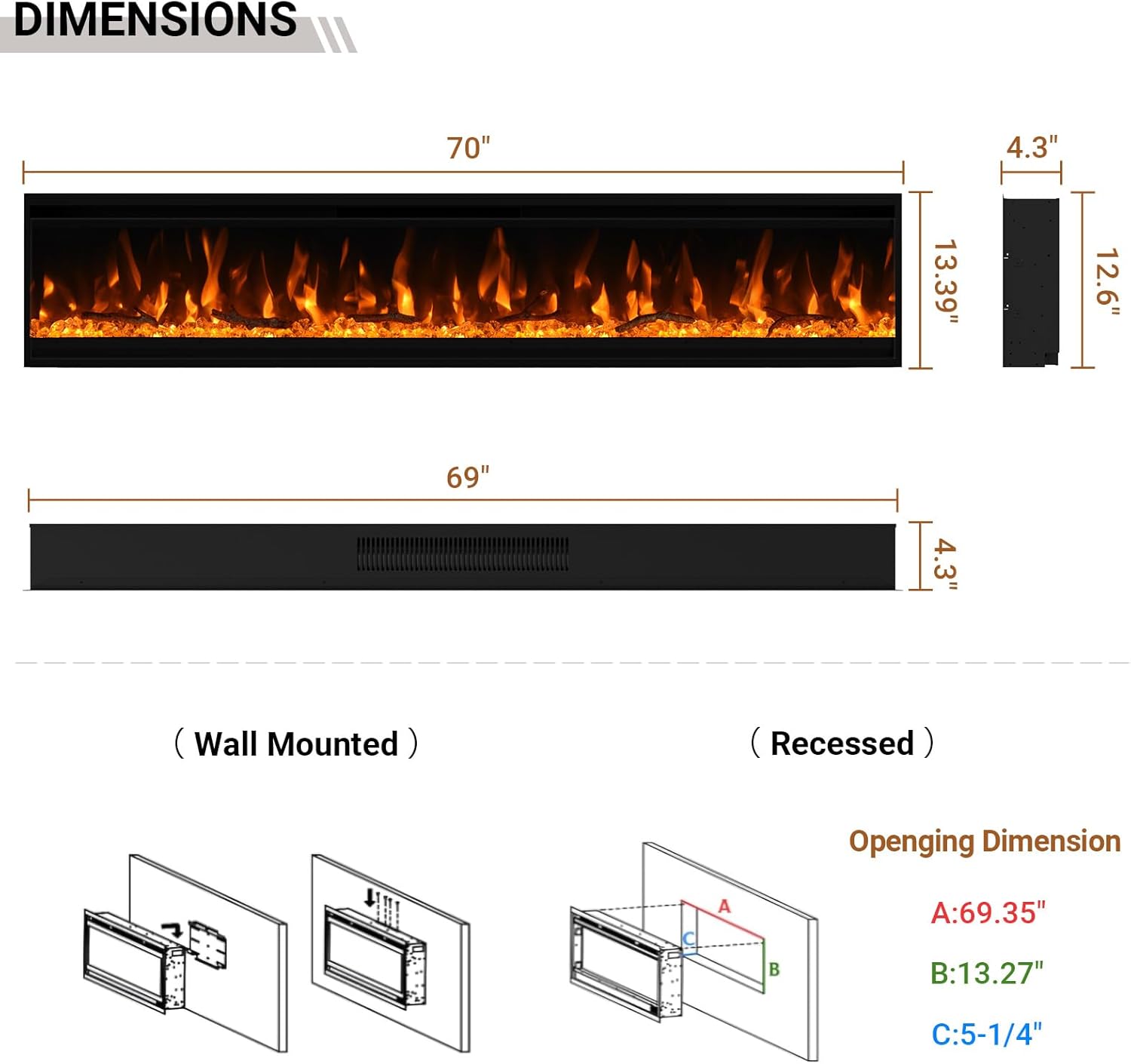

Image: A diagram illustrating the product dimensions (70"W x 13.39"H x 4.3"D) and visual guides for both wall-mounted and recessed installation methods. Recessed opening dimensions are also provided.

Refer to the detailed installation instructions provided in the included manual for specific steps and safety precautions for your chosen mounting method.

4. Operating Instructions

Your cooboom electric fireplace can be operated using either the touch screen control panel on the unit or the included remote control.

Control Panel & Remote Control

Image: A visual guide detailing the buttons and their functions on both the remote control and the integrated touch control panel of the electric fireplace.

Basic Functions:

• Power ON/OFF: Press the power button to turn the unit on or off.
• Heat Control: Select between 1500W (High) or 750W (Low) heating modes, or turn heating off.
• Temperature Setting: Adjust the thermostat from 62°F to 82°F.
• Flame Color Control: Choose from 4 flame colors (Orange, Blue, Mix, Cycle).
• Flame Brightness: Select from 4 brightness options (Brightest, Brighter, Medium, Minimum).
• Timer: Set the automatic shut-off time from 0.5 to 9 hours.

Flame and Heat Features

The fireplace offers a vibrant and customizable flame display, along with efficient heating capabilities.

Image: The 70-inch electric fireplace integrated into a living room setting, highlighting its 1500W quiet brushless motor, thermostat range from 62-82°F, and heating coverage up to 400 sq. ft.

• Realistic Flame Effect: Enjoy a colorful and realistic flame effect with multiple color and brightness options.
• Independent Flame Operation: The flame can operate independently without the heating mode, allowing for ambiance year-round.
• Efficient Heating: The 1500W/750W heater provides supplemental zone heating for areas up to 400 square feet.

Product Videos

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your electric fireplace.

Cleaning

• Always unplug the appliance before cleaning.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Gently clean the glass panel with a soft cloth and glass cleaner.
• Ensure the air intake and heat outlet vents are free from dust and debris to maintain proper airflow.

6. Troubleshooting

If you encounter any issues with your electric fireplace, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact customer service for further assistance.

7. Specifications

8. Warranty & Support

cooboom offers a limited warranty for this electric fireplace. For detailed information regarding the warranty period and coverage, please refer to the warranty card included in your package.

Customer Service

For any questions, technical support, or warranty claims, please contact our customer service team. We offer 24-hour customer service to assist you with your needs.

Contact information can be found on the product packaging or our official website.
