User Manual for FELYL Framed Grid Pattern Sliding Shower Door

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your FELYL 56-60" W x 72" H Framed Grid Pattern Sliding Shower Door. Please read this manual thoroughly before beginning installation to ensure proper setup and safe use. Retain this manual for future reference.

Safety Information

Always prioritize safety during installation and use. Failure to follow these instructions may result in injury or product damage.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation.
• Ensure the installation area is clear of obstructions and well-lit.
• Verify that wall studs or solid blocking are present for secure mounting of the shower door frame.
• Handle glass panels with extreme care. Tempered glass, while strong, can shatter into small pieces if its edges are impacted.
• Do not use abrasive cleaners or tools on glass or metal components, as this may damage the finish.
• Allow silicone sealant to cure completely (typically 24 hours) before using the shower.

Package Contents

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact FELYL customer support.

• Fixed Glass Panel (with grid pattern)
• Movable Sliding Door (with grid pattern)
• Top and Bottom Guide Rails
• Wall Brackets/Profiles
• Door Handle
• Towel Bar (for stationary glass)
• Roller Assemblies (SUS304 Stainless Steel)
• Magnetic Strips
• Water Retaining Strip
• Fasteners and Hardware (screws, anchors, washers, caps)

Figure 1: Exploded view of shower door components and their names.

Tools Required

The following tools are recommended for installation:

• Measuring Tape
• Pencil
• Level
• Drill
• Drill Bits (appropriate for wall material)
• Screwdriver (Phillips head)
• Caulking Gun and Silicone Sealant (mildew-resistant)
• Utility Knife or Saw (for trimming guide rails if necessary)

Setup and Installation

The FELYL shower door is designed for reversible installation, allowing for right or left opening. Follow these steps carefully for proper installation.

Step 1: Prepare the Installation Area

Ensure the shower base or tub is level and the walls are plumb. The shower door can accommodate up to 1/2" per side adjustment for non-vertical or uneven walls within the wall profile.

Figure 2: Illustration of wall adjustment capability and guide rail trimming for width adjustment.

Step 2: Assemble and Mount the Frame

Assemble the top and bottom guide rails with the wall profiles. Securely mount the wall profiles to the shower walls using appropriate fasteners. Ensure the frame is level and plumb before tightening all screws.

Figure 3: Configuration dimensions and reversible installation options (left or right side opening).

Step 3: Install Glass Panels and Rollers

Carefully insert the fixed glass panel into the frame. Attach the roller assemblies to the movable door panel. The rollers are made of durable SUS304 stainless steel for smooth operation.

Figure 4: Detail of the solid SUS304 stainless steel rollers, designed for durability and smooth sliding.

The glass is 1/4" (6mm) thick tempered safety glass, certified by ANSI and SGCC.

Figure 5: Tempered safety glass with grid pattern, ensuring durability and ease of cleaning on the interior surface.

Step 4: Attach Handles and Towel Bar

Install the handle on the movable door and the towel bar on the stationary glass panel. These components feature a matte black, rust-resistant finish.

Figure 6: Detail of the matte black, rust-resistant handle.

Step 5: Apply Silicone Sealant

Apply a continuous bead of mildew-resistant silicone sealant along the exterior seams of the shower door frame where it meets the wall and shower base. This ensures a watertight seal. Allow the silicone to dry for at least 24 hours before using the shower.

Installation Video Guide

For a visual step-by-step guide, please refer to the official installation video:

Operating Instructions

The shower door features a smooth-gliding mechanism. To open or close the door, gently push or pull the handle in the desired direction. The anti-jump track design ensures stability during operation.

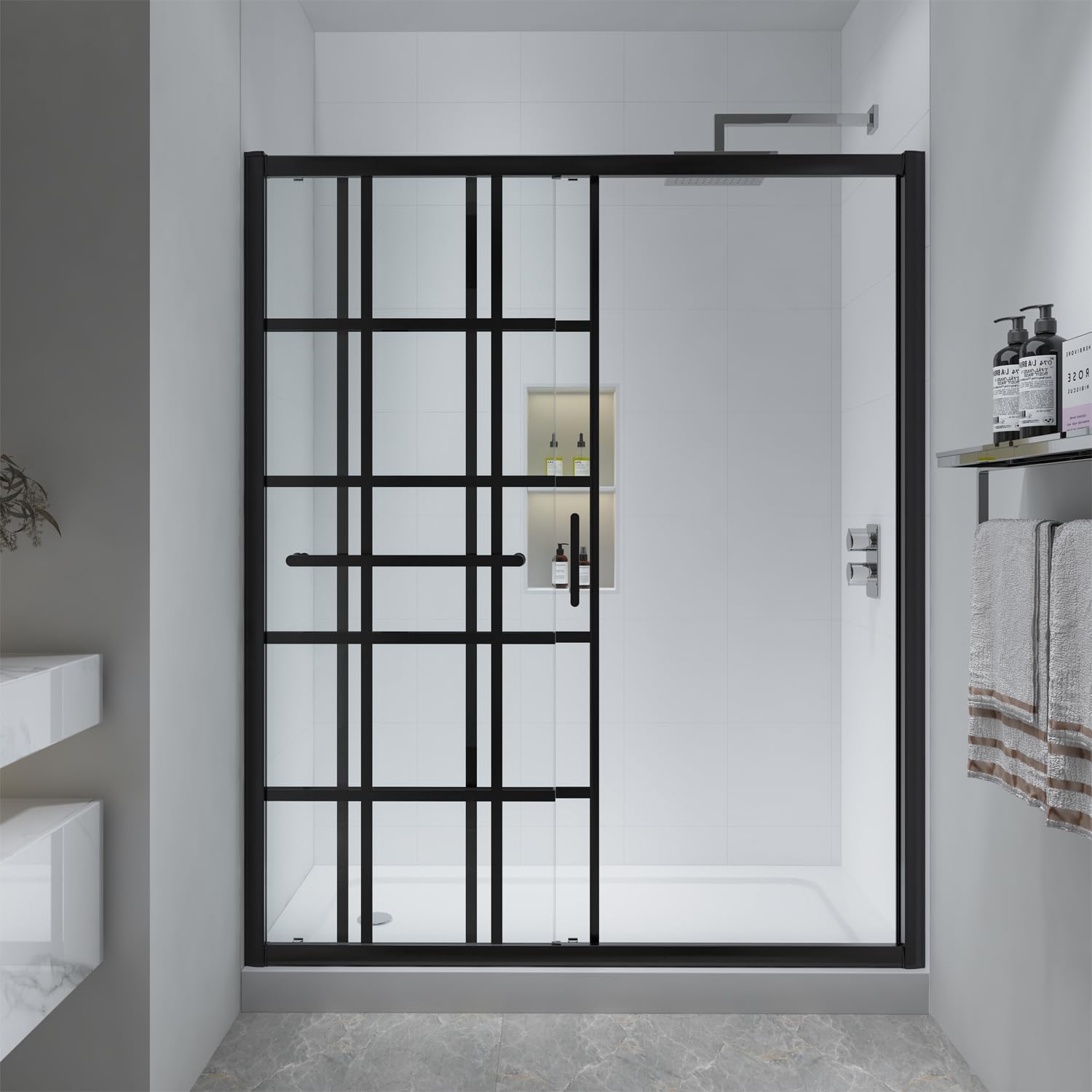

Figure 7: The installed shower door demonstrating its sliding functionality.

Maintenance

Regular cleaning and maintenance will help preserve the appearance and functionality of your shower door.

• Glass Cleaning: Use a soft cloth or sponge with mild soap and water. Rinse thoroughly and wipe dry to prevent water spots. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can scratch the glass or damage the grid pattern.
• Frame and Hardware Cleaning: Clean metal components with a soft cloth and mild, non-abrasive cleaner. Do not use acidic or alkaline cleaners, as they can damage the matte black finish.
• Roller Maintenance: Periodically check the rollers for smooth operation. If they become stiff, clean any debris and apply a small amount of silicone-based lubricant.
• Seal Maintenance: Inspect the silicone seals periodically for any signs of wear or mildew. Reapply silicone sealant as needed to maintain a watertight enclosure.

Troubleshooting

Specifications

Warranty and Support

FELYL is committed to providing high-quality products and dedicated after-sales support. This product comes with a 30-day easy return policy. For any questions, concerns, or assistance with your shower door, please contact FELYL customer support. Refer to your purchase documentation for specific warranty details.

You can also visit the official FELYL store for more information and support: FELYL Store on Amazon
