Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Oudbo Molartte 48-inch Frosted Semi-Frameless Double Sliding Shower Door. Please read all instructions carefully before beginning installation to ensure safe and proper assembly and use.
Image: The Oudbo Molartte 48-inch Frosted Semi-Frameless Double Sliding Shower Door, featuring two sliding frosted glass panels and matte black hardware, installed in a contemporary bathroom setting.
Safety Information
- Always wear safety glasses during installation.
- Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges.
- Ensure the installation surface is structurally sound and level.
- Professional installation is recommended for optimal safety and performance.
- Do not use power tools to overtighten screws, as this may damage components.
- Keep children and pets away from the installation area.
Package Contents
Verify all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.
- Frosted Tempered Glass Panels (2)
- Top and Bottom Horizontal Rails
- Vertical Wall Profiles
- Double Sliding Door Handles (2)
- Rollers and Guides
- Sealing Strips
- Installation Kit (screws, anchors, washers, etc.)
- Detailed Installation Instructions
Specifications
| Feature | Detail |
|---|---|
| Brand | Oudbo Molartte |
| Model Number | TMDS-4872-MB |
| Color | Matte Black |
| Material | Aluminum, Stainless Steel, Tempered Glass |
| Style | 48" x 72" - Frosted |
| Glass Thickness | 1/4" (6mm) with ASNIZ97.1 certification |
| Width Adjustment Range | 44 inches to 48 inches (top and bottom rails can be cut up to 4 inches) |
| Minimum Threshold Depth | 2 3/8 inches (60mm) |
| Item Weight | 91 Pounds |
| Assembly Required | Yes |
| Coating Technology | GlassShield Coating (Easy Clean) |
Image: Product information diagram illustrating the shower door's dimensions: 72 inches height, 44-48 inches adjustable width, and a minimum threshold requirement of 2 3/8 inches (60mm).
Image: Visual comparison highlighting the 6mm thickness of the tempered safety glass and the benefits of the Easy Clean Coating, showing water beading on the coated glass versus streaking on uncoated glass, and the shattered pattern of tempered glass versus sharp shards of normal glass.
Setup and Installation
Follow these steps for proper installation. Refer to the included detailed installation instructions for specific diagrams and hardware identification.
- Measure and Prepare: Ensure your shower opening width is between 44 and 48 inches. The top and bottom horizontal rails can be cut up to 4 inches to fit your specific size. A minimum threshold depth of 2 3/8 inches (60mm) is required for installation.
- Install Wall Profiles: Secure the vertical wall profiles to the shower walls according to the instructions, ensuring they are plumb and level.
- Assemble Rails: Attach the top and bottom horizontal rails to the wall profiles.
- Install Glass Panels: Carefully place the tempered glass panels into the top and bottom rails. The double sliding design allows both doors to slide.
- Attach Rollers and Guides: Install the rollers and guides to ensure smooth operation of the sliding doors. Oudbo Molartte shower door rollers undergo over 100,000 push-pull tests for durability and stability.
- Install Handles: Attach the two towel bars/handles to the glass panels. These handles are convenient for hanging clothes and towels.
- Apply Sealing Strips: Install the sealing strips along the bottom and sides of the glass panels to prevent water leakage.
- Seal with Caulk: Apply silicone caulk to all seams and joints as instructed to ensure a watertight seal.
Image: Easy Installation guide showing that the product includes all accessories, detailed instructions, and installation videos. It emphasizes measuring the space correctly.
Image: Illustration of the "Silent Roller Testing" process, indicating that Oudbo Molartte shower door rollers are tested for over 100,000 push-pull cycles to ensure durability and stability. It also shows details of the high-quality sliding guide and durable sliding rollers.
Image: Detailed views of the shower door's hardware components, including the top rail assembly, wall profile attachment, the double towel bar handle, and the bottom track with rollers.
Video: An official product video demonstrating the features and double sliding operation of the Oudbo Molartte shower door. This video highlights the ease of use and design aspects.
Operation
The Oudbo Molartte shower door features a double sliding design, allowing both glass panels to move independently. This provides flexibility for entry and exit from either the right or left side of the shower enclosure.
- To open the door, gently slide either panel along the top and bottom tracks.
- To close the door, slide the panels back until they meet in the center or against the wall profile.
- The integrated towel bars on each panel can be used to hang towels or clothing.
Image: Diagram demonstrating the double sliding design, indicating that both left and right opening configurations are possible for user convenience.
Image: Visual representation showing the flexibility of the double sliding shower door, allowing it to be opened from either the right or left side to suit bathroom layouts.
Maintenance
Regular cleaning and maintenance will ensure the longevity and appearance of your shower door.
- Glass Cleaning: The tempered glass features GlassShield Coating Technology, which makes it easy to clean and reduces cleaning time by up to 90%. Use a soft cloth and a mild, non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that could damage the coating.
- Frame and Hardware: Clean the matte black aluminum and stainless steel components with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as these can scratch the finish.
- Tracks and Rollers: Periodically clean the top and bottom tracks to remove any soap scum or debris that could impede smooth sliding. Check rollers for smooth operation and clean if necessary.
- Sealing Strips: Inspect sealing strips regularly for wear and tear. Replace if they become damaged to maintain a watertight seal.
Image: Illustration detailing the "Premium Clean" nano clean coating on the 1/4 inch (6mm) glass, demonstrating how water beads and rolls off, making the glass easy to clean compared to untreated glass.

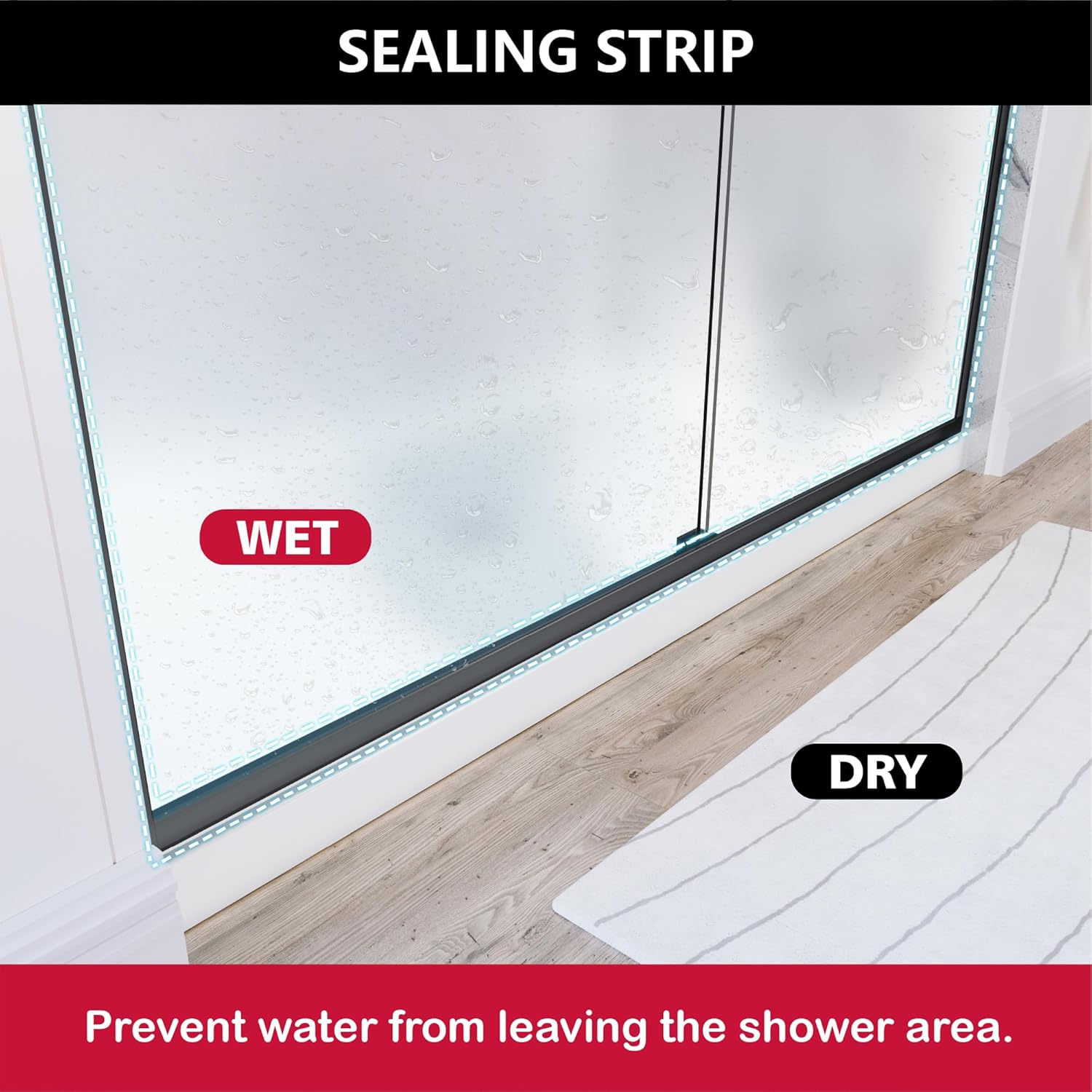

Image: Close-up view of the sealing strip at the base of the shower door, designed to prevent water from leaving the shower area and keeping the bathroom floor dry.
Image: Focus on the superior stainless steel material used for the towel bar, indicating its resistance to corrosion and abrasion for long-lasting durability.
Troubleshooting
If you encounter any issues with your shower door, refer to the following common solutions:
- Door not sliding smoothly: Check the top and bottom tracks for debris or obstructions. Clean the tracks and rollers. Ensure rollers are properly aligned.
- Water leakage: Inspect all sealing strips for proper placement and damage. Reapply silicone caulk to any gaps or seams that may have opened. Ensure the shower threshold meets the minimum depth requirement.
- Glass appears cloudy or stained: Use a specialized glass cleaner for shower doors with a soft cloth. For stubborn stains, a vinegar and water solution can be effective. Ensure the GlassShield coating is not damaged by harsh chemicals.
- Loose hardware: Periodically check all screws and fasteners and tighten them if necessary. Do not overtighten.
If problems persist, please contact Oudbo Molartte customer support for assistance.
Warranty and Support
Oudbo Molartte stands behind the quality of its products. For warranty information, product support, or to order replacement parts, please refer to the contact information provided in your purchase documentation or visit the official Oudbo Molartte website.
When contacting support, please have your model number (TMDS-4872-MB) and purchase date available.
