Smart LED Bathroom Vanity Mirror User Manual

Product Overview

This manual provides instructions for the YITAYMLI Smart LED Bathroom Vanity Mirror. This wall-mounted mirror features integrated LED lighting, anti-fog technology, and a digital display for time and temperature. It offers customizable lighting with three color options and stepless dimming, designed to enhance your bathroom experience with both functionality and modern aesthetics.

Figure 1: YITAYMLI Smart LED Bathroom Vanity Mirror

Installation Guide

The mirror is designed for wall-mounted installation. Please ensure you have the necessary tools and follow these steps carefully.

Required Tools (Not Included):

• Drill
• Measuring Tape
• Pencil
• Level
• Screwdriver

Installation Steps:

1. Prepare the Mirror and Tools: Unpack the mirror and ensure all components are present. Gather your installation tools.
2. Mark Drilling Points: Determine the desired height and position for the mirror on the wall. Use a level to ensure the mirror will be straight. Mark the drilling points for the mounting hooks.
3. Drill Holes: Using a drill, make holes in the wall at the marked points. The recommended hole size is 6-8mm.
4. Insert Expansion Screws and Hooks: Insert the provided expansion screws into the drilled holes, then screw in the mounting hooks. Ensure they are securely fastened.
5. Hang the Mirror: Carefully lift the mirror and hang it onto the installed hooks. Ensure it is stable and level.

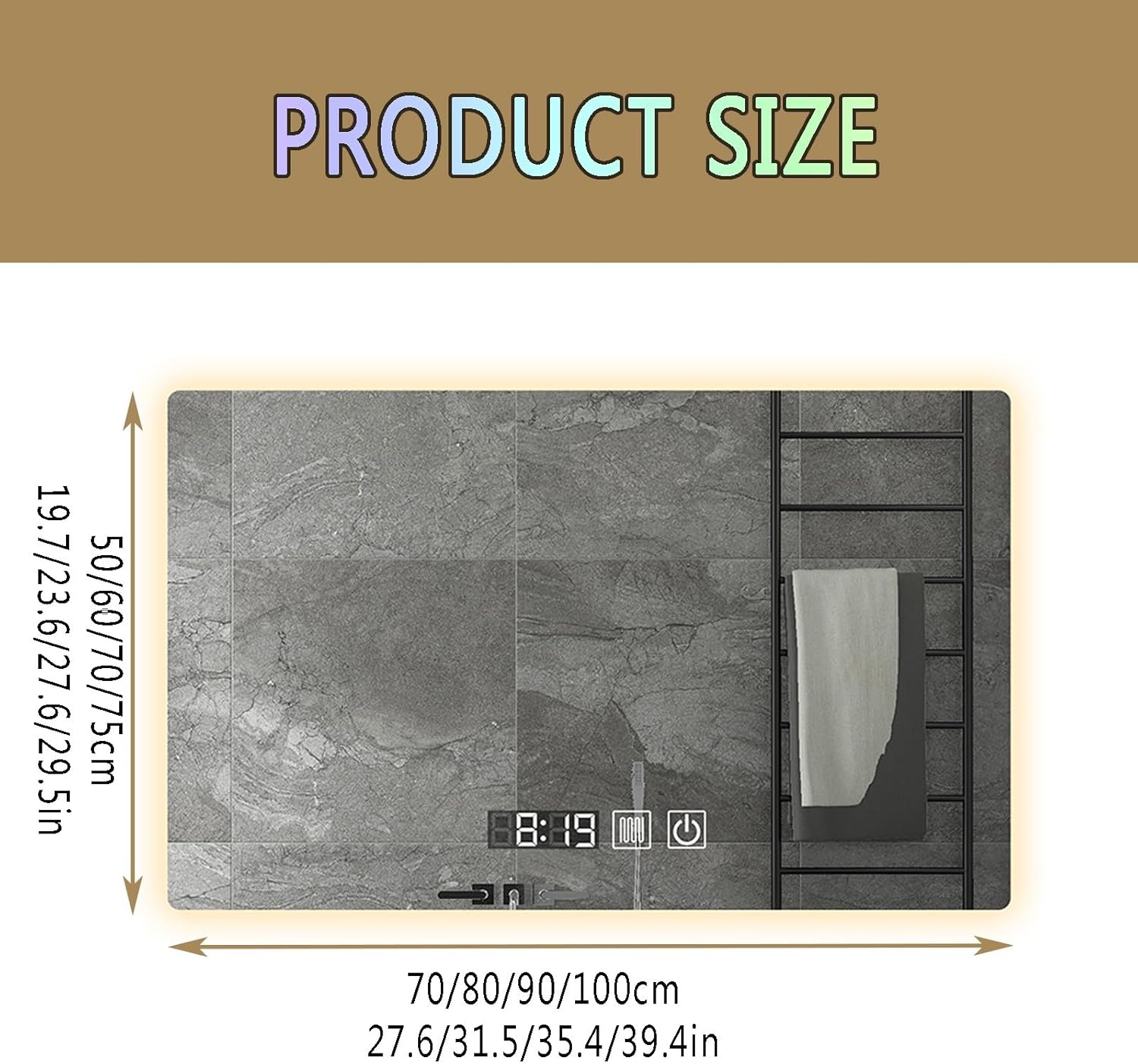

Figure 2: Product Dimensions for Installation Planning

Note: For optimal performance and safety, ensure the mirror is connected to a 12V power supply as specified in the product details. Professional installation is recommended if you are unsure about the process.

Operating Instructions

The YITAYMLI Smart LED Bathroom Vanity Mirror features touch controls for various functions.

1. Lighting Control:

The mirror offers stepless dimming and three color temperature options: warm white (3000K), neutral white (4000K), and cool white (6000K).

• Power On/Off: Touch the power icon on the mirror to turn the lights on or off.
• Change Color Temperature: With the lights on, short press the light icon to cycle through warm white, neutral white, and cool white.
• Stepless Dimming: With the lights on, long press the light icon to adjust the brightness level from 5% to 100%. Release when the desired brightness is achieved.

Figure 3: Stepless Dimming and Color Adjustment

2. Anti-Fog Function:

The mirror is equipped with an anti-fog feature to maintain a clear reflection, especially in humid bathroom environments.

• Activate Anti-Fog: Touch the defog icon (often represented by a cloud or steam symbol) on the mirror to activate the anti-fog heating element.
• Deactivate Anti-Fog: Touch the defog icon again to turn off the anti-fog function.

3. Time and Temperature Display:

The mirror features an integrated digital display showing the current time and ambient temperature.

• The display automatically shows time and temperature.
• There may be an option to switch between time and temperature display by touching a specific area near the display, though this is typically automatic.

Figure 4: Integrated Time and Temperature Display

Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your mirror.

Cleaning Method:

• For general cleaning, wipe the mirror surface with a soft, clean towel.
• For difficult-to-handle stains, use a small amount of alcohol or a 30% cleaning diluent on a soft cloth.
• Avoid using abrasive cleaners, harsh chemicals, or sharp objects that could scratch the mirror surface or damage the electronic components.
• If necessary, a utility knife can be used carefully to scrape off stubborn residue, but extreme caution is advised to prevent damage.
• Ensure adequate ventilation in the room, especially after cleaning, to prevent moisture buildup.

Safety Features and Construction

The YITAYMLI Smart LED Bathroom Vanity Mirror is designed with safety and durability in mind.

• Explosion-Proof Mirror: Constructed with 5MM HD explosion-proof silver mirror material, designed to prevent glass from scattering into dangerous shards if the mirror breaks. This enhances safety in your home.
• High-Quality Mirror Layers: The mirror features multiple layers including a high-brightness LED light strip, mirror-making float glass, a reflective silver-plated layer, a selected metal layer, and reinforced protection with environmentally friendly double paint. This multi-layer design ensures anti-oxidation, anti-blackening, and resistance to image deformation, providing a long-lasting, clear reflection.
• Low Voltage Operation: Operates on a safe 12V working voltage, reducing electrical hazards.
• Insulation and Waterproofing: Designed with insulation and waterproofing features to ensure safe operation in humid bathroom environments.
• High-Density Surround Lamp Beads: Utilizes high color rendering LEDs to restore true colors, with a 360° ring widened light guide belt for soft, non-dazzling illumination.

Figure 5: Explosion-Proof Safety Feature

Figure 6: Multi-Layer Mirror Construction

Figure 7: LED Light Strip Features

Specifications

Note: Product dimensions are measured manually and may have a slight error of 1-3cm. Refer to the actual product for precise measurements.

Troubleshooting

If you encounter any issues with your YITAYMLI Smart LED Bathroom Vanity Mirror, please refer to the following common solutions:

• Mirror Not Lighting Up:
  • Ensure the mirror is properly connected to the power supply.
  • Check the circuit breaker to ensure power is supplied to the outlet.
  • Verify that the touch sensor is clean and unobstructed.
• Anti-Fog Not Working:
  • Ensure the anti-fog function is activated via the touch control.
  • Allow a few minutes for the heating element to warm up and clear the fog.
• Display (Time/Temperature) Not Visible:
  • Check if the mirror is receiving power.
  • Ensure the display area is clean and free from condensation.
• Touch Controls Unresponsive:
  • Ensure your hands are dry and clean when operating the touch controls.
  • Try gently cleaning the touch sensor area.
  • If the issue persists, try temporarily disconnecting and reconnecting the power to reset the mirror.

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact customer support.

Warranty and Support

Warranty Information:

Specific warranty details for the YITAYMLI Smart LED Bathroom Vanity Mirror are typically provided at the point of purchase or within the product packaging. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, please refer to the documentation included with your product or contact the seller directly.

Customer Support:

If you require further assistance, have questions about installation, operation, or maintenance, or need to report a defect, please contact the seller or manufacturer. Refer to your purchase receipt or the product packaging for contact information.
