1. Overview
The Oxhark Flame Smart Wall Mounted Electric Fireplace 50 Inch is designed to provide warmth and ambiance to your living space. This electric fireplace offers versatile installation options, multiple flame and fuel bed color combinations, and convenient control methods including remote, touch screen, and a dedicated mobile application. It features a powerful heater with adjustable settings and built-in safety features for a comfortable and secure environment.
Figure 1: Oxhark Flame Smart Wall Mounted Electric Fireplace 50 Inch with remote and app interface.
2. Safety Information
Please read all safety instructions carefully before installation and operation to prevent injury or damage. Keep this manual for future reference.
- Overheat Protection: The fireplace includes a built-in overheat protection system that automatically cuts off power if the temperature reaches 212°F (100°C).
- Cool-to-Touch Glass: The tempered glass panel remains cool to the touch during operation, making it safe for households with children and pets.
- Ventilation: Ensure proper ventilation around the unit. Do not block air inlets or outlets.
- Power Source: Use only with a 120V outlet and the provided 6 ft power cable. Do not overload circuits.
- Placement: Do not place flammable materials near the fireplace. Maintain adequate clearance from walls and furniture.
- Maintenance: Disconnect power before performing any maintenance or cleaning.
3. Product Components
The following components are included with your Oxhark Flame Electric Fireplace:
- Electric Fireplace Unit
- Remote Control
- Crystals (for fuel bed)
- Logs (for fuel bed)
- Plastic Tray (for fuel bed media)
- Mounting Bracket
- Instruction Manual
Figure 2: Crystals for fuel bed.
Figure 3: Fuel bed media options: logs and crystals.
Figure 4: Included remote control.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Oxhark Flame |
| Model Name | Smart Wall Mounted Electric Fireplace 50 Inch |
| Overall Dimensions | 50"W x 17.7"H x 6.29"D |
| Insert Size | 48.3"L x 6.6"D x 16.7"H |
| Power Source | AC 120V |
| Heat Output | 750W / 1500W |
| Heating Coverage | Up to 400 sq ft |
| Temperature Range | 62°F - 99°F (17°C - 37°C) |
| Timer Function | 1-9 Hours |
| Material | Metal frame, tempered glass |
| Installation Type | Wall Mount / Recessed |
| Special Features | App Control, Safety Shut Off, Low Noise |
| Flame Colors | 13 options |
| Fuel Bed Colors | 13 options |
| Item Weight | 64.7 pounds |

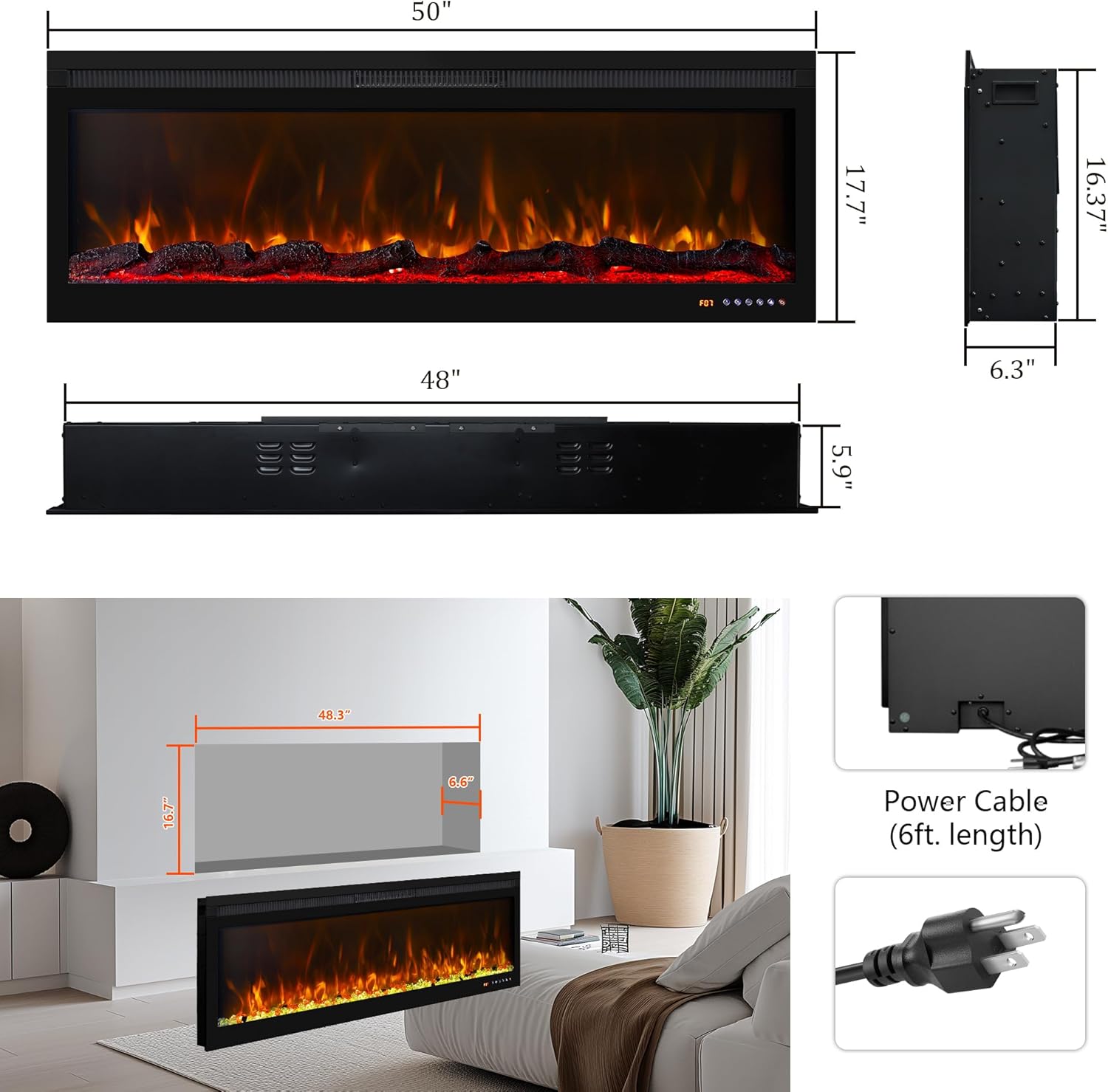

Figure 5: Detailed dimensions and power cable information.
5. Installation
The Oxhark Flame Electric Fireplace offers two installation methods: wall-mounted or recessed into a wall or TV stand. Both methods are designed to save space and provide a sleek appearance.
5.1 Wall-Mounted Installation
- Attach the mounting bracket to the rear of the fireplace unit.
- Select a suitable wall location, ensuring it is away from flammable materials and has access to a 120V outlet.
- Securely fasten the mounting bracket to the wall using appropriate hardware for your wall type.
- Carefully lift the fireplace unit and hook it onto the wall-mounted bracket.
- Connect the power cable to a grounded 120V outlet.
- Install the tempered glass front panel and desired fuel bed media (crystals or logs).
Figure 6: Visual guide for wall-mounted installation.
5.2 Recessed Installation
For recessed installation, ensure your wall cavity or TV stand opening meets the required dimensions (approximately 48.3"L x 6.6"D x 16.7"H for the 50-inch model). A 6-inch wall cavity is typically required.
- Remove the mounting bracket from the fireplace unit if it is pre-attached.
- Carefully slide the fireplace unit into the prepared wall cavity or TV stand opening.
- Secure the fireplace unit to the framing of the cavity using appropriate screws.
- Connect the power cable to a grounded 120V outlet.
- Install the tempered glass front panel and desired fuel bed media (crystals or logs).
Figure 7: Visual guide for recessed installation.
Figure 8: Examples of wall-mounted and recessed installations.
6. Operation
Your electric fireplace can be operated using the included remote control, the touch screen panel on the unit, or a compatible mobile application.
6.1 Control Panel and Remote
The fireplace features a discreet touch screen panel on the unit itself, offering direct control over various functions. The included remote control provides convenient access to all settings from a distance.
Figure 9: Overview of the fireplace display, air vents, and power connection.
6.2 Mobile App Control
For enhanced convenience, the fireplace is compatible with a mobile application. Download the app (refer to the included instruction manual for app details) to control all functions from your smartphone, even when you are away from home.
6.3 Flame and Fuel Bed Settings
Customize the visual ambiance with 13 flame colors and 13 fuel bed colors, offering up to 169 unique combinations. Flame effects and heat can operate independently.
Figure 10: Visual representation of the 13 flame and 13 ember bed color options.
6.4 Heat Settings
The fireplace features two heater power settings (750W/1500W) capable of heating areas up to 400 square feet. A built-in thermostat allows temperature control from 62°F to 99°F (17°C to 37°C). The unit operates with low noise.
Figure 11: Icons illustrating key features: 750W/1500W heat, 400 sq ft coverage, 62-99°F temperature, low noise, 1-9H timer, flame without heat, and overheating protection.
6.5 Timer Function
Utilize the timer function to set the fireplace to operate for 1 to 9 hours, providing convenience and energy efficiency.
6.6 Operation and Appearance Display Video
Video 1: This video demonstrates the various operational features and visual appearance of the electric fireplace, including changing flame colors and heat settings.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your electric fireplace.
- Cleaning: Always disconnect the power before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Avoid abrasive cleaners or solvents.
- Glass Panel: Clean the tempered glass panel with a glass cleaner and a soft, lint-free cloth.
- Air Vents: Periodically check and clean the air inlets and outlets to ensure unobstructed airflow. Use a vacuum cleaner with a brush attachment to remove dust.
- Storage: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe location.
8. Troubleshooting
If you encounter issues with your fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on | No power, power switch off, remote battery low | Check power connection, ensure main power switch is on, replace remote batteries. |
| No heat output | Heat function off, thermostat setting too low, overheat protection activated | Activate heat function, increase thermostat setting, allow unit to cool down if overheated. |
| Flame effect not working | Flame function off, internal component issue | Activate flame function. If issue persists, contact customer support. |
| Remote control not responding | Low battery, obstruction, remote out of range | Replace remote batteries, remove obstructions, ensure remote is within operating range. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Oxhark Flame customer support.
9. Warranty and Support
The Oxhark Flame Smart Wall Mounted Electric Fireplace 50 Inch comes with a Limited Warranty. Please refer to the detailed warranty information provided in the included instruction manual for terms, conditions, and duration of coverage.
For technical support, warranty claims, or any product-related inquiries, please contact Oxhark Flame customer service through the contact information provided in your product packaging or on the official Oxhark Flame website.
