PURPLE LEAF 14' x 24' Outdoor Hardtop Gazebo User Manual

1. Safety Information

Always follow the assembly instructions provided. Ensure the gazebo is securely anchored to the ground to prevent tipping in windy conditions. Do not use during severe weather. Keep children and pets away from the gazebo during assembly and disassembly. Inspect the gazebo regularly for any damage or wear and tear, and perform necessary maintenance to ensure its safety and longevity.

2. Product Overview

The PURPLE LEAF 14' x 24' Outdoor Hardtop Gazebo is designed to provide a durable and comfortable outdoor living space. It features a galvanized steel double roof, a teak-finish powder-coated aluminum frame, and removable netting.

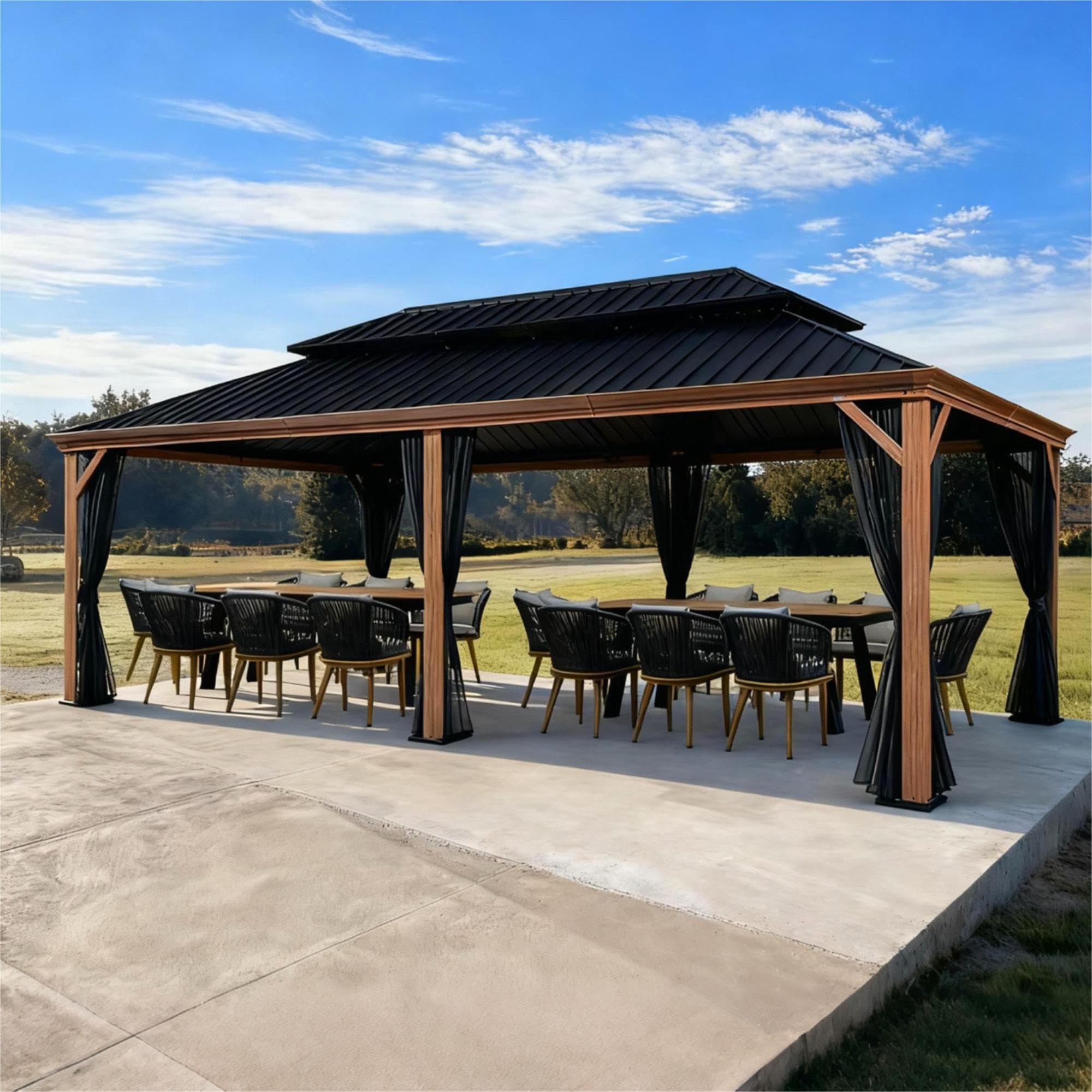

Image: The PURPLE LEAF 14' x 24' Outdoor Hardtop Gazebo, showcasing its overall design and size.

Key Features:

• Size: 14' X 24' with an outstanding teak-finish powder-coated aluminum frame.
• Roof: Fade and rust-resistant galvanized steel top, designed to keep out bright light and harmful UV rays, and strong enough to withstand heavy snow.
• Netting: Comes with removable upgraded netting for insect protection.
• Airflow: Vented roof for optimum airflow and comfort, helping to withstand strong wind and heavy rains.
• Drainage: Water gutter design ensures rainwater flows efficiently out of the edges of the frame and poles.

Image: Visual representation of the gazebo's key features, including warranty, support, and high ratings.

Image: Close-up view of the concealed drainage system, showing how water is collected and directed away from the structure.

Image: Comparison illustrating the wider support columns of the PURPLE LEAF gazebo (4.7" x 4.7") compared to other models (3.2" x 3.2"), highlighting enhanced stability.

3. Setup and Assembly

Assembly of the PURPLE LEAF Hardtop Gazebo requires careful attention to detail. It is recommended to have at least two physically capable individuals for the assembly process. All parts are clearly labeled, and detailed instructions are provided in the separate assembly manual included with your product. Ensure all components are present and undamaged before beginning assembly.

Note: PURPLE LEAF does not offer installation services. Any installation services mentioned on the order page are provided by third-party providers.

Assembly Tips:

• Unpack all boxes and inventory contents to ensure no parts are missing or damaged.
• Group screws and parts into individual containers and label them for easier access during assembly.
• Do not fully tighten any screws until all components are in place and aligned, especially for the roof structure.
• Wear gloves to protect hands from sharp metal corners.
• Securely anchor the gazebo to the ground or deck using appropriate lag screws or anchors for stability against wind.

4. Operating Instructions

Netting Usage:

The gazebo includes removable upgraded netting. This netting is designed to be more durable and heavier (260g/m²) to remain static in wind, effectively keeping insects out while allowing for light and airflow. The netting can be fully opened for an open-air experience or fully closed for privacy and protection from bugs and UV rays.

Image: Close-up of the quality Textilene netting, highlighting its density (260g/gsm) compared to standard netting (40g/gsm), indicating durability and wind resistance.

Image: Depiction of the gazebo with its netting in both fully open and fully closed configurations, illustrating versatility for open-air views or privacy and protection.

Multifunctional Ceiling Hooks:

The gazebo is equipped with 'U' and 'J' shaped hooks on the frame top. These hooks can be used to hang items weighing up to 20 lbs, such as lights or small fans, to enhance your outdoor experience.

Image: View of the gazebo's ceiling hooks, demonstrating their use for hanging decorative lights and a ceiling fan.

Roof Features:

• The double-tiered galvanized steel roof allows for optimum airflow and provides UV protection.
• The pitched roof design, combined with the concealed drainage system, directs rainwater away efficiently, preventing blockage.

5. Maintenance

Regular maintenance is crucial to ensure the longevity and safety of your gazebo. Follow these guidelines:

• Regular Inspection: Periodically inspect all bolts, screws, and connections to ensure they are tight and secure. Check for any signs of wear, rust, or damage to the frame and roof panels.
• Cleaning: Clean the galvanized steel roof and aluminum frame with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Netting Care: The netting can be removed for cleaning. Hand wash with mild soap and water, then air dry. Ensure it is completely dry before storing or reattaching.
• Winter Care: While the roof is designed to withstand heavy snow, it is advisable to clear excessive snow accumulation to prevent undue stress on the structure.
• Anchoring: Regularly check the ground anchors to ensure they remain firm, especially after strong winds or heavy rain.

6. Troubleshooting

This section provides general guidance for common issues. For specific problems, refer to the detailed assembly manual or contact customer support.

• Wobbly Structure: Ensure all bolts and screws are tightened. Verify that the gazebo is installed on a level surface and properly anchored.
• Water Leakage: Check roof panel alignment and ensure all seals are intact. Verify the drainage system is clear of debris.
• Netting Issues: If netting is torn or damaged, contact customer support for replacement parts. Ensure the netting is properly attached to prevent it from being lifted by wind.
• Missing Parts: If any parts are missing upon delivery, contact PURPLE LEAF customer service immediately.

7. Specifications

8. Warranty Information

The PURPLE LEAF Hardtop Gazebo comes with the following warranty:

• Hardtop Roof: 5 years
• Frame Construction: 1 year
• Netting: 2 years

For detailed warranty terms and conditions, please refer to the documentation included with your product or contact customer support.

9. Customer Support

For any questions, assistance with assembly, or to report missing/damaged parts, please contact PURPLE LEAF customer support. Our team is available year-round to provide support and solutions.

Email: gazebo@purpleleafgarden.com

You can also visit the PURPLE LEAF Store on Amazon for more information and resources.
