Bituman Farmhouse Electric Fireplace TV Stand User Manual

Introduction

Thank you for purchasing the Bituman Farmhouse Electric Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read these instructions thoroughly before beginning assembly or use, and retain them for future reference.

Image: The Bituman Farmhouse Electric Fireplace TV Stand, featuring a charcoal grey finish, fluted glass doors, and an integrated electric fireplace, displayed in a living room.

Important Safety Information

To ensure safe operation and prevent damage, please observe the following safety guidelines:

• Assembly: Always follow the assembly instructions carefully. Ensure all parts are correctly installed and tightened before use.
• Children and Pets: Keep children and pets away from the assembly area. Do not allow them to play on or around the TV stand.
• Glass Doors: Be cautious when handling the fluted glass tempered doors to avoid breakage or injury.
• Anti-Tip Device: It is highly recommended to install the included anti-tip device to prevent the TV stand from tipping over, especially in households with children.
• Weight Capacity: Do not exceed the maximum weight capacity for the top surface (100 lbs) and internal shelves (30 lbs). Refer to the specifications section for details.
• Electrical Safety: For the electric fireplace, ensure it is connected to a properly grounded outlet. Do not overload circuits. Keep flammable materials away from the fireplace insert.

Image: Detail of the anti-tip strap installation, showing the strap secured to the TV stand and ready for wall attachment. This device helps prevent accidental tipping.

Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• 1 x TV Cabinet (Disassembled components)
• 1 x Electric Fireplace Insert
• 1 x Hardware Pack (Screws, dowels, cam locks, etc.)
• 1 x Anti-Tip Kit
• 1 x Instruction Manual (This document)

Specifications

Image: Technical diagram illustrating the overall dimensions of the TV stand (59.13" W x 15.94" D x 27.8" H) and internal shelf dimensions, along with maximum load capacities for the top (100 lbs) and shelves (30 lbs).

Setup and Assembly

Assembly of this TV stand requires approximately 1.5 hours with two people. Please follow the detailed instructions provided in the separate assembly guide included in your package. Below are general guidelines and important considerations.

1. Unpack and Identify Parts: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches. Refer to the parts list in your assembly guide to identify each piece.
2. Assemble the Main Frame: Follow the step-by-step diagrams in the assembly guide to construct the main frame of the TV stand. Ensure all connections are secure.
3. Install Shelves: Insert the adjustable shelves into the desired positions. The stand features two adjustable shelves for flexible storage.
4. Install Sliding Doors: Attach the fluted glass tempered doors to the sliding tracks as per the instructions. Ensure they glide smoothly.
5. Integrate Electric Fireplace: Carefully insert the electric fireplace unit into its designated opening in the center of the TV stand. Ensure it fits snugly and is secured according to the fireplace's specific instructions.
6. Cable Management: Utilize the cable management cutouts located at the back of the stand to organize and route your electronic device cables.


Image: A circular cable management cutout on the back panel of the TV stand, designed to help organize and conceal electronic wires.

7. Install Anti-Tip Device: For safety, attach the anti-tip strap to the back of the TV stand and secure it to a wall stud using appropriate hardware. This prevents accidental tipping.

Operating Instructions: Electric Fireplace

The integrated electric fireplace provides warmth and ambiance. Refer to the separate fireplace manual for detailed instructions, or use the general guidelines below:

• Power On/Off: Press the power button on the fireplace control panel or remote control to turn the unit on or off.
• Temperature Control: Adjust the thermostat to your desired temperature between 62℉ and 82℉. The fireplace will automatically maintain the set temperature.
• Timer Function: Set the automatic shut-off timer for durations ranging from 30 minutes to 6 hours.
• Flame Brightness: Select from 3 different flame brightness levels to customize the visual effect.
• Heat Function: The fireplace operates at 1,400 W (4,777 BTU) to provide supplemental heat. The flame effect can be operated independently of the heat function.

Image: A close-up view showing the control panel of the electric fireplace insert, with buttons for power, temperature, timer, and flame brightness. Adjacent is an adjustable shelf within the TV stand.

Maintenance

Proper care will extend the life and appearance of your TV stand:

• Cleaning the Stand: Wipe the surfaces with a damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Cleaning Glass Doors: Use a standard glass cleaner for the fluted glass doors. Apply cleaner to a cloth, not directly to the glass, to prevent overspray onto wood surfaces.
• Fireplace Maintenance: Refer to the electric fireplace manual for specific cleaning and maintenance instructions for the heating unit and flame effect components. Ensure the unit is unplugged before cleaning.
• Regular Checks: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary.

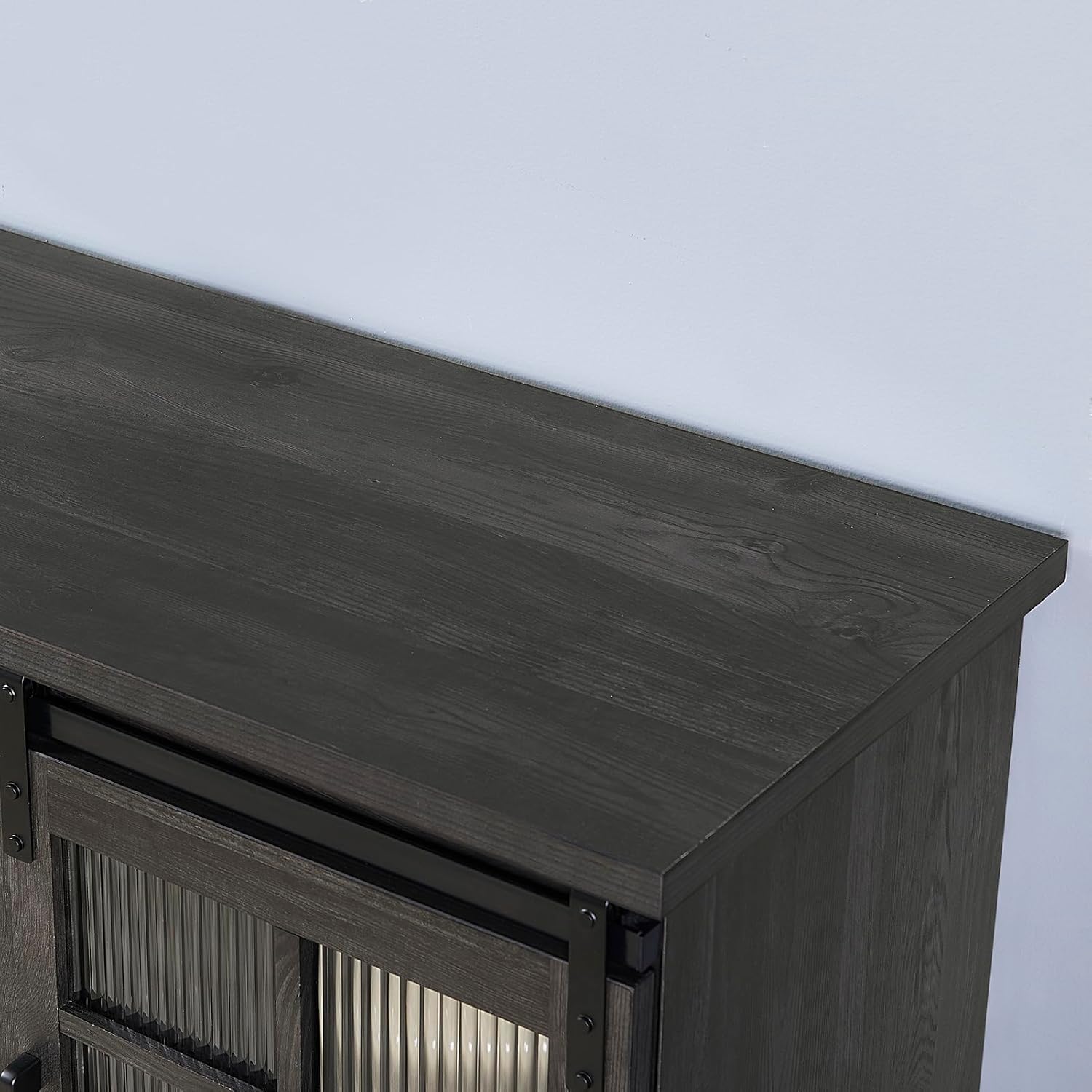

Image: A detailed view of the charcoal grey engineered wood surface, highlighting its texture and finish, which can be easily cleaned with a damp cloth.

Troubleshooting

If you encounter issues with your TV stand or electric fireplace, refer to the following common solutions:

For issues not covered here, please consult the detailed fireplace manual or contact Bituman customer support.

Warranty and Customer Support

Bituman stands behind the quality of its products. For specific warranty information regarding your Farmhouse Electric Fireplace TV Stand, please refer to the warranty card included in your package or visit the official Bituman website.

If you require assistance with assembly, parts replacement, or troubleshooting that is not covered in this manual, please contact Bituman customer support:

• Website: Bituman Official Brand Page (for general inquiries)
• Email: [Insert Customer Support Email Here, if available]
• Phone: [Insert Customer Support Phone Number Here, if available]

Please have your model number (W1758S00018) and purchase date ready when contacting support.
