1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Banfluxion DR-1V Automatic Pizza Dough Roller Sheeter. Please read these instructions thoroughly before operating the machine and retain this manual for future reference.
2. Safety Instructions
- Electrical Safety: Ensure the machine is connected to a grounded 110V 50/60Hz power supply. Do not operate with wet hands or in wet environments. Disconnect power before cleaning or maintenance.
- Moving Parts: Keep hands, hair, and loose clothing away from rollers and other moving parts during operation. The machine features a transparent plastic shell covering the rollers to prevent accidental contact.
- Overload Protection: The machine is equipped with an overload protection device. If the motor overheats or draws excessive current, it will automatically shut off. Allow the machine to cool down before restarting.
- Stable Placement: Place the machine on a sturdy, level, and clean surface. The four rubber support legs provide stability and prevent slipping.
- Cleaning: Do not immerse the machine in water. Clean only with a damp cloth and mild detergent. Ensure all parts are dry before re-operation.
- Authorized Personnel: Only trained personnel should operate and maintain this equipment.
3. Product Overview and Components
The Banfluxion DR-1V is an automatic pizza dough roller sheeter designed for commercial use. It features a robust stainless steel construction and food-grade rollers for safe and efficient dough processing.
Figure 3.1: Banfluxion DR-1V Pizza Dough Roller Sheeter with key dimensions. The machine measures approximately 20.5 inches (52cm) wide, 20.9 inches (53cm) deep, and 25.2 inches (64cm) high. The rollers have a working width of 16.5 inches (42cm) and 11.7 inches (29.8cm) respectively.
Key Features:
- Compression Rollers: Food-grade resin rollers ensure dough does not stick and prevent chemical contamination.
- Feed Port: Large opening for easy dough insertion, with a transparent cover for visibility and safety.
- Thickness Adjustment: Regulating handle allows precise adjustment of dough thickness from 0.03" to 0.21" (0.7mm to 5.4mm).
- Durable Construction: Parts in contact with dough are 304 stainless steel; other parts are 201 stainless steel.
- Overload Protection: Automatic power cut-off in case of motor overheating.
Figure 3.2: Detail of the food-grade compression roller and the red button for overload protection. The roller is designed to prevent dough sticking and ensure hygiene.
Figure 3.3: View of the large feed port with its transparent cover and the regulating handle for adjusting dough thickness, marked with measurements from 0.7mm to 5.4mm.
4. Specifications
| Parameter | Value |
|---|---|
| Model | DR-1V |
| Voltage | AC110V 50/60Hz |
| Power | 370W |
| Pizza Diameter Range | 3.94" - 15.75" (10cm - 40cm) |
| Adjustable Dough Thickness | 0.03" - 0.21" (0.7mm - 5.4mm) |
| Dough Weight Range | 0.11lb - 1.1lb (50g - 500g) |
| Material (Dough Contact) | 304 Stainless Steel |
| Material (Other Parts) | 201 Stainless Steel |
| Hourly Yield | 240 - 260 pieces |
| Product Dimensions | 20.5 x 20.9 x 25.2 inches |
| Item Weight | 133.4 pounds |
| Included Components | Pizza dough roller sheeter *1, Drive belt *1, Plastic gear *4, Phillips screwdriver *1, Adjust handle *2, English instruction Manual *1 |

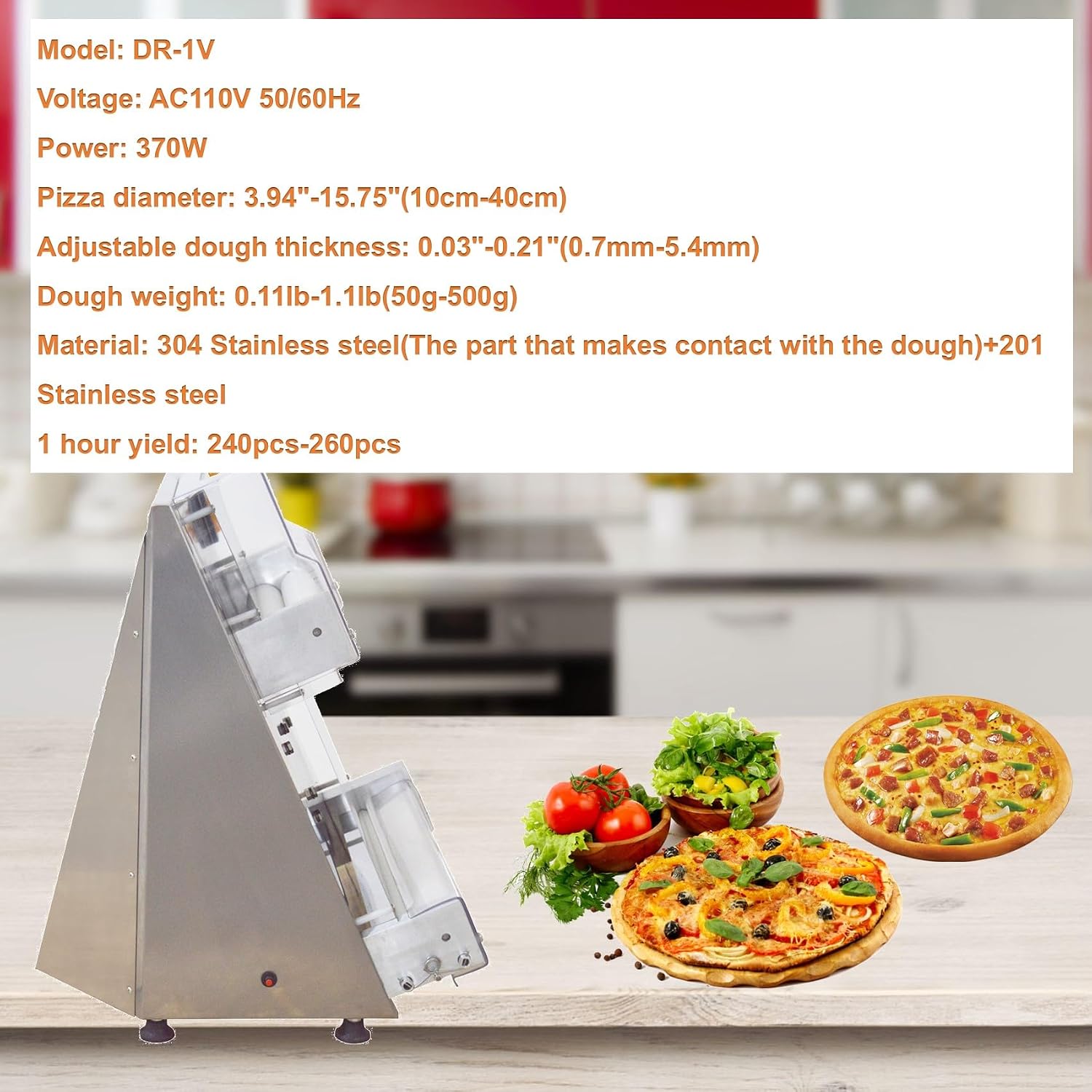

Figure 4.1: The Banfluxion DR-1V machine with a summary of its technical parameters and examples of finished pizzas.
5. Setup
- Unpacking: Carefully remove the machine and all accessories from the packaging. Inspect for any shipping damage.
- Placement: Position the machine on a sturdy, level, and clean surface. Ensure there is adequate space around the machine for operation and ventilation.
- Power Connection: Connect the power cord to a grounded 110V 50/60Hz electrical outlet. Ensure the power switch is in the "OFF" position before plugging in.
- Initial Cleaning: Before first use, wipe down all surfaces, especially those that will come into contact with dough, using a damp cloth and mild, food-safe detergent. Dry thoroughly.
- Roller Adjustment: Familiarize yourself with the dough thickness regulating handle. For initial setup, set it to a medium thickness.
6. Operating Instructions
- Prepare Dough: Ensure your pizza dough is properly prepared and portioned according to your desired pizza size (50g-500g for 10cm-40cm diameter pizzas).
- Power On: Turn on the main power switch.
- Adjust Thickness: Use the regulating handle (Figure 3.3) to set the desired dough thickness. Turn the handle clockwise for thinner dough and counter-clockwise for thicker dough. The range is 0.7mm to 5.4mm.
- Feed Dough: Carefully place a portion of dough into the top feed port. The transparent cover allows you to observe the process.
- First Pass: The dough will pass through the upper rollers, flattening it.
- Second Pass (if needed): For thinner dough, rotate the dough 90 degrees and feed it through the lower rollers. Adjust the thickness setting further if necessary. Repeat until the desired thickness and diameter are achieved.
- Collect Dough: Collect the flattened dough from the bottom of the machine.
- Power Off: After use, turn off the main power switch and unplug the machine.
Video 6.1: This video demonstrates the general operation of a pizza dough roller sheeter, showing how dough is fed into the machine and flattened.
Video 6.2: A short demonstration showcasing the effect of the dough sheeter on pizza dough, illustrating the final flattened product.
7. Maintenance
- Daily Cleaning: After each use, unplug the machine. Use a dry cloth or brush to remove any excess flour or dough residue from the rollers and surfaces. For stubborn residue, use a damp cloth with mild, food-safe detergent, then wipe dry immediately.
- Do Not Use Abrasives: Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the stainless steel and roller surfaces.
- Lubrication: Periodically check moving parts for smooth operation. Consult a qualified technician for any lubrication needs.
- Storage: Store the machine in a clean, dry environment when not in use.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | No power supply; power cord loose; circuit breaker tripped. | Check power connection and outlet; ensure power switch is ON; reset circuit breaker if necessary. |
| Dough sticks to rollers. | Dough too wet; rollers not clean; insufficient flouring. | Adjust dough consistency; clean rollers thoroughly; lightly flour dough before feeding. |
| Dough thickness is inconsistent. | Thickness regulating handle not set correctly; uneven dough portion. | Re-adjust regulating handle; ensure dough portions are uniform. |
| Motor stops during operation. | Overload protection activated (motor overheating). | Turn off the machine, unplug, and allow it to cool down for at least 30 minutes before restarting. Reduce workload if consistently occurring. |
9. Application
The Banfluxion DR-1V Automatic Pizza Dough Roller Sheeter is versatile and suitable for various commercial settings. Its primary application is for efficiently shaping pizza dough, but it can also be used for other types of bread and pastry doughs.
- Pizza Shops: Ideal for rapidly preparing pizza bases of consistent thickness and diameter.
- Restaurants: Suitable for establishments that offer fresh pizza or other baked goods requiring flattened dough.
- Dessert Shops: Can be used for various pastry applications where uniform dough sheets are needed.
Figure 9.1: Visual examples of pizza and bread, demonstrating the wide application of the Banfluxion DR-1V dough sheeter.
10. Warranty and Support
For warranty information, technical support, or service inquiries, please contact your retailer or the manufacturer directly. Keep your purchase receipt and product model number (DR-1V) readily available when contacting support.
Manufacturer: Banfluxion
