Eureka Maxxvac 1900 Watts Cyclonic Vacuum Cleaner User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Eureka Maxxvac 1900 Watts Cyclonic Vacuum Cleaner. Please read these instructions thoroughly before using the appliance and retain them for future reference.

The Eureka Maxxvac vacuum cleaner is designed for powerful cleaning with its 1900-watt motor and cyclonic technology. It features strong suction for dirt and debris removal and includes a powerful blowing function. The unit comes with five versatile accessories to assist with various cleaning tasks.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance.

• Read all instructions before using the appliance.
• Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material (e.g., chlorine bleach, ammonia, drain cleaner).
• Do not use without dust container and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.

3. Product Components

The Eureka Maxxvac Vacuum Cleaner includes the following components:

• Main Vacuum Unit
• Flexible Hose Pipe
• Extension Tubes (2 pieces)
• Floor Carpet Brush
• 2-In-1 Multifunction Brush/Nozzle
• Side Brushes
• Accessory Kit

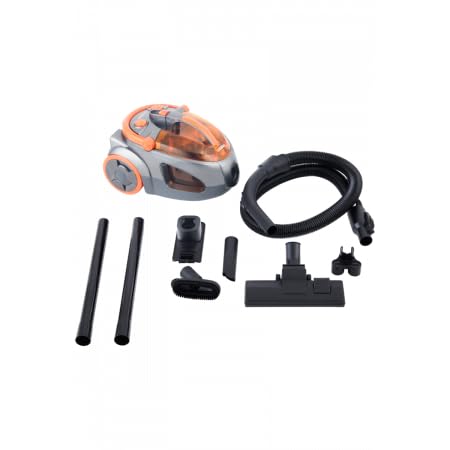

Figure 3.1: All components of the Eureka Maxxvac vacuum cleaner, including the main unit, hose, extension tubes, and various nozzles.

4. Setup and Assembly

Follow these steps to assemble your Eureka Maxxvac vacuum cleaner before first use:

1. Attach the Flexible Hose: Insert the larger end of the flexible hose into the suction inlet on the front of the main vacuum unit until it clicks securely into place.
2. Connect Extension Tubes: For extended reach, connect the two extension tubes together. Then, attach one end of the assembled extension tubes to the handle end of the flexible hose.
3. Attach Cleaning Tool: Select the desired cleaning tool (e.g., Floor Carpet Brush, 2-In-1 Multifunction Brush/Nozzle) and attach it firmly to the open end of the extension tubes. If not using extension tubes, attach the cleaning tool directly to the flexible hose handle.
4. Power Connection: Extend the power cord and plug it into a suitable electrical outlet.

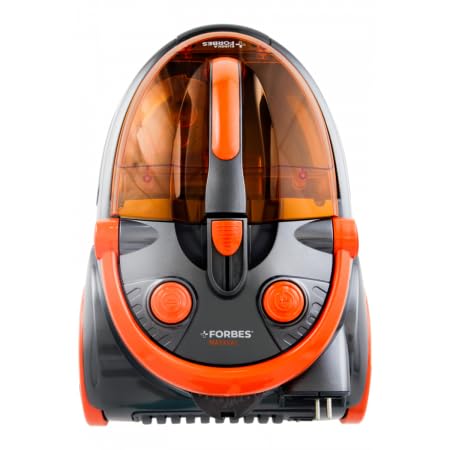

Figure 4.1: A front view of the Eureka Maxxvac vacuum cleaner, showing the power buttons and hose connection port.

5. Operating Instructions

5.1 Vacuuming Function

1. Ensure the vacuum cleaner is properly assembled and plugged into a power outlet.
2. Press the power button (usually marked with an 'I' or power symbol) on the main unit to turn on the vacuum cleaner.
3. Guide the appropriate cleaning tool over the surface to be cleaned. The powerful suction will collect dust and debris into the dust container.
4. Adjust the suction power if your model features multiple speed settings (3 speeds available).
5. When finished, press the power button again to turn off the appliance and unplug it from the outlet.

5.2 Blower Function

The Eureka Maxxvac also features a powerful blowing function for clearing dust and debris from hard-to-reach areas or for drying surfaces.

1. Locate the blower outlet on the main vacuum unit (typically at the rear or side).
2. Detach the flexible hose from the suction inlet and securely attach it to the blower outlet.
3. Turn on the vacuum cleaner using the power button. Air will now be expelled through the hose.
4. Direct the airflow to blow away dust or dry surfaces as needed.
5. After use, turn off the appliance and unplug it. Reattach the hose to the suction inlet for vacuuming.

5.3 Using Accessories

• Floor Carpet Brush: Ideal for cleaning large floor areas, both hard floors and carpets.
• 2-In-1 Multifunction Brush/Nozzle: Use the brush for delicate surfaces like upholstery or curtains, and the nozzle for crevices and tight spaces.
• Side Brushes: For specialized cleaning tasks, refer to the specific instructions for these brushes in the accessory kit.

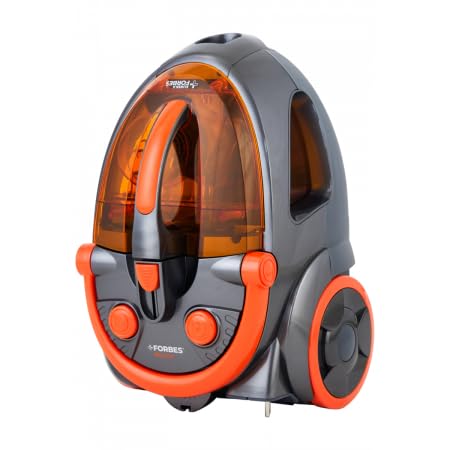

Figure 5.1: The Eureka Maxxvac vacuum cleaner in its primary configuration, ready for use.

6. Maintenance and Care

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.

6.1 Emptying the Dust Container

Empty the dust container regularly, especially when the 'MAX' fill line is reached, to maintain strong suction power.

1. Ensure the vacuum cleaner is turned off and unplugged.
2. Locate the dust container release button or latch on the main unit.
3. Carefully remove the dust container from the vacuum cleaner.
4. Position the container over a waste bin and open the bottom lid to empty the contents.
5. Close the lid securely and reattach the dust container to the main unit until it clicks into place.

6.2 Cleaning the HEPA Filter

The HEPA filter should be cleaned periodically to prevent clogging and maintain filtration efficiency. The frequency depends on usage.

1. Ensure the vacuum cleaner is turned off and unplugged.
2. Remove the dust container as described above.
3. Locate and carefully remove the HEPA filter from its housing within the dust container assembly.
4. Tap the filter gently over a waste bin to dislodge loose dust. For a more thorough clean, rinse the filter under cool running water.
5. Important: Allow the HEPA filter to air dry completely for at least 24 hours before reinserting it. Do not use a hairdryer or other heating devices.
6. Once dry, reinsert the filter into its housing and reattach the dust container.

6.3 General Cleaning

• Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Check the hose and attachments for blockages regularly. Remove any obstructions carefully.

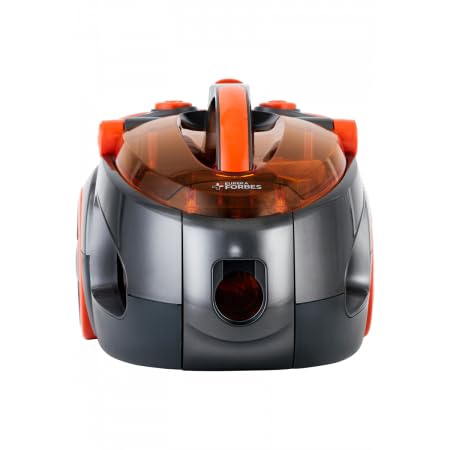

Figure 6.1: The rear of the Eureka Maxxvac vacuum cleaner, indicating the exhaust and potential filter access.

7. Troubleshooting Guide

Before contacting customer support, please refer to the following table for common issues and their solutions:

8. Technical Specifications

9. Warranty and Customer Support

9.1 Warranty Information

This Eureka Maxxvac Vacuum Cleaner comes with a 1 Year Warranty from the date of purchase. Please retain your purchase receipt as proof of purchase for any warranty claims. The warranty covers manufacturing defects under normal use conditions. It does not cover damage resulting from misuse, accidents, unauthorized repairs, or normal wear and tear.

9.2 Customer Support

For technical assistance, warranty claims, or inquiries regarding your Eureka Maxxvac Vacuum Cleaner, please contact the manufacturer's customer service. Refer to the contact information provided with your product packaging or visit the manufacturer's official website for support details.
