Sino Luban Outdoor Dog Kennel Instruction Manual

Introduction

Thank you for choosing the Sino Luban Outdoor Dog Kennel. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new dog kennel. Designed for small to medium dogs, this heavy-duty kennel offers a secure and comfortable outdoor space with features like a waterproof roof, dual locks, and a removable doggy door for easy connection to an existing dog house. Please read these instructions thoroughly before assembly and retain this manual for future reference.

Figure 1: Sino Luban Outdoor Dog Kennel, 4'L x 4'W x 4.5'H model, with a dog comfortably inside.

Safety Information

• Always ensure all connections and locks are securely fastened before leaving your pet unattended.
• Regularly inspect the kennel for any signs of wear, damage, or loose components. Replace or repair as necessary.
• Do not allow children to play inside or around the kennel without adult supervision.
• Ensure the kennel is placed on a level and stable surface to prevent tipping. Use the provided stakes and anchor brackets for added stability, especially in windy conditions.
• The waterproof roof provides protection from elements; however, ensure adequate ventilation to prevent overheating in hot weather.
• This kennel is designed for small to medium dogs. Do not use for animals exceeding the recommended size or weight, as this may compromise the kennel's integrity.
• Keep small parts and tools out of reach of children and pets during assembly.

Components List

Before beginning assembly, verify that all components listed below are present and undamaged.

Setup and Assembly

Assembly of the Sino Luban Dog Kennel is designed to be straightforward with its tube insert installation and tool-free clamp connectors.

1. Unpack and Inspect: Carefully remove all components from the packaging. Lay them out and compare with the Components List to ensure everything is present and undamaged.
2. Panel Connection: Begin by connecting the kennel panels using the provided clamp connectors. The tube insert design allows for quick and secure attachment. Ensure each panel is firmly seated and the clamps are tightened.


   Figure 2: Illustration of panel connection using clamp connectors and options for wall or pen configurations.

3. Door Installation: Install the main door panel. Ensure the dual lockable latches are functioning correctly and provide a secure closure.
4. Removable Small Door: The kennel includes a removable small door panel. This panel can be kept in place or removed to allow connection to an existing dog house. To remove, simply unlatch and slide the panel out.


   Figure 3: Detail of the removable small door panel, designed for seamless integration with a dog house (dog house not included).

5. Roof Installation: Drape the waterproof Oxford fabric cover over the top of the assembled kennel frame. Secure it using the integrated fasteners or ties to ensure it is taut and provides maximum weather protection.

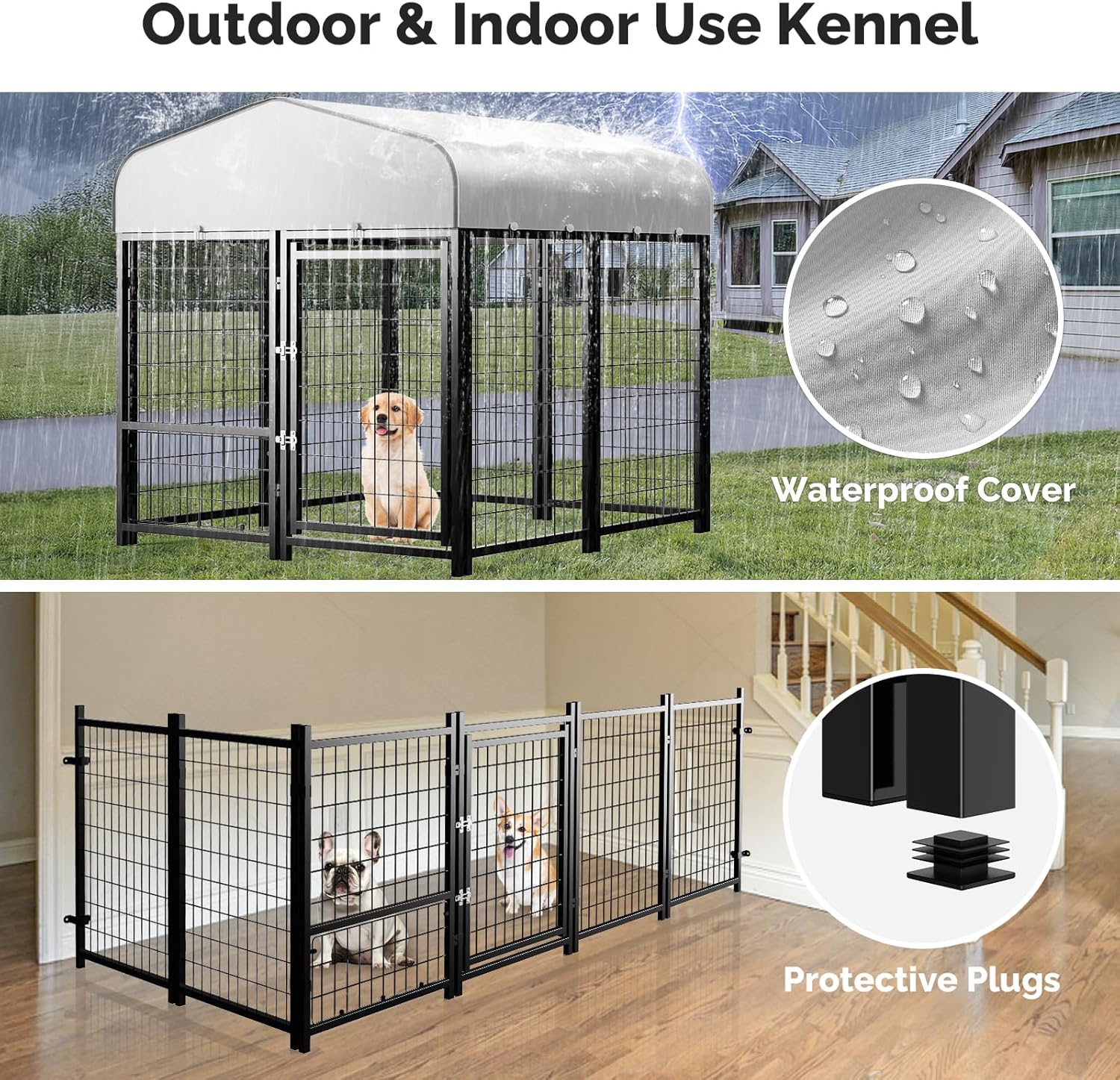

   Figure 4: The waterproof cover provides protection from rain and sun, suitable for both outdoor and indoor use.
6. Ground Securing:
   • For Soft Ground (e.g., yard, grass): Use the provided 8-inch ground pegs to secure the kennel firmly into the soil at the base of each panel.
   • For Hard Surfaces (e.g., concrete, deck): Utilize the expansion screw anchor brackets to fix the kennel securely to the surface.


   Figure 5: Detail showing the stable stakes and other secure features of the kennel.

7. Indoor Use: If using indoors, attach the protective plugs to the bottom of the kennel legs to prevent scratching floors.

Operating Instructions

• Main Door Operation: The main door is equipped with dual lockable latches. To open, slide both latches simultaneously. To close, ensure the door is fully shut and both latches engage securely.
• Connecting to a Dog House: If you wish to connect the kennel to an existing dog house, remove the small door panel as described in the assembly section. Position the kennel opening flush against the dog house entrance.
• Indoor/Outdoor Versatility: The kennel is suitable for both outdoor and indoor use. For outdoor use, ensure proper ground securing. For indoor use, apply protective plugs to prevent floor damage.
• Expansion Options: The modular design with tool-free clamp connectors allows for easy expansion. Additional kennel units can be purchased and connected to create a larger customized space for your pet.


  Figure 6: Multiple kennel units can be connected to create a larger, adaptable space.

• Portability: The tube insert installation allows for quick disassembly without tools, making the kennel easy to pack and transport for RV trips or travel.


  Figure 7: The kennel's design allows for easy disassembly and transport.

Maintenance

• Cleaning: The epoxy-coated metal frame and wire can be cleaned with mild soap and water. Rinse thoroughly and allow to air dry. The waterproof cover can be wiped clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Regular Inspection: Periodically check all connections, latches, and the integrity of the wire mesh for any signs of damage, rust, or wear. Ensure the ground pegs or anchor brackets remain secure.
• Roof Care: If the waterproof cover accumulates debris (leaves, snow), remove it promptly to prevent sagging or damage.

Troubleshooting

Issue: Kennel feels unstable or wobbly.

Solution: Ensure the kennel is placed on a completely level surface. Verify that all clamp connectors are fully tightened. For outdoor use, ensure ground pegs or anchor brackets are properly installed and secured into the ground or surface.

Issue: Door latches are difficult to operate or do not secure properly.

Solution: Check for any obstructions in the latch mechanism. Ensure the door panel is correctly aligned within the frame. If the issue persists, inspect the latches for damage and contact customer service if necessary.

Issue: Water pooling on the waterproof roof.

Solution: Ensure the roof cover is tautly stretched and properly secured to the frame. Remove any accumulated debris (leaves, snow) that might be causing sagging. Verify the frame is assembled correctly and not warped.

Issue: Difficulty connecting additional panels for expansion.

Solution: Ensure the tube inserts are correctly aligned with the receiving tubes. The clamp connectors should slide on easily and then be tightened. If a panel is bent, it may hinder connection; inspect for damage.

Specifications

Warranty and Customer Support

Sino Luban is committed to providing high-quality products and excellent customer service. While specific warranty details are not provided in this manual, for any logistics or product-related inquiries, please contact us directly.

Our professional team aims to provide prompt assistance within 24 hours. Please refer to your purchase platform or order details for the "Contact Seller" option.
