PreAsion DF-8 Multi-blade Centrifugal Blower Instruction Manual

1. Introduction

Thank you for choosing the PreAsion DF-8 Multi-blade Centrifugal Blower. This industrial-grade blower is designed for efficient air movement in various applications, including cooling equipment, air duct ventilation, purification systems, and communication infrastructure. It features a robust carbon steel shell, a pure copper core motor, and a multi-wing galvanized blade for reliable, low-noise operation and high air volume.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your DF-8 centrifugal blower. Please read it thoroughly before use and retain it for future reference.

2. Safety Instructions

Always follow these safety precautions to prevent injury and damage to the equipment:

• Electrical Safety: Ensure the power supply matches the blower's specifications (110V AC). Always disconnect power before performing any maintenance or installation.
• Proper Grounding: The blower must be properly grounded to prevent electrical shock.
• Installation Environment: Install the blower in a stable, well-ventilated area. Avoid environments with excessive moisture, flammable gases, or corrosive substances.
• Moving Parts: Keep hands, clothing, and tools clear of the fan blades and other moving parts during operation. The fan inlet is equipped with a protective cover; ensure it is always securely in place.
• Secure Mounting: Ensure the blower is securely mounted to its support base using all designated mounting points to prevent vibration and instability.
• Authorized Personnel: Only qualified personnel should perform installation, maintenance, and repairs.
• Emergency Stop: Familiarize yourself with the power disconnect location for quick shutdown in emergencies.

3. Product Overview

The PreAsion DF-8 Multi-blade Centrifugal Blower is engineered for high performance and durability. Key components include:

• Carbon Steel Shell: The external casing, treated with a spraying process for durability and ease of cleaning.
• Pure Copper Core Motor: Provides stable, long-term operation with high speed.
• Galvanized Multi-wing Blade: Designed for high air volume and low noise, resistant to deformation, wear, and oxidation.
• Metal Support Base: Equipped with four mounting holes for multi-angle installation.
• Flange Connection Air Outlet: Features 8 connection holes for versatile application.
• Protective Cover: A metal net cover at the air inlet prevents debris from entering the fan.

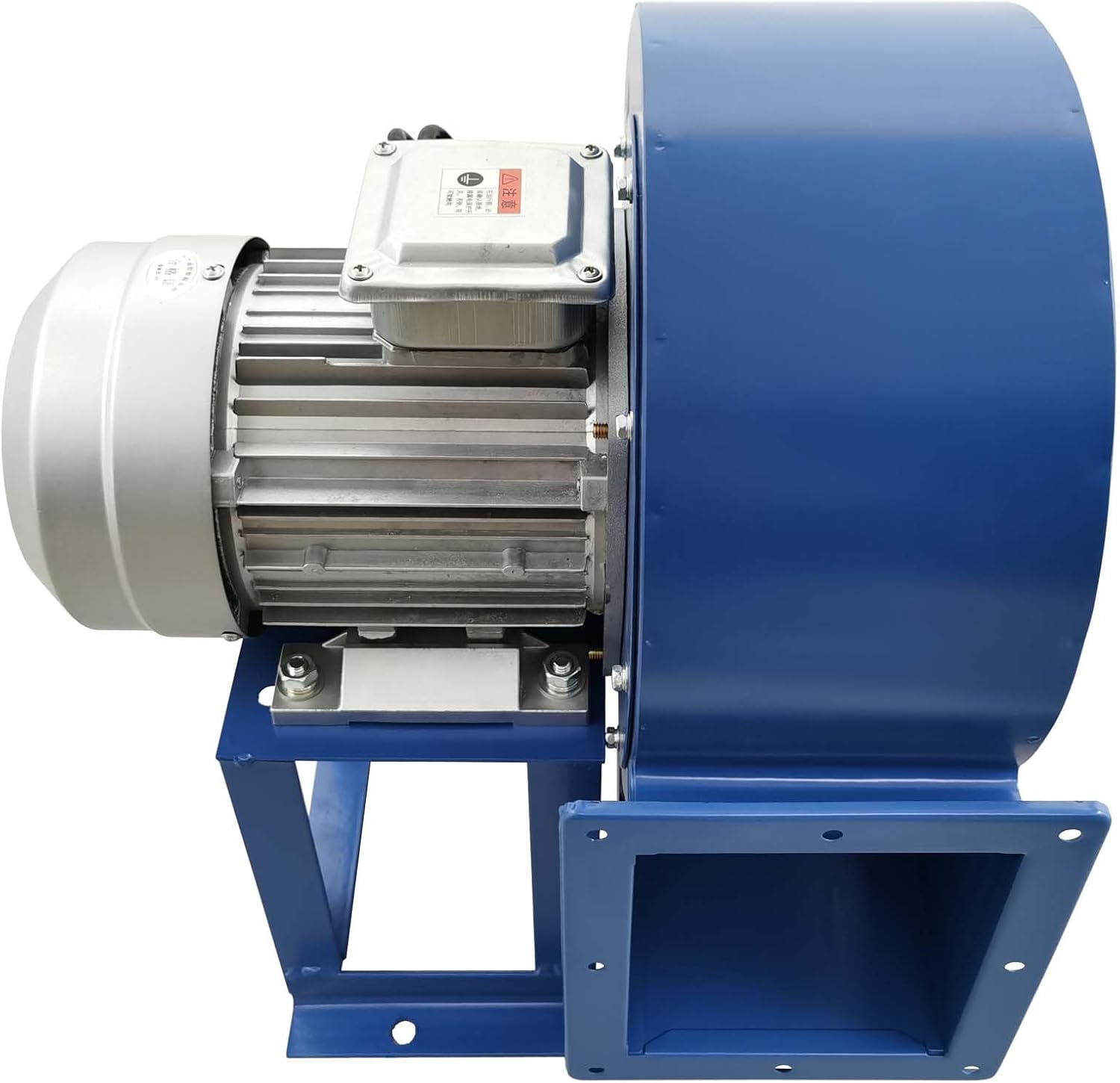

Figure 3.1: Main view of the PreAsion DF-8 Centrifugal Blower, showcasing its robust blue carbon steel housing and motor assembly.

Figure 3.2: Illustration highlighting the carbon steel shell, pure copper motor, and metal support base.

4. Specifications

Detailed technical specifications for the PreAsion DF-8 Centrifugal Blower:

Figure 4.1: Visual representation of product dimensions and key specifications.

5. Setup and Installation

The PreAsion DF-8 blower is designed for flexible installation. Follow these steps for proper setup:

1. Unpacking: Carefully remove the blower from its packaging. Inspect for any shipping damage.
2. Location Selection: Choose a stable, level surface for installation. Ensure adequate clearance around the air inlet and outlet for optimal airflow and maintenance access. The blower is rated for outdoor usage.
3. Mounting: The blower comes with a metal support base featuring four mounting holes. Secure the base to a solid structure using appropriate fasteners (not included) to prevent vibration and movement during operation. The design allows for 360° multi-angle installation.
4. Duct Connection: The air outlet features a flange connection with 8 holes. Connect your ductwork or ventilation system securely to this flange using appropriate bolts and gaskets (not included) to ensure an airtight seal.
5. Electrical Connection: Ensure the power source is 110V AC. Connect the blower to a properly grounded electrical outlet. If direct wiring is required, consult a qualified electrician to ensure compliance with local electrical codes.
6. Pre-Operation Check: Before starting, ensure all connections are secure, the protective cover is in place, and there are no obstructions in the air inlet or outlet.

Figure 5.1: Product dimensions for installation planning.

Figure 5.2: Side view illustrating the flange connection air outlet.

6. Operating Instructions

Operating the PreAsion DF-8 Centrifugal Blower is straightforward:

1. Power On: Once installed and all safety checks are complete, connect the blower to the 110V AC power supply.
2. Start-up: The blower will begin operation immediately upon receiving power. There is no external switch; control is typically managed via the power source.
3. Monitoring: During operation, periodically check for unusual noises, excessive vibration, or overheating. If any abnormalities are detected, immediately disconnect power.
4. Power Off: To stop the blower, disconnect it from the power supply.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your blower. Always disconnect power before performing any maintenance.

• Cleaning: Periodically clean the exterior of the blower with a damp cloth. Ensure the air inlet protective cover and fan blades are free from dust, debris, and obstructions.
• Blade Inspection: Inspect the galvanized multi-wing blade for any signs of damage, corrosion, or imbalance. Clean the blades carefully if dust or grime has accumulated.
• Protective Cover: Ensure the metal protective net cover at the air inlet is intact and securely fastened. This prevents foreign objects from damaging the fan.
• Motor Inspection: Check the motor for any signs of wear, loose connections, or unusual heat. The pure copper core motor is designed for long-term stability.
• Fastener Check: Periodically check all mounting bolts and fasteners for tightness. Tighten if necessary to prevent vibration.

Figure 7.1: Details of the fan blade and the protective cover at the air inlet.

8. Troubleshooting

If you encounter issues with your PreAsion DF-8 blower, refer to the following common problems and solutions:

• Blower Does Not Start:
  • Check if the power cord is securely plugged into a 110V AC outlet.
  • Verify that the power outlet is functional (test with another device).
  • Inspect the power cord for any damage.
• Reduced Airflow:
  • Check for obstructions in the air inlet or outlet, including the protective cover and connected ductwork.
  • Ensure the fan blades are clean and free of debris.
  • Verify that the motor is running at the correct speed (2800 RPM).
• Excessive Noise or Vibration:
  • Ensure the blower is securely mounted to its support base and all fasteners are tight.
  • Check for any foreign objects inside the blower housing or on the fan blades.
  • Inspect fan blades for damage or imbalance.
• Overheating:
  • Ensure adequate ventilation around the motor.
  • Check for any blockages restricting airflow through the blower.
  • If overheating persists, discontinue use and contact support.

If these steps do not resolve the issue, please contact customer support.

9. Warranty and Support

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your seller directly. Keep your proof of purchase for any warranty claims.

For technical assistance, spare parts, or further inquiries, please contact PreAsion customer support through the retailer where the product was purchased or visit the official PreAsion store page on Amazon: PreAsion Store.
