Washer Suspension Rod Kit User Manual

Introduction

This user manual provides essential information for the installation and maintenance of your new washer suspension rod kit. Designed as a replacement for various Whirlpool, Maytag, and Amana washing machine models, this kit helps to resolve common issues such as imbalance, excessive vibration, and noise during operation. Proper installation ensures optimal performance and extends the life of your washing machine.

Package Contents

Your washer suspension rod kit includes the following components:

• 4 x Premium Suspension Rods (23.3 inches each)
• 5 x Suspension Balls
• 5 x Bushings

Image: All components included in the AZ4U washer suspension rod kit.

Compatibility

This suspension rod kit is compatible with a wide range of washing machine models from Whirlpool, Maytag, and Amana. Please verify your washer's model number against the list below to ensure compatibility.

Compatible Whirlpool Models:

• WTW5000DW0, WTW5000DW1, WTW5000DW2, WTW5000DW3
• WTW7000DW, WTW4816FW2
• WTW5005KW0

Compatible Maytag Models:

• MVWC555DW0, MVWC555DW1
• MVWC565FW0, MVWC565FW1, MVWC565FW2
• MVWX655DW0, MVWX655DW1, MVWX655DW2
• 7MMVWC565FW0, 7MMVWC565FW1, 7MMVWX655EW0, 7MMVWX655EW1

Compatible Amana Models:

• CAW42114GW0, CAW42114GW1, CAW42114GW2

Replaces Part Numbers:

• 110.22352510, 110.22352511, 110.22352512
• 110.25132410, 110.25132412

Image: Visual representation of wide range compatibility for various washer models.

Common Symptoms Addressed

This washer suspension rod kit is designed to resolve several common issues that indicate worn or faulty suspension rods. Replacing these parts can significantly improve your washing machine's performance and reduce operational disturbances.

• Shaking and Moving: Reduces excessive movement and instability of the washer during cycles, especially during the spin cycle.
• Noisy Operation: Eliminates "sharking" or "hitting" noises caused by the tub striking the washer cabinet due to inadequate dampening.
• Bad Out of Balance During Spin: Corrects issues where the washer frequently goes out of balance, leading to cycle interruptions or inefficient washing.
• Error Codes: Can help fix error codes such as UR, UB, or UE, which often indicate an unbalanced load or suspension issue.

Image: Illustration of common symptoms fixed by replacing suspension rods, including excessive shaking and noise.

Materials and Quality

Our suspension rods are constructed from high-quality materials to ensure durability and long-lasting performance. The rods are made of robust stainless steel, providing strength and resistance to wear. The accompanying suspension balls and bushings are crafted from heavy-duty plastic, designed to withstand the rigorous demands of washing machine operation and resist corrosion.

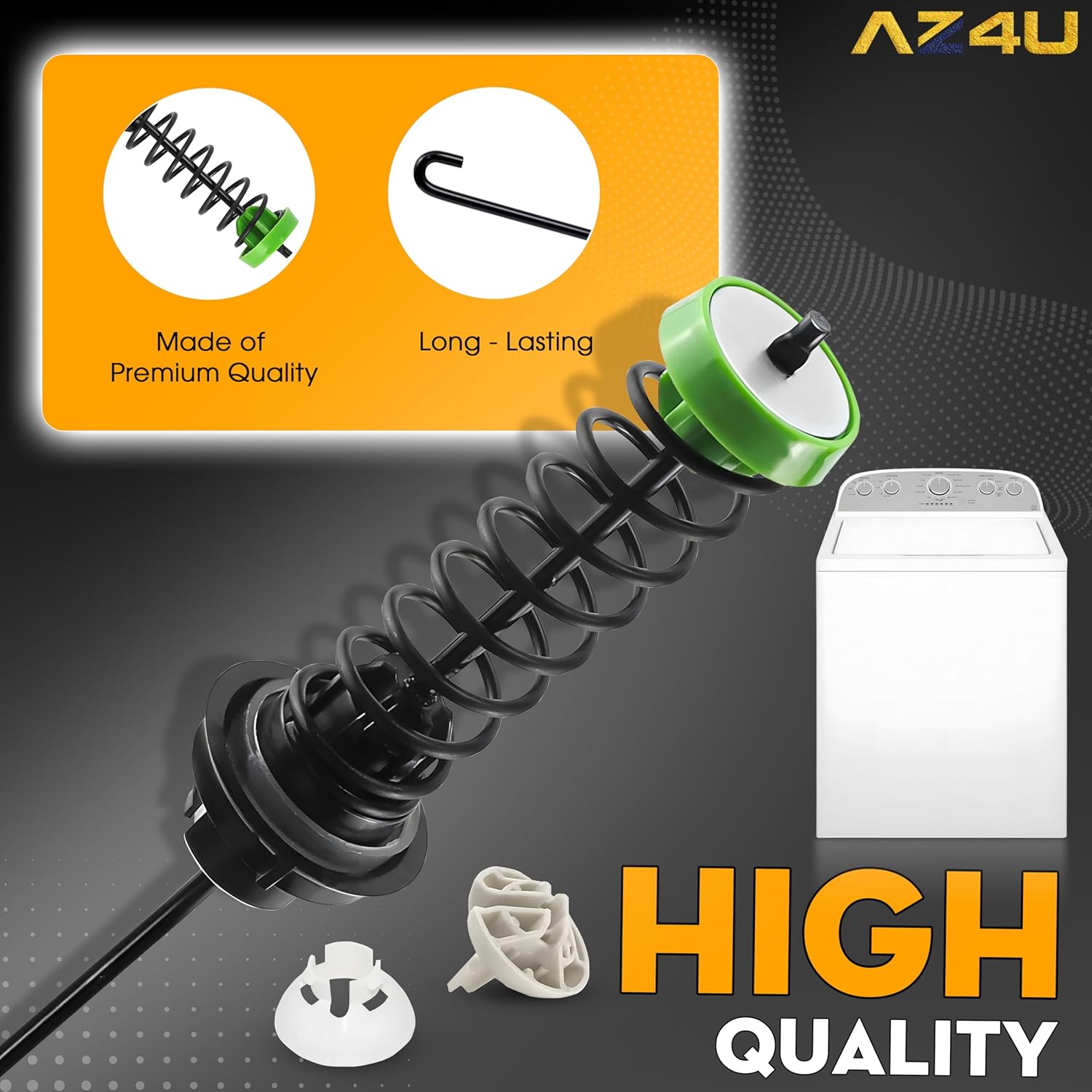

Image: Detailed view of the high-quality components, including the rod, spring, and plastic parts.

Installation

Replacing washer suspension rods typically requires basic tools and some mechanical aptitude. While specific steps may vary slightly by washer model, the general process involves accessing the washer's tub and replacing the old rods with the new ones. It is recommended to consult a repair manual or an online video tutorial specific to your washing machine model for detailed, step-by-step instructions.

Recommended Tools:

• Screwdriver (various types may be needed)
• Gloves (for protection)
• Duct Tape (for securing components if needed)

Safety Precaution: Always unplug your washing machine from the power outlet and turn off the water supply before attempting any repairs or installations.

Image: The four suspension rods ready for installation, highlighting the simplicity of the upgrade process.

Operating Benefits After Installation

Once the new suspension rods are correctly installed, you will notice significant improvements in your washing machine's operation. The primary function of these rods is to dampen the movement of the washer tub, ensuring it remains balanced during agitation and spin cycles. This leads to a smoother, quieter, and more efficient laundry experience.

• Reduced Vibration: The washer will operate with significantly less shaking and vibration, especially during high-speed spins.
• Quieter Cycles: Elimination of loud banging or thumping noises, contributing to a more peaceful home environment.
• Improved Balance: The washer will maintain proper balance, preventing interruptions and ensuring clothes are spun effectively.

Image: Visual representation of the benefit of reduced vibration, leading to a smoother and more pleasant washing experience.

Maintenance and Longevity

While suspension rods are designed for long-term durability, proper use of your washing machine can help extend their lifespan and the overall health of your appliance:

• Load Balancing: Always distribute laundry evenly inside the washer tub to prevent excessive strain on the suspension system.
• Avoid Overloading: Do not exceed the washer's recommended load capacity, as this can prematurely wear out suspension components.
• Regular Inspection: Periodically check for any signs of wear or damage to the suspension rods if you notice recurring balance issues or increased noise.

Troubleshooting

If you experience issues after installing the new suspension rods, consider the following:

Specifications

Key dimensions and details for the AZ4U Washer Suspension Rod Kit:

• Rod Length: 23.3 inches (approx. 59.18 cm)
• Product Dimensions (packaged): 24.3 x 3.4 x 3.4 inches (approx. 61.72 x 8.64 x 8.64 cm)
• Item Weight: 1.75 pounds (approx. 0.79 kg)
• Material: Durable stainless steel rods with heavy-duty plastic components.

Image: Detailed measurements of the suspension rod and its associated parts for accurate fit.

Warranty and Support

This product comes with a 2-month warranty from the date of purchase. We are confident in the quality of our parts and stand behind our product. If you are not satisfied for any reason, a refund will be provided within 90 days from the date of purchase.

For any questions regarding compatibility, installation, or product performance, please do not hesitate to contact our customer support team. We aim to resolve your problem within 24 hours.

Contact Information: Please refer to your purchase platform or the AZ4U brand store for direct contact methods.
