Introduction
Thank you for choosing the Shulemin 52CC 5-in-1 Gas Powered Multi-Tool. This versatile outdoor power tool is designed to assist with various landscaping tasks, combining the functions of a weed eater, hedge trimmer, string trimmer, brush cutter, and chainsaw. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your multi-tool. Please read these instructions carefully before use and retain them for future reference.
Safety Information
Operating any power tool can be dangerous if proper safety precautions are not followed. Always prioritize your safety and the safety of others.
- Read the Manual: Familiarize yourself with all controls and safety warnings before operating the tool.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses or goggles, hearing protection, heavy-duty gloves, long pants, and sturdy, non-slip footwear. A safety helmet is recommended, especially when using the chainsaw attachment.
- Fuel Handling: Handle gasoline with extreme care. Store fuel in approved containers, away from ignition sources. Mix fuel outdoors in a well-ventilated area. Do not smoke while refueling.
- Work Area: Keep the work area clear of bystanders, children, and pets. Ensure good footing and balance. Do not operate in wet conditions or near flammable materials.
- Inspect Before Use: Before each use, inspect the tool for loose parts, damage, or wear. Ensure all attachments are securely fastened.
- Proper Grip: Maintain a firm grip on the handles with both hands during operation.
- Avoid Contact: Keep hands and feet away from cutting attachments while the engine is running.
- Engine Off: Always turn off the engine before making adjustments, clearing blockages, or performing maintenance.
- Storage: Store the tool in a dry, secure location, out of reach of children.
Package Contents
Carefully unpack all items and check them against the list below. If any items are missing or damaged, contact customer support.

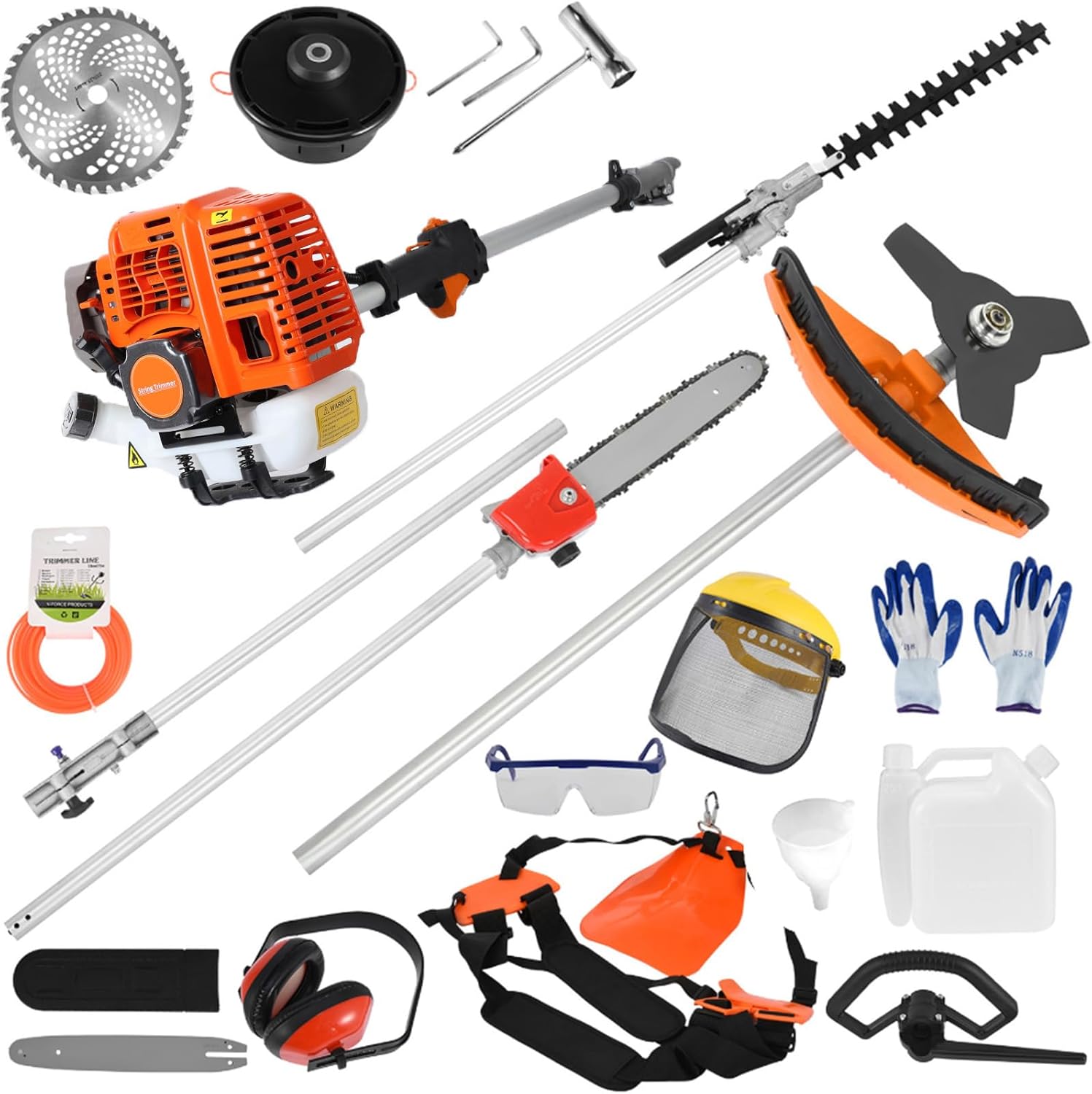

Image: All components of the Shulemin 52CC 5-in-1 Gas Powered Multi-Tool. This image displays the engine unit, control rod, extension rod, hedge trimmer pole, chainsaw pole, brush cutter pole, oil jug, funnel, goggles, earphone, gloves, 40-tooth blade, plastic mowing head, nylon rope, helmet, and installation kit.
- 1 x 52CC Engine Unit
- 1 x Control Rod
- 1 x Extension Rod
- 1 x Hedge Trimmer Pole Attachment
- 1 x Chainsaw Pole Attachment
- 1 x Brush Cutter Pole Attachment
- 1 x Oil Jug
- 1 x Funnel
- 1 Pair of Goggles
- 1 x Earphone
- 1 Pair of Gloves
- 1 x 40-tooth Blade (for brush cutter)
- 1 x Plastic Mowing Head (for string trimmer)
- 1 x Nylon Rope (for string trimmer)
- 1 x Helmet
- 1 x Installation Kit (tools)
- 1 x User Manual (this document)
Setup
1. Assembly of Rods and Attachments
The multi-tool consists of a main engine unit, a control rod, an extension rod, and various interchangeable attachments.
- Connect the Control Rod to the Engine Unit. Ensure the connection is secure and the locking mechanism engages properly.
- If additional reach is required, connect the Extension Rod between the Control Rod and the desired attachment.
- Select the appropriate attachment (Hedge Trimmer, Chainsaw, Brush Cutter, or String Trimmer). Align the attachment shaft with the end of the rod assembly and push it in until it clicks into place. Secure it with the provided fasteners or locking pins from the installation kit.
- For the Brush Cutter, attach the 40-tooth blade to the cutting head, ensuring it is oriented correctly and securely fastened. For the String Trimmer, ensure the plastic mowing head with nylon line is properly installed.

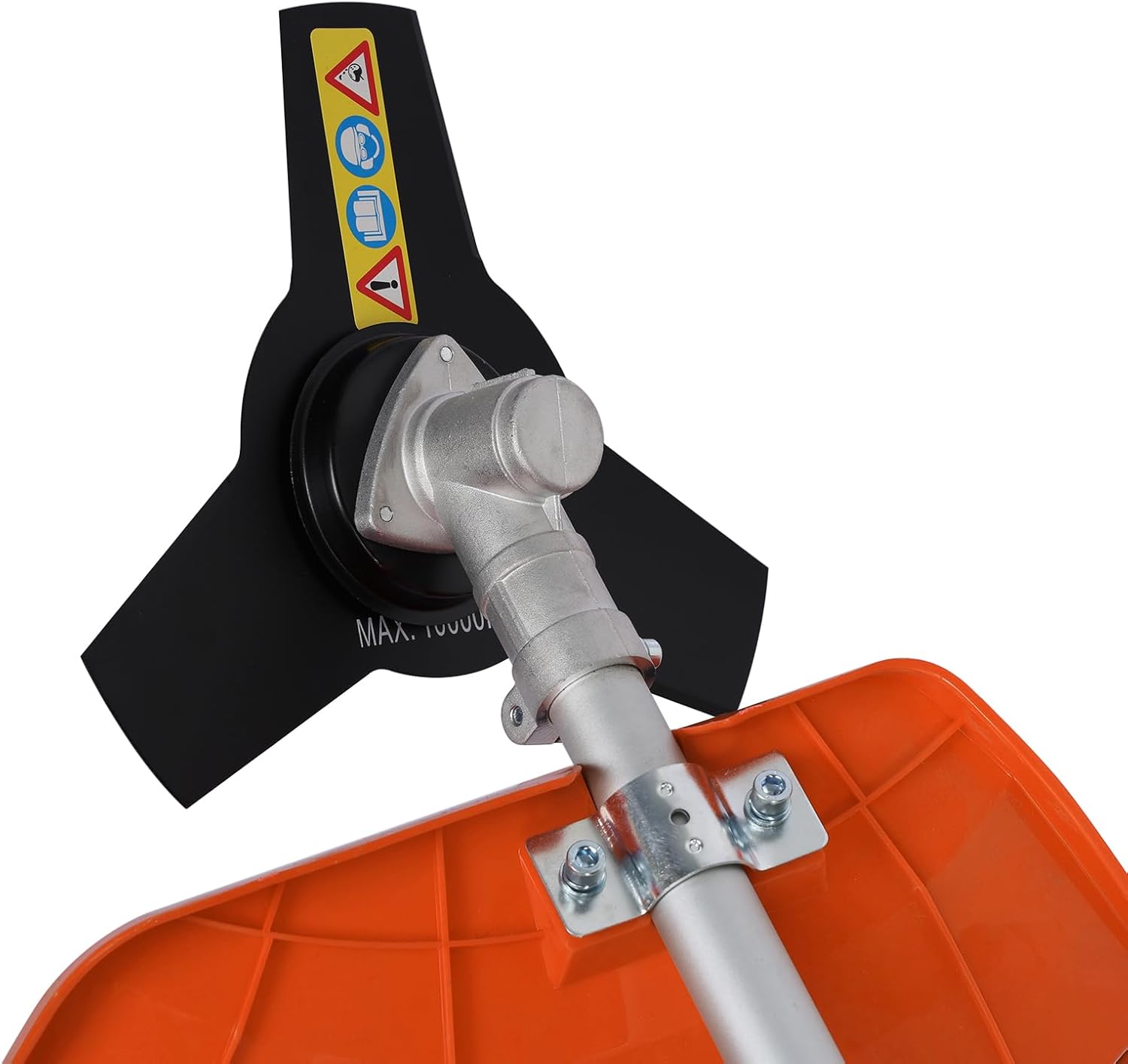

Image: Brush Cutter Attachment. This image shows the 3-tooth blade securely mounted on the brush cutter head, ready for operation.
2. Fuel Mixing
This tool uses a 2-stroke engine and requires a specific gasoline-to-oil mixture. Refer to the engine specifications for the exact ratio (typically 25:1 or 50:1, consult your engine manual if available).
- Use fresh, unleaded gasoline with an octane rating of 89 or higher.
- Use high-quality 2-stroke engine oil specifically designed for air-cooled engines.
- Mix the gasoline and oil in the provided oil jug or an approved fuel container. Shake well to ensure thorough mixing.
- Pour the mixed fuel into the engine's fuel tank using the funnel. Do not overfill.
- Wipe up any spilled fuel immediately.
Operating Instructions
1. Starting the Engine
Always ensure you are in a well-ventilated outdoor area and wearing appropriate PPE before starting the engine.
- Place the tool on a flat, stable surface.
- Ensure the fuel tank cap is securely tightened.
- Pull the Start Handle: Pull the start handle 5-8 times. Listen for the engine's ignition sound. This indicates the engine is receiving fuel.
- Close the Damper: If the engine is cold, close the damper (choke lever). If the engine is warm, the damper may not be needed.
- Pull the Start Handle Again: Pull the start handle 1-3 times again. The engine should start.
- Once the engine starts, slowly open the damper (if closed) to the run position. Allow the engine to warm up for a few moments before engaging the throttle.
Image: Engine Pull Start. This image highlights the pull start handle, which is used to manually start the engine.
Image: Engine Damper. This image shows the damper mechanism, used to adjust air intake for starting, especially when the engine is cold.
2. Using the Attachments
Once the engine is running and warmed up, you can begin operating the tool. Always maintain a firm grip and be aware of your surroundings.
Image: Multi-Tool in Use (String Trimmer). This image shows an individual using the multi-tool configured as a string trimmer to clear weeds and grass.
- String Trimmer (Weed Eater): Ideal for cutting grass and light weeds around obstacles. Hold the tool with both hands, keeping the cutting head parallel to the ground. Move in a sweeping motion.
- Brush Cutter: Use the 40-tooth blade for thicker weeds, brush, and small saplings. Be cautious of kickback. Always wear a helmet and face shield.
- Hedge Trimmer: Designed for shaping hedges and shrubs. Use a smooth, even motion. Keep the blades away from power lines and fences.
- Chainsaw: For pruning branches. Ensure the chain is properly tensioned and lubricated. Always use extreme caution and follow all chainsaw safety guidelines.
Image: Multi-Tool in Use (Brush Cutter). This image depicts an individual using the multi-tool with the brush cutter attachment to clear dense vegetation in an open field.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your multi-tool. Always turn off the engine and disconnect the spark plug wire before performing any maintenance.
- Cleaning: After each use, clean the tool, especially the cutting attachments, of grass, dirt, and debris. Use a damp cloth; avoid using harsh chemicals.
- Air Filter: Periodically inspect and clean the air filter. A dirty air filter can reduce engine performance. Replace if damaged.
- Spark Plug: Check the spark plug for wear and proper gap. Clean or replace as needed.
- Fuel Filter: Inspect the fuel filter in the fuel tank and replace if clogged.
- Cutting Attachments:
- Blades: Sharpen or replace brush cutter and hedge trimmer blades as they become dull.
- Chainsaw Chain: Keep the chainsaw chain sharp and properly tensioned. Ensure adequate chain oil is present in the reservoir.
- String Trimmer Line: Replace nylon line as it wears down.
- Storage: For long-term storage, drain the fuel tank or use a fuel stabilizer. Clean the tool thoroughly and store it in a dry, secure place.
Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel or incorrect fuel mixture Spark plug fouled or damaged Damper (choke) not set correctly Air filter clogged | Check fuel level and mixture. Refuel if necessary. Clean or replace spark plug. Adjust damper according to starting instructions. Clean or replace air filter. |
| Engine runs, but lacks power | Clogged air filter Incorrect fuel mixture Dull cutting attachment Carburetor needs adjustment | Clean or replace air filter. Ensure correct fuel-to-oil ratio. Sharpen or replace cutting attachment. Consult a qualified service technician. |
| Excessive vibration | Loose attachment or fasteners Damaged or unbalanced blade Bent shaft | Check and tighten all connections. Inspect blade for damage; replace if necessary. Discontinue use and contact support. |
| Smoke from engine | Incorrect fuel mixture (too much oil) Engine overheating | Ensure correct fuel-to-oil ratio. Stop engine, allow to cool, check for obstructions. |
Specifications
The following are the technical specifications for the Shulemin 52CC 5-in-1 Gas Powered Multi-Tool.
| Feature | Specification |
|---|---|
| Engine Type | 2-Stroke, Air-Cooled, Single Cylinder |
| Engine Displacement | 52CC |
| Engine Power | 2.3 kW (2200W) |
| Engine Working Speed | 8000-9500 r/min (RPM) |
| Engine Idling Speed | 3000 r/min (RPM) |
| Fuel Tank Capacity | 1.2 L |
| Extension Pole Length | 43.31 inches (134 cm) |
| Grass Trimmer (String Trimmer) | |
| Nylon Line Spool | Bump Feed, Twin Line |
| Line Diameter | 2 mm |
| Cutting Width | 380 mm (15.72 inches) |
| Brush Cutter | |
| Blade Type | 3-tooth Blade (40-tooth blade included) |
| Cutting Diameter | 230 mm |
| Hedge Trimmer | |
| Cutting Length of Blade | 400 mm |
| Cutting Capacity | 24 mm |
| No-load Speed of Blade | 1400 r/min |
| Chainsaw | |
| Bar Length | 10 inches (250 mm) |
| Max Cutting Length | 200 mm |
| Chain Speed at No Load | 10 m/s |
| Oil Tank Capacity | 120 Cubic Centimeter |
| Overall Dimensions (Approx.) | L: 180cm/70.87", W: 35cm/13.78", H: 35cm/13.78" |
| Mass (without Fuel, Cutting Attachment) | 6.65 kg |
Warranty Information
This Shulemin product is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the warranty card included with your product or contact Shulemin customer support.
Customer Support
If you have any questions, require assistance with assembly or operation, or need to report a problem with your Shulemin 52CC 5-in-1 Gas Powered Multi-Tool, please contact our customer support team.
Please have your model number (14068181) and purchase information ready when contacting support.
(Specific contact details such as phone number, email, or website are not provided in the product data. Please refer to the product packaging or purchase documentation for this information.)
