Bestway 6001H Hawaii Lay-Z-Spa AirJet Inflatable Hot Tub User Manual

1. Safety Information

Read and understand all instructions before installing and using this product. Failure to follow these warnings and instructions can result in property damage, serious injury, or death.

• WARNING! Handle with care. Do not lift alone and do not overturn.
• This product is not intended for public or commercial use.
• Ensure the spa is installed on a flat, level surface.
• DROWNING HAZARD! Always supervise children. Never dive into the spa. Serious or fatal injuries can occur due to shallow water.
• Water that is too hot can be dangerous to health. The water temperature in the spa should never exceed 40°C (104°F).
• To prevent the risk of drowning for children, it is recommended to secure access to the spa.
• Consult the full user manual for complete safety guidelines.

2. Package Contents

Verify that all components listed below are present in your package. If any parts are missing or damaged, do not attempt to assemble or operate the spa. Contact Bestway customer support for assistance.

• 1 Inflatable Spa (Hawaii Lay-Z-Spa AirJet)
• 1 Spa Cover
• 1 Filter Pump (integrated UltraFit digital control pump)
• 1 Filter Cartridge (Type VI)
• 1 ChemConnect Dispenser
• 1 Repair Patch

Image 1: Packaging box for the Bestway 6001H Hawaii Lay-Z-Spa AirJet.

3. Setup Instructions

Follow these steps to set up your Bestway 6001H Hawaii Lay-Z-Spa AirJet.

1. Choose a Location: Select a flat, level, and stable surface capable of supporting the weight of the filled spa and its occupants. Ensure adequate drainage and access to a power outlet.
2. Unpack Components: Carefully remove all items from the packaging.
3. Inflate the Spa: Connect the inflation hose to the spa's air valve and use the integrated pump to inflate the spa until it is firm to the touch, but not over-inflated.
4. Install Filter Cartridge: Open the filter housing inside the spa and insert the Type VI filter cartridge. Close the housing securely.
5. Fill with Water: Fill the spa with fresh water to the recommended fill line.
6. Connect Power: Plug the spa's power cord into a grounded electrical outlet.

Image 2: The Bestway 6001H Hawaii Lay-Z-Spa AirJet inflated and filled with water, ready for use.

4. Operation

Your Lay-Z-Spa is equipped with an integrated digital control pump for easy operation of its various functions.

4.1 Control Panel Functions

The digital control panel allows you to manage heating, filtration, and the AirJet massage system.

• Power Button: Turns the spa system on or off.
• Temperature Adjustment: Use the up/down arrows to set your desired water temperature (up to 40°C / 104°F).
• Heating Function: Activates the water heating system. The LED display will show the current water temperature.
• Filter Button: Activates the water filtration system. It is recommended to run the filter daily to maintain water quality.
• AirJet Massage System: Activates the bubble jets for a relaxing massage. This system releases warm air into the spa.

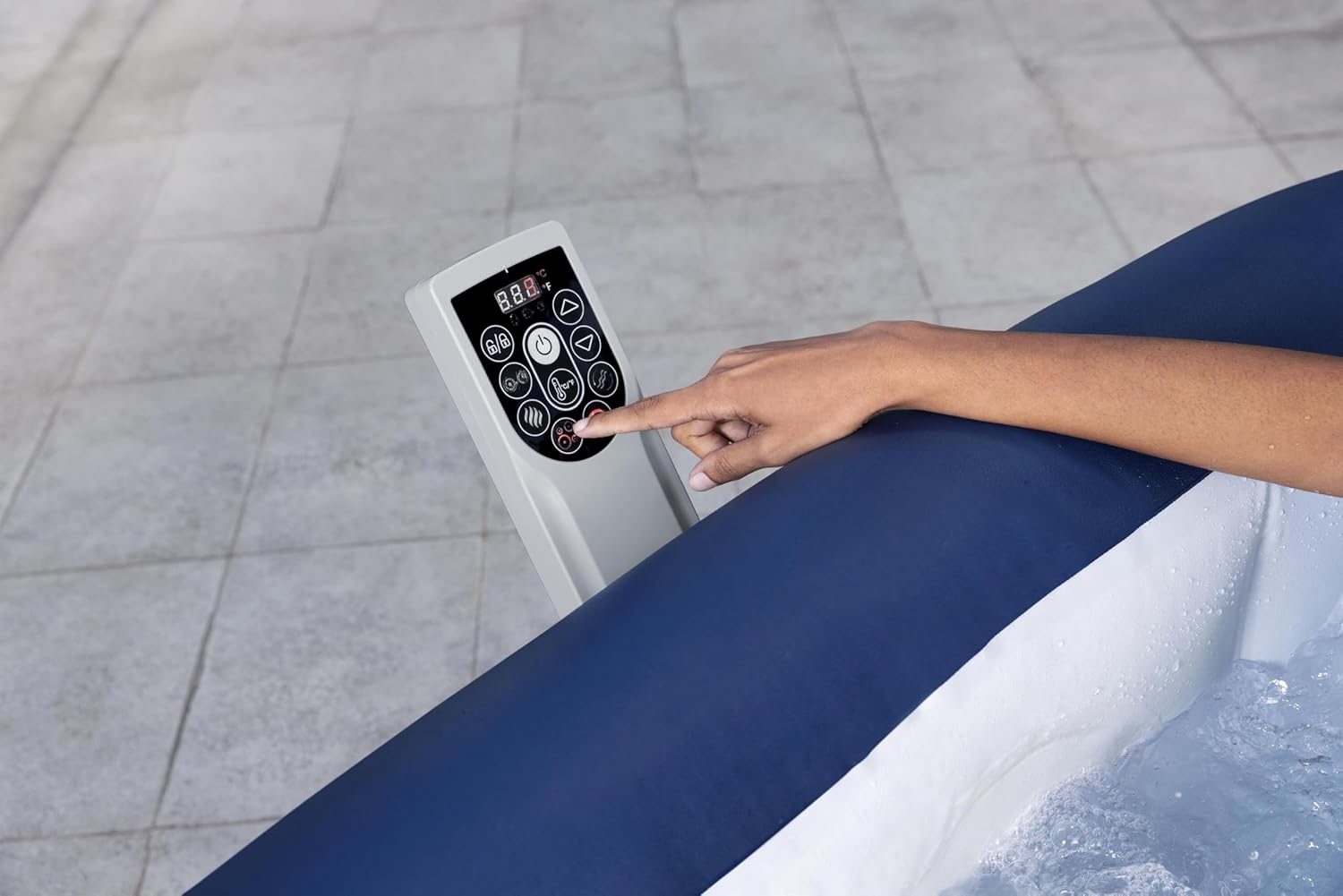

Image 3: Close-up of the digital control panel, showing various function buttons.

4.2 App Control

The Bestway 6001H features app connectivity, allowing you to control your spa remotely from your smartphone. Download the official Bestway Lay-Z-Spa app from your device's app store and follow the in-app instructions for pairing.

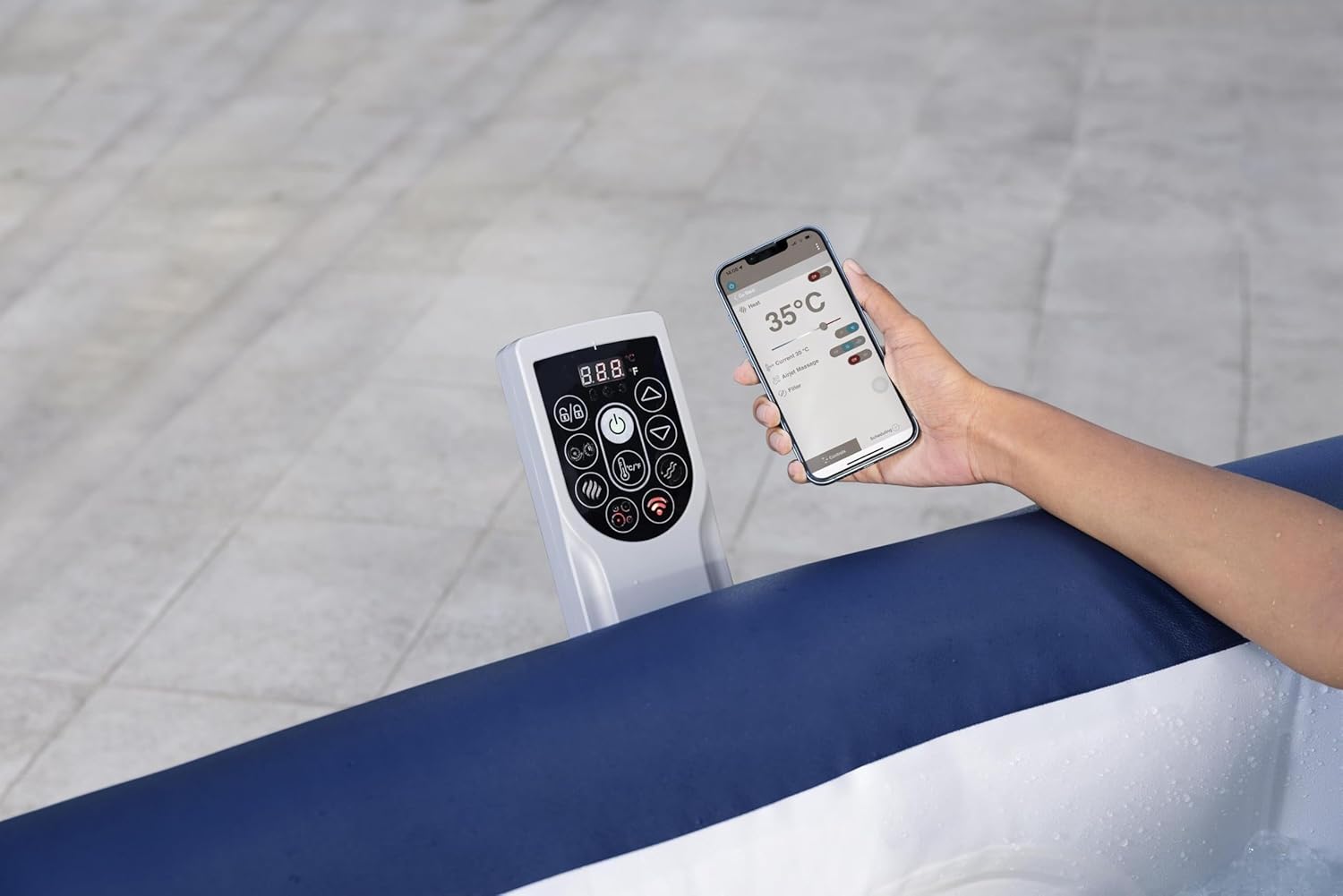

Image 4: Smartphone displaying the Lay-Z-Spa app, demonstrating remote control capabilities.

4.3 AirJet System

Activate the AirJet system for a soothing bubble massage. The system releases warm air through 140 jets, creating a relaxing experience.

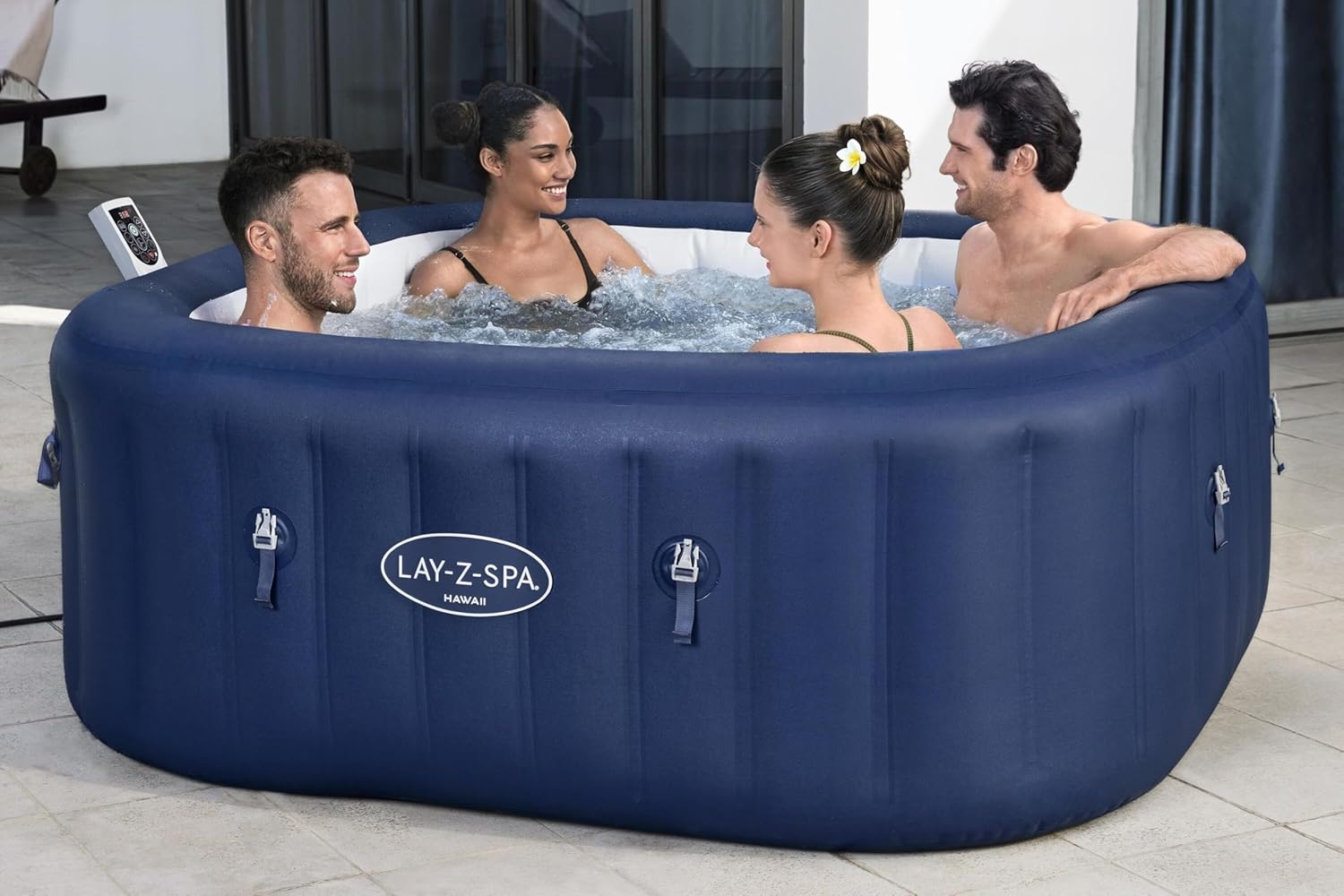

Image 5: The spa with the AirJet system activated, showing bubbles in the water.

5. Maintenance

Regular maintenance is crucial for the longevity and hygiene of your spa.

5.1 Filter Cartridge

The filter cartridge (Type VI) should be cleaned regularly and replaced every few weeks, depending on usage. A clean filter ensures efficient water filtration.

Image 6: A Type VI filter cartridge, essential for maintaining water cleanliness.

5.2 ChemConnect Dispenser

Use the included ChemConnect dispenser to add chemical tablets (not included) to the spa water. This helps maintain proper water chemistry and sanitation. Always follow the chemical manufacturer's instructions.

Image 7: The ChemConnect dispenser, used for controlled release of water treatment chemicals.

5.3 Spa Cover

Always keep the spa covered when not in use. The cover helps retain heat, prevents debris from entering the water, and enhances safety.

Image 8: The Bestway 6001H Hawaii Lay-Z-Spa AirJet with its protective cover securely fastened.

6. Troubleshooting

This section addresses common issues you might encounter with your spa.

• Spa not heating: Ensure the heater function is activated on the control panel or app. Check that the water level is above the minimum fill line. Clean or replace the filter cartridge.
• AirJet system not working: Verify the AirJet button is pressed. Check for any blockages in the air blower intake.
• Water quality issues (cloudy/foamy): Check and adjust water chemistry using the ChemConnect dispenser. Clean or replace the filter cartridge. Ensure the filtration system runs for sufficient periods daily.
• Error codes on display: Refer to the full user manual for a list of specific error codes and their corresponding solutions.
• Leakage: Locate the source of the leak. Use the provided repair patch for small punctures. For larger leaks, contact customer support.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or to order replacement parts, please refer to the full user manual included with your product or visit the official Bestway website. Keep your proof of purchase for warranty claims.

Bestway Customer Service: www.bestwaycorp.com/support
