Introduction
This manual provides essential information for the safe and efficient operation of your Philips Airfryer Series 3000 (Model NA332/09). Please read it thoroughly before first use and keep it for future reference.
The Philips Airfryer Series 3000 is a versatile 6.2-liter digital air fryer designed to cook a wide variety of dishes with less fat. Featuring RapidAir Plus technology for even cooking and a convenient cooking window, it offers 16 different cooking functions, making meal preparation faster and more energy-efficient.

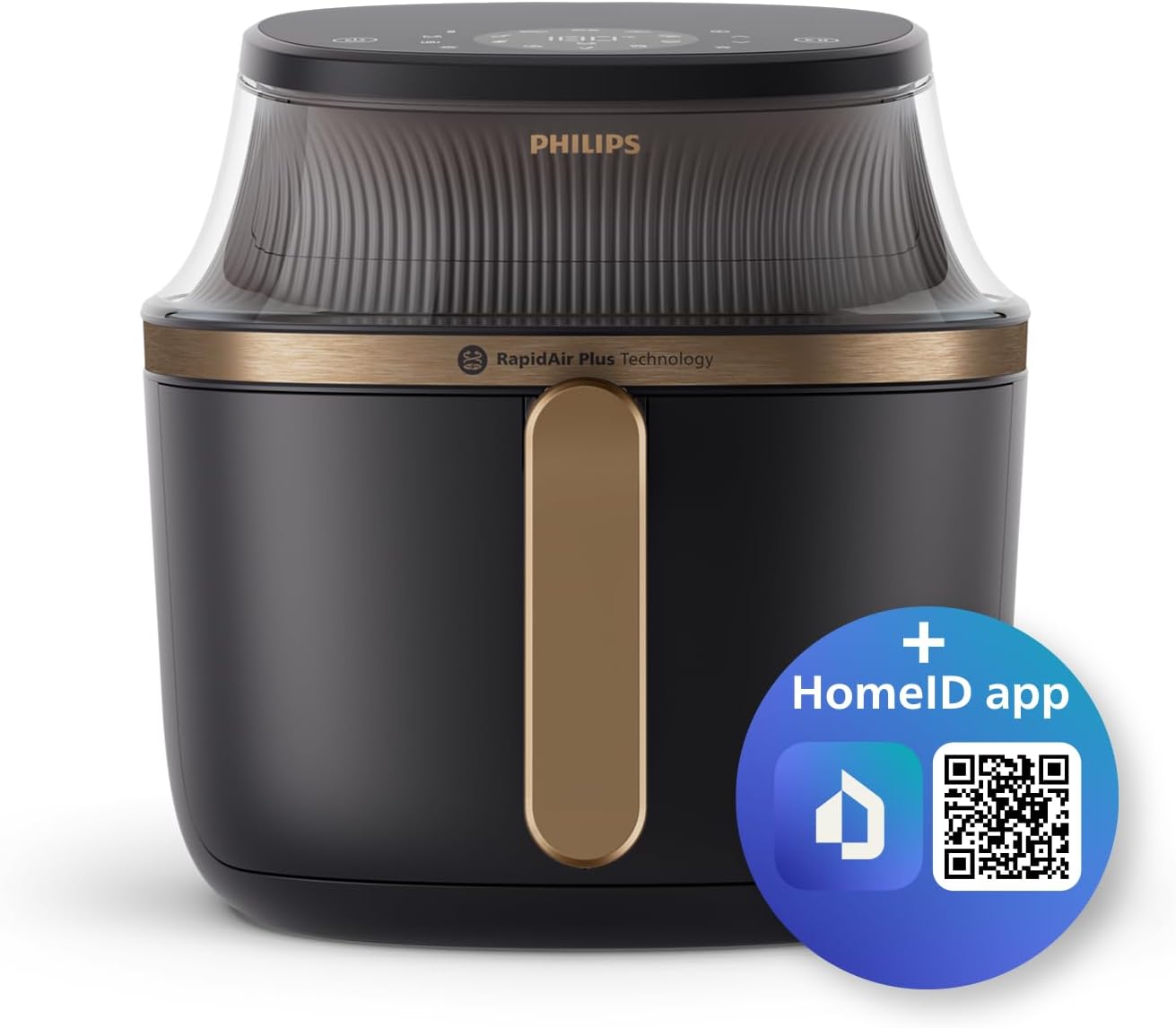

Image: Front view of the Philips Airfryer Series 3000, highlighting its sleek design and compatibility with the HomeID app. The HomeID app provides access to a wide range of recipes and cooking guidance. You can find more information about the app here.
Setup and First Use
- Unpacking: Carefully remove the air fryer and all accessories from the packaging. Retain the packaging for future storage or transport.
- Initial Cleaning: Before first use, clean the basket and pan with hot water, dish soap, and a non-abrasive sponge. The basket and pan are dishwasher safe. Wipe the inside and outside of the appliance with a damp cloth.
- Placement: Place the air fryer on a stable, horizontal, and level surface. Ensure there is at least 10 cm (4 inches) of free space at the back and sides, and 10 cm (4 inches) above the appliance to allow for proper ventilation. Do not place the appliance against a wall or other appliances.
- Power Connection: Plug the power cord into a grounded wall outlet.
- Pre-heating (Optional): For optimal results, pre-heat the air fryer for a few minutes before adding food.
Image: Front view of the Philips Airfryer Series 3000, showing the main body and handle. Ensure proper ventilation around the unit during operation.
Operating Instructions
Control Panel Overview
The digital control panel allows for easy selection of cooking functions, temperature, and time settings.
Image: Detailed view of the Philips Airfryer's digital control panel, showing various icons for cooking modes, temperature, and timer settings.

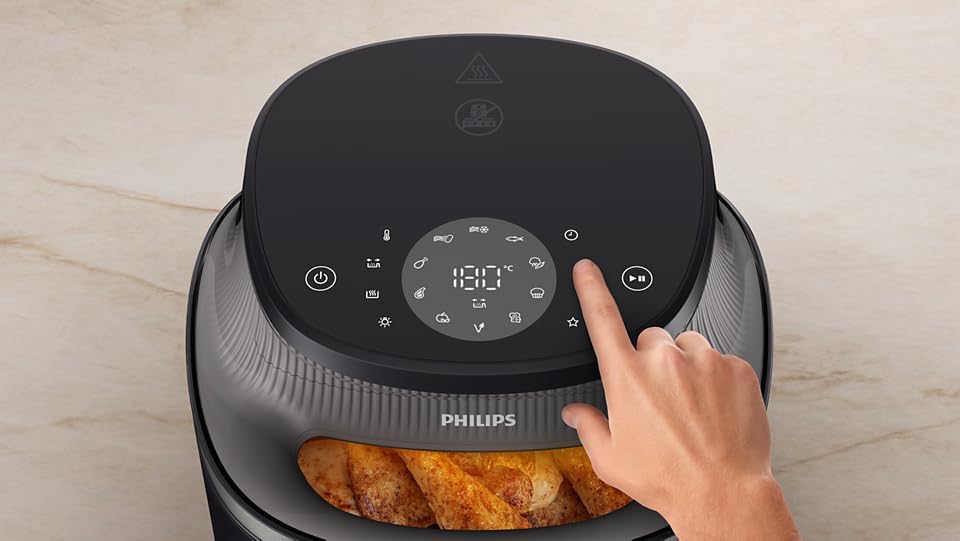

Image: A hand demonstrating interaction with the touch control panel of the Philips Airfryer, indicating ease of use for setting cooking parameters.
Cooking Process
- Prepare Food: Place the ingredients in the air fryer basket. Do not exceed the MAX indication. The 6.2-liter capacity can hold up to 1000 grams of vegetables, 8 chicken drumsticks, 5 pieces of salmon, or 7 muffins.
- Insert Basket: Slide the basket and pan back into the air fryer.
- Select Function: Choose one of the 16 preset cooking functions or manually set the temperature (from 40°C up to 200°C) and time (up to 24 hours for dehydration/fermentation).
- Start Cooking: Press the start button. The RapidAir Plus technology will circulate hot air for even cooking.
- Monitor Cooking: Utilize the integrated cooking window to observe your food without opening the basket, ensuring perfect results.
- Shake/Flip (if needed): For some recipes, shaking or flipping ingredients halfway through cooking ensures even browning. The appliance may beep to remind you.
- Remove Food: Once cooking is complete, carefully pull out the pan and basket. Use tongs to remove the food.

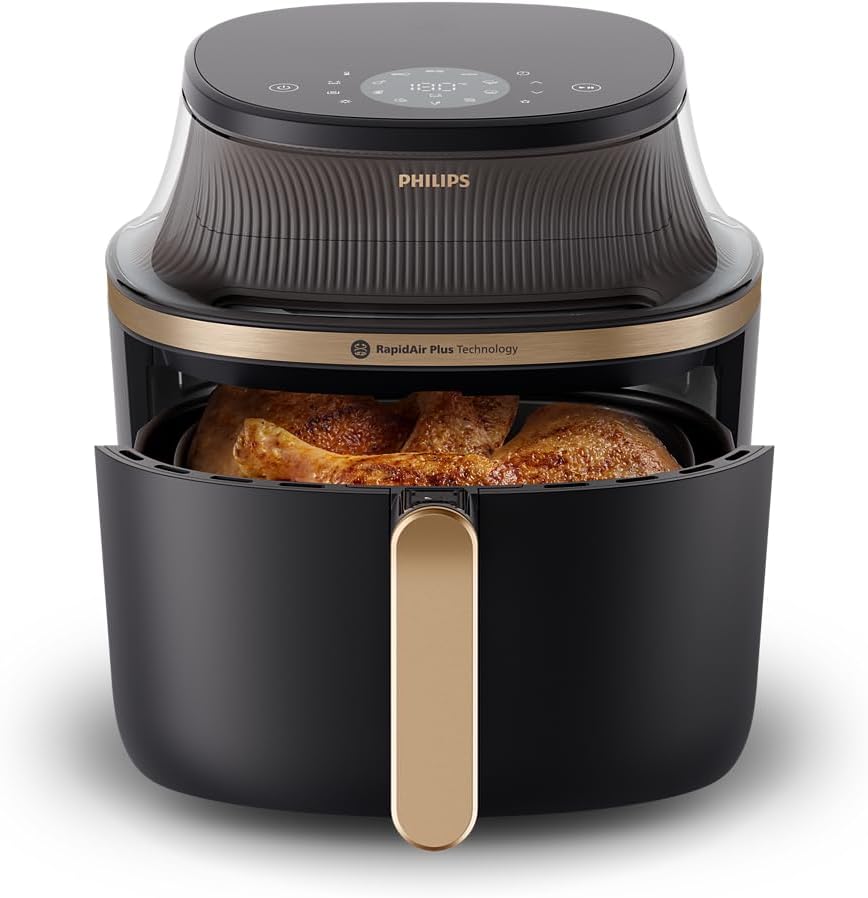

Image: The Philips Airfryer with its basket pulled out, showing perfectly cooked chicken drumsticks inside. This illustrates the appliance's cooking capacity.

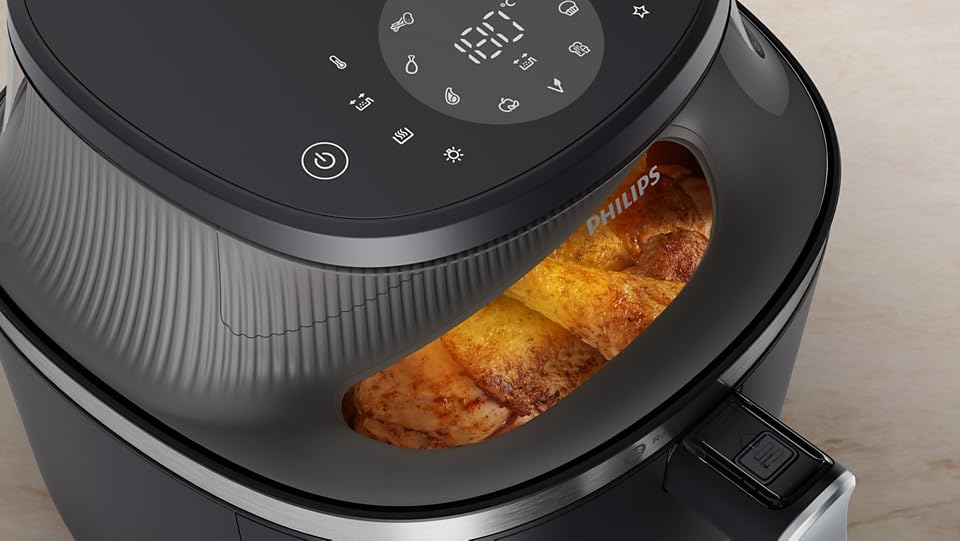

Image: A close-up view of the cooking window on the Philips Airfryer, allowing users to monitor the cooking progress of food without opening the drawer.
Image: A visual representation of the 16-in-1 cooking functions available on the Philips Airfryer, including frying, baking, grilling, roasting, dehydrating, and more.
RapidAir Plus Technology and Fat Removal
The patented RapidAir Plus technology features a unique starfish design that circulates hot air rapidly and evenly around your food, ensuring crispy results on the outside and tender interiors. This technology also facilitates the removal of up to 40% of excess fat, which collects in the pan below the basket, leading to healthier meals without compromising on taste.
Cleaning and Maintenance
Regular cleaning ensures the longevity and optimal performance of your Philips Airfryer.
- Before Cleaning: Always unplug the appliance and allow it to cool down completely before cleaning.
- Basket and Pan: The basket and pan are made with a non-stick coating and are dishwasher safe. For manual cleaning, use hot water, dish soap, and a non-abrasive sponge. Do not use metal utensils or abrasive cleaning materials.
- Interior: Wipe the interior of the appliance with a damp cloth. For stubborn food residues, use a soft brush.
- Exterior: Clean the exterior with a damp cloth. Do not immerse the appliance in water or any other liquid.
- Storage: Store the air fryer in a dry, cool place when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Airfryer does not turn on. | The appliance is not plugged in or the power outlet is not working. | Ensure the power cord is securely plugged into a working grounded outlet. |
| Food is not cooked evenly. | Too much food in the basket; food not shaken/flipped. | Do not overfill the basket. Shake or flip ingredients halfway through cooking for even results. |
| White smoke comes from the appliance. | Fat residues from previous use; fatty ingredients. | Clean the pan and basket thoroughly after each use. For fatty ingredients, ensure excess fat is drained. |
| Fresh fries are not crispy. | Not enough oil; incorrect potato type; not dried properly. | Use fresh potatoes suitable for frying. Soak potato sticks in water for 30 minutes, dry them thoroughly, and add a little oil before air frying. |
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Philips Domestic Appliances |
| Model | NA332/09 |
| Color | Black Body/Copper Handle |
| Product Dimensions (L x W x H) | 32.4 x 43.6 x 30.3 cm |
| Capacity | 6.2 Liters |
| Wattage | 1700 watts |
| Voltage | 220 Volts |
| Material | Stainless Steel |
| Automatic Shut-off | Yes |
| Special Features | Temperature Control, Cooking Window, RapidAir Plus Technology, 16-in-1 Functions |
| Item Weight | 5.6 Kilograms |

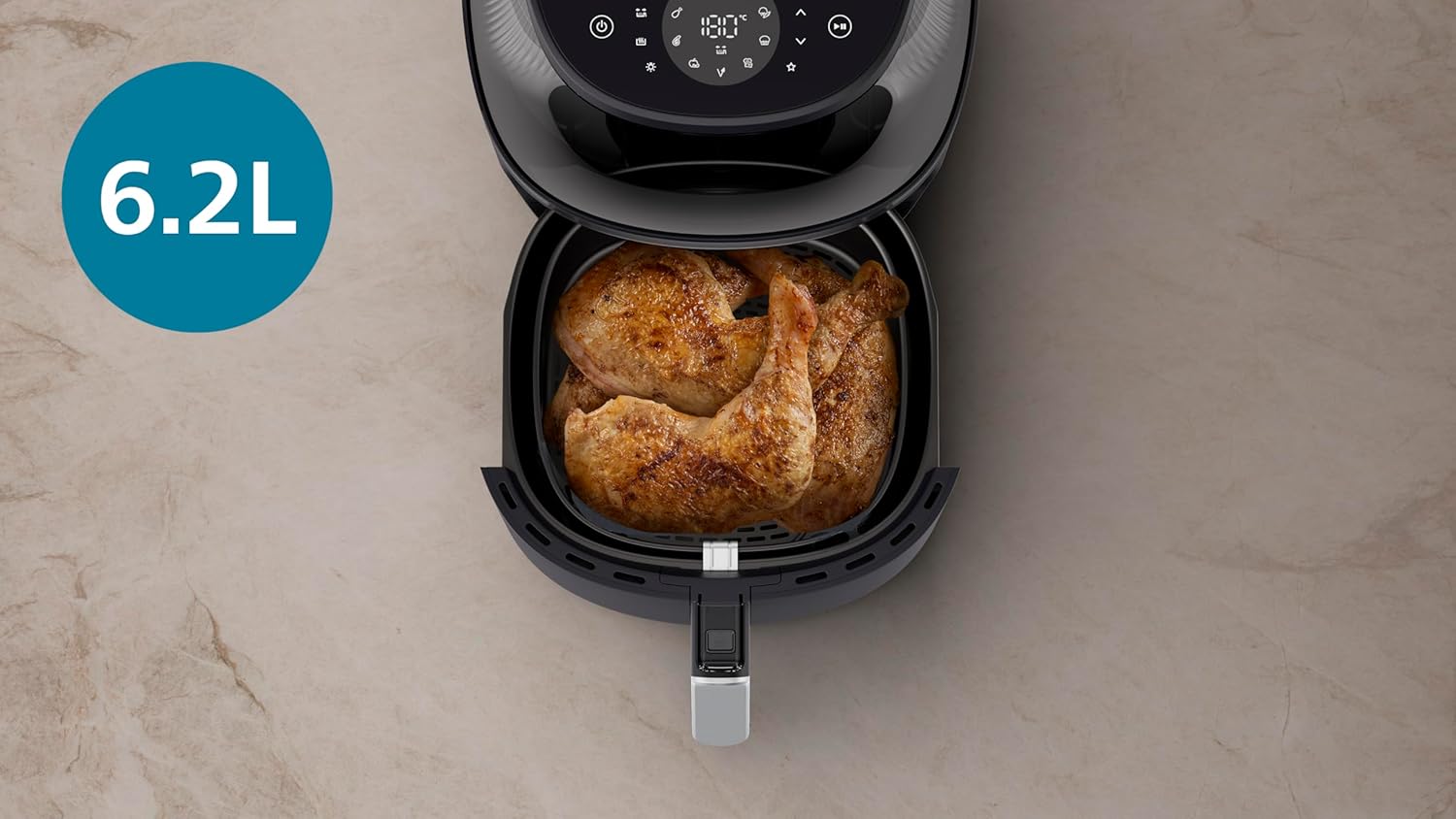

Image: Top-down view of the Philips Airfryer, indicating its 6.2-liter capacity, suitable for family-sized meals.

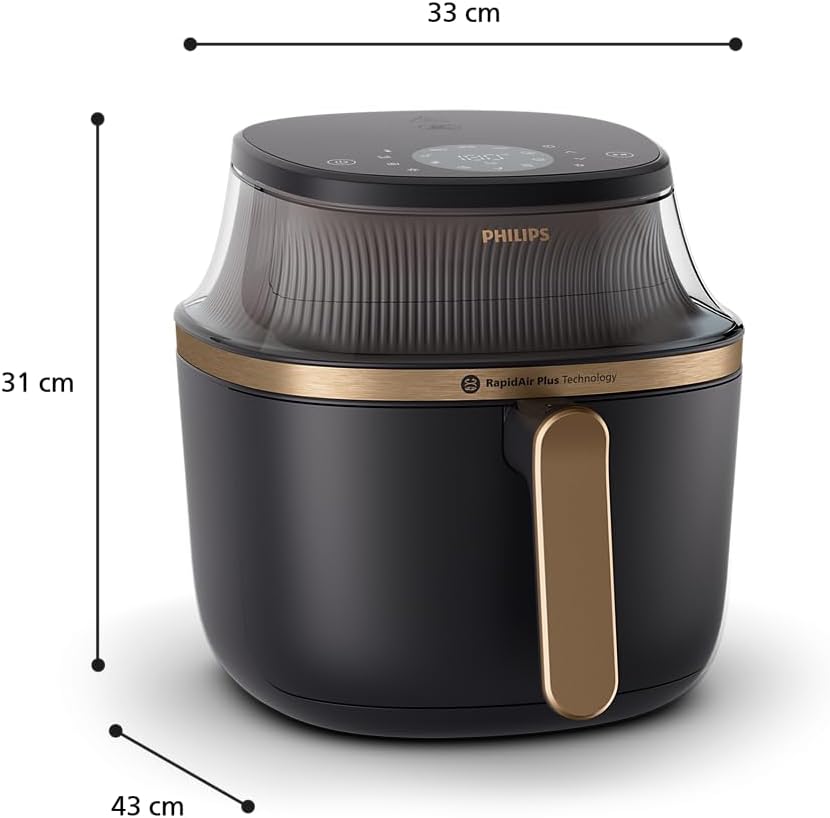

Image: Diagram showing the dimensions of the Philips Airfryer Series 3000 (approximately 32.4 cm depth, 43.6 cm width, 30.3 cm height).
Warranty and Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Philips website. Philips offers customer support for product inquiries, troubleshooting, and service requests.
You can typically find support contact information on the Philips website or within the product packaging. Please have your model number (NA332/09) and purchase details ready when contacting support.
