BXparts Carburetor Kit Instruction Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of your new BXparts carburetor kit. This kit is designed as a replacement for specific MTD Yard Machines riding mowers and lawn tractors equipped with 10.5HP, 13.5HP, 14.5HP, and 16.5HP OHV Nikki 592226 engines. Compatible models include 13AC762F052, 13AB652F729, 13A3665G000, and 13BC762F000.

Please read these instructions thoroughly before beginning any work to ensure proper installation and safe operation.

Safety Information

• Always disconnect the spark plug wire before performing any maintenance or installation to prevent accidental engine starting.
• Work in a well-ventilated area when handling gasoline. Gasoline fumes are flammable and hazardous.
• Wear appropriate personal protective equipment, such as safety glasses and gloves.
• Ensure the engine is cool before working on the fuel system to avoid burns.
• Keep a fire extinguisher nearby when working with fuel.

Package Contents

Verify that all components are present in your package:

• 1x Carburetor
• 3x Gaskets (various types for installation)
• 1x Fuel Line
• 2x Fuel Filters
• 1x Fuel Shut-off Valve (if included in specific kits)

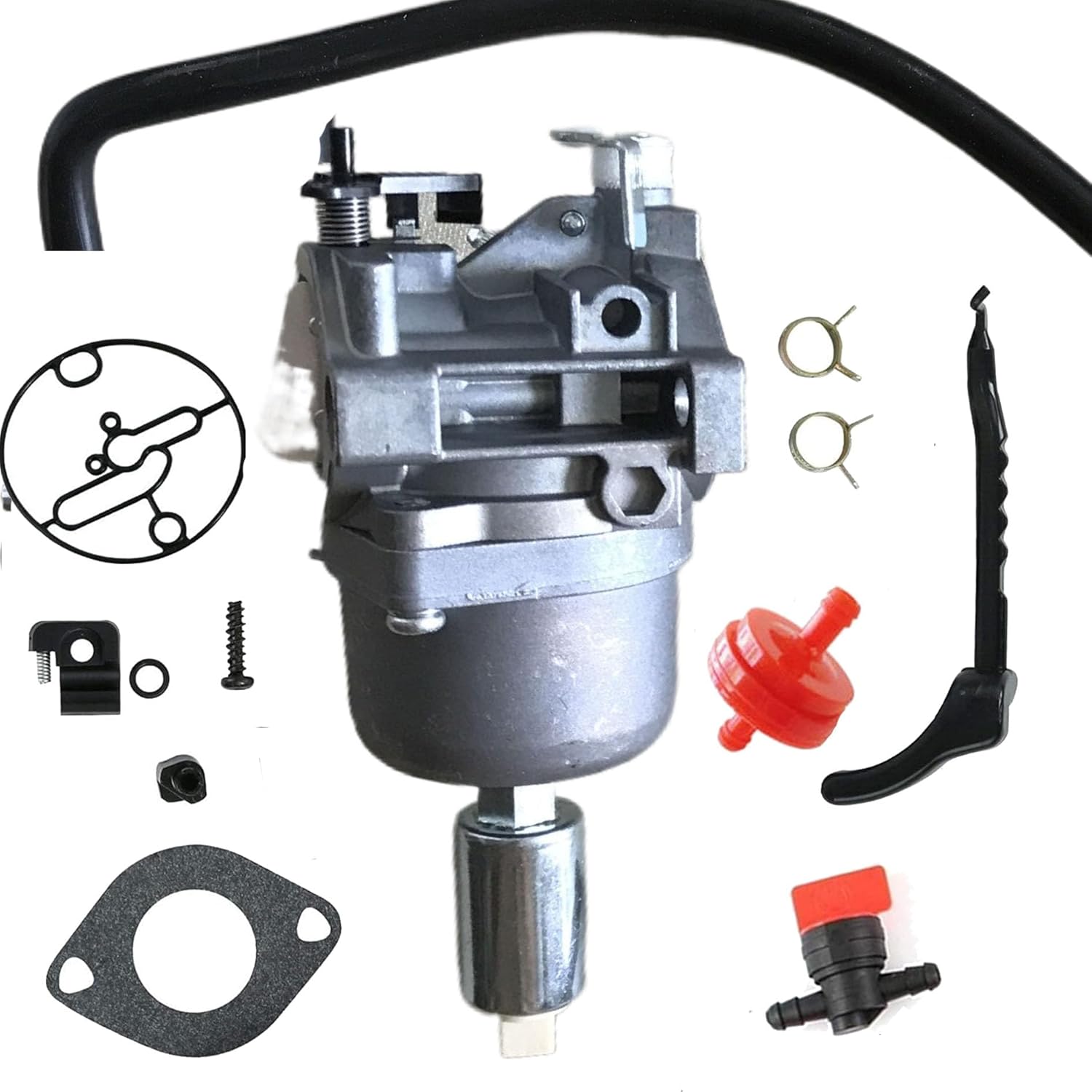

Image 1: Overview of the BXparts carburetor kit, showing the carburetor, gaskets, fuel line, fuel filters, and a fuel shut-off valve.

Setup and Installation

This section outlines the general steps for replacing your carburetor. Specific engine configurations may vary slightly. Refer to your mower's service manual for detailed engine disassembly instructions.

1. Preparation:
   • Ensure the engine is cool.
   • Disconnect the spark plug wire.
   • Turn off the fuel supply valve (if present) or clamp the fuel line.
   • Drain the fuel tank or ensure it is nearly empty to prevent spills.
2. Remove Air Filter Assembly: Carefully remove the air filter housing and air filter to access the carburetor.
3. Disconnect Linkages and Fuel Line:
   • Note the position of all linkages (throttle, choke) connected to the old carburetor. Take photos if necessary.
   • Carefully disconnect these linkages.
   • Disconnect the fuel line from the old carburetor. Be prepared for residual fuel to spill.
4. Remove Old Carburetor: Unbolt the old carburetor from the engine intake manifold. Remove any old gaskets.
5. Install New Gaskets: Place the appropriate new gaskets in position between the engine, insulator (if present), and the new carburetor. Ensure they are correctly aligned to prevent vacuum leaks.
6. Install New Carburetor: Mount the new BXparts carburetor onto the engine, securing it with the original bolts. Do not overtighten.
7. Reconnect Linkages: Reattach the throttle and choke linkages to the new carburetor in their original positions. Verify smooth operation.
8. Install New Fuel Line and Filter:
   • Replace the old fuel line with the new one provided.
   • Install one of the new fuel filters in-line on the fuel supply hose, ensuring the flow direction arrow (if present) points towards the carburetor.
   • Connect the fuel line to the carburetor.
   • If a new fuel shut-off valve is included, install it in an accessible location on the fuel line.
9. Reinstall Air Filter Assembly: Reattach the air filter housing and install a clean air filter.
10. Final Checks:
    • Double-check all connections for tightness.
    • Ensure no tools or debris are left in the engine compartment.
    • Reconnect the spark plug wire.

Image 2: Close-up of the carburetor and associated components, illustrating parts involved in installation.

Operating After Installation

1. Refuel and Open Fuel Valve: Fill the fuel tank with fresh gasoline and open the fuel shut-off valve (if installed). Allow a few minutes for the carburetor bowl to fill.
2. Start Engine: Follow your mower's standard starting procedure (e.g., set choke, engage throttle, turn key). It may take a few extra cranks for the fuel system to prime completely after a carburetor replacement.
3. Initial Run: Allow the engine to run for a few minutes to reach operating temperature. Observe for any fuel leaks or unusual engine behavior.
4. Adjustments (if necessary): Most replacement carburetors are pre-set. If the engine runs rough or stalls, minor idle speed adjustments may be required. Consult your engine's service manual for specific adjustment procedures.

Maintenance

• Fuel Filter Replacement: The fuel filter should be replaced annually or more frequently if operating in dusty conditions or if fuel contamination is suspected. Use the spare fuel filter provided in the kit.
• Fuel Line Inspection: Regularly inspect the fuel line for cracks, leaks, or hardening. Replace if any damage is observed.
• Carburetor Cleaning: If the engine experiences fuel-related issues (e.g., rough running, stalling) after extended use, the carburetor may require cleaning. This typically involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner. This procedure is advanced and should only be performed by experienced individuals.
• Fuel Quality: Always use fresh, clean gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the mower is stored for extended periods.

Troubleshooting

Specifications

• Brand: BXparts (Manufacturer) / Generic (Brand Name)
• Compatible Vehicle Type: Tractor, Lawn Tractor
• Compatible MTD Yard Machine Models: 13AC762F052, 13AB652F729, 13A3665G000, 13BC762F000
• Compatible Engine HP: 10.5HP, 13.5HP, 14.5HP, 16.5HP OHV Nikki 592226
• Included Components: 1 carburetor with gasket, 1 fuel line, 1 fuel filter, 1 fuel shut-off valve (components may vary slightly by kit)
• Exterior Finish: Aluminum

Warranty Information

This BXparts carburetor kit comes with a 3-month manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized modifications.

For warranty claims or further details, please contact your retailer or the manufacturer directly with your proof of purchase.

Support

If you encounter issues not covered in the troubleshooting section or require further assistance, please contact the seller or manufacturer. When contacting support, please have your product model number and purchase information readily available.

For additional resources, you may also refer to the service manual specific to your MTD Yard Machine model and engine.
