1. Important Safety Information
Please read and understand all instructions before assembly and use. Keep this manual for future reference.
- Assembly: Ensure all accessories are complete before assembly. Assemble the product on a soft, clean surface to prevent scratches.
- Stability: Do not allow children to climb on the furniture. Always place the table on a flat, stable surface.
- Weight Limit: Do not overload the table. The maximum load capacity is 30 kg.
- Placement: Avoid placing the table in direct sunlight or near high-temperature objects to prevent material damage.
- Cleaning: Use a dry cloth for cleaning. Avoid harsh chemicals or abrasive cleaners.
- LED Lighting: Ensure the LED lighting system is installed correctly. Do not attempt to modify the electrical components.
2. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Tabletop panels (MDF and chipboard)
- Base panels
- Drawer components (panels, slides, handle)
- LED lighting strip with remote control
- Assembly hardware (screws, dowels, connectors)
- Instruction manual
Figure 2.1: Overview of main components and features. This image illustrates the open storage area, the spacious drawer, the high-gloss finish of the desktop, and the LED lighting system with its remote control.
3. Assembly Instructions (Setup)
Assembly requires careful attention to detail. It is recommended to have two people for assembly. Follow the included detailed assembly instructions provided in the packaging for step-by-step guidance.
- Unpack and Identify: Carefully unpack all components and hardware. Compare them with the package contents list to ensure everything is present.
- Prepare Workspace: Clear a spacious area and lay down a soft cloth or cardboard to protect the furniture pieces from scratches during assembly.
- Assemble Base: Attach the base panels according to the diagrams in the separate assembly guide.
- Construct Main Frame: Connect the side and top panels to form the main structure of the coffee table.
- Install Drawer Slides: Secure the drawer slides to the designated panels.
- Assemble Drawer: Put together the drawer components and attach the handle. Insert the assembled drawer into the slides.
- Install LED Lighting: Carefully attach the LED strip to the designated area, typically along the open compartment. Connect the power supply.
- Final Checks: Ensure all screws are tightened, and the table is stable.
Figure 3.1: Product dimensions in centimeters. This diagram provides precise measurements for the overall table, including its length, width, and height, as well as internal dimensions for the drawer and open storage areas.
4. Operating Instructions
4.1. Using the Drawer and Open Compartments
The coffee table features one drawer and open storage compartments for convenient organization.
- Drawer: Gently pull the drawer handle to open. Push to close. Avoid forcing the drawer if it feels stuck.
- Open Compartments: These areas are ideal for storing magazines, books, remote controls, or decorative items.
Figure 4.1: Coffee table with drawer open. This image demonstrates the functional drawer, providing accessible storage for various items.
4.2. LED Lighting System
The integrated 4-color LED lighting system offers 15 different color patterns to enhance your living space.
- Power On/Off: Use the provided remote control to turn the LED lights on or off.
- Color Selection: The remote control allows you to cycle through 4 primary colors and 15 different color patterns. Refer to the remote control's specific instructions for detailed operation.
- Brightness Adjustment: Adjust the brightness levels using the remote control.
5. Maintenance
Proper care will ensure the longevity and appearance of your coffee table.
- Cleaning: Wipe the surface with a dry, soft cloth. For stubborn marks, a slightly damp cloth followed by a dry cloth can be used. Avoid using abrasive cleaners, solvents, or polishes containing silicone.
- Spills: Immediately wipe up any spills to prevent moisture damage to the engineered wood.
- Protection: Use coasters under drinks and placemats under hot items to protect the surface.
- LED Care: Keep the LED strip clean and free from dust. Do not attempt to replace individual LEDs.
6. Troubleshooting
If you encounter any issues, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Table is wobbly/unstable. | Loose connections; uneven floor. | Check and tighten all screws. Ensure the table is on a flat surface. |
| Drawer does not slide smoothly. | Misaligned drawer slides; obstruction; loose screws. | Verify drawer slide alignment. Check for any objects blocking the path. Tighten all drawer screws. |
| LED lights are not working. | Power connection issue; remote control battery dead; LED strip damage. | Ensure the power adapter is securely plugged in. Check remote control battery. If issues persist, contact customer support. |
| Difficulty during assembly (e.g., misaligned holes). | Manufacturing variation; user error. | Double-check the assembly instructions and diagrams. If parts are genuinely misaligned or defective, contact customer support for replacement parts. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | PUGSDRLY |
| Model Number | 530707 |
| Dimensions (L x W x H) | 95 cm x 55 cm x 32 cm |
| Main Material | Engineered Wood (MDF and Chipboard) |
| Color | Black |
| Product Weight | 22 kg |
| Load Capacity | 30 kg |
| Special Features | 1 Drawer, Open Storage Compartments, 4-Color LED Lighting (15 patterns) with Remote Control |
| Country of Origin | China |

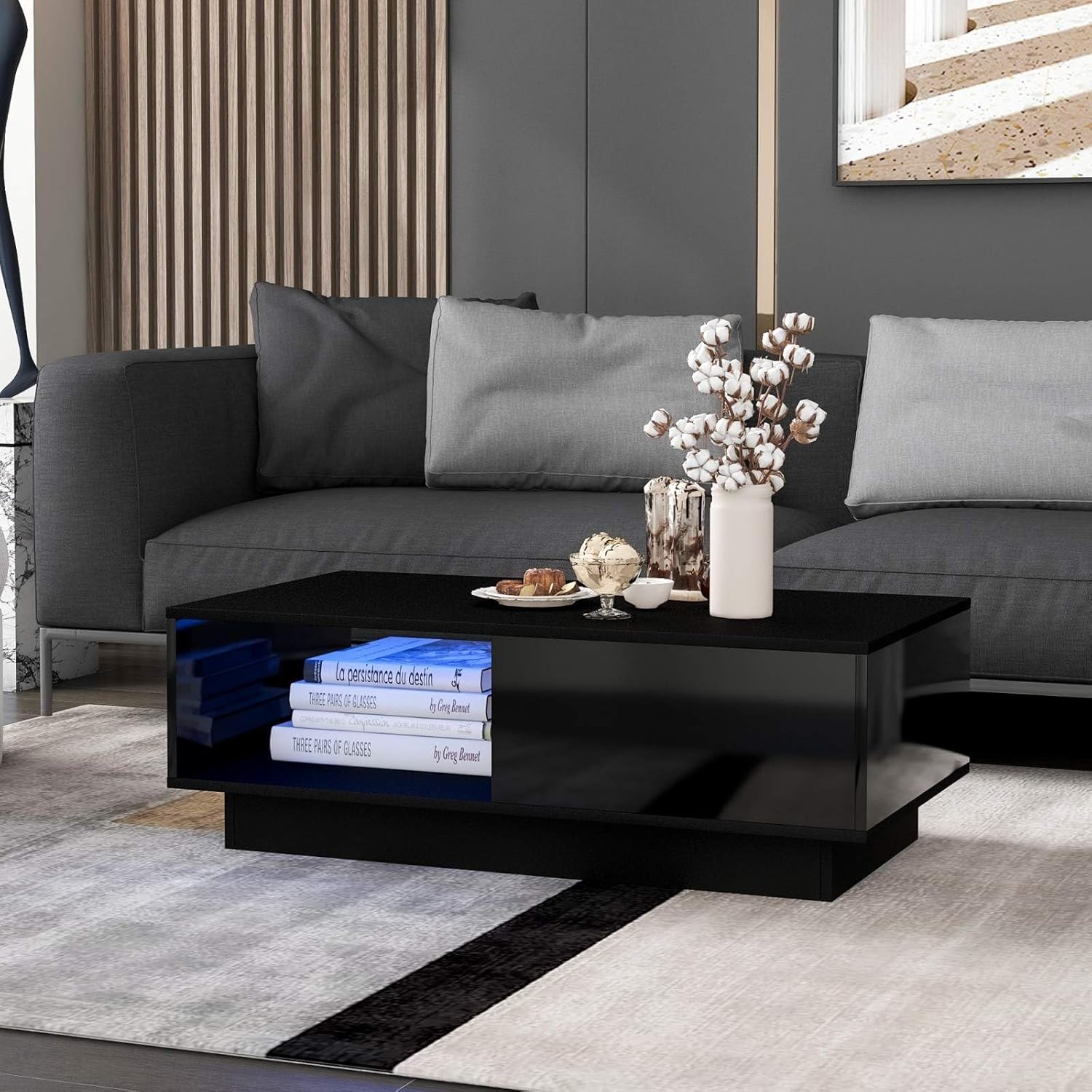

Figure 7.1: PUGSDRLY Modern Coffee Table in a living room. This image showcases the assembled coffee table with its sleek design, integrated LED lighting, and functional storage, complementing a modern interior.
8. Warranty and Support
This product is manufactured with quality materials and workmanship. For any warranty claims, missing parts, or technical assistance, please contact the seller or retailer from whom you purchased the product.
Please retain your proof of purchase for any warranty-related inquiries.
For further assistance, refer to the contact information provided by your retailer or visit the PUGSDRLY official support channels if available.
