Super73 Y1/S2 Center Panel Luggage Rack User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your DFFMQSJ Super73 Y1/S2 Center Panel Luggage Rack. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Overview

The DFFMQSJ Center Panel Luggage Rack is designed to enhance the cargo carrying capabilities of your Super73 Y1/S2 electric bike. Constructed from durable aluminum alloy, it provides a sturdy and reliable storage solution for various items.

Key Features:

• Large Capacity: Designed to accommodate significant cargo, such as shopping bags, school bags, laptops, small bicycle helmets, and outdoor supplies.
• Sturdy Construction: Made from heavy-duty aluminum alloy for durability and long-term reliability in various weather conditions.
• Easy Installation: Features a punch-free design for quick and straightforward attachment to your electric bike without complex tools.
• Customizable Appearance: The black finish allows for personalization with decals or other modifications.

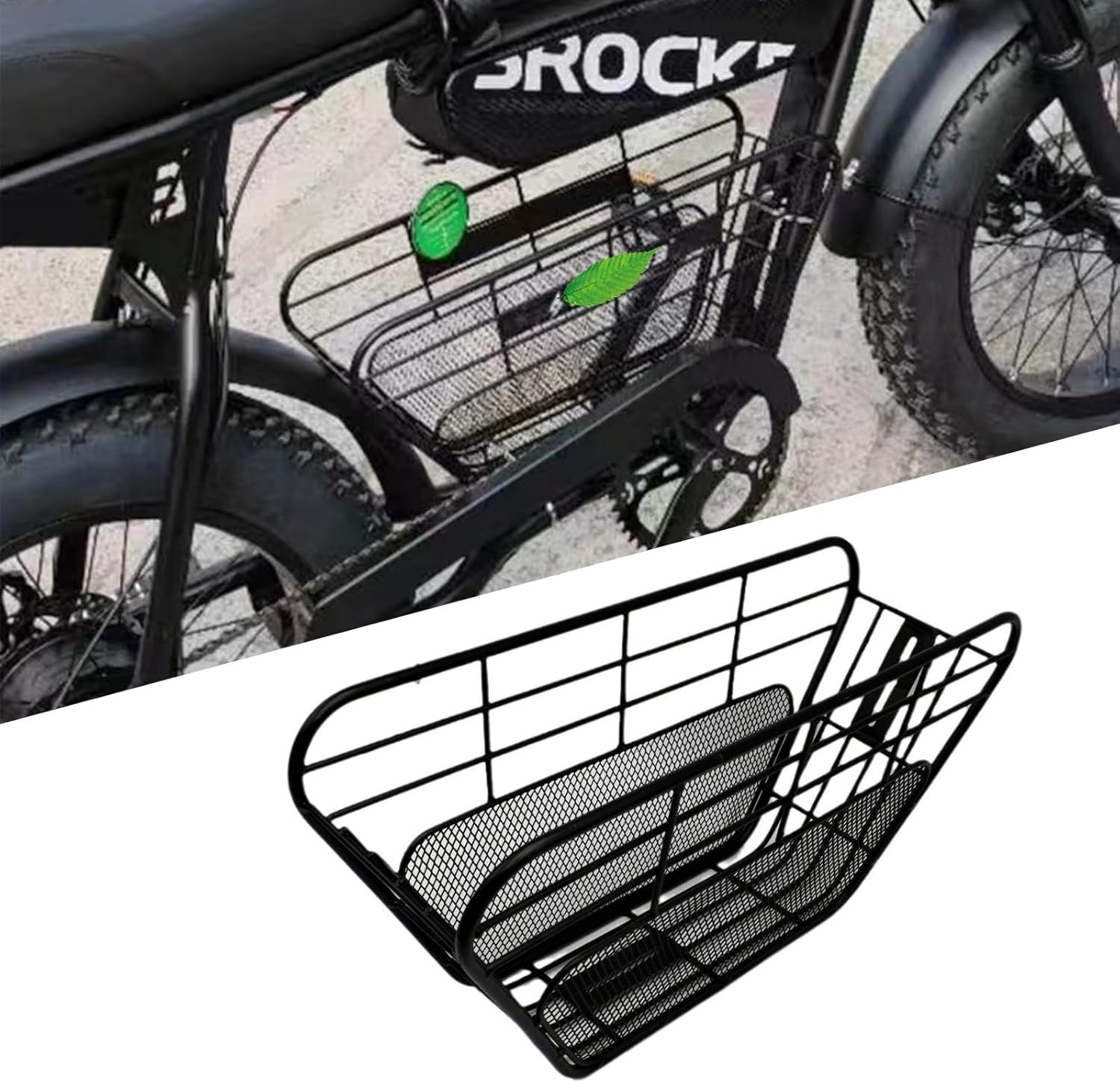

Figure 2.1: The DFFMQSJ Center Panel Luggage Rack shown installed on a Super73 electric bike, demonstrating its position and integration with the bike's frame.

3. Specifications

Figure 3.1: Detailed dimensions of the luggage rack, showing length, height, and width measurements.

4. Setup and Installation

The DFFMQSJ Center Panel Luggage Rack is designed for straightforward, punch-free installation. Follow these steps to attach the rack to your Super73 Y1/S2 electric bike.

Installation Steps:

1. Unpack Components: Carefully remove all components from the packaging. Verify that all parts are present and undamaged.
2. Position the Rack: Align the luggage rack with the designated mounting points on the center panel of your Super73 Y1/S2 electric bike. Ensure the rack is oriented correctly.
3. Secure Mounting Points: Attach the rack using the provided hardware. Tighten all fasteners securely, but do not overtighten, to prevent damage to the bike frame or the rack.
4. Verify Stability: Once installed, gently shake the rack to ensure it is firmly attached and does not wobble. Re-tighten fasteners if necessary.

Note: Installation instructions are typically included with the product. Refer to those specific instructions for detailed diagrams and hardware information. Ensure this part fits your motorcycle before bidding/purchasing.

Figure 4.1: Side view of the luggage rack mounted on a Super73 electric bike, illustrating its integration with the bike's design.

Figure 4.2: Frontal perspective of the luggage rack on a Super73 electric bike, showing its position relative to the handlebars and front wheel.

5. Operating Instructions

Once installed, the luggage rack is ready for use. Observe the following guidelines for optimal performance and safety:

• Load Capacity: Do not exceed the maximum weight capacity of 8 kg (approximately 17.6 lbs). Overloading can compromise stability and damage the rack or bike.
• Secure Cargo: Always secure items placed in the rack using bungee cords, nets, or straps to prevent them from shifting or falling during transit.
• Weight Distribution: Distribute weight evenly within the rack to maintain bike balance and handling.
• Regular Checks: Before each ride, ensure that the rack is securely attached and that all fasteners are tight.

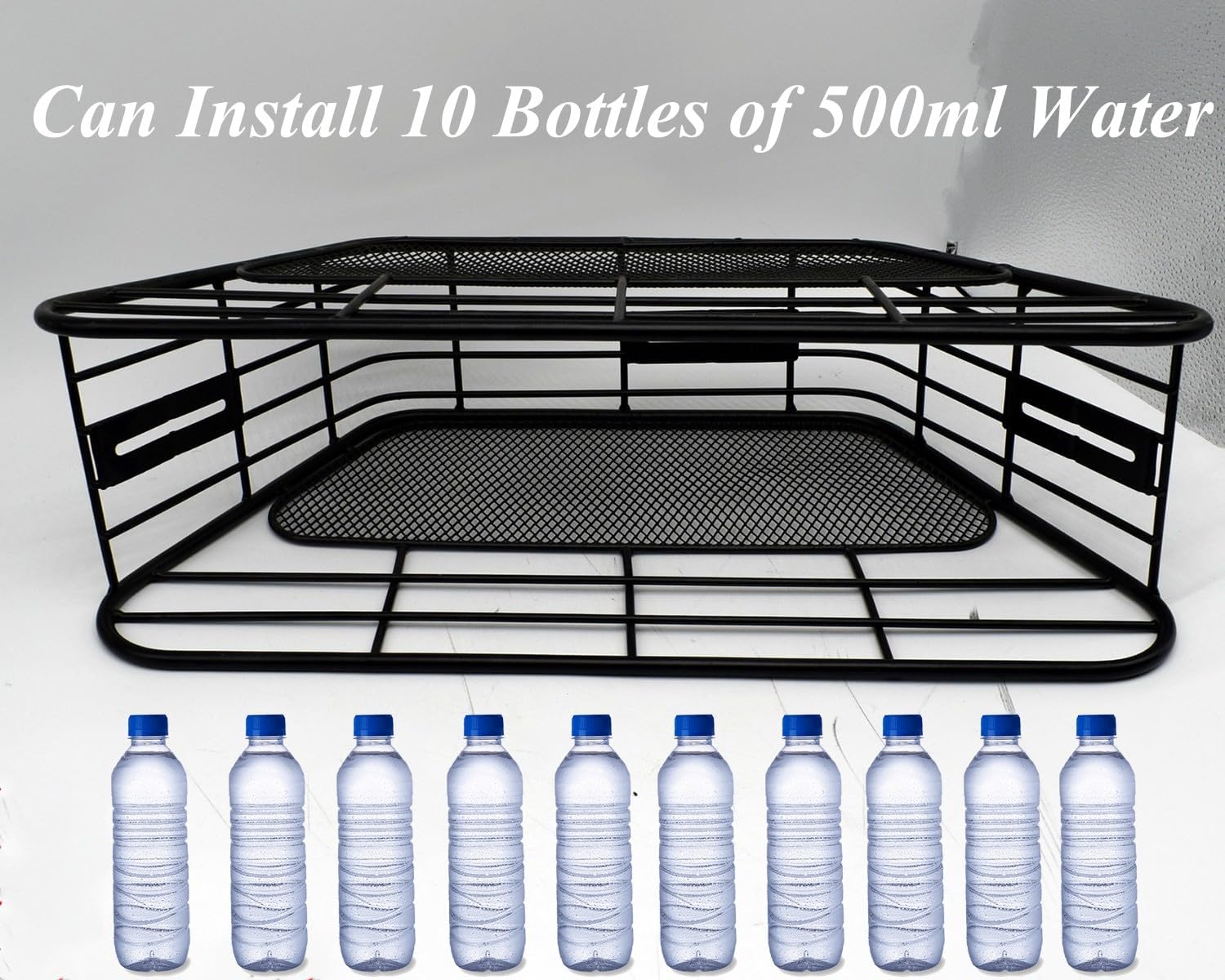

Figure 5.1: Visual representation of the luggage rack's capacity, demonstrating it can hold approximately ten 500ml water bottles.

6. Maintenance

Proper maintenance will extend the lifespan of your luggage rack and ensure continued safe operation.

• Cleaning: Clean the rack regularly with a damp cloth and mild soap. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspection: Periodically inspect the rack for any signs of wear, damage, or corrosion. Check all welds and connection points.
• Fastener Check: Regularly check and tighten all mounting bolts and screws to ensure the rack remains securely attached to the bike.
• Storage: If removing the rack for extended periods, store it in a dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

This section addresses common issues you might encounter with your luggage rack.

• Rack is Loose/Wobbles:
  • Ensure all mounting bolts are securely tightened.
  • Verify that the rack is correctly aligned with the bike's mounting points.
• Difficulty Installing:
  • Refer to the included installation instructions for detailed diagrams.
  • Confirm that the product is compatible with your specific Super73 Y1/S2 model.
• Noise from Rack:
  • Check for loose fasteners and tighten them.
  • Ensure cargo is properly secured and not rattling against the rack.

8. Warranty and Support

For any questions, concerns, or support needs regarding your DFFMQSJ Super73 Y1/S2 Center Panel Luggage Rack, please contact the manufacturer or seller directly. Information regarding specific warranty terms and conditions can typically be found on the product packaging or the seller's official website.

Manufacturer: DFFMQSJ

For additional support, visit the DFFMQSJ Store on Amazon.
