Fun Memories Floating Shelves Instruction Manual

1. Introduction

Thank you for choosing Fun Memories Floating Shelves. These 55"x9.3" rustic solid live-edge elm wood wall shelves are designed to add both style and functionality to your living space. Crafted from sustainably sourced FSC-certified elm wood, they feature a heavy-duty hidden bracket system for secure installation. This manual provides detailed instructions for safe and proper assembly, usage, and maintenance.

2. Safety Information

Read All Instructions: Before installation, carefully read and understand all instructions provided in this manual.
Proper Installation: Ensure the shelf is securely mounted into wall studs for maximum stability and weight capacity. Failure to do so may result in the shelf detaching from the wall and causing injury or damage.
Weight Capacity: Do not exceed the maximum weight capacity of 60 pounds. Overloading the shelf can lead to structural failure.
Child Safety: Ensure the shelf is installed at an appropriate height and items are placed securely to prevent accidents involving children. The set screws underneath help hold the shelf in place.
Wall Type: This product is designed for installation into standard 16" wall studs. While drywall anchors are included, direct stud mounting is highly recommended for heavy items.

3. Package Contents

Verify that all components are present before beginning installation:

1 x Elm Wood Floating Shelf (55"W x 9.3"D x 1.4"H)
1 x Heavy-Duty Hidden Toro Bracket
1 x Magnetic Level
Self-tapping Drywall Anchors
Screws
Detailed Installation Instructions

Package contents including elm wood shelf, hidden bracket, and hardware — Image: All components included in the package for the Fun Memories Floating Shelf.

4. Specifications

Feature	Detail
Material	FSC-Certified Solid Elm Wood
Dimensions (D x W x H)	9.3"D x 55"W x 1.4"H
Weight Capacity (Maximum)	60 Pounds (when mounted into wall studs)
Mounting Type	Wall Mount (Invisible Brackets)
Shelf Type	Live Edge Floating Shelf
Number of Shelves	1
Color	Natural Finish
Model Number	FS-YMBGZ32

Product specifications showing dimensions and weight capacity — Image: Visual representation of the shelf's dimensions and weight capacity.

5. Setup & Installation

Tools Recommended: Drill, Pencil, Stud Finder (highly recommended), Measuring Tape.

Locate Wall Studs: Use a stud finder to locate and mark the positions of wall studs. The hidden Toro bracket is designed to align with standard 16" wall studs for optimal support.
Mark Drill Points: Hold the bracket against the wall at your desired height and use a pencil to mark the drill points through the bracket's holes. Ensure the bracket is level using the included magnetic level.
Drill Pilot Holes: Drill pilot holes at the marked locations. If mounting into drywall without studs, use the provided self-tapping drywall anchors. For stud mounting, drill directly into the studs.
Attach Bracket: Securely attach the hidden Toro bracket to the wall using the provided screws. Ensure it is firmly fastened and level.
Mount Shelf: Slide the elm wood shelf onto the rods of the installed bracket. The shelf should fit snugly against the wall, creating a seamless floating appearance.
Secure Shelf: Locate the pre-drilled holes on the underside of the shelf. Insert and tighten the set screws to secure the shelf to the bracket, preventing any movement.

Step-by-step installation guide for floating shelves — Image: Detailed steps for mounting the floating shelf, including marking, drilling, and securing.

Close-up of the heavy-duty hidden Toro bracket — Image: The heavy-duty hidden Toro bracket ensures strong support for the shelf.

Diagram showing installation options for drywall, brick, and wood — Image: Multi-option installation scenario for various wall types.

Video: An overview of the Fun Memories 9.3" Deep Solid Wood Floating Shelves, including installation demonstration.

Video: See how Fun Memories Wood Floating Shelves can transform your space with their easy installation.

6. Usage

These versatile floating shelves are ideal for displaying books, plants, decorative items, and more. Their 9.3" depth provides ample space for various objects. They are suitable for use in living rooms, bedrooms, kitchens, bathrooms, and home offices. Always ensure that the total weight of items placed on the shelf does not exceed the 60-pound weight capacity to maintain stability and safety.

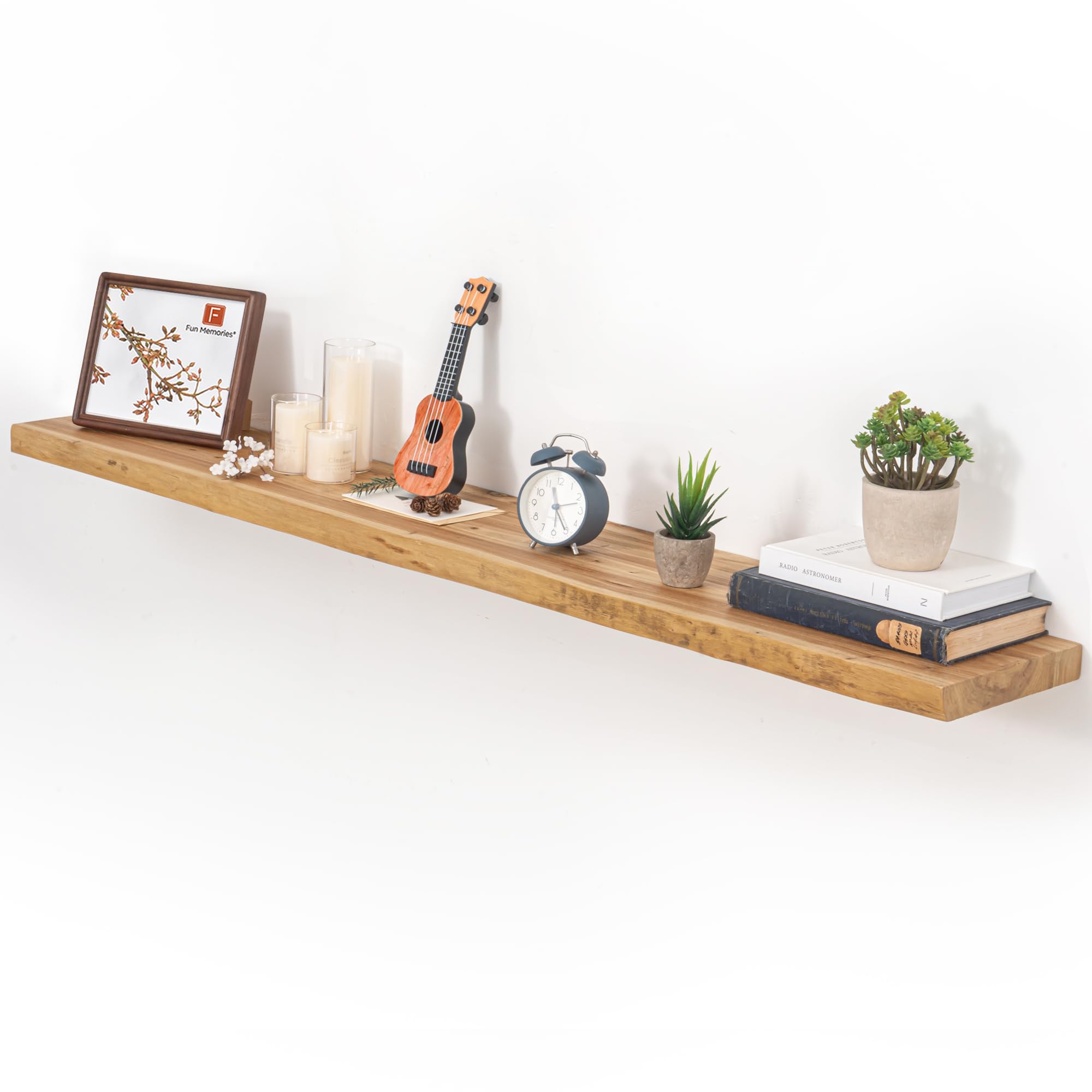

Fun Memories Floating Shelves in a living room setting — Image: Fun Memories Floating Shelves elegantly displayed in a living room, showcasing their versatility.

7. Maintenance

To maintain the beauty and longevity of your Fun Memories Floating Shelves, simply wipe them with a clean, dry cloth as needed. Avoid using harsh chemicals or abrasive cleaners, which can damage the wood's natural finish.

8. Troubleshooting

Shelf Appears Loose or Sags:
- Ensure the hidden bracket is securely fastened to wall studs. Drywall anchors alone may not provide sufficient support for heavy loads.
- Verify that the set screws underneath the shelf are fully tightened to prevent movement.
- Check that the total weight on the shelf does not exceed 60 pounds.
Difficulty with Included Hardware:
- If the provided drywall anchors or screws do not seem suitable for your specific wall type or desired load, consider purchasing higher-grade hardware from a local hardware store. Always consult with a professional if unsure about installation.

9. Warranty & Support

Solid Quality Guarantee: Fun Memories stands by the quality of our products. If your shelves are not exactly as described, please contact us. Our dedicated support team is always ready to assist with any questions or concerns you may have regarding your purchase.

For assistance, please visit the Fun Memories Store on Amazon or contact our customer support directly.

Fun Memories FS-YMBGZ32
